Features
- Supply Current: 12μA at 100kHz
- <0.65% Frequency Accuracy (from 0°C to 70°C)
- Frequency Range: 10kHz to 1MHz
- One Resistor Sets the Oscillator Frequency
- Single Supply: 2.25V to 5.5V
- –40°C to 125°C Operating Temperature Range
- No Decoupling Capacitor Needed
- Start-Up Time Under 200μs at 1MHz
- First Cycle After Power-Up is Accurate
- 150Ω CMOS Output Driver
- Low Profile (1mm) SOT-23 (ThinSOT™) Package
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}

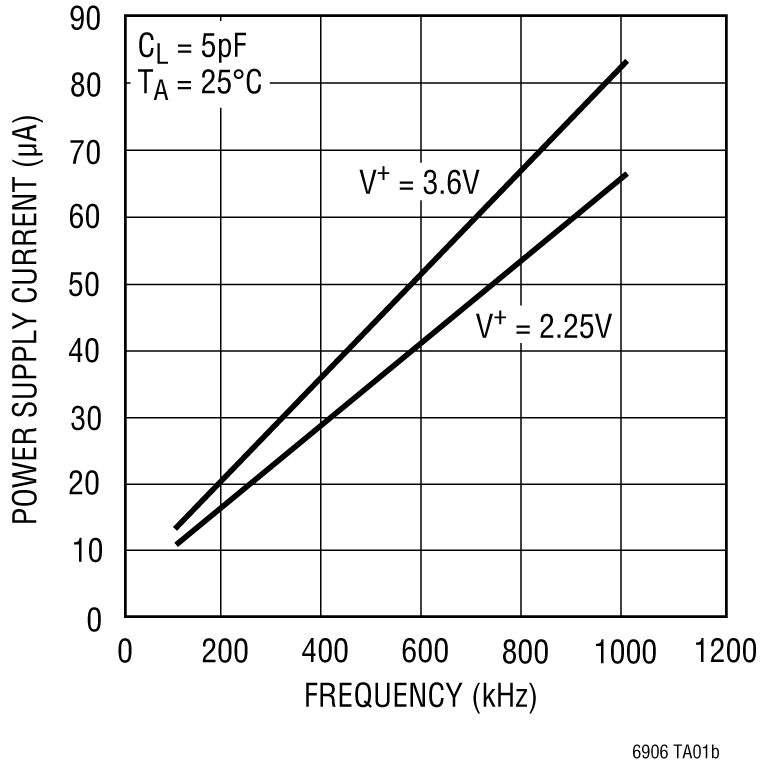

The LTC6906 is a precision programmable oscillator that is versatile, compact and easy-to-use. Micropower operation benefits portable and battery-powered equipment. At 100kHz, the LTC6906 consumes 12µA on a 3.3V supply.
A single resistor programs the oscillator frequency over a 10:1 range with better than 0.5% initial accuracy. The output frequency can be divided by 1, 3 or 10 to span a 100:1 total frequency range, 10kHz to 1MHz.
No decoupling capacitor is needed in most cases, yielding an extremely compact solution occupying less than 20mm2. Contact LTC Marketing for a version of the part with a shutdown feature or lower frequency operation.

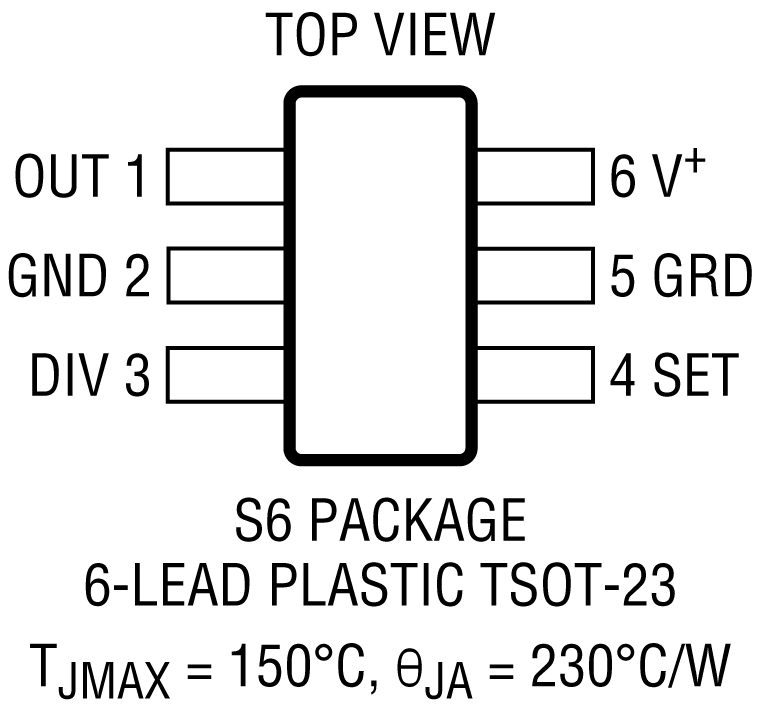

The LTC6906 is available in the 6-lead SOT-23 (ThinSOT) package.
APPLICATIONS
- Low Cost Precision Programmable Oscillator
- Rugged, Compact Micropower Replacement for Crystal and Ceramic Oscillators
- High Shock and Vibration Environments
- Portable and Battery-Powered Equipment
- PDAs and Cellular Phones
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
LTC6906
Documentation
Filters
1 Applied
-
All
-
Reliability Data
-
User Guide
-
Data Sheet
-
Technical Articles
-
All
-
English
-
Japanese
Data Sheet
2
Reliability Data
1
45.42 K
User Guide
1
583.00K
Technical Articles
4
HTML
HTML
HTML
HTML
Documentation
Data Sheet 1
Reliability Data 1
User Guide 1
Technical Articles 3
Product Selector Card 1
Press Release 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| LTC6906CS6#TRMPBF |
6-Lead TSOT-23
|
|
|
| LTC6906CS6#TRPBF |
6-Lead TSOT-23
|
|
|
| LTC6906HS6#TRMPBF |
6-Lead TSOT-23
|
|
|
| LTC6906HS6#TRPBF |
6-Lead TSOT-23
|
|
|
| LTC6906IS6#TRMPBF |
6-Lead TSOT-23
|
|
|
| LTC6906IS6#TRPBF |
6-Lead TSOT-23
|
|
- LTC6906CS6#TRMPBF
- Pin/Package Drawing
-
6-Lead TSOT-23
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC6906CS6#TRPBF
- Pin/Package Drawing
-
6-Lead TSOT-23
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC6906HS6#TRMPBF
- Pin/Package Drawing
-
6-Lead TSOT-23
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC6906HS6#TRPBF
- Pin/Package Drawing
-
6-Lead TSOT-23
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC6906IS6#TRMPBF
- Pin/Package Drawing
-
6-Lead TSOT-23
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC6906IS6#TRPBF
- Pin/Package Drawing
-
6-Lead TSOT-23
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Software & Part Ecosystem
Evaluation Kits 1
DC2073B-H

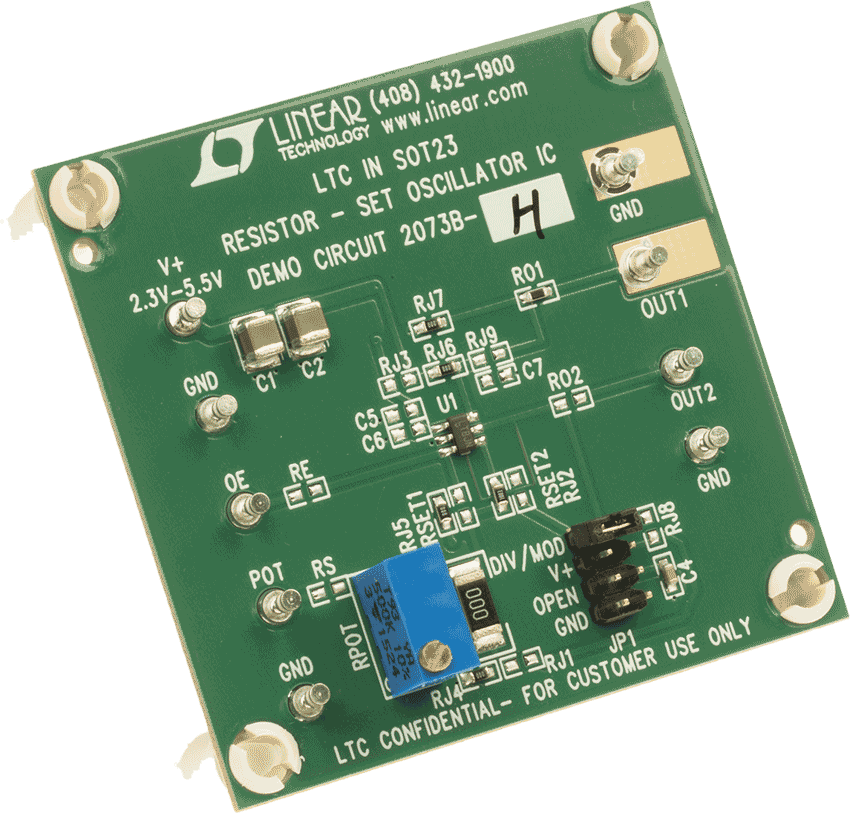

LTC6906 Silicon Oscillator Demo Board
