LT3753

Active Clamp Synchronous Forward Controller

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Part Models 8
1ku List Price Starting From $3.83
Features
  • Input Voltage Range: 8.5V to 100V
  • Programmable Volt-Second Clamp
  • High Efficiency Control: Active Clamp, Synchronous Rectification, Programmable Delays
  • Short-Circuit (Hiccup Mode) Overcurrent Protection
  • Programmable Soft-Start/Stop
  • Programmable OVLO and UVLO with Hysteresis
  • Programmable Frequency (100kHz to 500kHz)
  • Synchronizable to an External Clock
Additional Details
show more Icon

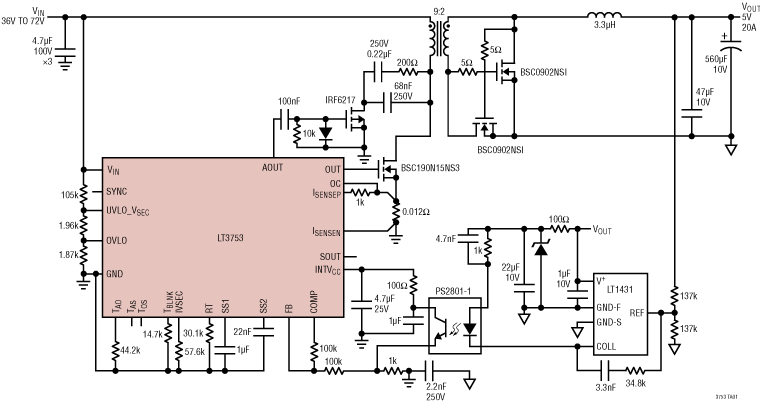

The LT3753 is a current mode PWM controller optimized for an active clamp forward converter topology, allowing up to 100V input operation.

A programmable volt-second clamp allows primary switch duty cycles above 50% for high switch, transformer and rectifier utilization. Active clamp control reduces switch voltage stress and increases efficiency. A synchronous output is available for controlling secondary side synchronous rectification.

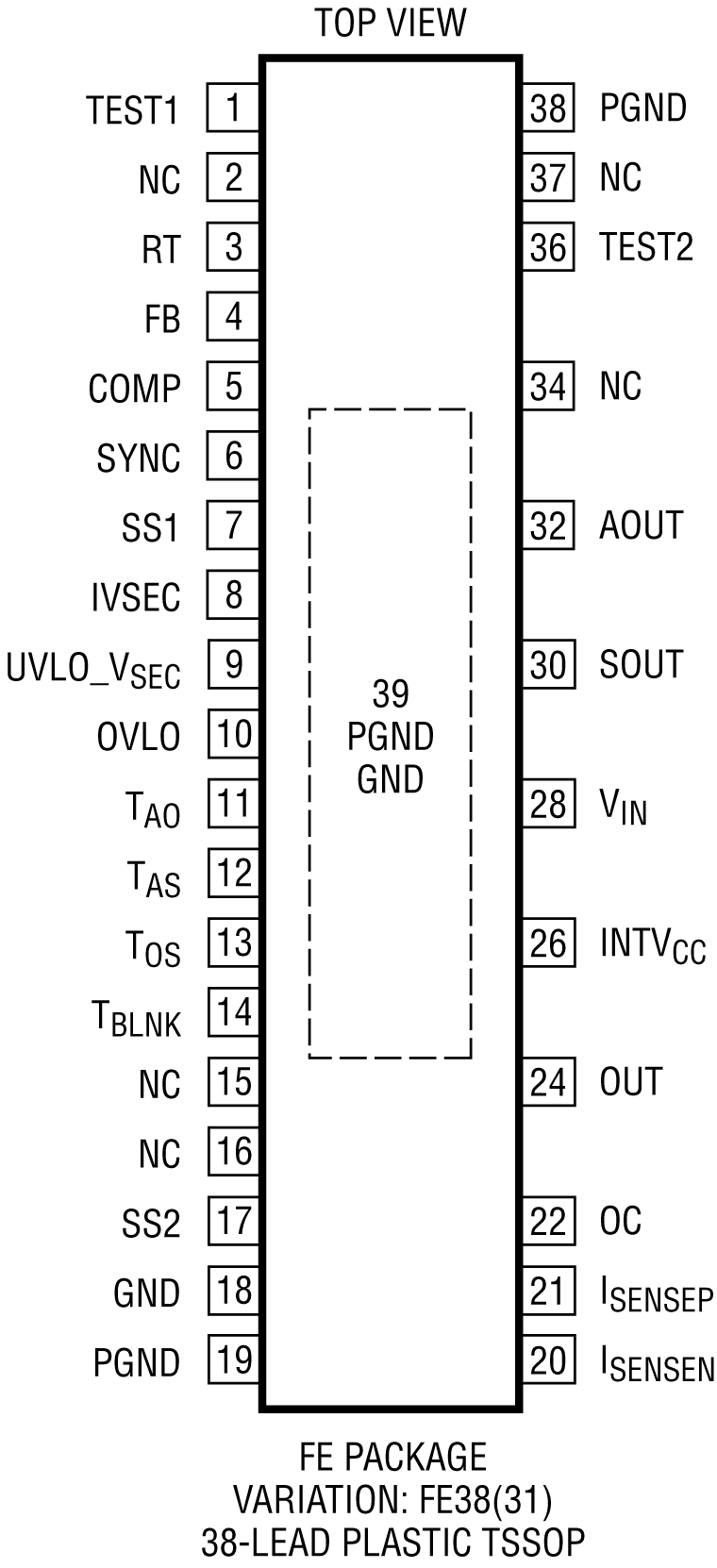

The LT3753 is available in a 38-lead plastic TSSOP package with missing pins for high voltage spacings.

Applications

  • Industrial, Automotive and Military Systems
  • 48V Telecommunication Isolated Power Supplies
Part Models 8
1ku List Price Starting From $3.83

close icon
Documentation

Documentation

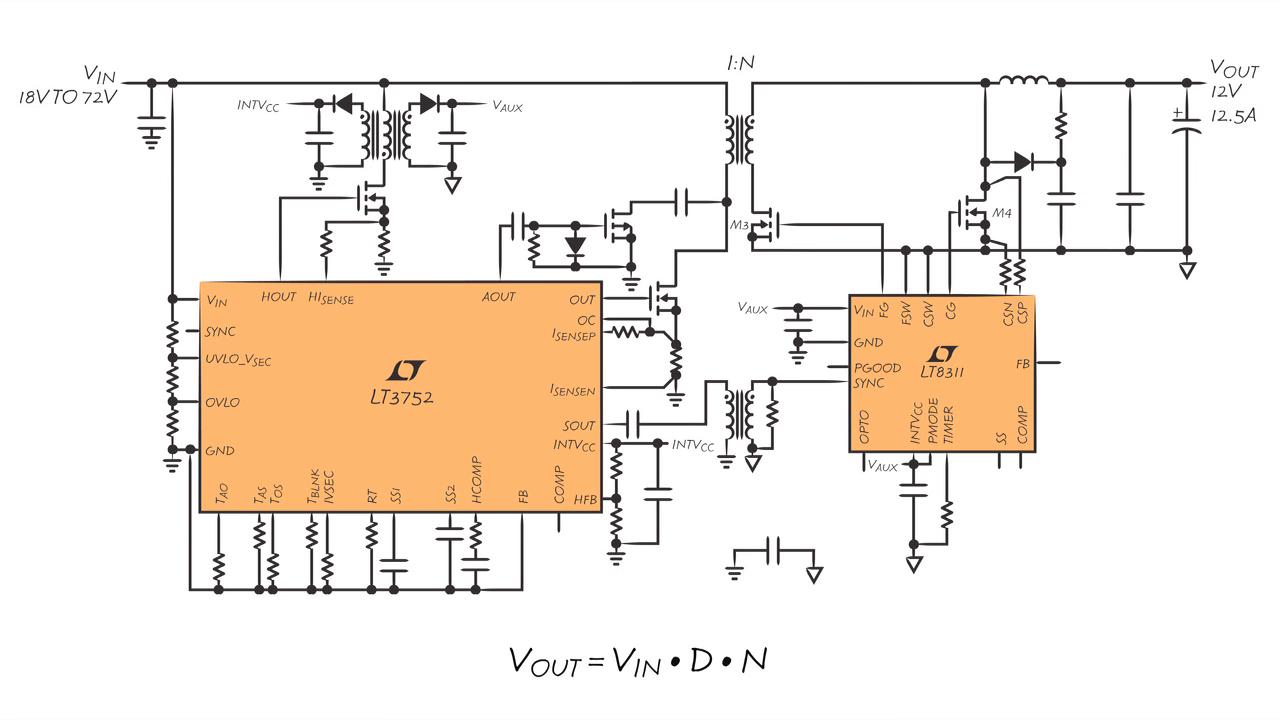

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LT3753EFE#PBF
  • HTML
  • HTML
LT3753EFE#TRPBF
  • HTML
  • HTML
LT3753HFE#PBF
  • HTML
  • HTML
LT3753HFE#TRPBF
  • HTML
  • HTML
LT3753IFE#PBF
  • HTML
  • HTML
LT3753IFE#TRPBF
  • HTML
  • HTML
LT3753MPFE#PBF
  • HTML
  • HTML
LT3753MPFE#TRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 6, 2022

- 22_0068

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LT3753EFE#PBF

PRODUCTION

LT3753EFE#TRPBF

PRODUCTION

LT3753HFE#PBF

PRODUCTION

LT3753HFE#TRPBF

PRODUCTION

LT3753IFE#PBF

PRODUCTION

LT3753IFE#TRPBF

PRODUCTION

LT3753MPFE#PBF

PRODUCTION

LT3753MPFE#TRPBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 6, 2022

- 22_0068

arrow down

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LT3753EFE#PBF

PRODUCTION

LT3753EFE#TRPBF

PRODUCTION

LT3753HFE#PBF

PRODUCTION

LT3753HFE#TRPBF

PRODUCTION

LT3753IFE#PBF

PRODUCTION

LT3753IFE#TRPBF

PRODUCTION

LT3753MPFE#PBF

PRODUCTION

LT3753MPFE#TRPBF

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 5

reference details image

DC2324A-B

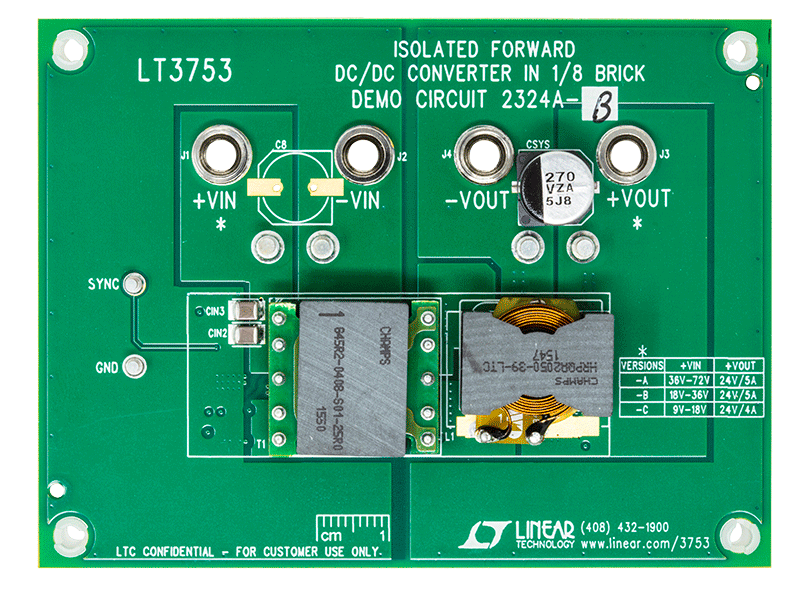

LT3753EFE Demo Board | Isolated Forward Converter, 18V ≤ VIN ≤ 36V; VOUT = 24V @ 5A

zoom

DC2324A-B

LT3753EFE Demo Board | Isolated Forward Converter, 18V ≤ VIN ≤ 36V; VOUT = 24V @ 5A

LT3753EFE Demo Board | Isolated Forward Converter, 18V ≤ VIN ≤ 36V; VOUT = 24V @ 5A

Product Detail

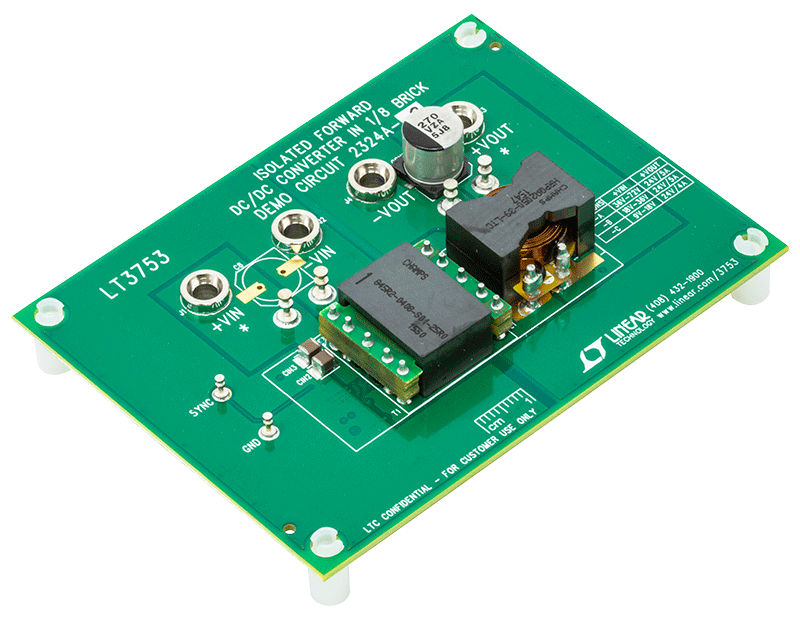

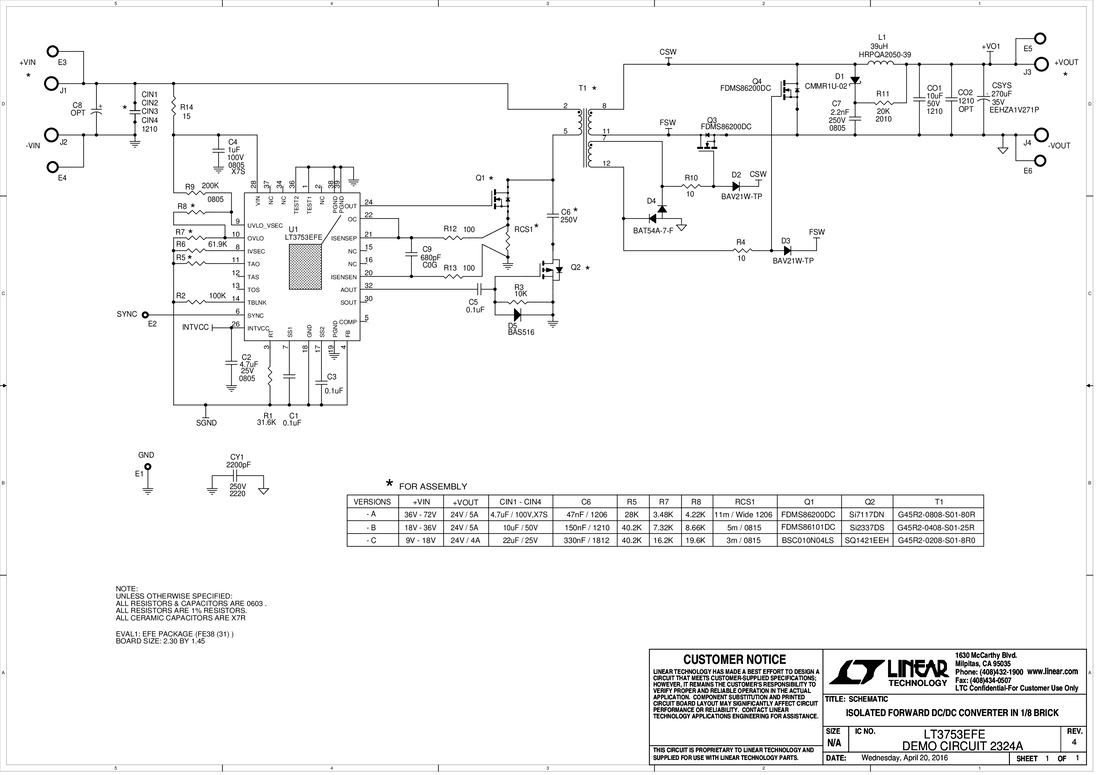

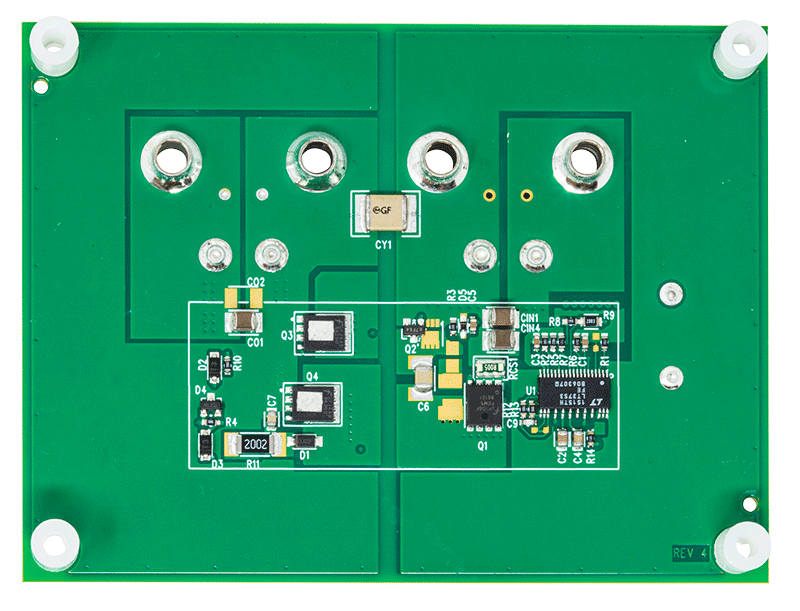

Demonstration circuits 2324A-A, 2324A-B, and 2324A-C are active clamp forward converters with synchronous rectification featuring the LT3753.


These circuits were designed to demonstrate the high level of performance, efficiency and small solution size attainable using this part. They operate at 240kHz. The DC2324A-A produces a 24V/5A output from an input voltage range of 36V to 72V. The DC2324A-B produces a 24V/5A output from an input voltage range of 18V to 36V. The DC2324A-C produces a 24V/4A output from an input voltage range of 9V to 18V, making it suitable for telecom, industrial and other isolated power supply applications. They all have an eighth-brick footprint area. Synchronous rectification helps to attain efficiency exceeding 94% (exceeding 95% for the DC2324A-A and DC2324A-B).

reference details image

DC2050A

LT3753EFE Isolated Demo Board | Synchronous Forward Controller with Active Clamp, 36V ≤ VIN ≤ 72V; VOUT = 5V @ 20A

zoom

DC2050A

LT3753EFE Isolated Demo Board | Synchronous Forward Controller with Active Clamp, 36V ≤ VIN ≤ 72V; VOUT = 5V @ 20A

LT3753EFE Isolated Demo Board | Synchronous Forward Controller with Active Clamp, 36V ≤ VIN ≤ 72V; VOUT = 5V @ 20A

Product Detail

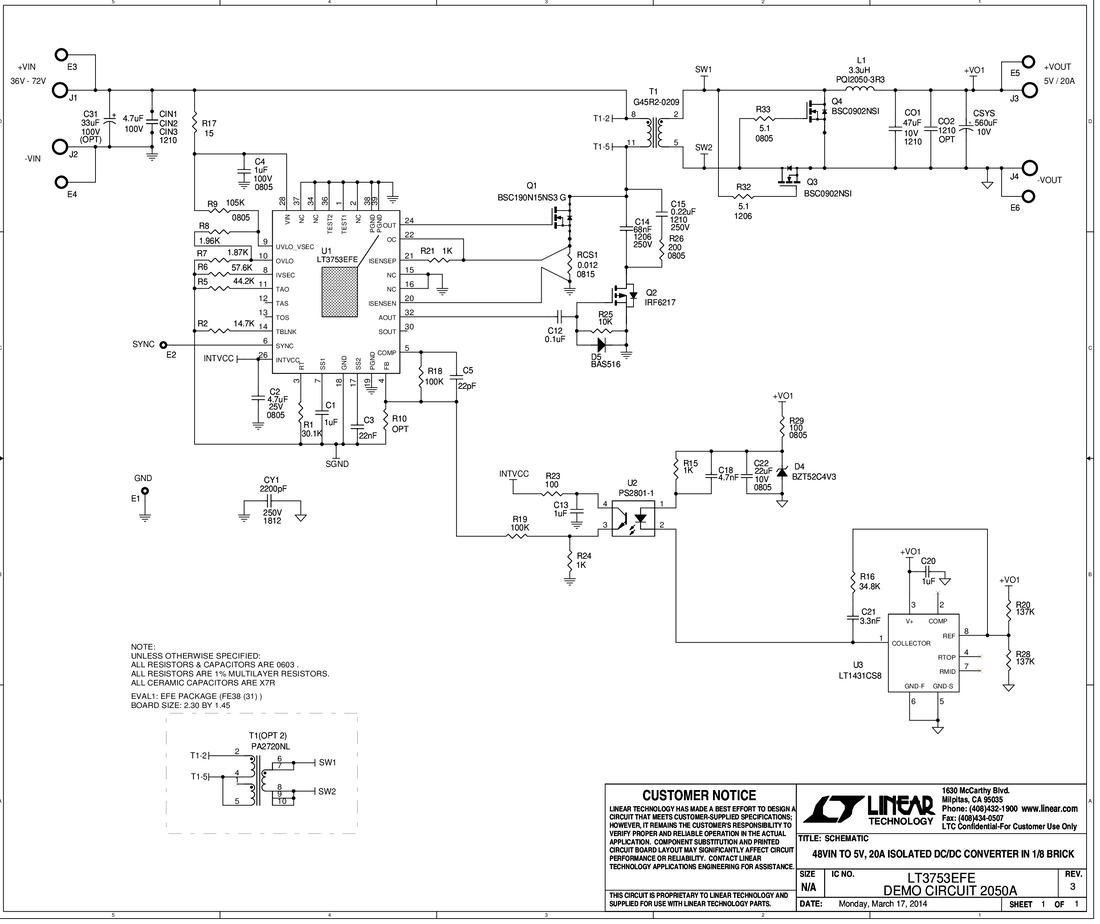

Demonstration circuit 2050A is an active clamp forward converter with synchronous rectification featuring the LT3753. This circuit was designed to demonstrate the high level of performance, efficiency, and small solution size attainable using this part. It operates at 250kHz and produces a regulated 5V, 20A output from an input voltage range of 36V to 72V: suitable for telecom, industrial, and other applications. It has an eighth-brick footprint area. Synchronous rectification helps to attain efficiency exceeding 94%.

reference details image

DC2324A-A

LT3753EFE Demo Board | Isolated Forward Converter, 36V ≤ VIN ≤ 72V; VOUT = 24V @ 5A

zoom

DC2324A-A

LT3753EFE Demo Board | Isolated Forward Converter, 36V ≤ VIN ≤ 72V; VOUT = 24V @ 5A

LT3753EFE Demo Board | Isolated Forward Converter, 36V ≤ VIN ≤ 72V; VOUT = 24V @ 5A

Product Detail

Demonstration circuits 2324A-A, 2324A-B, and 2324A-C are active clamp forward converters with synchronous rectification featuring the LT3753.


These circuits were designed to demonstrate the high level of performance, efficiency and small solution size attainable using this part. They operate at 240kHz. The DC2324A-A produces a 24V/5A output from an input voltage range of 36V to 72V. The DC2324A-B produces a 24V/5A output from an input voltage range of 18V to 36V. The DC2324A-C produces a 24V/4A output from an input voltage range of 9V to 18V, making it suitable for telecom, industrial and other isolated power supply applications. They all have an eighth-brick footprint area. Synchronous rectification helps to attain efficiency exceeding 94% (exceeding 95% for the DC2324A-A and DC2324A-B).

reference details image

DC2324A-C

LT3753EFE Isolated Demo Board | Sync Forward Controller with Active Clamp, 9V ≤ VIN ≤ 18V; VOUT = 24V @ 4A

zoom

DC2324A-C

LT3753EFE Isolated Demo Board | Sync Forward Controller with Active Clamp, 9V ≤ VIN ≤ 18V; VOUT = 24V @ 4A

LT3753EFE Isolated Demo Board | Sync Forward Controller with Active Clamp, 9V ≤ VIN ≤ 18V; VOUT = 24V @ 4A

Product Detail

Demonstration circuits 2324A-A, 2324A-B, and 2324A-C are active clamp forward converters with synchronous rectification featuring the LT3753.


These circuits were designed to demonstrate the high level of performance, efficiency and small solution size attainable using this part. They operate at 240kHz. The DC2324A-A produces a 24V/5A output from an input voltage range of 36V to 72V. The DC2324A-B produces a 24V/5A output from an input voltage range of 18V to 36V. The DC2324A-C produces a 24V/4A output from an input voltage range of 9V to 18V, making it suitable for telecom, industrial and other isolated power supply applications. They all have an eighth-brick footprint area. Synchronous rectification helps to attain efficiency exceeding 94% (exceeding 95% for the DC2324A-A and DC2324A-B).





reference details image

DC2306A

LT3753EFE Isolated Demo Board | Forward Converter, 10V ≤ VIN ≤ 54V; VOUT = 48V or 54V (Jumper Selectable) @ 1.5A

zoom

DC2306A

LT3753EFE Isolated Demo Board | Forward Converter, 10V ≤ VIN ≤ 54V; VOUT = 48V or 54V (Jumper Selectable) @ 1.5A

LT3753EFE Isolated Demo Board | Forward Converter, 10V ≤ VIN ≤ 54V; VOUT = 48V or 54V (Jumper Selectable) @ 1.5A

Product Detail

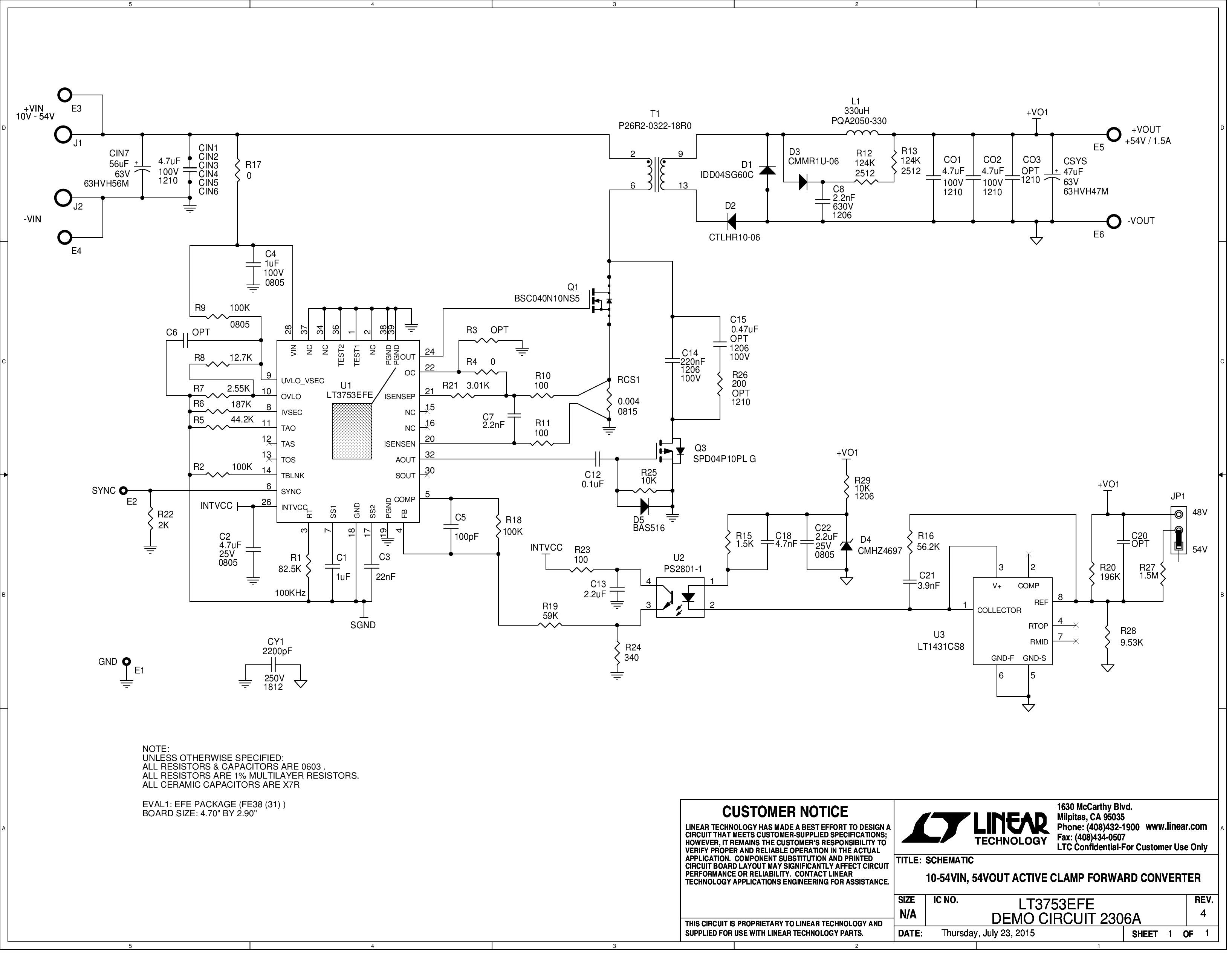

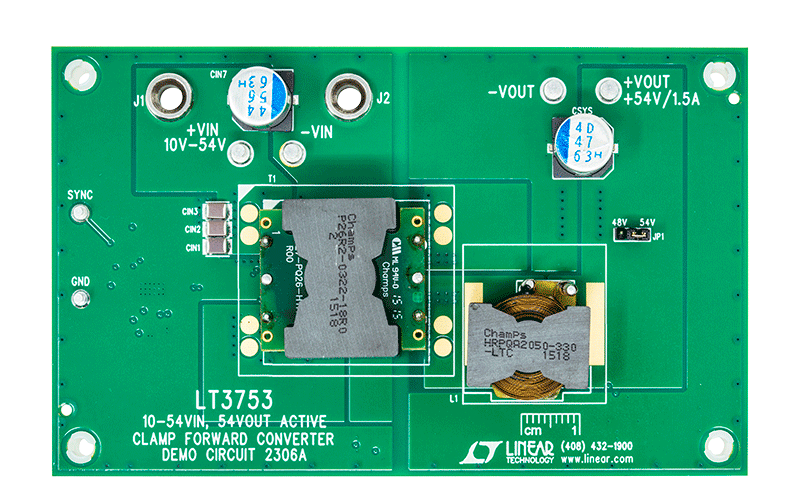

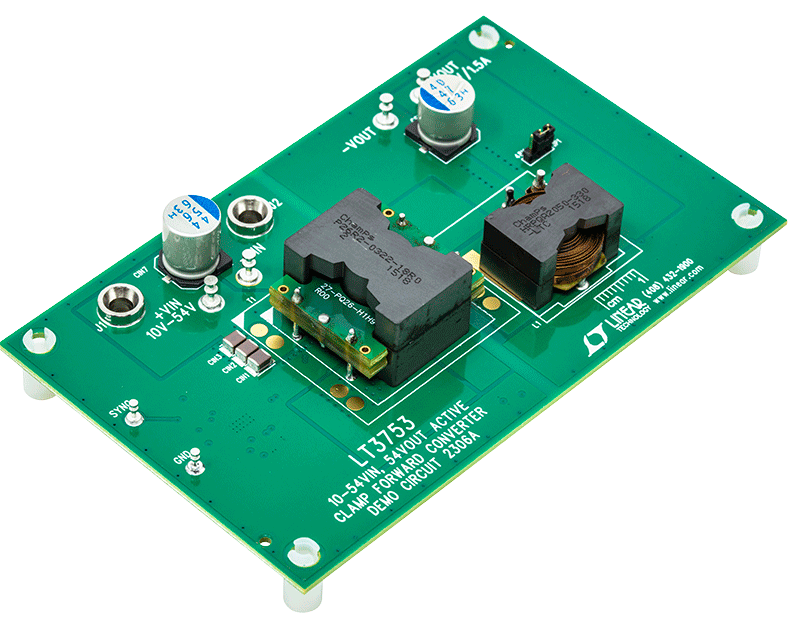

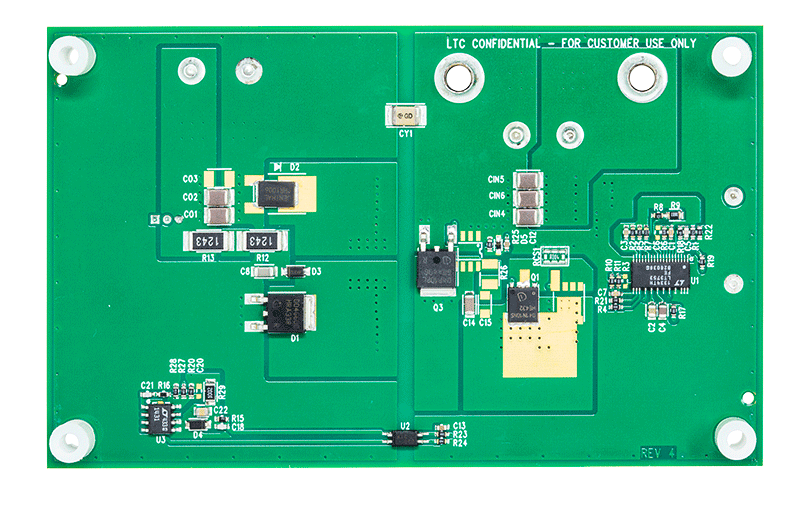

Demonstration circuit 2306A is an active clamp forward converter featuring the LT3753.


This circuit was designed to demonstrate the high level of performance and efficiency that can be attained with the LT3753. It operates at 100kHz and produces a regulated 54V, 1.5A output from a wide input voltage range of 10V to 54V, making it suitable for telecom, industrial, and other applications. The output voltage of this circuit is jumper selectable between 54V and 48V.





Tools & Simulations

Tools & Simulations 1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
