LT3752
LT3752-1

Active Clamp Synchronous Forward Controllers with Internal Housekeeping Controller

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Part Models 28
1ku List Price Starting From $4.07
Features
  • Input Voltage Range: LT3752: 6.5V to 100V, LT3752-1:Limited Only by External Components
  • Internal Housekeeping DC/DC Controller
  • Programmable Volt-Second Clamp
  • High Efficiency Control: Active Clamp, Synchronous Rectification, Programmable Delays
  • Short-Circuit (Hiccup Mode) Overcurrent Protection
  • Programmable Soft-Start/Stop
  • Programmable OVLO and UVLO with Hysteresis
  • Programmable Frequency (100kHz to 500kHz)
  • Synchronizable to an External Clock
  • AEC-Q100 Qualified for Automotive Applications
Additional Details
show more Icon

The LT3752/LT3752-1 are current mode PWM controllers optimized for an active clamp forward converter topology. A DC/DC housekeeping controller is included for improved efficiency and performance. The LT3752 allows operation up to 100V input and the LT3752-1 is optimized for applications with input voltages greater than 100V.

A programmable volt-second clamp allows primary switch duty cycles above 50% for high switch, transformer and rectifier utilization. Active clamp control reduces switch voltage stress and increases efficiency. A synchronous output is available for controlling secondary side synchronous rectification.

The LT3752/LT3752-1 are available in a 38-lead plastic TSSOP package with missing pins for high voltage spacings.

Applications

  • Offline and HV Car Battery Isolated Power Supplies
  • 48V Telecommunication Isolated Power Supplies
  • Industrial, Automotive and Military Systems
Part Models 28
1ku List Price Starting From $4.07

close icon
Documentation

Documentation

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LT3752EFE#PBF
  • HTML
  • HTML
LT3752EFE#TRPBF
  • HTML
  • HTML
LT3752EFE#WPBF
  • HTML
  • HTML
LT3752EFE#WTRPBF
  • HTML
  • HTML
LT3752EFE-1#PBF
  • HTML
  • HTML
LT3752EFE-1#TRPBF
  • HTML
  • HTML
LT3752EFE-1#WPBF
  • HTML
  • HTML
LT3752EFE-1#WTRPBF
  • HTML
  • HTML
LT3752HFE#PBF
  • HTML
  • HTML
LT3752HFE#TRPBF
  • HTML
  • HTML
LT3752HFE#WPBF
  • HTML
  • HTML
LT3752HFE#WTRPBF
  • HTML
  • HTML
LT3752HFE-1#PBF
  • HTML
  • HTML
LT3752HFE-1#TRPBF
  • HTML
  • HTML
LT3752HFE-1#WPBF
  • HTML
  • HTML
LT3752HFE-1#WTRPBF
  • HTML
  • HTML
LT3752IFE#PBF
  • HTML
  • HTML
LT3752IFE#TRPBF
  • HTML
  • HTML
LT3752IFE#WPBF
  • HTML
  • HTML
LT3752IFE#WTRPBF
  • HTML
  • HTML
LT3752IFE-1#PBF
  • HTML
  • HTML
LT3752IFE-1#TRPBF
  • HTML
  • HTML
LT3752IFE-1#WPBF
  • HTML
  • HTML
LT3752IFE-1#WTRPBF
  • HTML
  • HTML
LT3752MPFE#PBF
  • HTML
  • HTML
LT3752MPFE#TRPBF
  • HTML
  • HTML
LT3752MPFE-1#PBF
  • HTML
  • HTML
LT3752MPFE-1#TRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 6, 2022

- 22_0068

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LT3752EFE#PBF

PRODUCTION

LT3752EFE#TRPBF

PRODUCTION

LT3752EFE#WPBF

PRODUCTION

LT3752EFE#WTRPBF

PRODUCTION

LT3752EFE-1#PBF

PRODUCTION

LT3752EFE-1#TRPBF

PRODUCTION

LT3752HFE#PBF

PRODUCTION

LT3752HFE#TRPBF

PRODUCTION

LT3752HFE#WPBF

PRODUCTION

LT3752HFE#WTRPBF

PRODUCTION

LT3752HFE-1#PBF

PRODUCTION

LT3752HFE-1#TRPBF

PRODUCTION

LT3752HFE-1#WPBF

PRODUCTION

LT3752HFE-1#WTRPBF

PRODUCTION

LT3752IFE#PBF

PRODUCTION

LT3752IFE#TRPBF

PRODUCTION

LT3752IFE#WPBF

PRODUCTION

LT3752IFE#WTRPBF

PRODUCTION

LT3752IFE-1#PBF

PRODUCTION

LT3752IFE-1#TRPBF

PRODUCTION

LT3752MPFE#PBF

PRODUCTION

LT3752MPFE#TRPBF

PRODUCTION

LT3752MPFE-1#PBF

PRODUCTION

LT3752MPFE-1#TRPBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 6, 2022

- 22_0068

arrow down

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LT3752EFE#PBF

PRODUCTION

LT3752EFE#TRPBF

PRODUCTION

LT3752EFE#WPBF

PRODUCTION

LT3752EFE#WTRPBF

PRODUCTION

LT3752EFE-1#PBF

PRODUCTION

LT3752EFE-1#TRPBF

PRODUCTION

LT3752HFE#PBF

PRODUCTION

LT3752HFE#TRPBF

PRODUCTION

LT3752HFE#WPBF

PRODUCTION

LT3752HFE#WTRPBF

PRODUCTION

LT3752HFE-1#PBF

PRODUCTION

LT3752HFE-1#TRPBF

PRODUCTION

LT3752HFE-1#WPBF

PRODUCTION

LT3752HFE-1#WTRPBF

PRODUCTION

LT3752IFE#PBF

PRODUCTION

LT3752IFE#TRPBF

PRODUCTION

LT3752IFE#WPBF

PRODUCTION

LT3752IFE#WTRPBF

PRODUCTION

LT3752IFE-1#PBF

PRODUCTION

LT3752IFE-1#TRPBF

PRODUCTION

LT3752MPFE#PBF

PRODUCTION

LT3752MPFE#TRPBF

PRODUCTION

LT3752MPFE-1#PBF

PRODUCTION

LT3752MPFE-1#TRPBF

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 3

reference details image

DC2175A

LT3752IFE/LT8311IFE Demo Board | Forward Converter with Synchronous Rectification, 9V ≤ VIN ≤ 36V; VOUT = 12V @ 13A

zoom

DC2175A

LT3752IFE/LT8311IFE Demo Board | Forward Converter with Synchronous Rectification, 9V ≤ VIN ≤ 36V; VOUT = 12V @ 13A

LT3752IFE/LT8311IFE Demo Board | Forward Converter with Synchronous Rectification, 9V ≤ VIN ≤ 36V; VOUT = 12V @ 13A

Product Detail

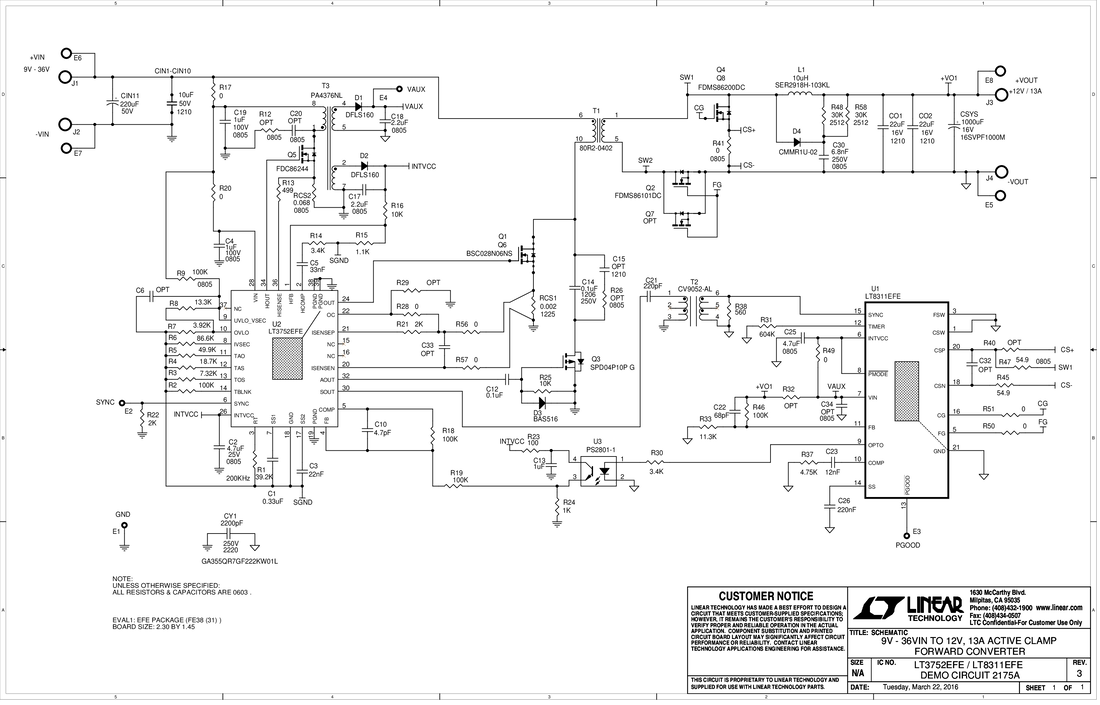

Demonstration circuit 2175A is an active clamp forward converter with synchronous rectification featuring the LT3752/LT8311 chipset.


This circuit was designed to demonstrate the high levels of performance, efficiency and high power. It operates at 200kHz and produces a regulated 12V, 13A output from a wide input voltage range of 9V to 36V, making it well suited for telecom, industrial, and other applications. Synchronous rectification helps to attain efficiency exceeding 93%.





reference details image

DC1994A

LT3752EFE/LT8311EFE Isolated Demo Board | 18V ≤ VIN ≤ 72V; VOUT: 12V @ 12A

zoom

DC1994A

LT3752EFE/LT8311EFE Isolated Demo Board | 18V ≤ VIN ≤ 72V; VOUT: 12V @ 12A

LT3752EFE/LT8311EFE Isolated Demo Board | 18V ≤ VIN ≤ 72V; VOUT: 12V @ 12A

Product Detail

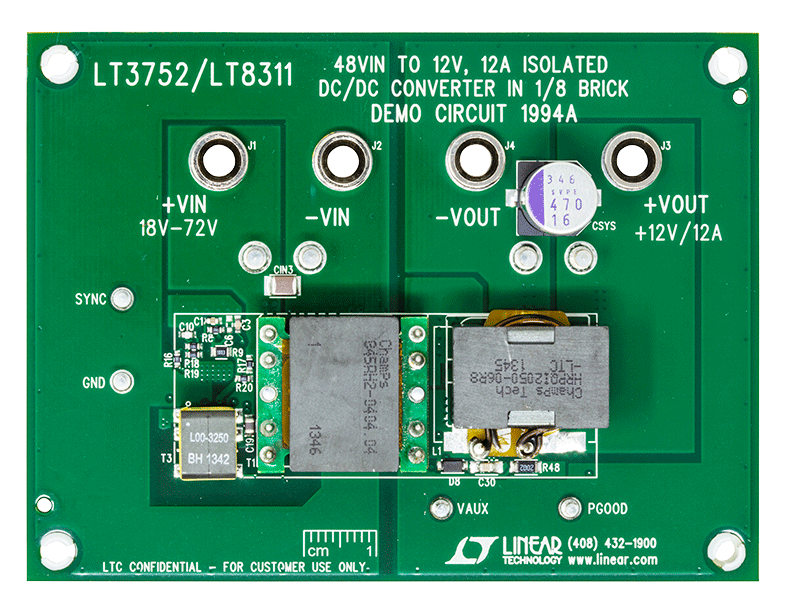

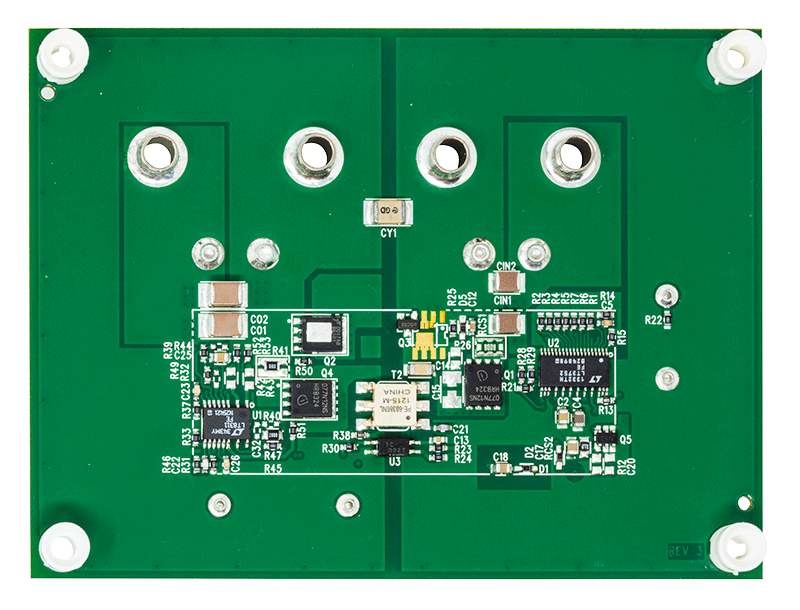

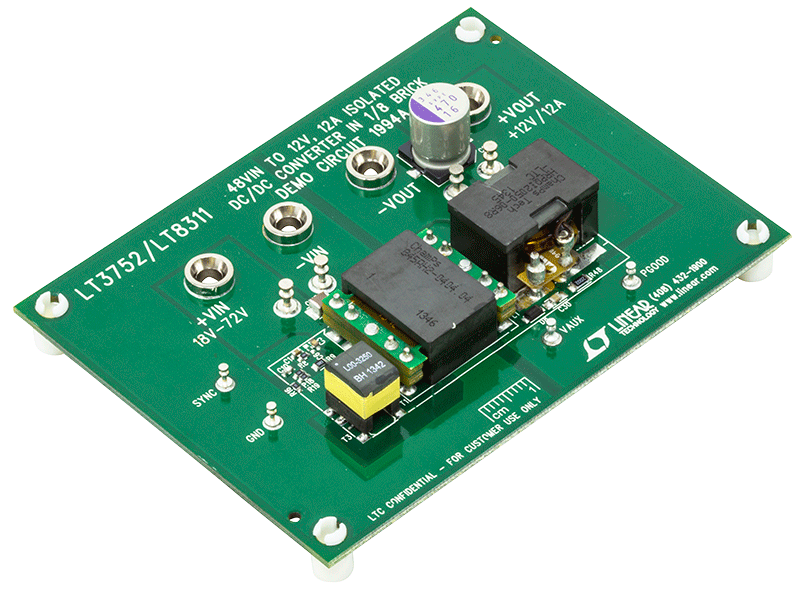

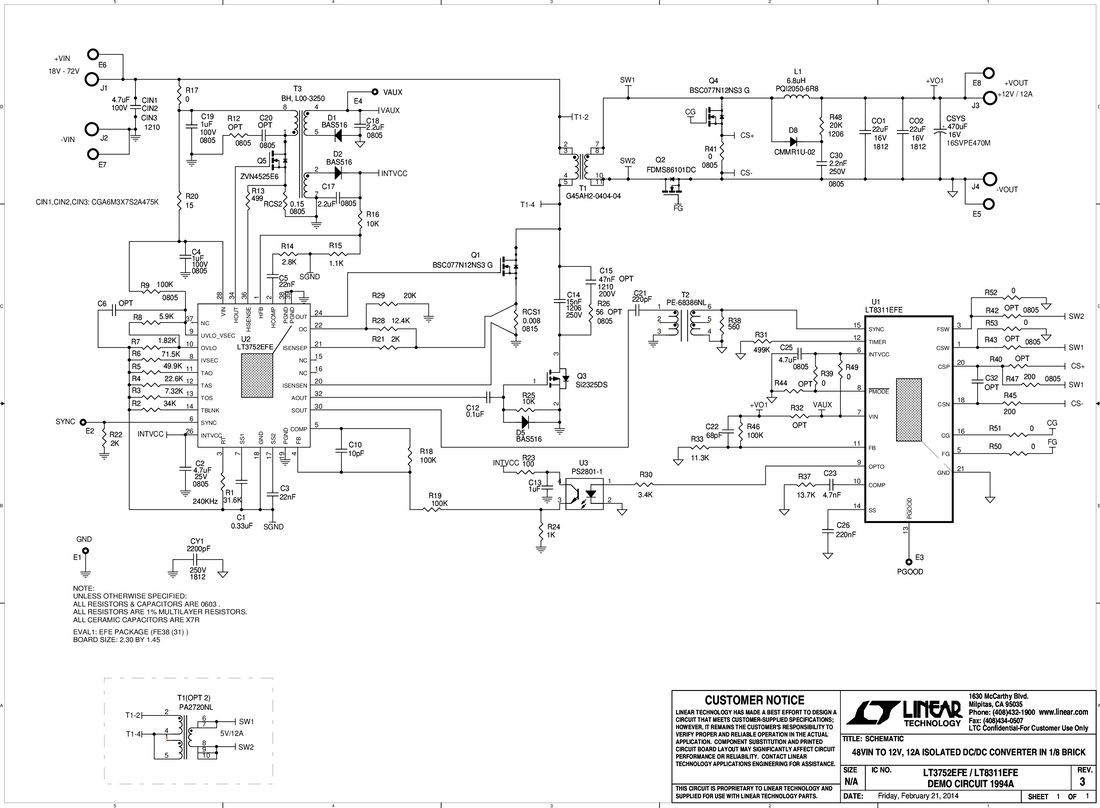

Demonstration circuit 1994A is an active clamp forward converter with synchronous rectification featuring the LT3752/LT8311 chipset. This circuit was designed to demonstrate the high levels of performance, efficiency, and small solution size attainable using these parts. It operates at 240kHz and produces a regulated 12V, 12A output from an input voltage range of 18 to 72V: suitable for telecom, industrial, and other applications. It has an eighth-brick footprint area. Synchronous rectification helps to attain efficiency exceeding 94%.

reference details image

DC1929A

LT3752EFE-1/LT8311EFE Demo Board | 150V ≤ VIN ≤ 400V, VOUT = 12V @ 16.7A

zoom

DC1929A

LT3752EFE-1/LT8311EFE Demo Board | 150V ≤ VIN ≤ 400V, VOUT = 12V @ 16.7A

LT3752EFE-1/LT8311EFE Demo Board | 150V ≤ VIN ≤ 400V, VOUT = 12V @ 16.7A

Product Detail

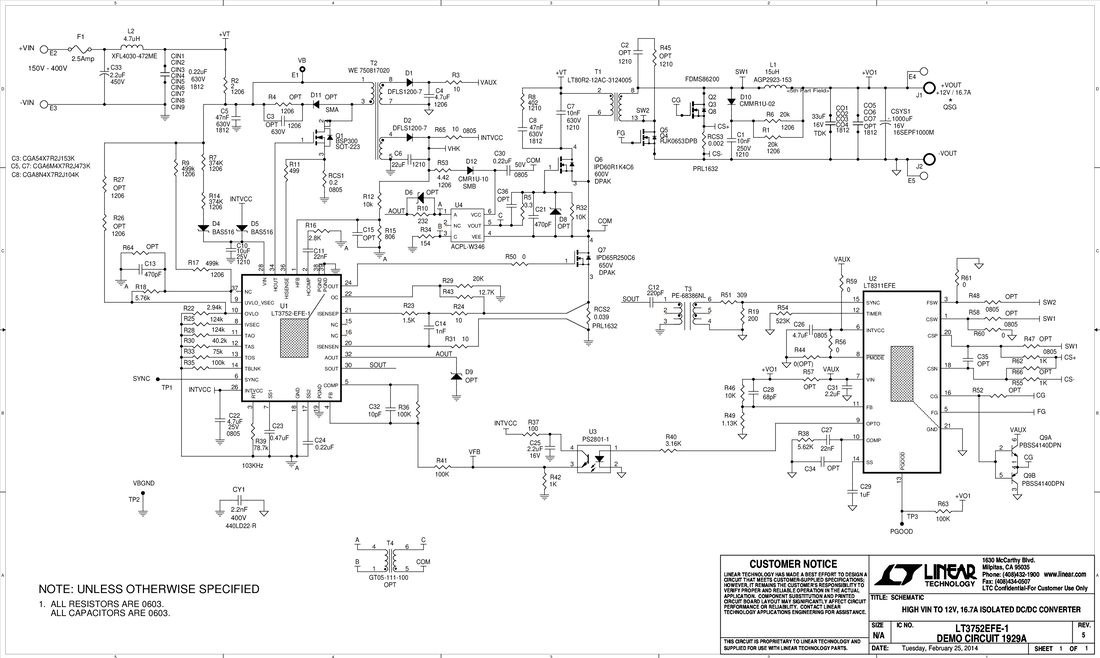

Demonstration circuit 1929A is a 200W active clamp forward converter featuring the LT3752-1/LT8311 chipset. The LT8311 is a secondary-side synchronous rectifier controller. The solution operates at about 100kHz and produces an isolated, regulated 12V / 16.7A output from an input voltage ranging from 150V to 400V, making it well suited for automotive, industrial, and other applications.
