Overview

Features and Benefits

  • RF Bandwidth: 7.3 to 8.2 GHz
  • Fractional or Integer Modes
    • 7.8 GHz; 50 MHz Ref.
    • -98/-101 dBc/Hz @ 10 kHz (Frac/Int)
    • -140 dBc/Hz @ 1 MHz (Open Loop)
  • 24-Bit Step Size, 3 Hz Resolution Typ.
  • Reference Path Input: 225 MHz
  • FSK Modulation & Cycle Slip
    Prevention Modes
  • 40 Lead 6x6mm SMT Package: 36mm²

Product Details

The HMC764LP6CE is a fully functioned Fractional-N Phase-Locked-Loop (PLL) with an Integrated Voltage Controlled Oscillator (VCO). The input reference frequency range is 100 kHz to 220 MHz while the advanced delta-sigma modulator design in the fractional PLL allows both ultra-fine step sizes and very low spurious products. The highly integrated structure provides excellent phase noise performance over temperature, shock and process. The HMC764LP6CE is packaged in a leadless QFN 6 x 6 mm surface mount package. The output power is 15 dBm typical, making the HMC764LP6CE ideal for driving the LO port of many of Hittite’s Hi Linearity and I/Q mixer products.

For theory of operation and register map refer to the "PLLs w/ Integrated VCO - Microwave VCOs" Operating Guide.

Applications

  • VSAT Radio
  • Point-to-Point / Multi-Point Radio
  • Test Equipment & Industrial Control
  • Military End-Use
  • Phased Array Applications

Product Categories

Markets and Technologies

Comparable Parts Click to see all in Parametric Search

Product Lifecycle icon-not-recommended Last Time Buy

All products in this family will be obsolete soon. Please contact ADI Sales or Distributors to arrange for final purchases and read our Obsolescence Information to review the time periods for placing final orders and receiving final shipments.

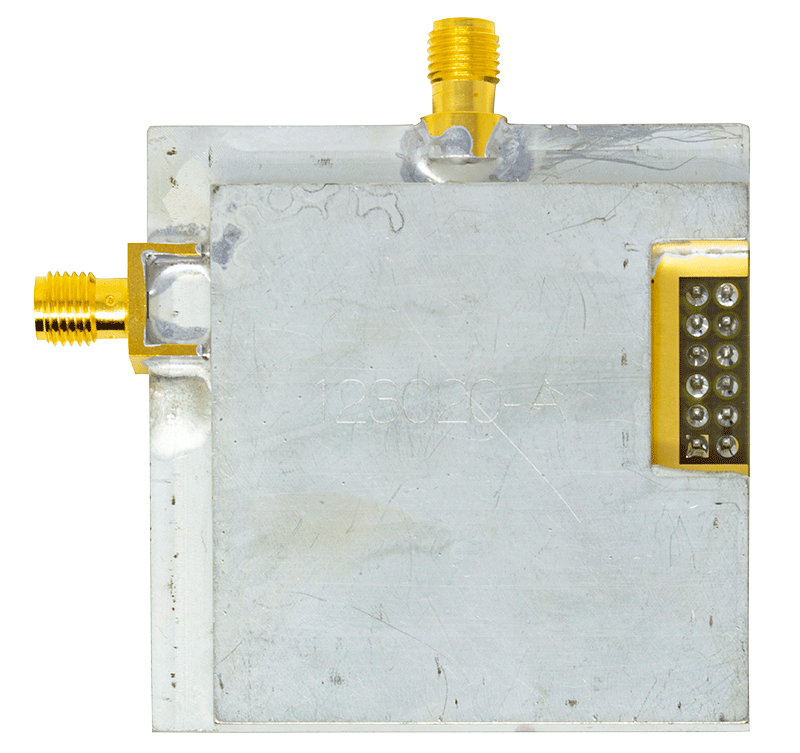

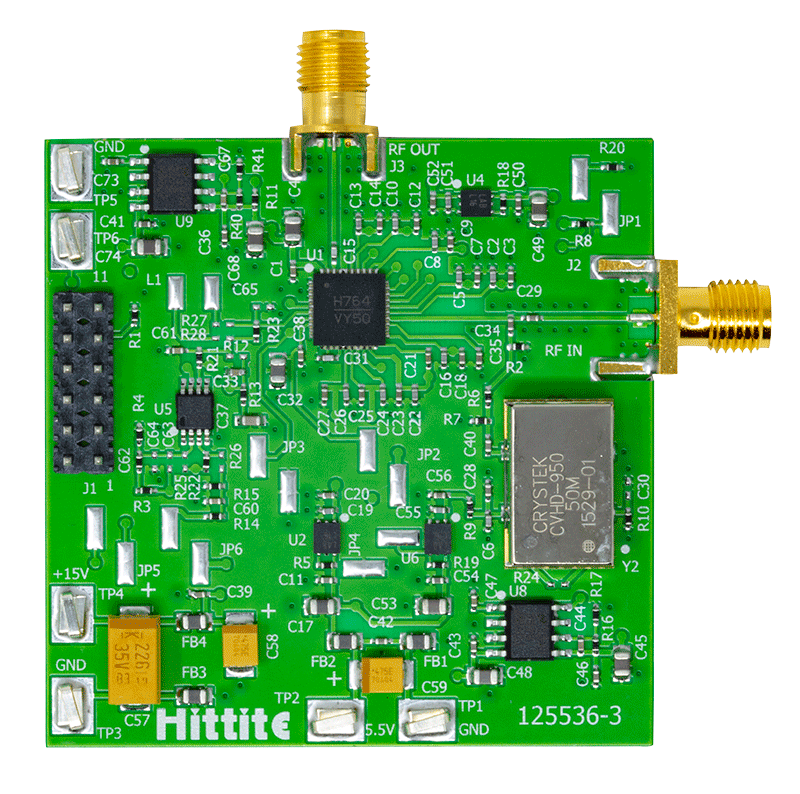

Evaluation Kits (1)

Documentation & Resources

  • View All (10)
  • Data Sheet (1)
  • User Guide (1)
  • Product Selection Guide (1)
  • Quality Documentation (4)
  • Technical Article (2)
  • Tape & Reel Specification (1)
    • Document Type

    Tools & Simulations

    Design Tool

    ADIsimPLL™

    ADIsimPLL enables the rapid and reliable evaluation of new high performance PLL products from ADI. It is the most comprehensive PLL Synthesizer design and simulation tool available today. Simulations performed include all key non-linear effects that are significant in affecting PLL performance. ADIsimPLL removes at least one iteration from the design process, thereby speeding the design- to-market.

    Product Recommendations

    HMC764 Companion Parts

    Recommended Loop Filter Op Amps

    Recommended Reference Buffer

    • With integrated filters for improved noise: LTC6957.

    Recommended Reference Clean Up PLL
