HMC508

RECOMMENDED FOR NEW DESIGNS

HMC508

VCO SMT with Fo/2, 7.3 - 8.2 GHz

RECOMMENDED FOR NEW DESIGNS

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 2

1ku List Price

price unavailable

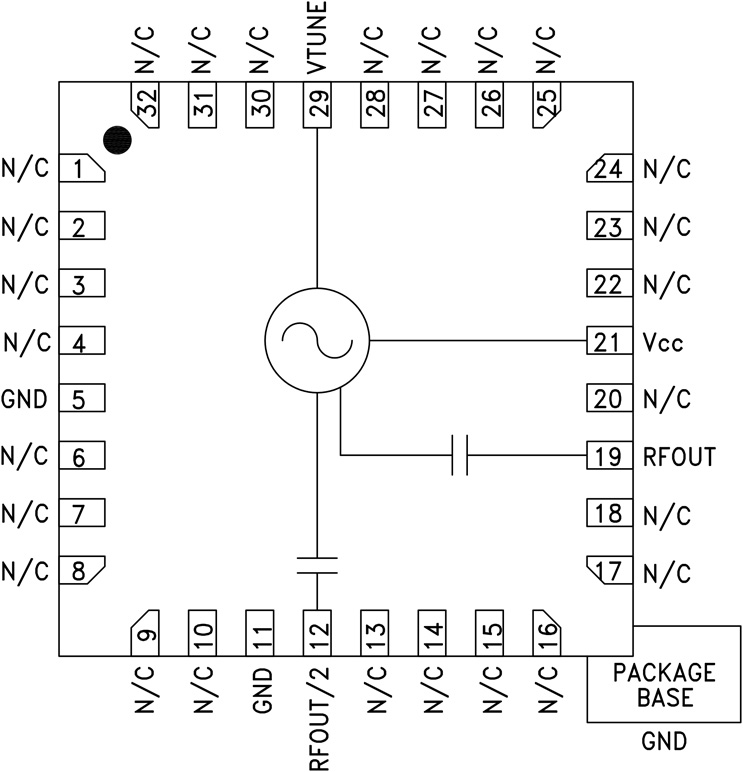

Features

Dual Output: Fo = 7.3 - 8.2 GHz
Fo/2 = 3.65 - 4.1 GHz
Phase Noise:
-116 dBc/Hz @100 kHz Typ.

Pout: +15 dBm
No External Resonator Needed
QFN Leadless SMT Package, 25 mm²

Additional Details

The HMC508LP5(E) is a GaAs InGaP Heterojunction Bipolar Transistor (HBT) MMIC VCO. The HMC508LP5(E) integrates resonators, negative resistance devices, varactor diodes and feature a half frequency output. The VCO’s phase noise performance is excellent over temperature, shock, and process due to the oscillator’s monolithic structure. Power output is +15 dBm typical from a +5V supply. The voltage controlled oscillator is packaged in a leadless QFN 5x5 mm surface mount package, and requires no external matching components.

APPLICATIONS

VSAT Radio
Point-to-Point/Multi-Point Radio
Test Equipment & Industrial Controls
Military End-Use

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 2

1ku List Price

price unavailable

Technical Documents 2

HMC508 Data Sheet 04/22/2015

High Performance SiGe PLLs Pair with Low Phase Noise GaAs VCOs for Microwave Radio 04/22/2015

Reference Materials 6

RF, Microwave, and Millimeter Wave Product Selection Guide 07/13/2018

Package/Assembly Qualification Test Report: LP3, LP4, LP5 & LP5G (QTR: 2014-00145) 04/22/2015

Package/Assembly Qualification Test Report: 32L 5x5mm QFN Package (QTR: 10009 REV: 05) 01/01/0001

Semiconductor Qualification Test Report: GaAs HBT-A (QTR: 2013-00228) 10/29/2015

Package/Assembly Qualification Test Report: Plastic Encapsulated QFN (QTR: 05006 REV: 02) 01/01/0001

5 x 5 mm QFN Tape Specification (LP5, LC5, LH5) 10/28/2015

Design Resources 2

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
HMC508LP5E	32-Lead QFN (5mm x 5mm w/ EP)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
HMC508LP5ETR	32-Lead QFN (5mm x 5mm w/ EP)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys

HMC508LP5E
Pin/Package Drawing
32-Lead QFN (5mm x 5mm w/ EP)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

HMC508LP5ETR
Pin/Package Drawing
32-Lead QFN (5mm x 5mm w/ EP)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

ADIsimPLL™

ADIsimPLL enables the rapid and reliable evaluation of new high performance PLL products from ADI. It is the most comprehensive PLL Synthesizer design and simulation tool available today. Simulations performed include all key non-linear effects that are significant in affecting PLL performance. ADIsimPLL removes at least one iteration from the design process, thereby speeding the design- to-market.

Open Tool
