ADF4383

RECOMMENDED FOR NEW DESIGNS

Microwave Wideband Synthesizer with Integrated VCO

Data Sheet (Rev. 0) Product Selection Table

Part Models: 2
1ku List Price: Starting From $197.41

Viewing:

Part Details

Fundamental VCO frequency range: 10 GHz to 20 GHz
VCO phase noise improvement of up to 3 dB as compared to ADF4382
Integrated RMS jitter at 20 GHz = 18 fs (integration bandwidth: 100 Hz to 100 MHz)
Integrated RMS jitter at 20 GHz = 31 fs (ADC SNR method)
VCO fast calibration time: <2 μs
VCO autocalibration time: <100 μs
Phase noise floor: −156 dBc/Hz at 20 GHz
PLL specifications
- −239 dBc/Hz: normalized in-band phase noise floor (integer mode)
- −287 dBc/Hz: normalized 1/f phase noise floor
- 625 MHz maximum phase/frequency detector input frequency
- 4.5 GHz reference input frequency
- Typical spurious fPFD: −90 dBc

Reference to output delay specifications
- Propagation delay temperature coefficient: 0.06 ps/°C
- Adjustment step size: <1 ps
Multichip output phase alignment
3.3 V and 5 V power supplies
ADIsimPLL™ loop filter design tool support
7 mm × 7 mm, 48-terminal LGA
−40°C to +105°C operating temperature

Part Models: 2
1ku List Price: Starting From $197.41

Documentation

Data Sheet 1

ADF4383: Microwave Wideband Synthesizer with Integrated VCO Data Sheet (Rev.0) 03/07/2025

Application Note 1

AN-2623: Using the ADF4382/ADF4382A/ ADF4383 Fast Calibration Feature for Fast Frequency Hopping Applications 07/28/2025

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADF4383BCCZ	LGA/CASON/CH ARRY SO NO LD	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADF4383BCCZ-RL7	LGA/CASON/CH ARRY SO NO LD	Material Declaration Reliablity Data	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Software Resources

Device Drivers 2

Can't find the software or driver you need?

Hardware Ecosystem

Parts	Product Life Cycle	Description
ADC/DAC Combo Converters 1
AD9084	RECOMMENDED FOR NEW DESIGNS	Apollo MxFE Quad, 16-Bit, 28GSPS RF DAC and Quad, 12-Bit, 20 GSPS RF ADC
Clock ICs 2
HMC7044B	RECOMMENDED FOR NEW DESIGNS	High Performance, 3.2 GHz, 14-Output Jitter Attenuator with JESD204B and JESD204C Support
ADF4030	RECOMMENDED FOR NEW DESIGNS	10-Channel Precision Synchronizer
Comparators 1
LTC6957		Low Phase Noise, Dual Output Buffer/Driver/Logic Converter

LDO Linear Regulators 3
LT3041	RECOMMENDED FOR NEW DESIGNS	20 V, 1 A, Ultra-Low Noise, Ultra-High PSRR Linear Regulator with VIOC Control
LT3045	RECOMMENDED FOR NEW DESIGNS	20V, 500mA, Ultralow Noise, Ultrahigh PSRR Linear Regulator
LT3042	RECOMMENDED FOR NEW DESIGNS	20V, 200mA, Ultralow Noise, Ultrahigh PSRR RF Linear Regulator

Tools & Simulations

ADIsimPLL™

ADIsimPLL enables the rapid and reliable evaluation of new high performance PLL products from ADI. It is the most comprehensive PLL Synthesizer design and simulation tool available today. Simulations performed include all key non-linear effects that are significant in affecting PLL performance. ADIsimPLL removes at least one iteration from the design process, thereby speeding the design- to-market.

Open Tool

IBIS Model 1

ADF4383 IBIS Model

Evaluation Kits

Evaluating the ADF4383 Microwave Wideband Synthesizer with Integrated VCO

Buy Now View Details

Features and Benefits

Self-contained evaluation board, including the ADF4383 frequency synthesizer with integrated VCO, loop filter, USB interface, onboard reference oscillator, propagation delay calibration paths, and voltage regulators
Windows^®-based software allows control of synthesizer functions from a PC
Externally powered by 6 V

Product Details

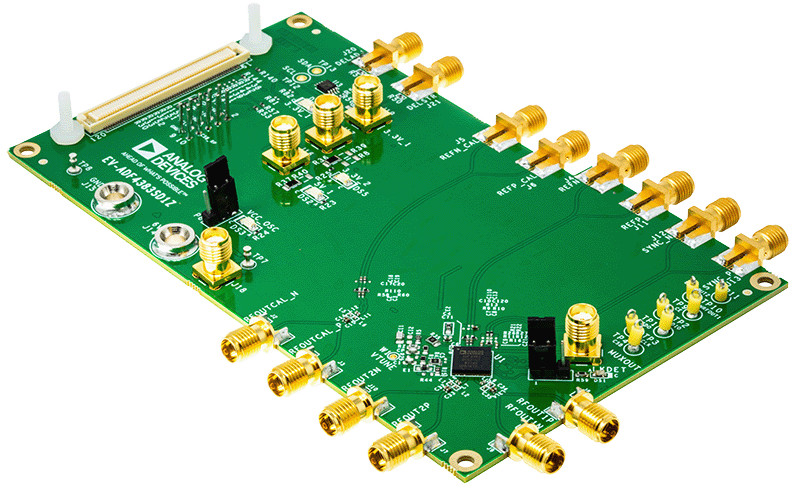

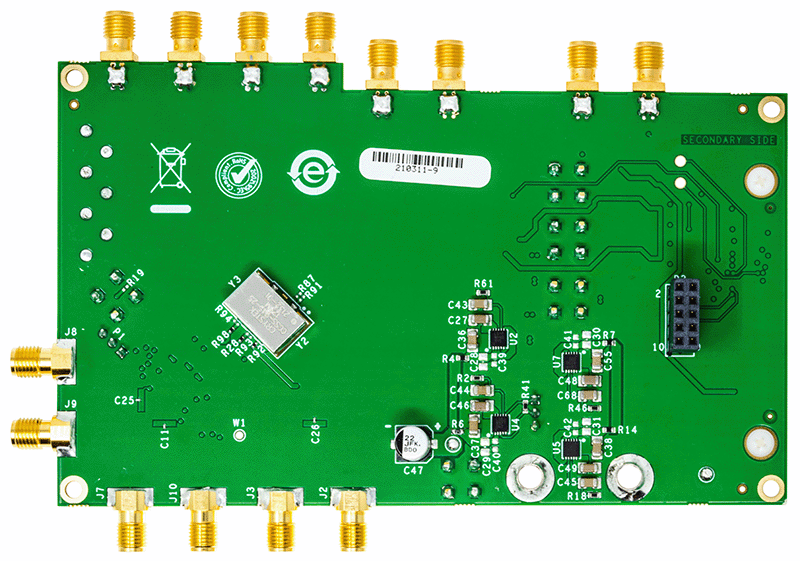

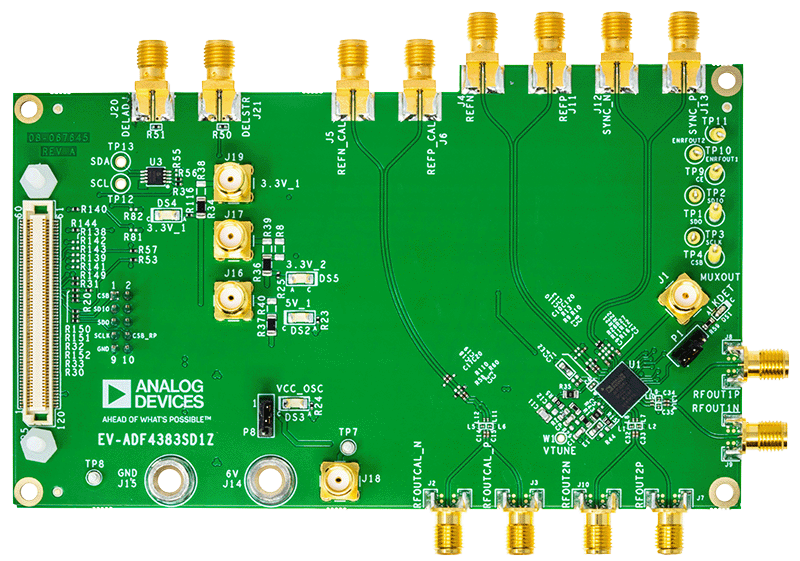

The EV-ADF4383SD1Z evaluates the performance of the ADF4383 frequency synthesizer with an integrated voltage-controlled oscillator (VCO) for phase-locked loops (PLLs). A photograph of the evaluation board is shown in Figure 1 on the user guide. The EV-ADF4383SD1Z contains the ADF4383 frequency synthesizer with an integrated VCO, a USB interface, power supply connectors, on-board reference oscillator, propagation delay calibration paths, and Subminiature Version A (SMA) connectors. The outputs of the EV-ADF4383SD1Z are AC-coupled with 50 Ω transmission lines, making these outputs suitable to drive 50 Ω impedance instruments.

The EV-ADF4383SD1Z requires an SDP-S controller board, which is not supplied with the evaluation board kit). The SDP-S allows software programming of the EV-ADF4383SD1Z with Analog Devices, Inc., ACE software.

Full specifications for the ADF4383 frequency synthesizer are available in the ADF4383 data sheet, which must be consulted in conjunction with this user guide when working with the EVADF4383SD1Z.
