ADF4360-9

PRODUCTION

ADF4360-9

Clock Generator PLL with Integrated VCO

PRODUCTION

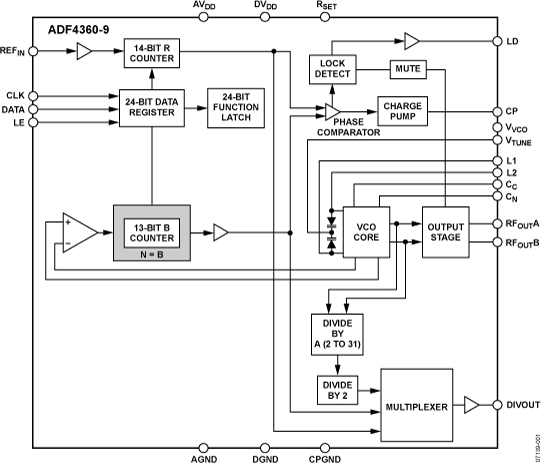

ADF4360-9 Functional Block Diagram slide

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 3

1ku List Price Starting From $3.78

Features

Primary output frequency range: 65 MHz to 400 MHz
Auxiliary divider from 2 to 31, output from 1.1 MHz to 200 MHz
3.0 V to 3.6 V power supply
1.8 V logic compatibility
Integer-N synthesizer
Programmable output power level
3-wire serial interface
Digital lock detect
Software power-down mode

Additional Details

The ADF4360-9 is an integrated integer-N synthesizer and voltage controlled oscillator (VCO). The ADF4360-9 center frequency is set by external inductors. This allows a VCO frequency range of between 65 MHz and 400 MHz.

An additional divider stage allows division of the VCO signal. The CMOS level output is equivalent to the VCO signal divided by integer value between 2 and 31. This divided signal can be further divided by two if desired.

Control of all the on-chip registers is through a simple 3-wire interface. The device operates with a power supply ranging from 3.0 V to 3.6 V and can be powered down when not in use.

Applications

System clock generation

Test equipment

Wireless LANs

CATV equipment

Data Sheet, Rev. A, 3/08

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 3

1ku List Price Starting From $3.78

Technical Documents 4

ADF4360-9: Clock Generator PLL with Integrated VCO Data Sheet (Rev.D) 03/05/2008

UG-476: PLL Software Installation Guide 08/10/2015

UG-106: Evaluation Board for the ADF4360-9 (Rev.C) 09/14/2015

FAQ 03/03/2022

Reference Materials 9

ADF4360 GitHub Linux Driver Source Code 07/29/2024

ADF4360 - Microcontroller No-OS Driver 12/20/2012

RF, Microwave, and Millimeter Wave Product Selection Guide 07/13/2018

Isolation for SAR ADCs 05/03/2021

Fundamentals of Frequency Synthesis, Part 2: Direct Digital Synthesis (DDS) 04/10/2017

Best PCB Layout Practices for Frequency Synthesizers 04/09/2018

Fundamentals of Clocks 03/06/2017

Solutions for Fitting High Performance RF Signal Chains into Small Spaces 10/03/2014

Fundamentals of Frequency Synthesis, Part 1: Phased Locked Loops 04/10/2017

Design Resources 3

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

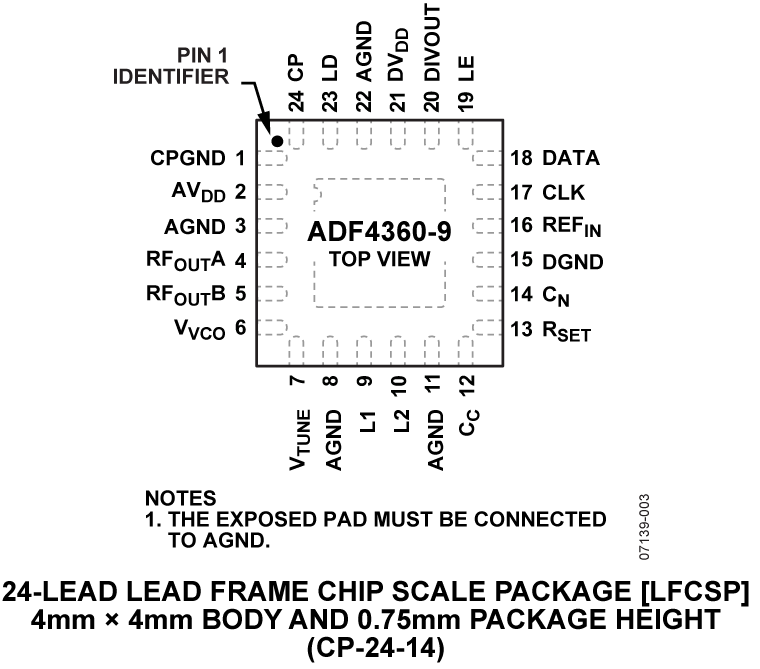

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADF4360-9BCPZ	24-Lead LFCSP (4mm x 5mm w/ EP)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
ADF4360-9BCPZRL	24-Lead LFCSP (4mm x 5mm w/ EP)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
ADF4360-9BCPZRL7	24-Lead LFCSP (4mm x 5mm w/ EP)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys

ADF4360-9BCPZ
Pin/Package Drawing
24-Lead LFCSP (4mm x 5mm w/ EP)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

ADF4360-9BCPZRL
Pin/Package Drawing
24-Lead LFCSP (4mm x 5mm w/ EP)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

ADF4360-9BCPZRL7
Pin/Package Drawing
24-Lead LFCSP (4mm x 5mm w/ EP)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

PCN/PDN Information

Filter by Model

Part Models

Product Lifecycle

PCN

May 5, 2014

- 14_0020

Conversion of 4x4mm body Size LFCSP Package Outlines from Punch to Sawn and Transfer of Assembly Site to Amkor Philippines.

ADF4360-9BCPZ

PRODUCTION

ADF4360-9BCPZRL

PRODUCTION

ADF4360-9BCPZRL7

PRODUCTION

pdf

PCN14_0020_Form

xls

Material_Report

pdf

Detailed Change Description

pdf

Package Outline Drawing

pdf

Qualification Report Summary

Jan 8, 2013

- 12_0063

Conversion of Select Sizes of LFCSP Package Outlines from Punch to Sawn and Transfer of Assembly Site to ASE-Korea.

ADF4360-9BCPZ

PRODUCTION

ADF4360-9BCPZRL

PRODUCTION

ADF4360-9BCPZRL7

PRODUCTION

pdf

PCN12_0063_Form

xls

Material_Report

pdf

Detailed Change Description

pdf

Detailed Parts List

pdf

Package Outline Drawing

pdf

Qualification Report Summary

Filter by Model

Part Models

Product Lifecycle

PCN

May 5, 2014

- 14_0020

Conversion of 4x4mm body Size LFCSP Package Outlines from Punch to Sawn and Transfer of Assembly Site to Amkor Philippines.

ADF4360-9BCPZ

PRODUCTION

ADF4360-9BCPZRL

PRODUCTION

ADF4360-9BCPZRL7

PRODUCTION

pdf

PCN14_0020_Form

xls

Material_Report

pdf

Detailed Change Description

pdf

Package Outline Drawing

pdf

Qualification Report Summary

Jan 8, 2013

- 12_0063

Conversion of Select Sizes of LFCSP Package Outlines from Punch to Sawn and Transfer of Assembly Site to ASE-Korea.

ADF4360-9BCPZ

PRODUCTION

ADF4360-9BCPZRL

PRODUCTION

ADF4360-9BCPZRL7

PRODUCTION

pdf

PCN12_0063_Form

xls

Material_Report

pdf

Detailed Change Description

pdf

Detailed Parts List

pdf

Package Outline Drawing

pdf

Qualification Report Summary

Software 2

ADF4360 - Microcontroller No-OS Driver

ADF4360 GitHub Linux Driver Source Code NEW

View Evaluation Software

Companion Parts 12

Parts	Product Life Cycle	Description
Frequency Dividers, Prescalers, and Counters1
ADF5001	PRODUCTION	4 GHz TO 18 GHz Divide-by-4 Prescaler
High Speed Comparators (<100ns Propagation Delay)1
LTC6957		Low Phase Noise, Dual Output Buffer/Driver/Logic Converter
I/Q Demodulators1
ADL5380	RECOMMENDED FOR NEW DESIGNS	400 MHz TO 6000 MHz Quadrature Demodulator
I/Q Modulators1
ADL5375	PRODUCTION	400 MHz TO 6 GHz Broadband Quadrature Modulator
Integer-N PLL1
ADF4002	RECOMMENDED FOR NEW DESIGNS	Phase Detector / PLL Frequency Synthesizer
Internal Power Switch Boost Regulators1
ADP1613	PRODUCTION	650 kHz /1.3 MHz Step-Up PWM DC-to-DC Switching Converter with 2.0 A Current Limit
Positive Linear Regulators (LDO)3
ADP3334	NOT RECOMMENDED FOR NEW DESIGNS	High Accuracy Low I_Q, 500 mA anyCAP^® Adjustable Low Dropout Regulator
ADP151	PRODUCTION	Ultralow Noise, 200 mA, CMOS Linear Regulator
ADP150	PRODUCTION	Ultralow Noise, 150 mA CMOS Linear Regulator
Precision Op Amps (Vos ≤1mV & TCVos ≤2uV/C)1
OP184	PRODUCTION	Single-Supply Rail-to-Rail Input/Output Operational Amplifier
Single, Double, and Triple Balanced Mixers2
ADL5801	RECOMMENDED FOR NEW DESIGNS	High IP3, 10 MHz TO 6 GHz, Active Mixer
ADL5802	RECOMMENDED FOR NEW DESIGNS	Dual Channel High IP3 100 MHz TO 6 GHz Active Mixer

Alternative Parts 1

Parts	Product Life Cycle	Description
LTC6957		Low Phase Noise, Dual Output Buffer/Driver/Logic Converter

EVAL-ADF4360-9

ADF4360-9 Evaluation Board

ADF4360-8/ADF4360-9 Evaluation Board - Top View

ADF4360-9 Evaluation Board

Download

EVAL-ADF4360-9

ADF4360-9 Evaluation Board

Features and Benefits

Self-contained board for generating RF frequencies
Flexibility for reference input, PFD frequency, and loop bandwidth
Accompanying software allows complete control of synthesizer functions from a PC
Flexibility for changing external inductor to allow different
VCO output frequency ranges
USB-/battery-operated 9 V supplies
Typical DIVOUT jitter performance of 1.4 ps

Buy Now View Details

Product Detail

The EV-ADF4360-9EB1Z board is designed to allow the user to evaluate the performance of the ADF4360-9 frequency synthesizer consisting of an integrated PLL and VCO. It contains the ADF4360-9BCPZ, a USB connector, and SMA connectors for the RF outputs. Unpopulated SMA footprints are available for the power supplies, lock detect, and the external reference input. The evaluation board also contains the loop filter to complete the PLL. It can be modified as necessary for the user’s PLL requirements. A USB cable is included with the board to allow software programmability.

The package also contains a CD with Windows^® software to allow quick, user-friendly programming of the synthesizer. The CD contains numerous other PLL data sheets, technical notes, articles, and ADIsimPLL™ V3.4, Analog Devices, Inc., PLL simulation software. More information is available at www.analog.com/pll.
