Overview
Features and Benefits
- Fractional-N synthesizer and integer-N synthesizer
- RF bandwidth to 3.5 GHz
- 3.0 V to 3.6 V power supply
- 1.8 V logic compatibility
- Separate charge pump supply (VP) allows extended tuning voltage (up to 5.5 V) in 3 V systems
- Programmable dual-modulus prescaler of 4/5 or 8/9
- Programmable RF output phase
- 3-wire serial interface
- Analog and digital lock detect
- Switched bandwidth fast lock mode
- Cycle slip reduction
Product Details
The ADF4151 allows implementation of fractional-N or integer-N phase-locked loop (PLL) frequency synthesizers if used with an external voltage controlled oscillator (VCO), loop filter, and external reference frequency.

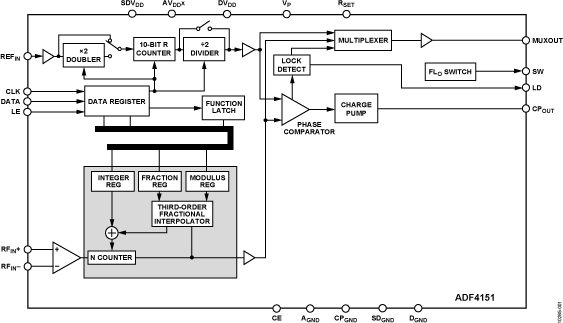

The ADF4151 is used with external VCO parts and is footprint and software compatible with the ADF4350. The part consists of a low noise digital phase frequency detector (PFD), a precision charge pump, and a programmable reference divider. There is a Σ-Δ based fractional interpolator to allow programmable fractional-N division. The INT, FRAC, and MOD registers define an overall N divider [N = (INT + (FRAC/MOD))]. The RF output phase is programmable for applications that require a particular phase relationship between the output and the reference. The ADF4151 also features cycle slip reduction circuitry, leading to faster lock times without the need for modifications to the loop filter.
Control of all the on-chip registers is through a simple 3-wire interface. The device operates with a power supply ranging from 3.0 V to 3.6 V that can be powered down when not in use.

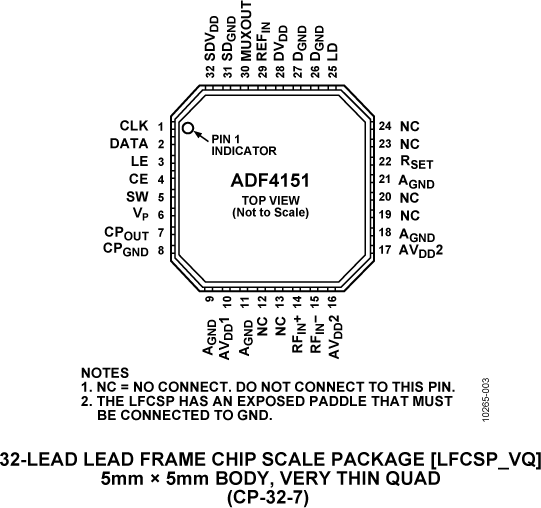

The ADF4151 is available in a 5 mm × 5 mm package.
Applications
- Wireless infrastructure (W-CDMA, TD-SCDMA, WiMax,
GSM, PCS, DCS, DECT) - Test equipment
- Wireless LANs, CATV equipment
- Clock generation
Product Categories
Product Lifecycle
Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

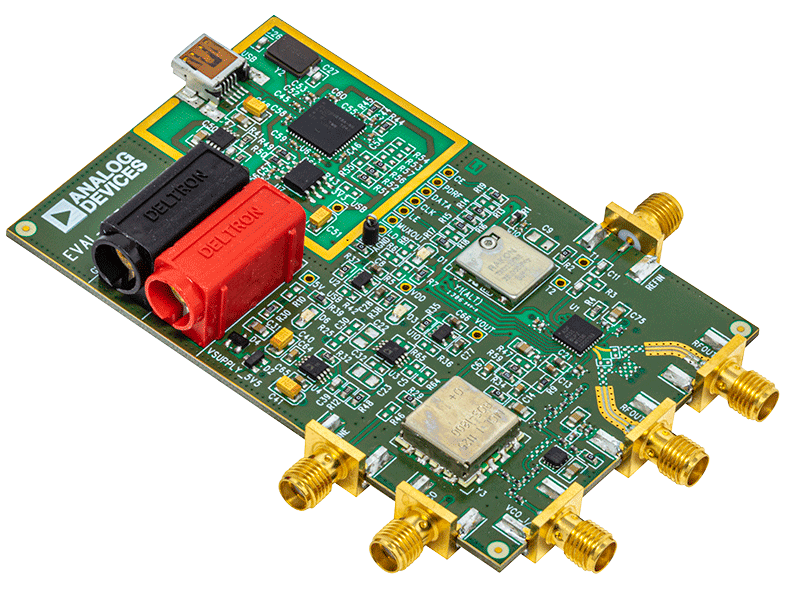

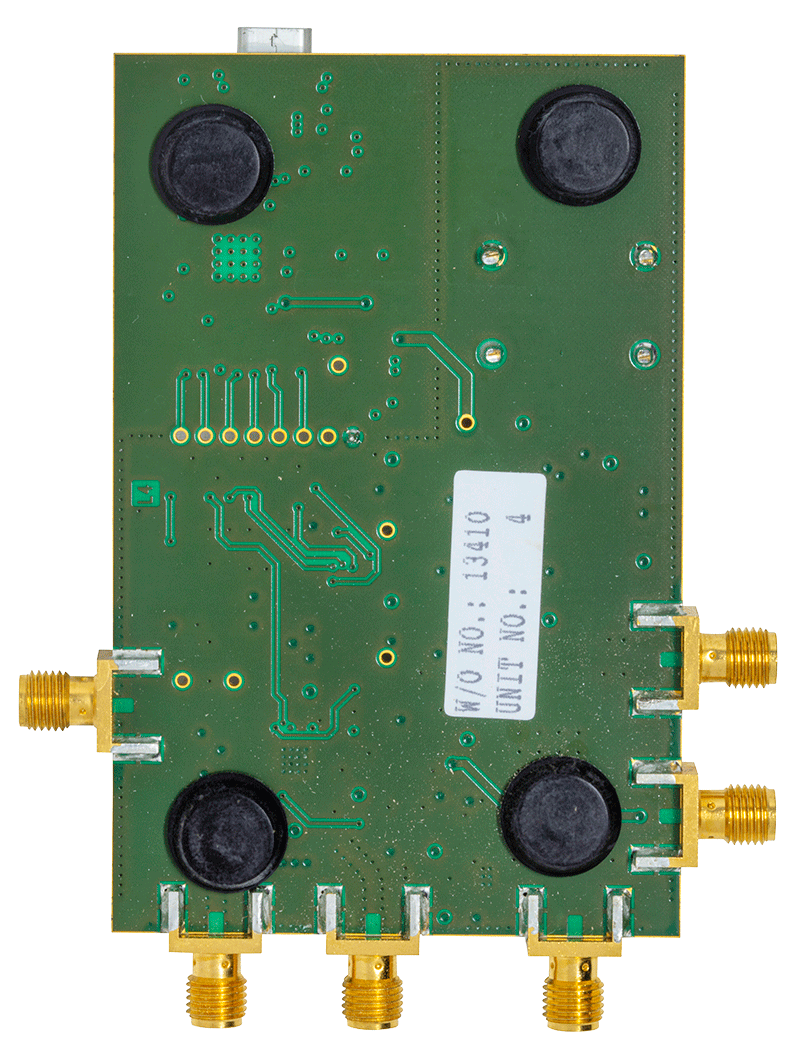

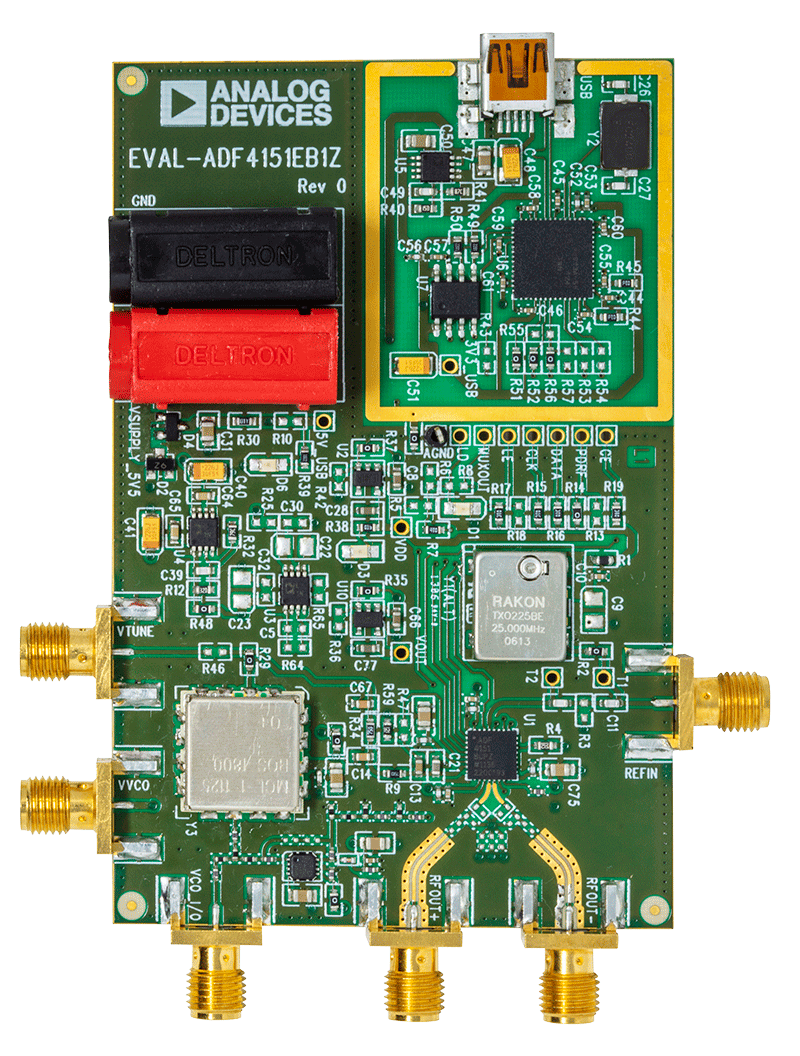

Evaluation Kits (1)
Documentation & Resources
-
UG-476: PLL Software Installation Guide8/10/2015PDF520 kB
-
UG-369: Evaluation Board for the ADF4151 PLL Frequency Synthesizer2/2/2012PDF1494 kB
-
RF, Microwave, and Millimeter Wave Product Selection Guide7/13/2018PDF9M
Tools & Simulations
Design Tools
ADIsimPLL™
ADIsimPLL enables the rapid and reliable evaluation of new high performance PLL products from ADI. It is the most comprehensive PLL Synthesizer design and simulation tool available today. Simulations performed include all key non-linear effects that are significant in affecting PLL performance. ADIsimPLL removes at least one iteration from the design process, thereby speeding the design- to-market.
ADIsimRF
ADIsimRF is an easy-to-use RF signal chain calculator. Cascaded gain, noise, distortion and power consumption can be calculated, plotted and exported for signal chains with up to 50 stages. ADIsimRF also includes an extensive data base of device models for ADI’s RF and mixed signal components.
Product Recommendations
ADF4151 Companion Parts
Recommended Linear Regulators
- For a step up, 3V to 5V regulator: ADP1613.
- For high accuracy, 5V applications: ADP3334.
- For ultralow noise, 3V applications,150mA output: ADP150.
- For ultalow noise, 3V applications, 200mA output: ADP151.
Recommended PLL Active Filter
- For an ultralow noise, rail-to-rail amplifier: OP184.
