TMC6460
预发布Fully Integrated FOC BLDC Driver
- 产品模型
- 2

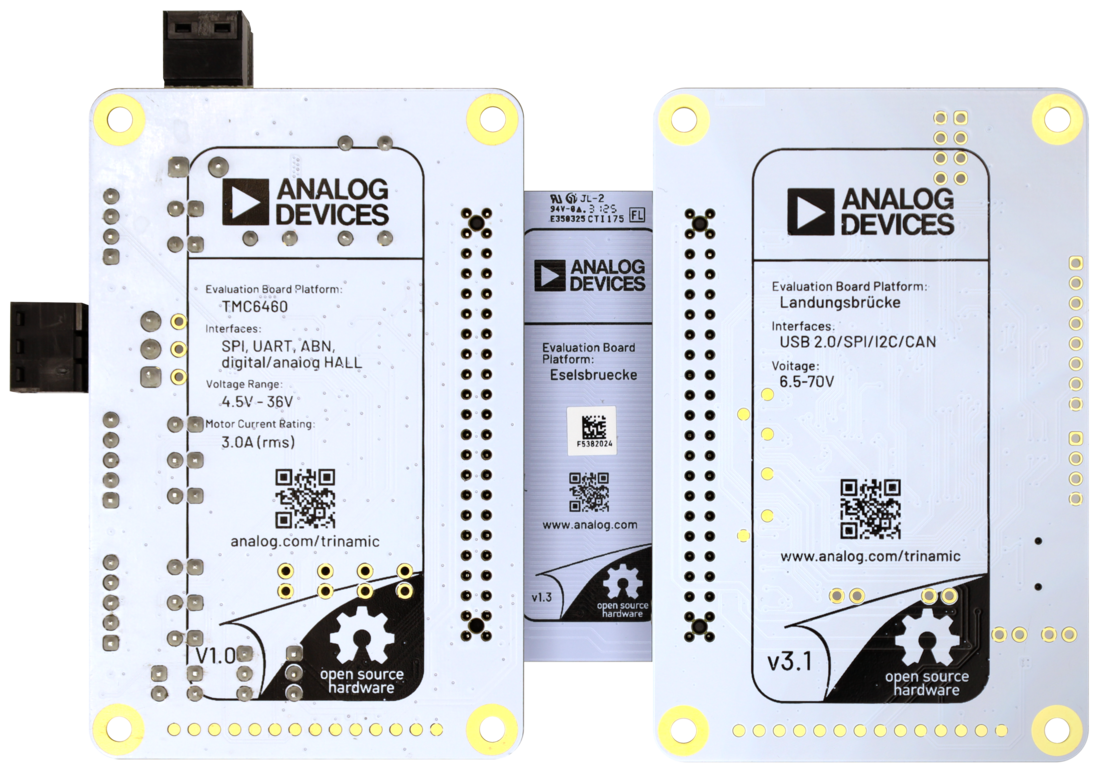

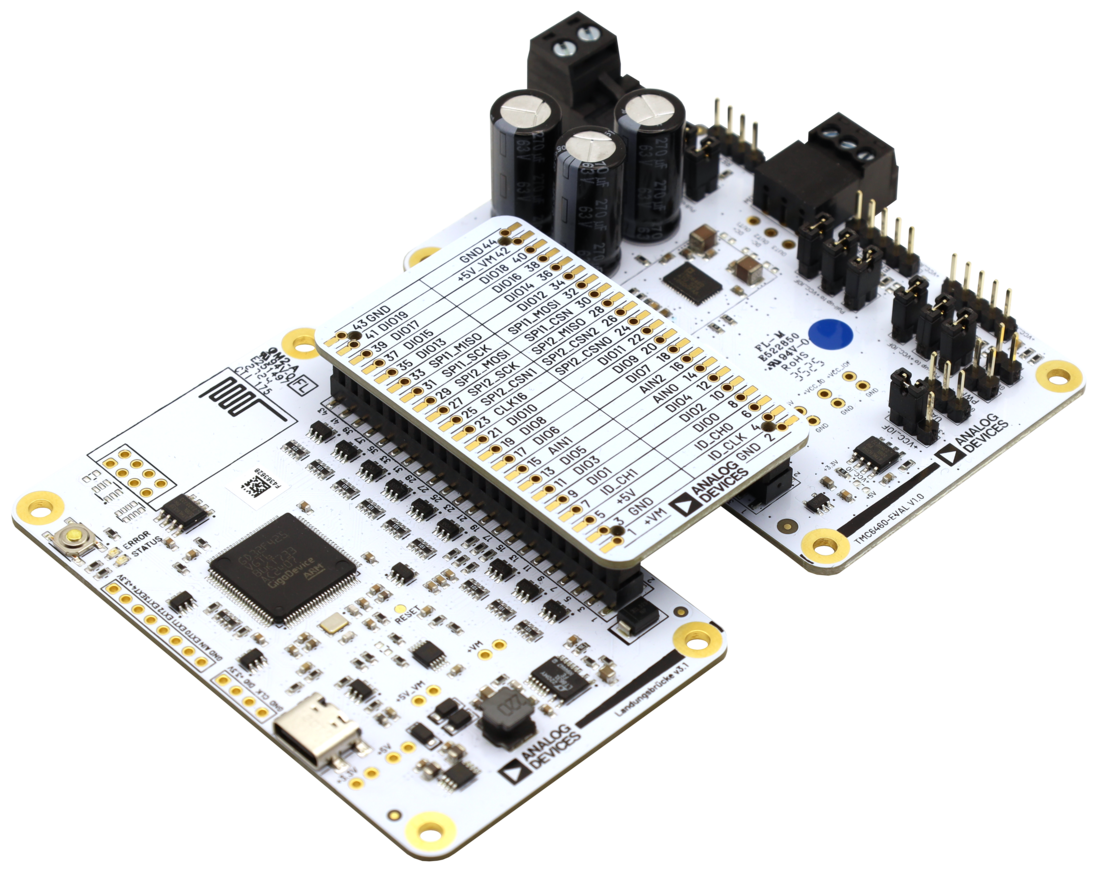

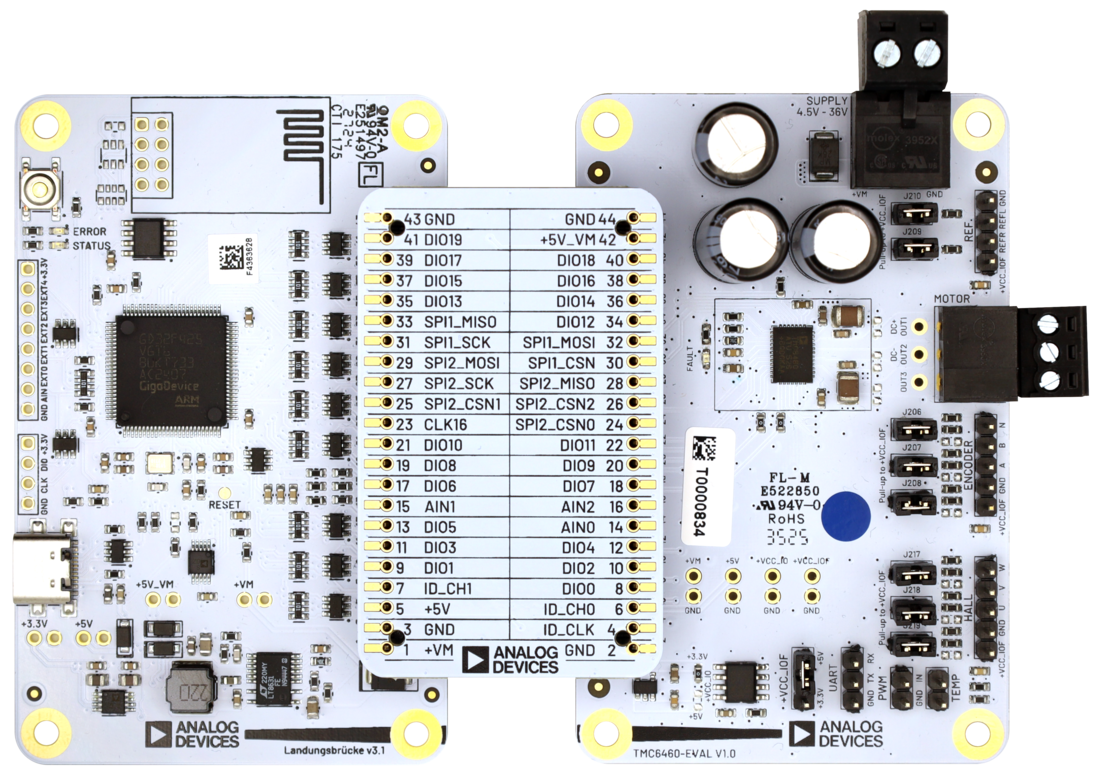

概述
- Highly Miniaturized Servo Drive SoC
- Drives 36V BLDC and DC Motors
- Up to 3ARMS Continuous Current Capability
- Up to 5AFS Current Sensing Capability
- -40°C to 125°C Ambient Temperature
- Easy to Use
- High Performance Motion Control
- Hardware-Based Field-Oriented Control (FOC)
- Up to 200kHz Control Loop and PWM Engine
- Embedded 8-Point Ramp Controller
- Flexible Feedback Engine (ABN, SinCos, Digital/Analog Hall, SPI Encoders)
- Integrated Power Stage and Signal Conditioning
- Three 36V Half Bridges 55mΩ/FET
- Integrated Scalable, Lossless Current Sensing
- Accurate CSAs and ADCs
- Short Circuit and Thermal Protection
The TMC6460 is the first fully integrated Servo Drive IC including the FOC controller, power stage, current sensing and feedback engine, all in one chip. Its highly integrated design enables the control of torque, velocity, and position motion with unrivalled miniaturization.
Inside the TMC6460, the FOC Algorithm and Motion Control are implemented in the hardware, resulting in outstanding dynamic control of the motor compared to software-implemented solutions.
The high PWM frequency capabilities of the TMC6460 enable efficient and precise control of low-inductance and coreless motors.
The TMC6460 is a flexible and easy-to-use solution, making it the ideal choice in applications that require precise positioning and fast acceleration.
APPLICATIONS
- Robotics and Automation
- CCTV and PTZ Cameras
- SMT Pick and Place Machines
- Photography Gimbals
- Infusion and Syringe Pumps
- BLDC/PMSM and DC Servo Motors
参考资料
ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。
| 产品型号 | 引脚/封装图-中文版 | 文档 | CAD 符号，脚注和 3D模型 |
|---|---|---|---|
| TMC6460ATU+ | LFCSP | ||
| TMC6460ATU+T | LFCSP |
这是最新版本的数据手册
