TMC262

推荐用于新设计

Stepper motor driver 5 to 60V, for external P/N-Fets with S/D and SPI Interface, 256 µSteps, CoolStep, StallGuard2 and SpreadCycle.

数据手册 (Rev. 1.02) 产品选型表
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
Viewing:

概述

  • High Motor Current up to 10A using external (N&P) MOSFETs.
  • Highest Voltage 5V to 60V DC; more w. ext. gate driver
  • Highest Resolution up to 256 microsteps per full step
  • Small Size 5x5mm QFN32 package
  • Low Power Dissipation synchronous rectification
  • Protection & Diagnostics short to GND, overtemperature & undervoltage; short to VS & overcurrent
  • Stand Alone option
  • EMI-optimized slope & current controlled gate drivers
  • StallGuard2™ high precision sensorless motor load detection
  • CoolStep™ load dependent current control saves up to 75%
  • MicroPlyer™ 256 microstep smoothness with 1/16 step input.
  • SpreadCycle™ high-precision chopper for best current sine wave form and zero crossing
  • Improved Silent Motor operation

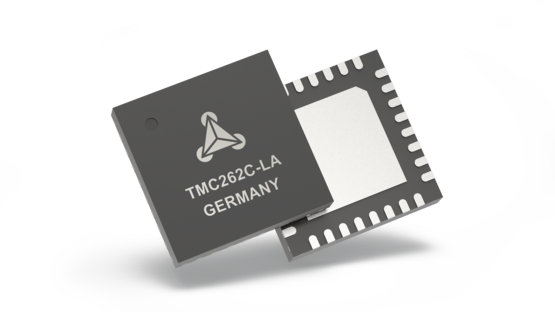

The TMC262C drivers for two-phase stepper motors offer an industry-leading feature set, including high-resolution microstepping, sensorless mechanical load measurement, load-adaptive power optimization, and low-resonance chopper operation. Standard SPI™ and STEP/DIR interfaces simplify communication. The TMC262 uses four external N- and P-channel dual-MOSFETs for motor currents up to 10A RMS and up to 60V. Integrated protection and diagnostic features support robust and reliable operation. High integration, high energy efficiency and small form factor enable miniaturized designs with low external component count for cost-effective and highly competitive solutions. The new –C device improves motor silence and adds low side short protection.

Applications:

  • Textile, Sewing Machines
  • Factory Automation
  • Lab Automation
  • Liquid Handling
  • Medical
  • Office Automation
  • Printer and Scanner
  • CCTV, Security
  • ATM, Cash recycler
  • POS
  • Pumps and Valves
  • Heliostat Controller
  • CNC Machines
TMC262
Stepper motor driver 5 to 60V, for external P/N-Fets with S/D and SPI Interface, 256 µSteps, CoolStep, StallGuard2 and SpreadCycle.
tmc262 tmc262_block_diagram tmc262_pinout
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目
提问

参考资料

数据手册 2

应用笔记 6

评估设计文件 1

了解更多
添加至 myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

创建新项目

软件资源

找不到您所需的软件或驱动?

申请驱动/软件

工具及仿真模型

设计工具 1

评估套件

eval board
schematic 1
TMC262-BOB

Evaluation Board for TMC262

立即购买 更多内容

特性和优点

  • StallGuard2™
  • CoolStep™
  • SpreadCycle™
  • MicroPlyer™
  • 1 to 256 Microsteps
  • 2.8ARMS, 26V/36V/48V

产品详情

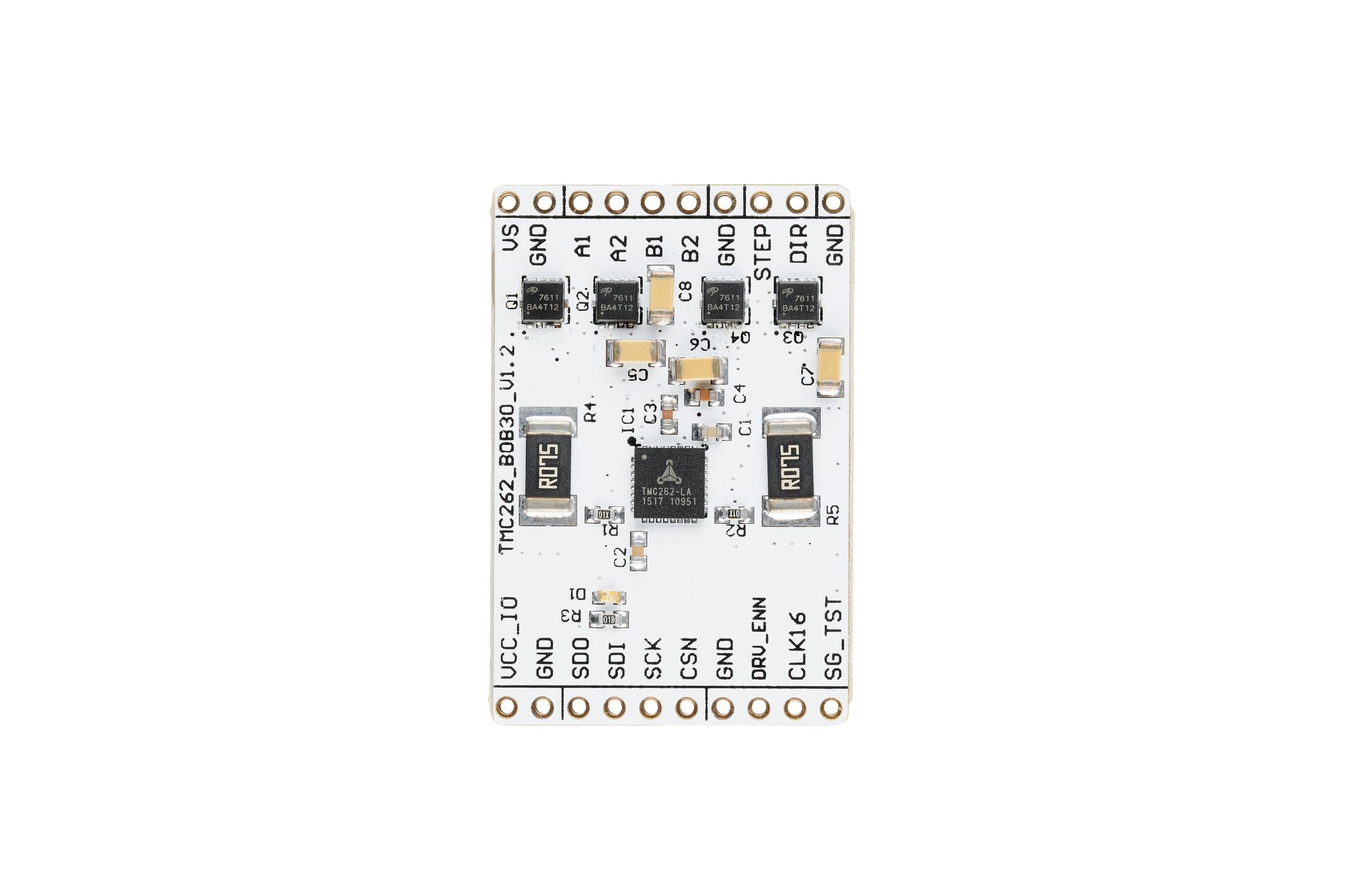

The TMC262 breakout board is a development board with the dedicated TMC262-LA chip. It is designed to give users the chance to rapidly prototype their applications - making it possible to immediately check how the motor performs with TMC chips while developing the application's software.
