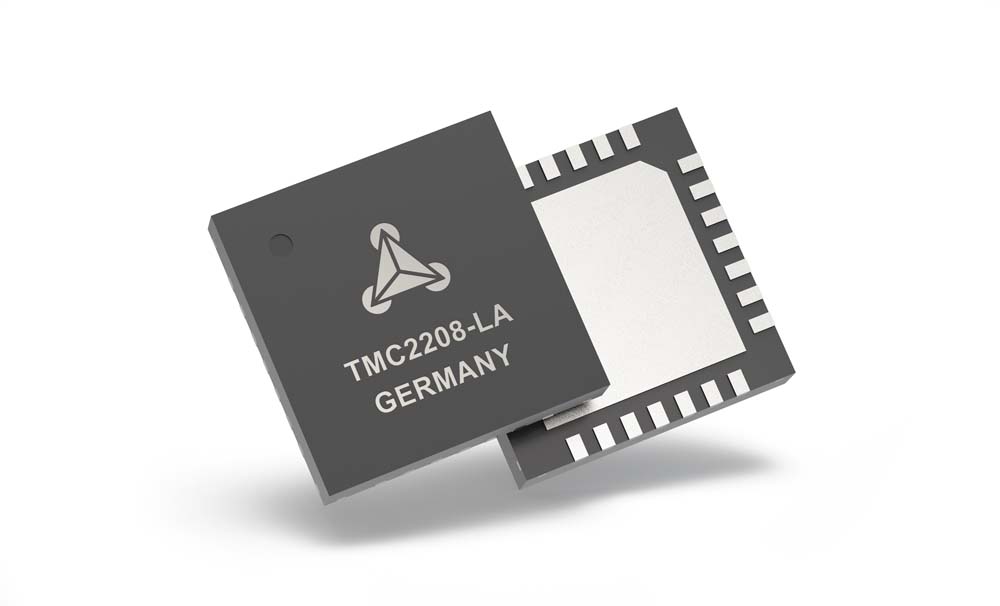

TMC2208

Silent stepper motor driver 5 to 36V, up to 1.4A with S/D and UART Interface, 256 µSteps, SpreadCycle and Stealthchop

更多 showmore-icon

Info : 推荐新设计使用 tooltip
Info : 推荐新设计使用 tooltip
产品详情
特性
  • 2-phase stepper motors up to 2A coil current (peak)
  • STEP/DIR Interface with 2, 4, 8, 16 or 32 microstep pin setting
  • Smooth Running 256 microsteps by MicroPlyer™ interpolation
  • StealthChop2™ silent motor operation
  • SpreadCycle™ highly dynamic motor control chopper
  • Low RDSon LS 280mΩ & HS 290mΩ (typ. at 25°C)
  • Voltage Range 4.75 to 36V DC
  • Automatic Standby current reduction (option)
  • Internal Sense Resistor option (no sense resistors required)
  • Passive Braking and Freewheeling
  • Single Wire UART & OTP for advanced configuration options
  • Integrated Pulse Generator for standalone motion
  • Full Protection & Diagnostics
  • Choice of QFN and wettable QFN packages for best fit
更多细节
show more Icon

The TMC2208 provides an integrated motor driver solution for 3D-Printing, Cameras, Scanners and other automated equipment applications. The device has an integrated microstepping indexer, the completely noiseless current control mode StealthChop2™ and is intended to drive a bipolar stepper motor. The output driver block consists of low RDSon N-Channel power MOSFETs configured as full H-bridges to drive the motor windings. The TMC2208 is capable of driving up to 2A of current from each output (with proper heatsinking). TMC2208 is designed for a supply voltage of 5 to 36V. The device has a step and direction interface and can be configured with digital pins.

Applications

  • Compatible Design Upgrade
  • 3D Printers
  • Printers, POS
  • Office and home automation
  • Textile, Sewing Machines
  • CCTV, Security
  • ATM, Cash recycler
  • HVAC

产品技术资料帮助

close icon

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许,也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。

参考资料

参考资料

产品型号 引脚/封装图-中文版 文档 CAD 符号,脚注和 3D模型
TMC2208-LA
  • HTML
  • HTML
TMC2208-LA-T
  • HTML
  • HTML
软件和型号相关生态系统

软件和型号相关生态系统

评估套件

评估套件 1

reference details image

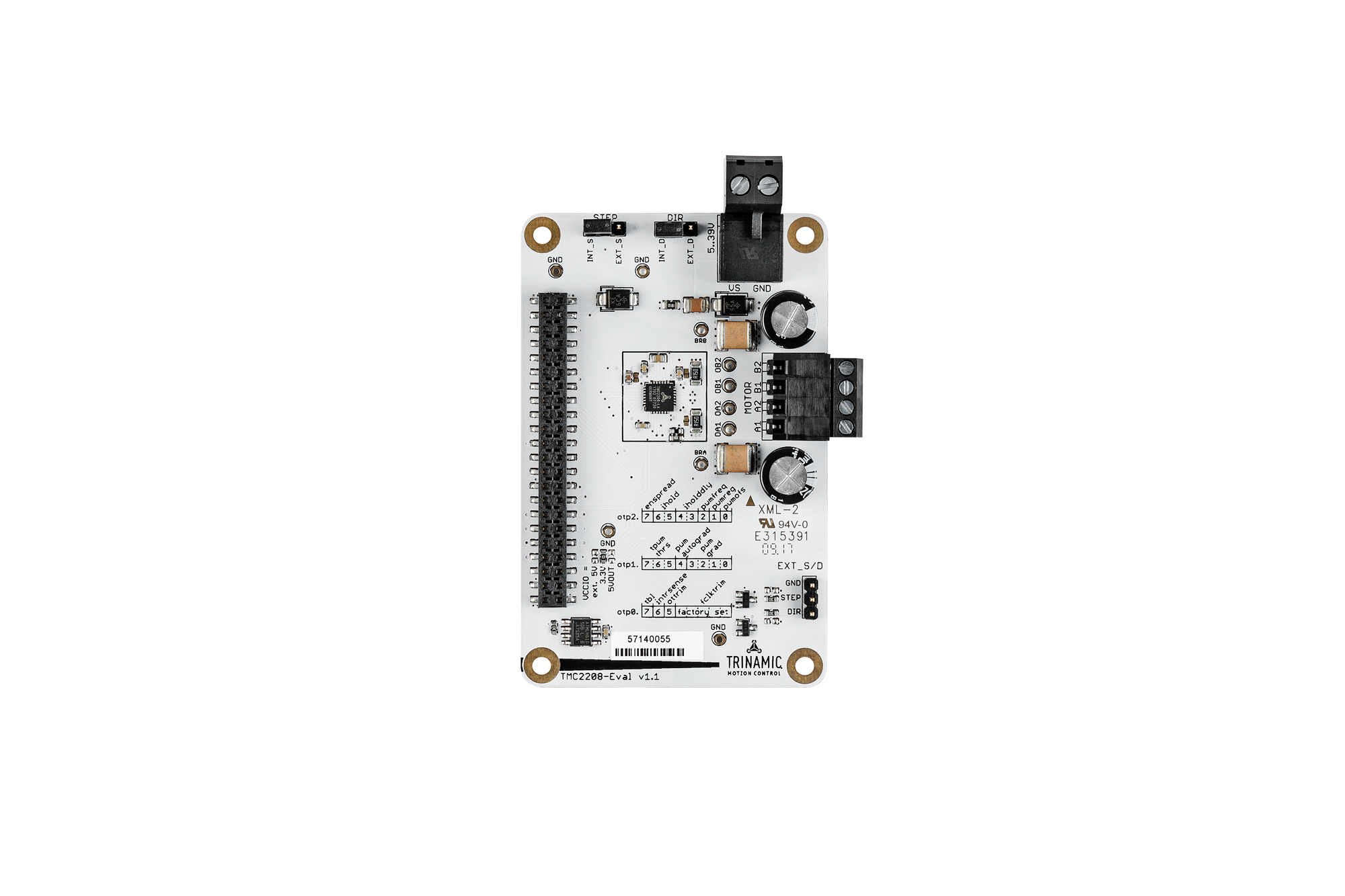

TMC2208-EVAL

Evaluation Board for TMC2208

zoom

TMC2208-EVAL

Evaluation Board for TMC2208

Evaluation Board for TMC2208

特性和优点

  • 2-phase stepper motor up to 1.35A coil current (2A peak)
  • Supply Voltage 4.75 to 36V DC
  • UART
  • 1 to 256 microsteps
  • Step/Dir interface
  • StealthChop silent PWM mode
  • SpreadCycle smart mixed decay
  • 1.35A RMS, 36V

产品详情

The TMC2208-EVAL allows you to explore all functions of the TMC2208-LA.

The TMC2208-EVAL-KIT is a set of one MCU board Landungsbruecke, a TMC22xx bridge board and one TMC2208-EVAL driver board. It allows for a quick and simple start within only minutes to make your motor turning, while still providing full access to all registers and full functionality and diagnostics.

For diagnosis, all signals between MCU and TMC2208 are accessible with probes on the bridge board. TMC2208-EVAL can be used with or without the Landungsbruecke MCU board.

All you need to get started is a power supply and ADI Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data. All settings can simply be exported for your own firmware project.

More about the TMCL-IDE
