1209: 50mA、频率可选的开关电容电压变换器 Data Sheet (Rev. 3)1/1/1900PDF168K
概览
优势和特点
- 8-Pin, 1.11mm High µMAX Package
- Invert or Double the Input Supply Voltage
- Three Selectable Switching Frequencies
- High Frequency Reduces Capacitor Size
- 87% Efficiency at 50mA
- 200µA Quiescent Current (MAX860)
- 1µA Shutdown Supply Current
- 600mV Voltage Drop at 50mA Load
- 12Ω Output Resistance
产品详情

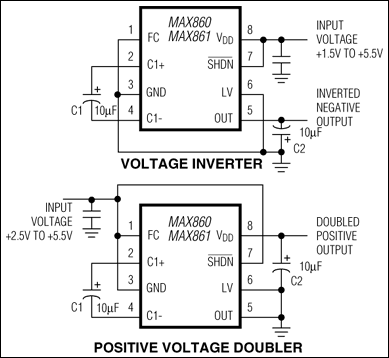

The MAX860/MAX861 charge-pump voltage converters invert input voltages ranging from +1.5V to +5.5V, or double input voltages ranging from +2.5V to +5.5V. Because of their high switching frequencies, these devices use only two small, low-cost capacitors. Their 50mA output makes switching regulators unnecessary, eliminating inductors and their associated cost, size, and EMI. Greater than 90% efficiency over most of the load-current range, combined with a typical operating current of only 200µA (MAX860), provides ideal performance for both battery-powered and board-level voltage-conversion applications.
A frequency-control (FC) pin provides three switching-frequencies to optimize capacitor size and quiescent current and to prevent interference with sensitive circuitry. Each device has a unique set of three available frequencies. A shutdown (active-low SHDN) pin reduces current consumption to less than 1µA. The MAX860/MAX861 are suitable for use in applications where the ICL7660 and MAX660's switching frequencies are too low. The MAX860/MAX861 are available in 8-pin µMAX® and SO packages.
应用
- 手持式仪表(PDA、掌上电脑)
- 接口供电
- 医疗仪器
- 运算放大器电源
- 便携式计算机
产品分类
产品生命周期
量产
该产品系列中至少有一个型号已量产并可供采购。该产品适合用于新设计,但也可能有更新的替代产品。
