MAX25621

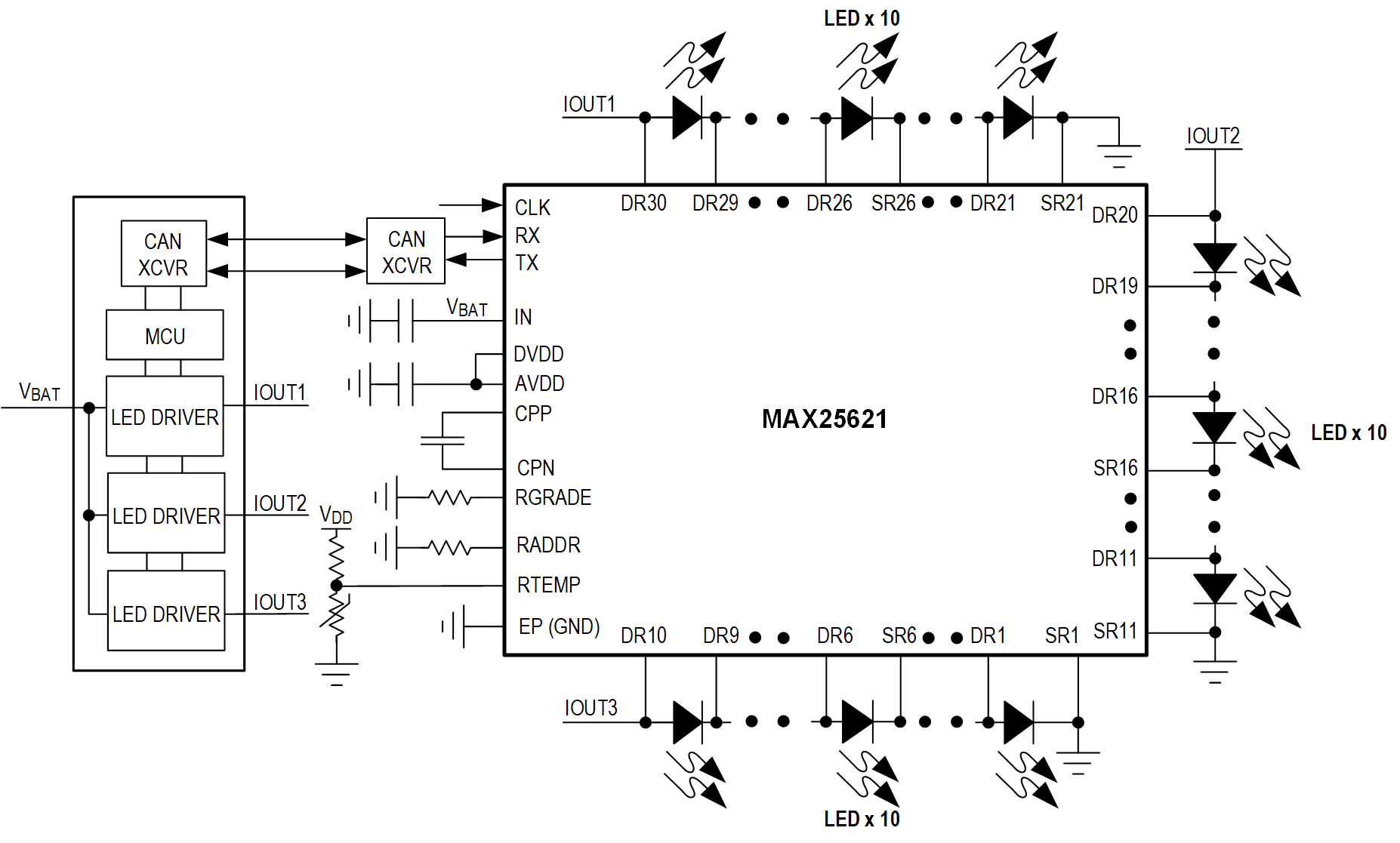

The MAX25621 30-switch matrix manager device enables fully dynamic adaptive lighting solutions by providing individual pixel-level LED control. The device includes 3 strings of 10 series connected integrated switches for bypassing individual LEDs. A microcontroller is used to control and manage the MAX25621 devices through a multidrop universal asynchronous receiver transmitter (UART) serial interface. The serial interface supports the use of CAN transceivers for a more robust physical layer.

The internal charge pump rail supplies the gate drive voltage for the LED bypass switches. The low onresistance (RDS_ON) of the bypass switch minimizes conduction loss and power dissipation. Individual switches are rated for an absolute maximum voltage of 16V. The LEDs across each switch can be fully turned on, turned off, and PWM dimmed with or without a built in logarithmic fade. The phase shift and pulse width for each individual LED in the string are programmable. The device uses an internal register to adjust the PWM frequency. Multiple devices can be synchronized. The switch transitions during PWM dimming operation have a programmable slew rate to mitigate EMI concerns.

Applications

• Adaptive Driving Beam (ADB)
• Animated Lighting (Turn Indicator/DRL/Position)
• Full Combination Headlamp
