MAX25560
推荐新设计使用6 x 220mA LED Backlight Driver with Boost Controller
- 产品模型
- 2
产品详情
- Operates down to 3V on Battery Input whileMaintaining 5V Gate Drive
- Wide Boost Duty-Cycle Range
- Boost or SEPIC Current-Mode DC-DC Controller
- 400kHz to 2.2MHz Operating Frequency Range
- Optional Spread Spectrum
- Can Be Synchronized to an External Clock
- LED Current Sinks
- Up to 220mA Output Current per String
- Low OUT_ Regulation Voltage
- Optional Phase-Shifting Between Channels
- 16667:1 Dimming Ratio at 200Hz
- External or Internal (I2C) Dimming
- >16667:1 Dimming Ratio with Hybrid Dimming
- Integrated Charge Pump to Drive Series nMOSFET
- Temperature Foldback Using External NTCTemperature Sensor
- Fast Startup Option without I2C Intervention UsingEN Pin Only
- FLTB Output Provides Diagnostic Information
- Shorted or Open LEDs
- Any OUT_ Pin Shorted to GND
- IREF/RT Resistor out of Range
- Thermal Warning/Shutdown
- Undervoltage/Overvoltage on Boost Output
- V18 Internal Supply out-of-Range
- Input Overcurrent (Measured at Boost InputUsing External Sense Resistor)
- I2C Interface

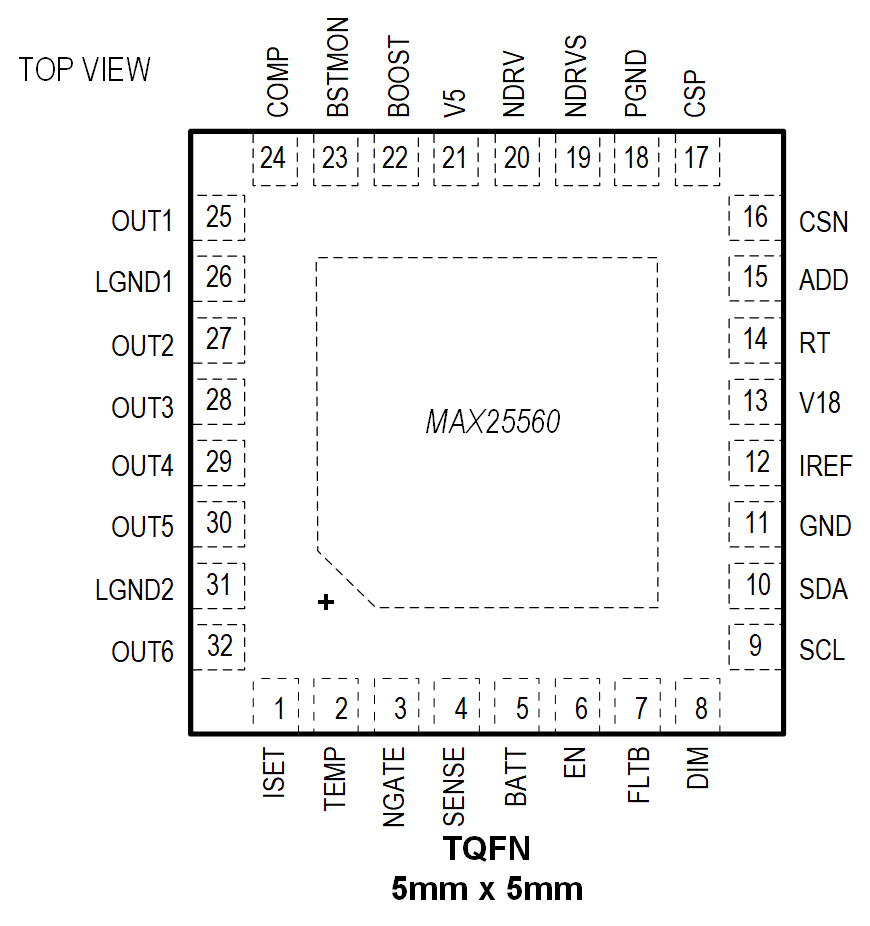

- Compact TQFN Package

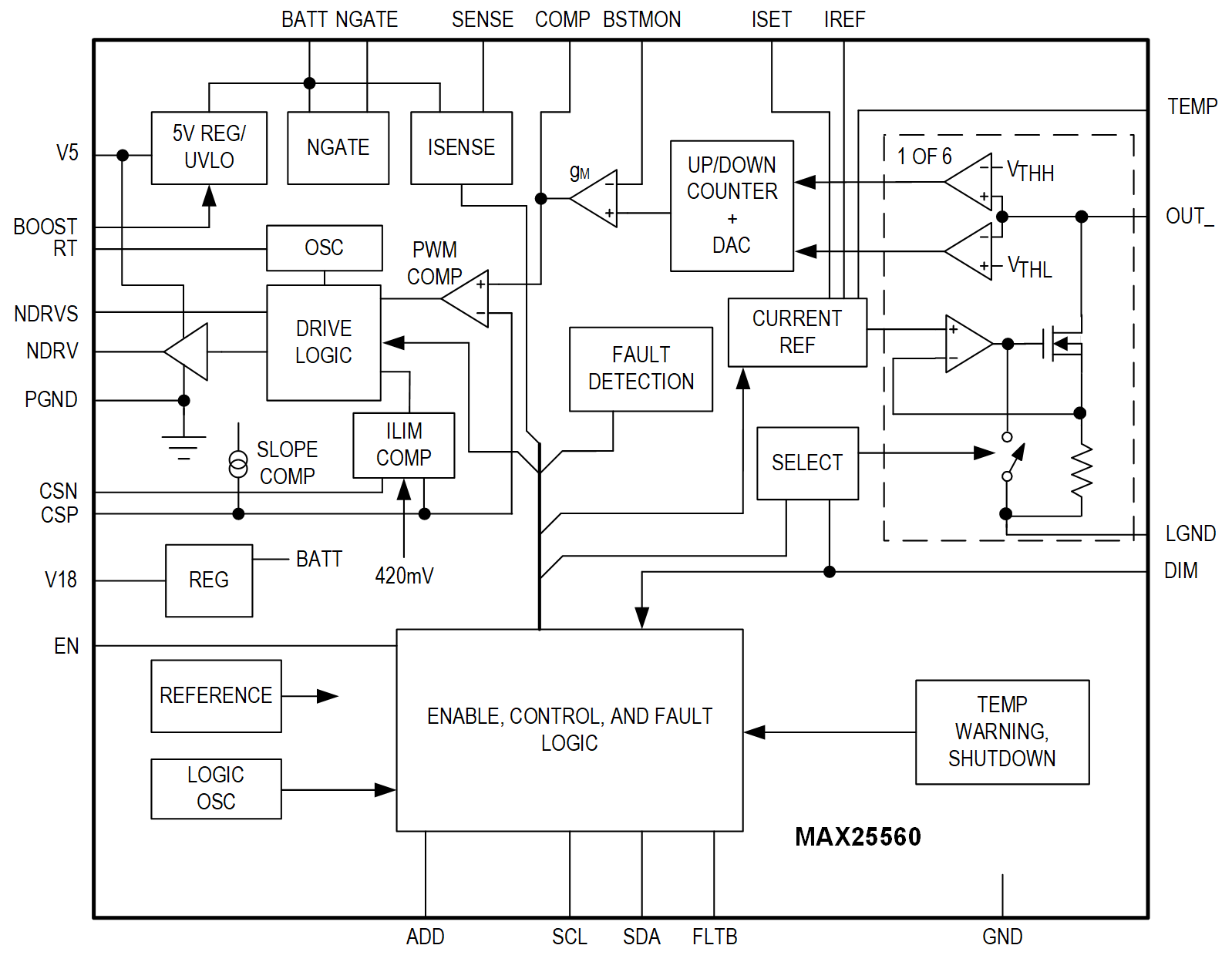

The MAX25560 is a six-channel LED backlight driver with an integrated current-mode boost controller that operates over a switching frequency range of 400kHz to 2.2MHz and incorporates spread spectrum. Selectable phase-shifting of the output channels is included to reduce EMI. The MAX25560 provides up to 220mA per channel. The device is capable of operating down to very low battery voltages by virtue of a unique input voltage switching scheme.
Extensive diagnostics and an I2C interface are included in the device.
The MAX25560 is available in a compact TQFN package and operates over the -40°C to +125°C temperature range.
Applications
- Automotive Instrument Clusters
- Automotive Central Information Displays
- Automotive Head-Up Displays
参考资料
ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。
| 产品型号 | 引脚/封装图-中文版 | 文档 | CAD 符号，脚注和 3D模型 |
|---|---|---|---|
| MAX25560ATJ/V+ | 32-LFCSP-5X5X0.75 | ||
| MAX25560ATJ/V+T | 32-LFCSP-5X5X0.75 |
这是最新版本的数据手册
