MAX20479
推荐用于新设计Two/Three-Input Automotive Voltage Monitor with Watchdog
ASIL-B 2-3 Automotive Input Voltage Monitor with Watchdog
- 产品模型
- 3
概述
- Small Solution
- 2.35V to 5.50V Operating Supply Voltage
- Only One External Component Required
- 125μA Operating Current
- High Precision
- Selectable 102.5% to 110% OV Monitors
- Selectable 97.5% to 90% UV Monitors
- ±0.8% Accuracy
- 0.5% Step Size
- ASIL B Compliance
- Highly Integrated
- MAX20479A/C - Two Voltage Monitoring Inputs
- MAX20479B/D - Three Voltage Monitoring Inputs
- Windowed Watchdog
- OTP Configuration with Error-Correcting Code
- Programmable RESET1 and RESET2 Pins
- 10-Pin, Side-Wettable TDFN with Exposed Pad (3mmx 3mm) (Two Different Package Options)
- AEC-Q100 Qualified
- -40°C to +125°C Operating Temperature

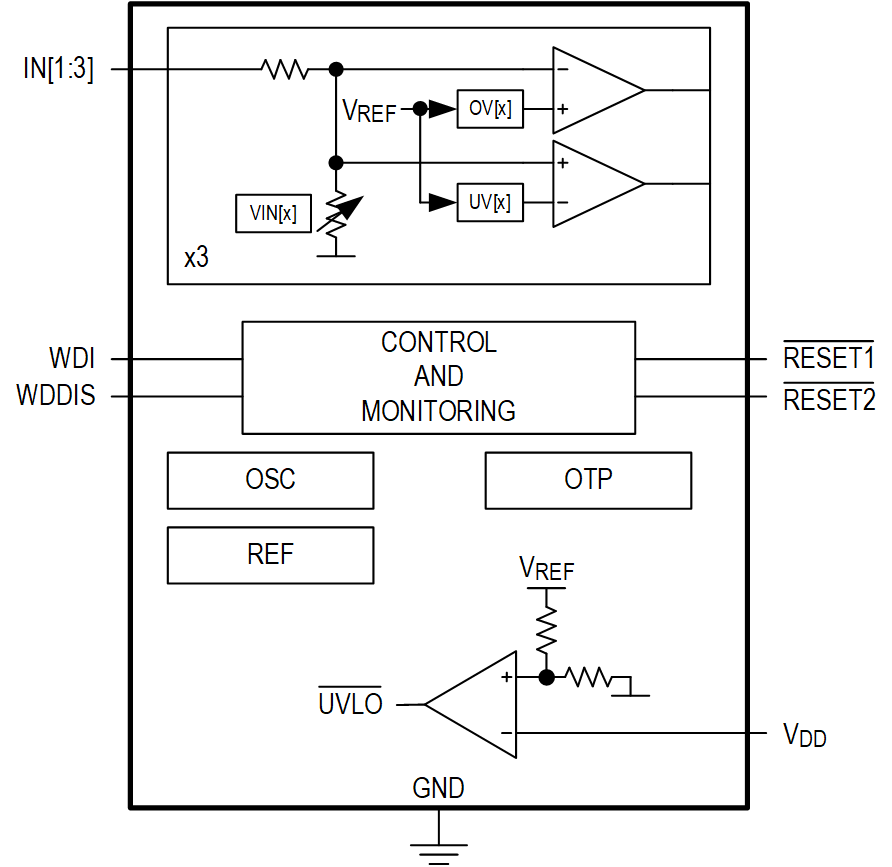

The MAX20479 is a complete ASIL B-compliant system-on-a-chip (SoC) voltage monitor with two or three voltage monitor inputs. Inputs 1 and 2 can be configured to monitor a voltage between 0.5V and 3.6875V in 12.5mV steps, while input 3 can be configured to monitor a voltage between 0.5V to 5.6V in 20mV steps. Each input has programmable OV/UV thresholds of between 2.5% and 10% with ±0.8% accuracy. The MAX20479 also contains a programmable windowed watchdog.
The MAX20479 significantly reduces system size and component count while improving reliability, compared to separate ICs or discrete components. The device is designed to operate over the ambient temperature range of -40°C to +125°C.
APPLICATIONS
- Advanced Driver-Assistance Systems
- Autonomous Driving Processing Systems
- Remote Sensor Modules
- Power System Supervision and Microcontroller Unit/System-on-a-Chip Monitoring
参考资料
数据手册 1
申请保密协议
完成保密协议（NDA）后可获得完整的文件。
申请保密协议ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。
| 产品型号 | 引脚/封装图-中文版 | 文档 | CAD 符号，脚注和 3D模型 |
|---|---|---|---|
| MAX20479AATBF/VY+ | LFCSP | ||
| MAX20479DATBC/VY+ | T1033Y+5C | ||
| MAX20479DATBC/VY+T | T1033Y+5C |
