概览

优势和特点

  • ±0.35% Threshold Accuracy
  • AEC-Q100 Qualified
  • 0.6V to 0.9V Nominal Threshold Range
  • ±2% to ±5% UV/OV Monitoring Range
  • Open-Drain/Push-Pull Reset Output Options
  • 8-Pin TDFN, 2mm x 2mm Side-Wettable Flanks with No Exposed Pad
  • -40°C to +125°C Temperature Range




产品详情

The MAX16191 is a single-channel, ultra-high accuracy supervisor circuit that monitors low core system supply voltages. The reset output asserts when the monitored supply voltage falls outside of the factory-trimmed undervoltage/overvoltage threshold window. The reset output deasserts after reset timeout period when the monitored supply voltage falls within the threshold window. The reset output is active-low and available in open-drain or push-pull configuration.

The MAX16191's nominal input voltage level is factory-programmable to any voltage between 0.6V to 0.9V. Together with the ±2% to ±5% undervoltage/overvoltage window threshold range, the MAX16191 offers the flexibility to monitor a wide range of system supply voltages. The undervoltage/overvoltage threshold levels are factory programmable and are symmetrical with respect to the nominal input voltage setting.

The MAX16191 is available in a small, 2mm x 2mm, 8-pin TDFN side-wettable package and operates over the automotive temperature range of -40°C to +125°C.

Applications

  • Advanced Driver-Assistance Systems (ADAS)
  • Multivoltage ASICs
  • Servers
  • Storage Equipment

产品生命周期 icon-recommended 推荐新设计使用

本产品已上市。数据手册包含所有最终性能规格和工作条件。ADI公司推荐新设计使用这些产品。

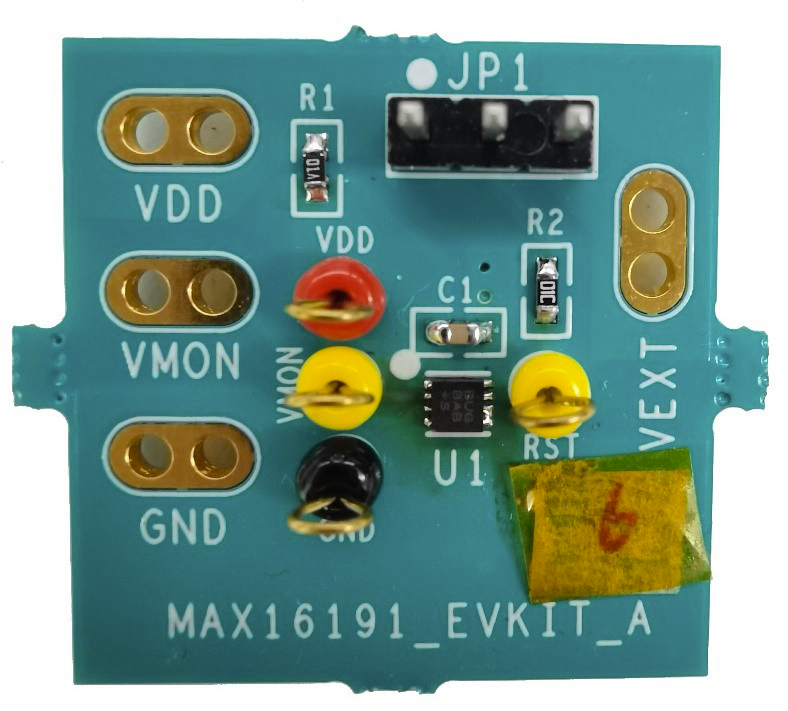

评估套件 (1)
