LTC6102

量产

精准零漂移电流检测放大器

数据手册产品选型表

产品模型: 36

Viewing:

产品详情

电源范围：
- 4V 至 60V，绝对最大值为 70V (LTC6102)
- 5V 至 100V，绝对最大值为 105V (LTC6102HV)

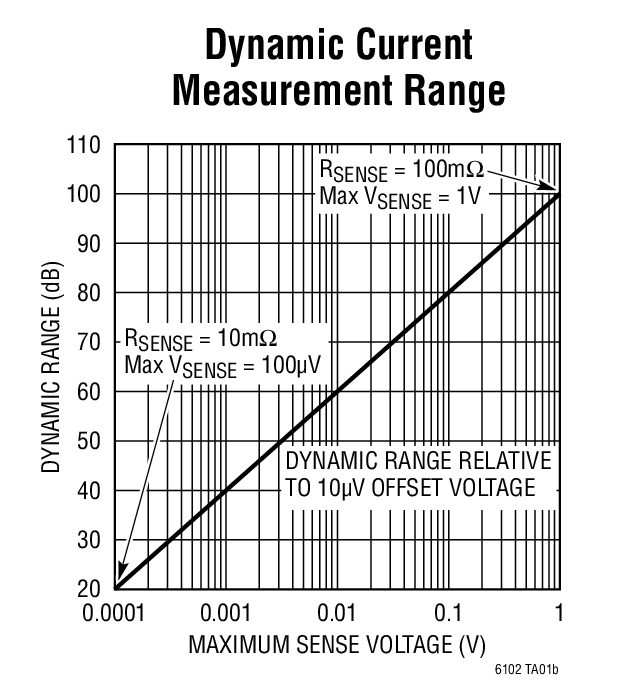

最大输入失调为 ±10μV
最大输入失调漂移为 ±50nV/°C
快速响应：1μs 阶跃响应
可利用两个电阻器进行增益配置
低输入偏置电流：3nA 最大值
PSRR 130dB 最小值
输出电流高达 1mA
工作温度范围：-40°C 至125°C
停机模式 (仅 LTC6102-1)：1μA 最大值

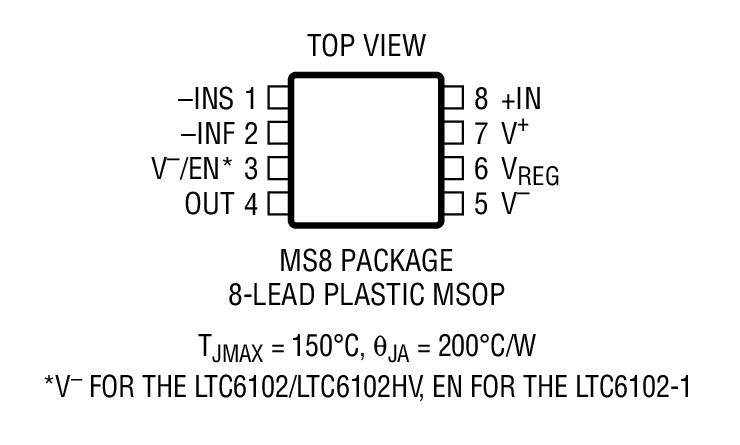

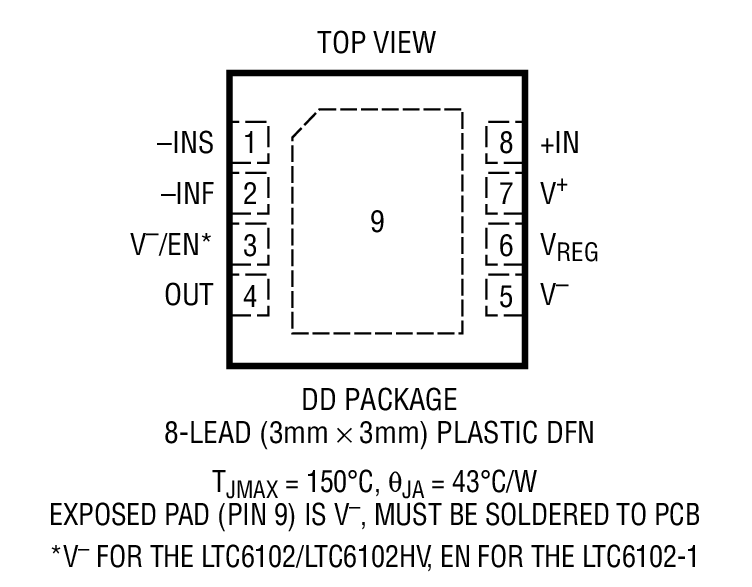

采用 8 引脚 MSOP 和 3mm x 3mm DFN 封装

产品模型: 36

参考资料

ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。

产品型号	引脚/封装图-中文版	文档	CAD 符号，脚注和 3D模型
LTC6102CDD#PBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6102CDD#TRPBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6102CDD-1#PBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6102CDD-1#TRPBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6102CMS8#PBF	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6102CMS8#TRPBF	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6102CMS8-1#PBF	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6102CMS8-1#TRPBF	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6102HDD#PBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6102HDD#TRPBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6102HDD-1#PBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6102HDD-1#TRPBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6102HMS8#PBF	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6102HMS8#TRPBF	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6102HMS8-1#PBF	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6102HMS8-1#TRPBF	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6102HVCDD#PBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6102HVCDD#TRPBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6102HVCMS8#PBF	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6102HVCMS8#TRPBF	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6102HVHDD#PBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6102HVHDD#TRPBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6102HVHMS8#PBF	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6102HVHMS8#TRPBF	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6102HVIDD#PBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6102HVIDD#TRPBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6102HVIMS8#PBF	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6102HVIMS8#TRPBF	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6102IDD#PBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6102IDD#TRPBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6102IDD-1#PBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6102IDD-1#TRPBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6102IMS8#PBF	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6102IMS8#TRPBF	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6102IMS8-1#PBF	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6102IMS8-1#TRPBF	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys

产品型号	产品生命周期	PCN

2月 14, 2025 - 25_0017 Bond Wire Change from Gold to Copper
		PCN25_0017_Form Material_Report Qualification Results Summary
LTC6102CDD#PBF	量产
LTC6102CDD#TRPBF	量产
LTC6102CDD-1#PBF	量产
LTC6102CDD-1#TRPBF	量产
LTC6102CMS8#PBF	量产
LTC6102CMS8#TRPBF	量产
LTC6102HVCDD#PBF	量产
LTC6102HVCDD#TRPBF	量产
6月 5, 2024 - 24_0003 Epoxy Change from Henkel 8290 to 8290A for MSOP Package (2)
		PCN24_0003_Form Material_Report Qualification Results Summary Delta Qualification Matrix
LTC6102CMS8#PBF	量产
LTC6102CMS8#TRPBF	量产
LTC6102HMS8#PBF	量产
LTC6102HMS8#TRPBF	量产
LTC6102HVCMS8#PBF	量产
LTC6102HVCMS8#TRPBF	量产
LTC6102HVHMS8#PBF	量产
LTC6102HVHMS8#TRPBF	量产
LTC6102HVIMS8#PBF	量产
LTC6102HVIMS8#TRPBF	量产
LTC6102IMS8#PBF	量产
LTC6102IMS8#TRPBF	量产
2月 3, 2020 - 20_0128 Laser Top Mark for 8 Lead MSOP Packages Assembled in ADPG and UTAC
		PCN20_0128_Form Material_Report
LTC6102CMS8#PBF	量产
LTC6102CMS8#TRPBF	量产
LTC6102CMS8-1#PBF	量产
LTC6102CMS8-1#TRPBF	量产
LTC6102HMS8#PBF	量产
LTC6102HMS8#TRPBF	量产
LTC6102HMS8-1#PBF	量产
LTC6102HMS8-1#TRPBF	量产
LTC6102HVCMS8#PBF	量产
LTC6102HVCMS8#TRPBF	量产
LTC6102HVHMS8#PBF	量产
LTC6102HVHMS8#TRPBF	量产
LTC6102HVIMS8#PBF	量产
LTC6102HVIMS8#TRPBF	量产
LTC6102IMS8#PBF	量产
LTC6102IMS8#TRPBF	量产
LTC6102IMS8-1#PBF	量产
LTC6102IMS8-1#TRPBF	量产
4月 14, 2025 - 25_0017 Bond Wire Change from Gold to Copper
		PCN25_0017_Form Material_Report Qualification Results Summary
LTC6102HDD#PBF	量产
LTC6102HDD#TRPBF	量产
LTC6102HDD-1#PBF	量产
LTC6102HDD-1#TRPBF	量产
LTC6102HVHDD#PBF	量产
LTC6102HVHDD#TRPBF	量产
LTC6102IDD-1#PBF	量产
LTC6102IDD-1#TRPBF	量产

这是最新版本的数据手册

软件资源

找不到您所需的软件或驱动?

申请驱动/软件

硬件生态系统

部分模型	产品周期	描述
电流检测放大器 1
LTC4151	量产	高电压 I²C 电流和电压监视器
电源监控器 1
LT2940	量产	功率和电流监视器
精密电阻网络 1
LT5400	推荐用于新设计	四个匹配的电阻器
数字温度传感器 1
LTC2991	推荐用于新设计	8 通道 I²C 电压、电流和温度监视器

部分模型	产品周期	描述
LTC4151	量产	高电压 I²C 电流和电压监视器
LT5400	推荐用于新设计	四个匹配的电阻器
LTC2991	推荐用于新设计	8 通道 I²C 电压、电流和温度监视器
LT2940	量产	功率和电流监视器

工具及仿真模型

LTspice 1

LTC6102 Demo Circuit - Simple 200V Current Monitor

LTspice中提供以下器件型号：

LTC6102

LTspice^®是一款强大高效的免费仿真软件、原理图采集和波形观测器，为改善模拟电路的仿真提供增强功能和模型。

评估套件

LTC6102 Current Sense Demo Board

立即购买更多内容

产品详情

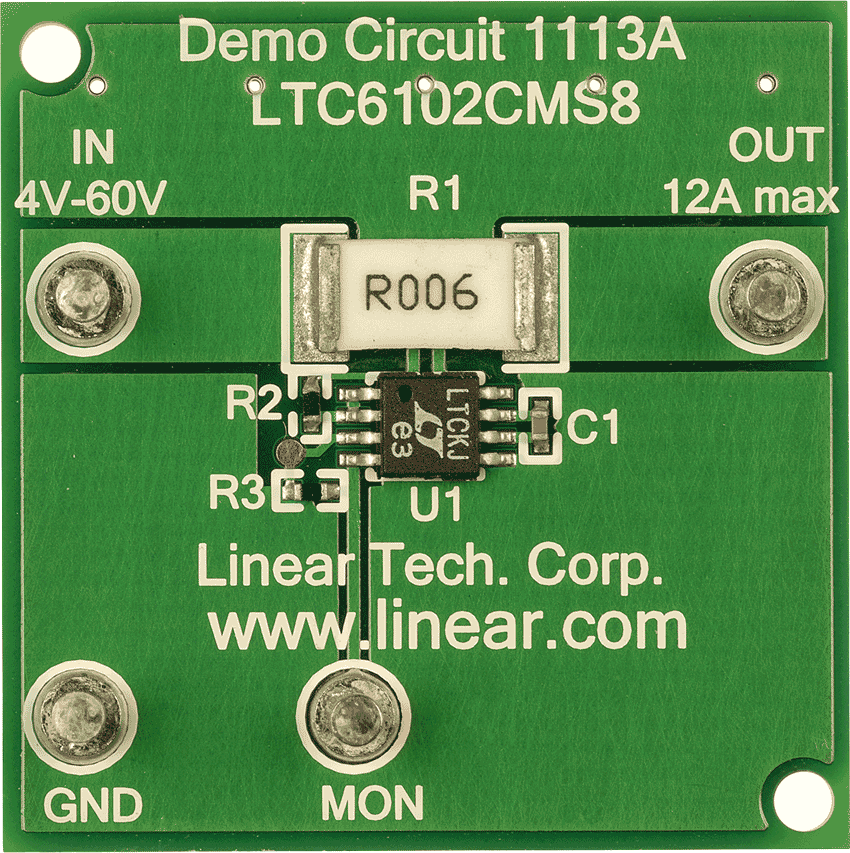

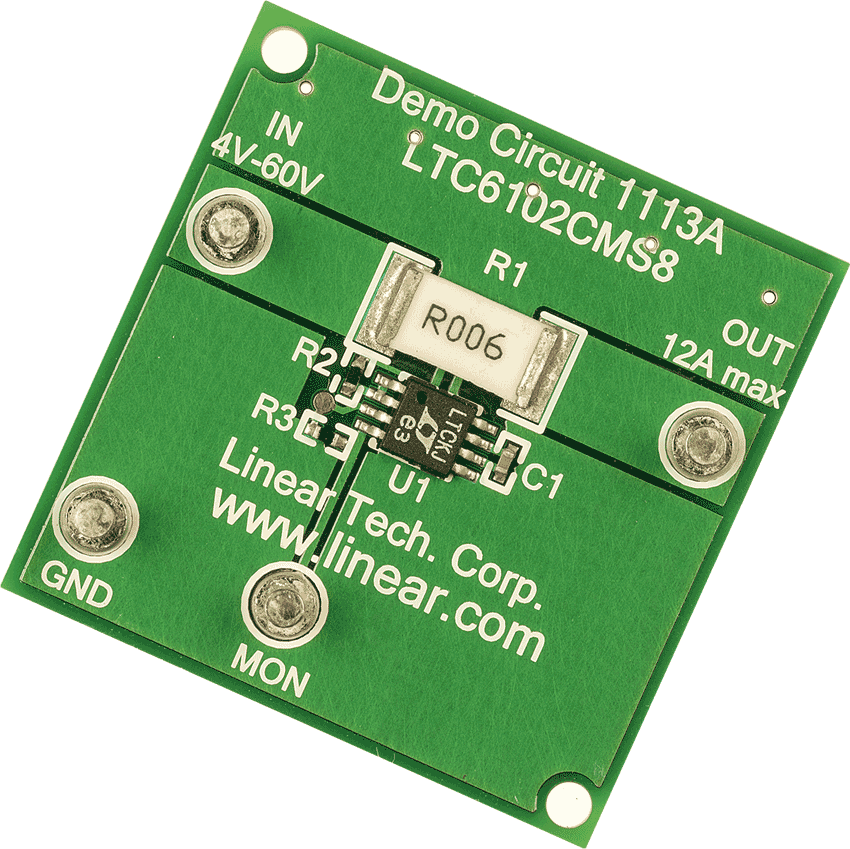

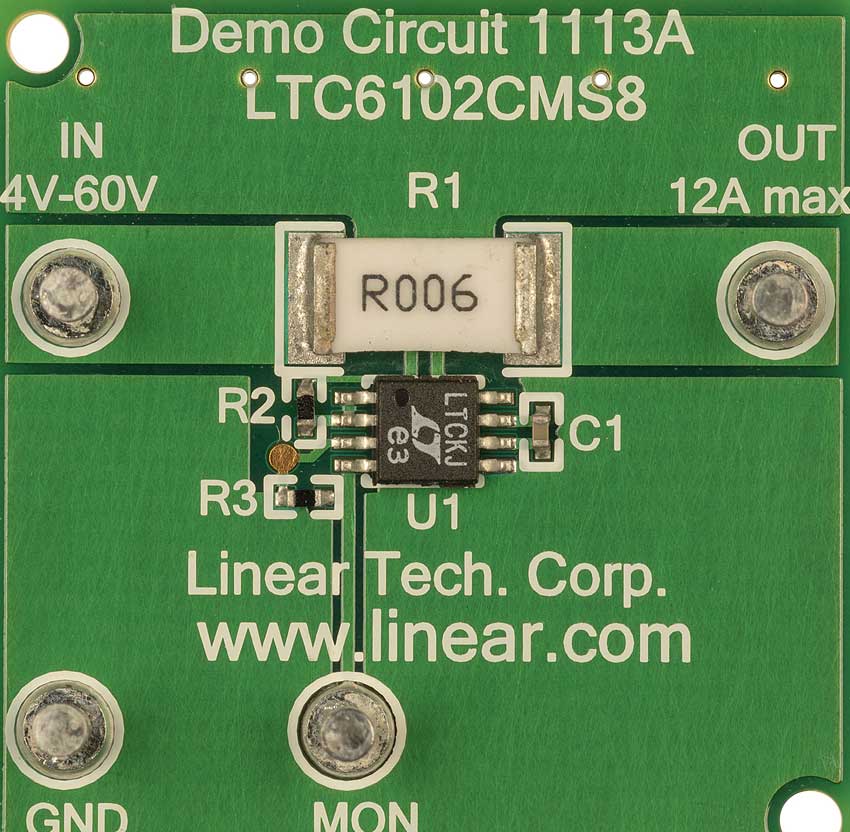

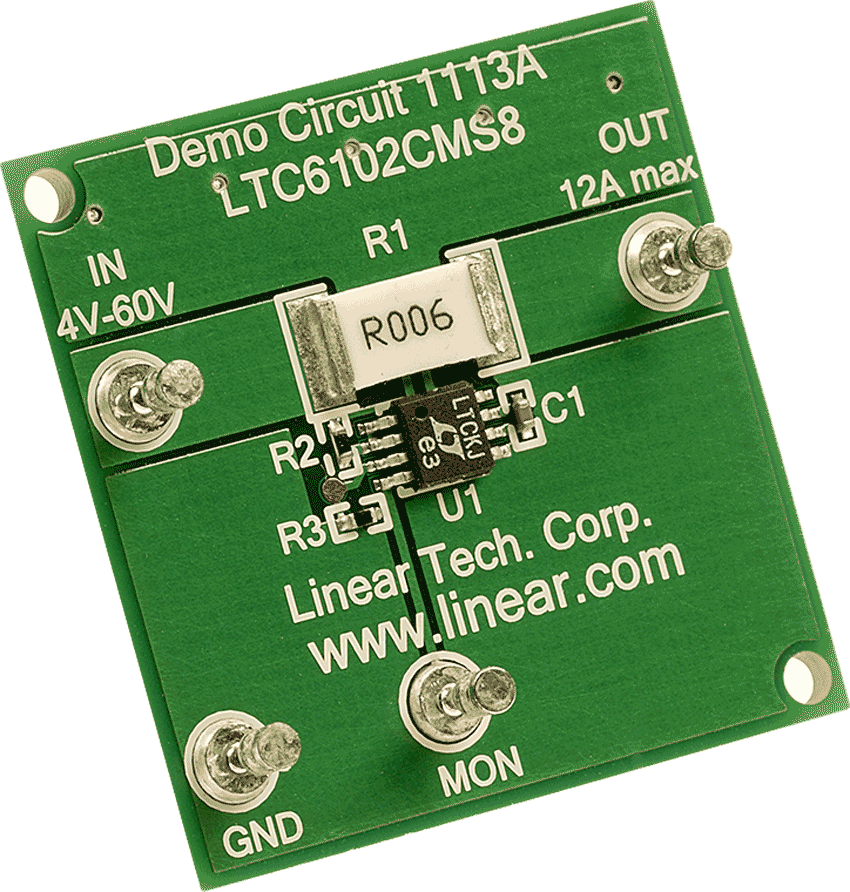

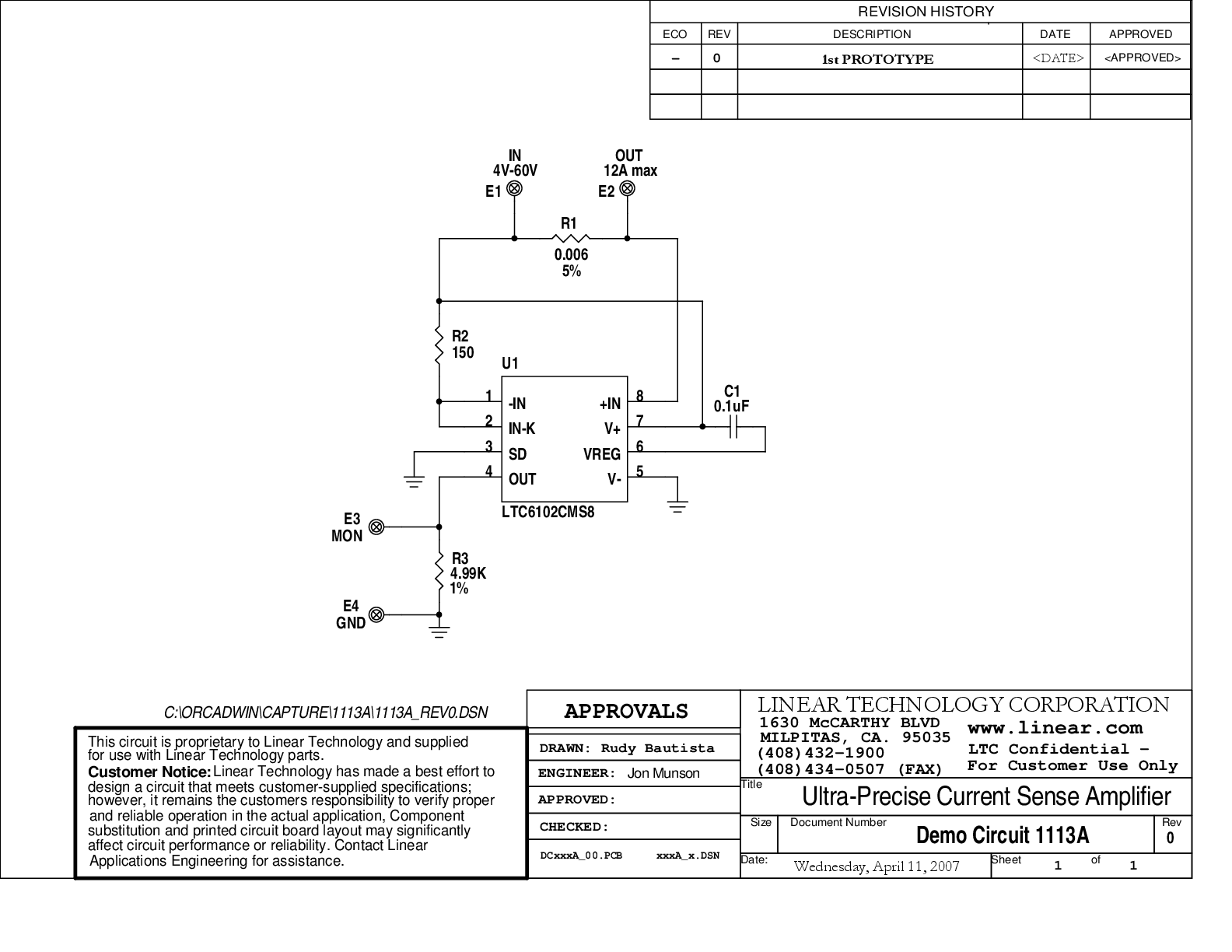

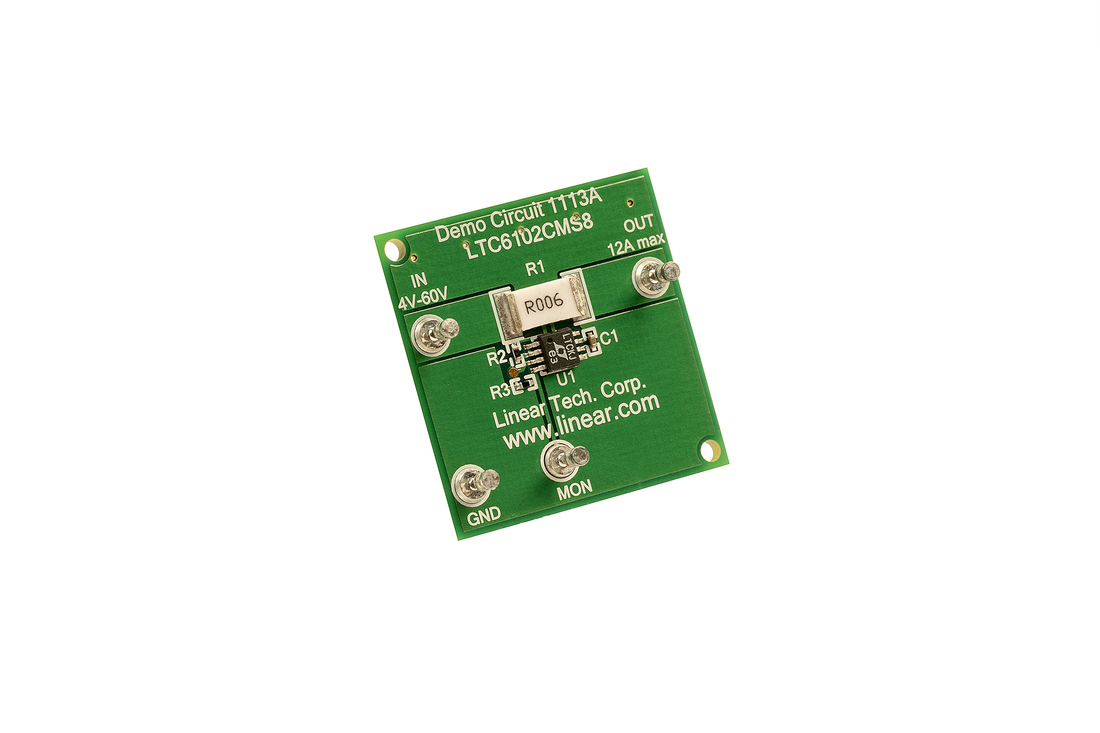

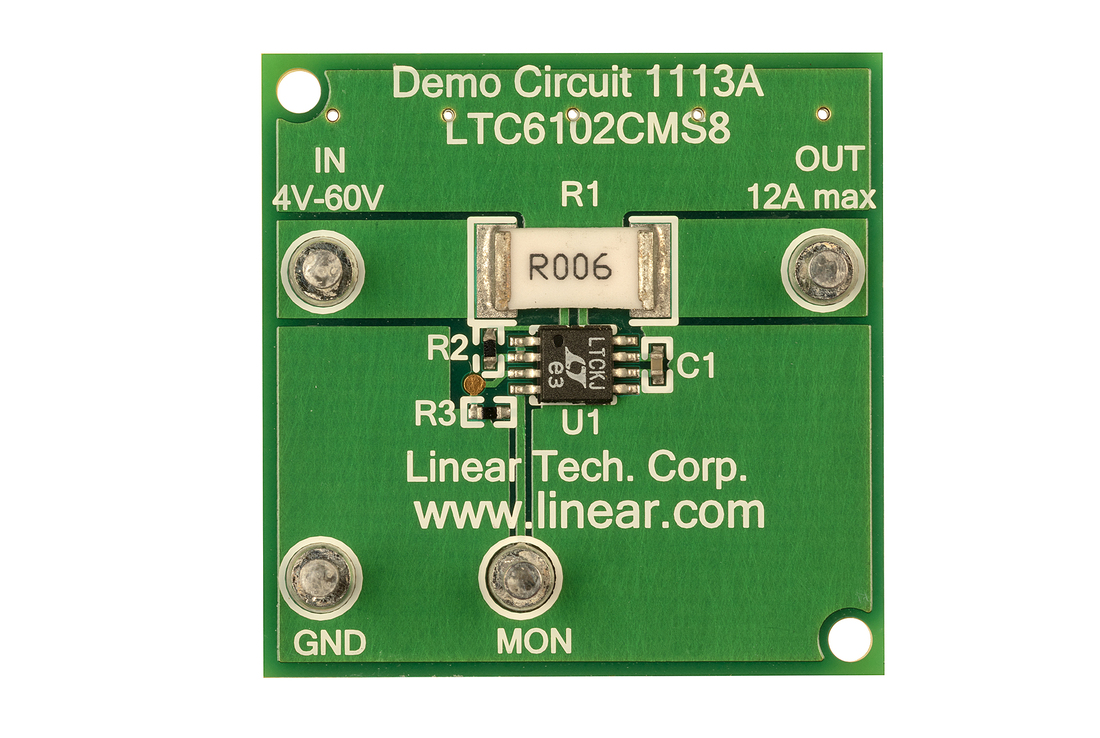

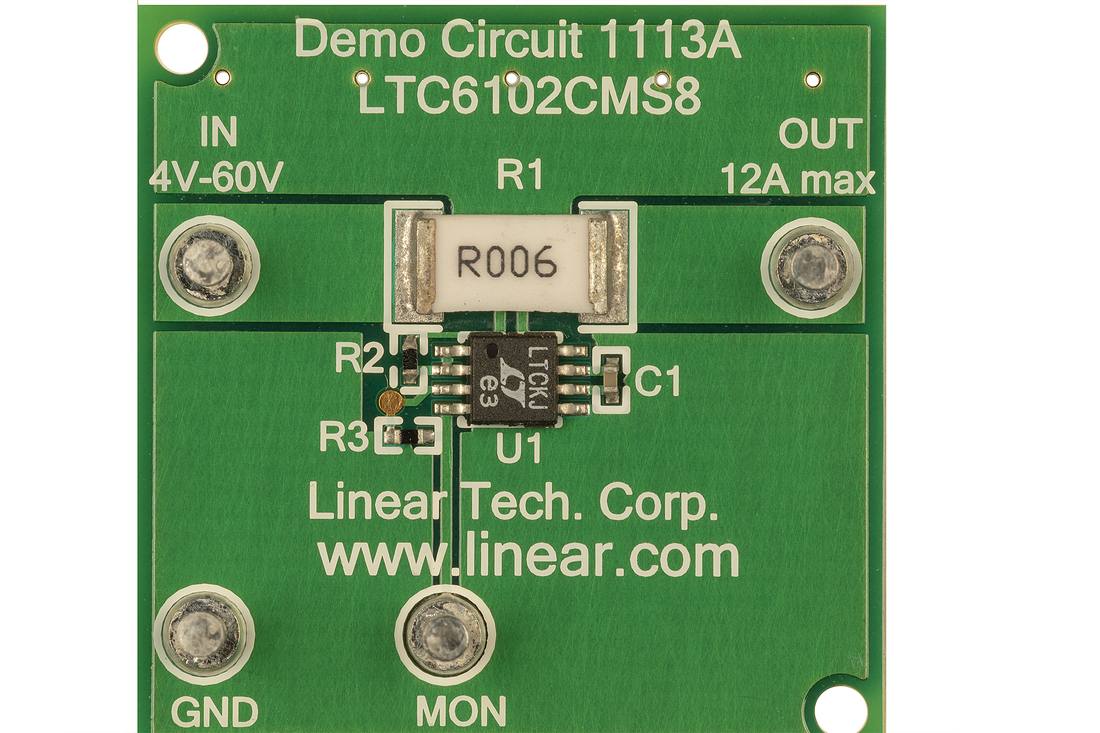

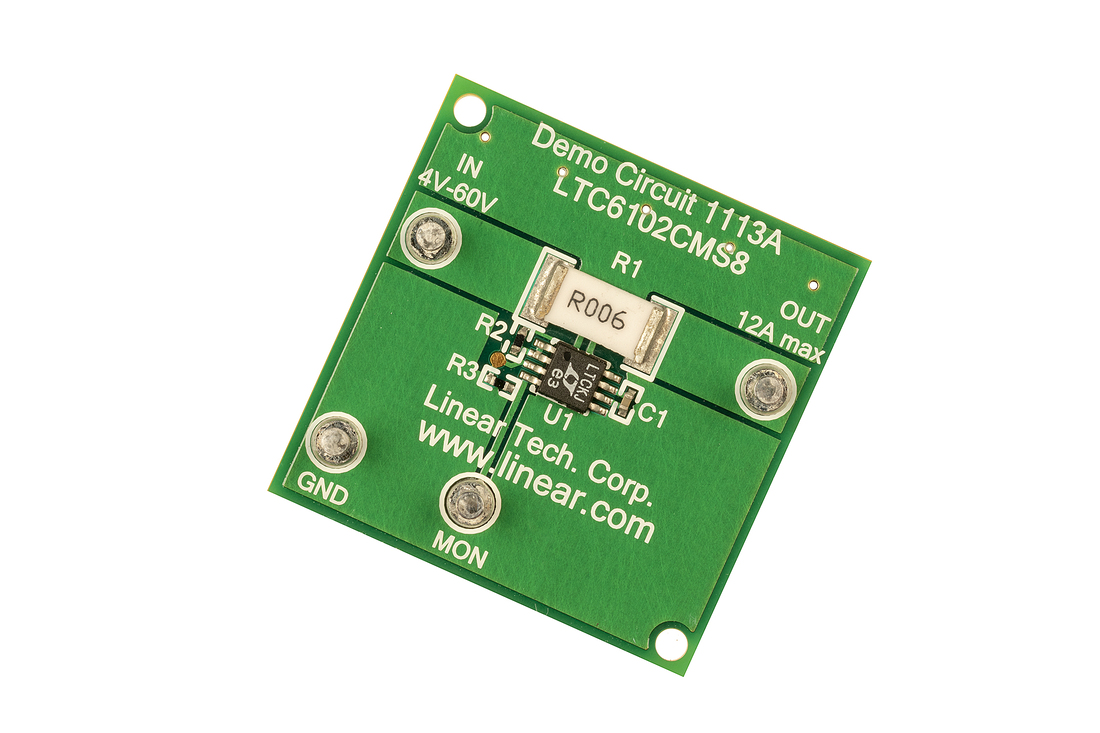

DC1113A: Demo Board for the LTC6102 Precision Zero Drift Current Sense Amplifier

资料

DC1113A - Design File
2009/9/24

DC1113A - Schematic
2009/9/24

DC1113A - Demo Manual
2009/9/24

LTC6102, LT6100, LT1787, LTC2054, and LTC2439-1 (Requires DC590B) | Demo Board

立即购买更多内容

产品详情

DC907A-B Demo Board for:

LTC2054 Single Micropower Zero-Drift Operational Amplifiers
LTC6102 Precision Zero Drift Current Sense Amplifier
LT1787 Precision, High Side Current Sense Amplifiers
LT6100 Precision, Gain Selectable High Side Current Sense Amplifier
LTC2439-1 8-/16-Channel 16-Bit No Latency Delta Sigma ADC

资料

DC907A-A - Design Files
2009/10/22

DC907A - Demo Manual
2009/10/22

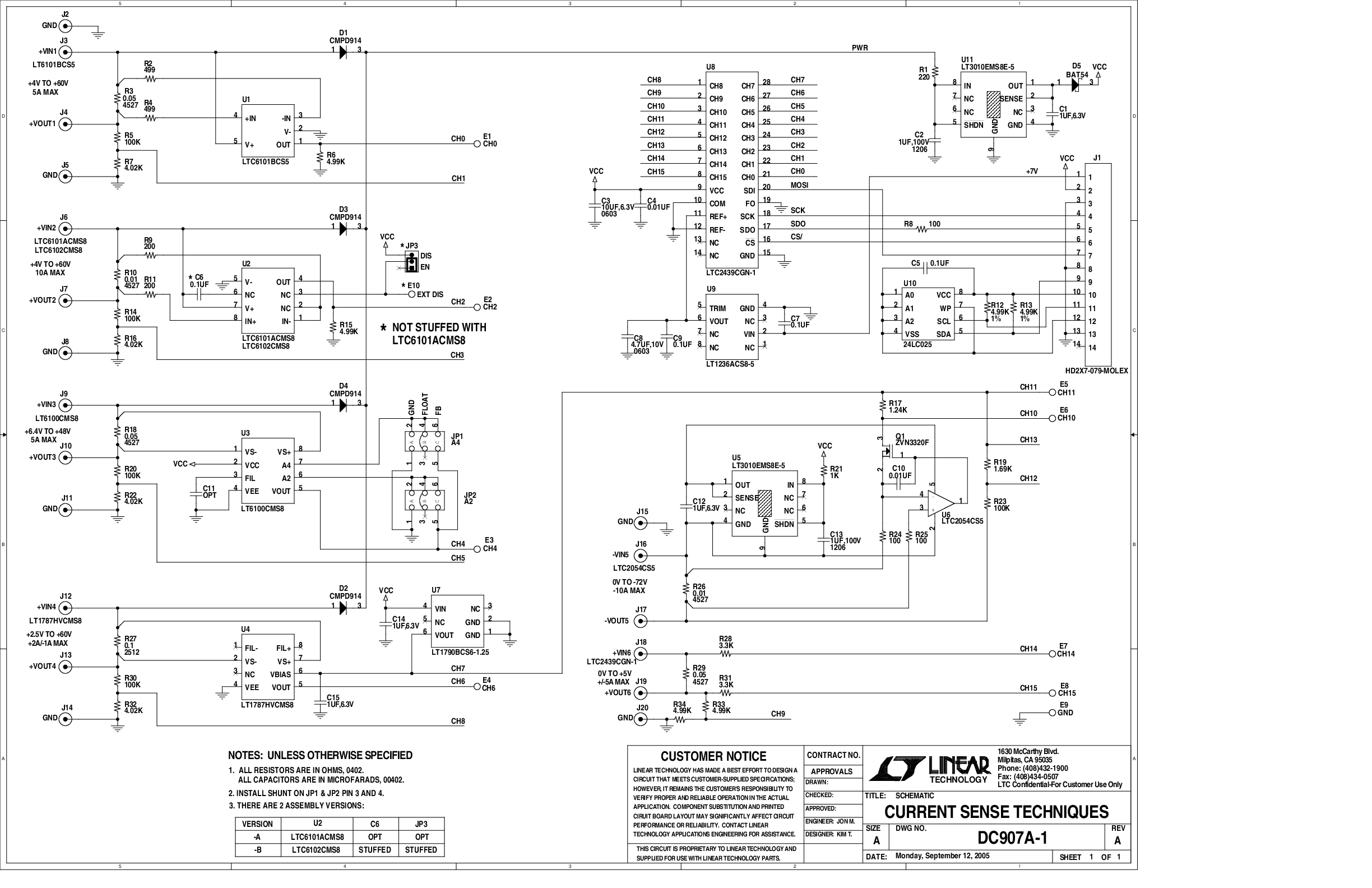

DC907A-B - Schematic
2009/10/22

软件

DC907A-B Software and Simulation
53.00K

LTC6102-1 Current Sense Demo Board with Enable Feature

立即购买更多内容

产品详情

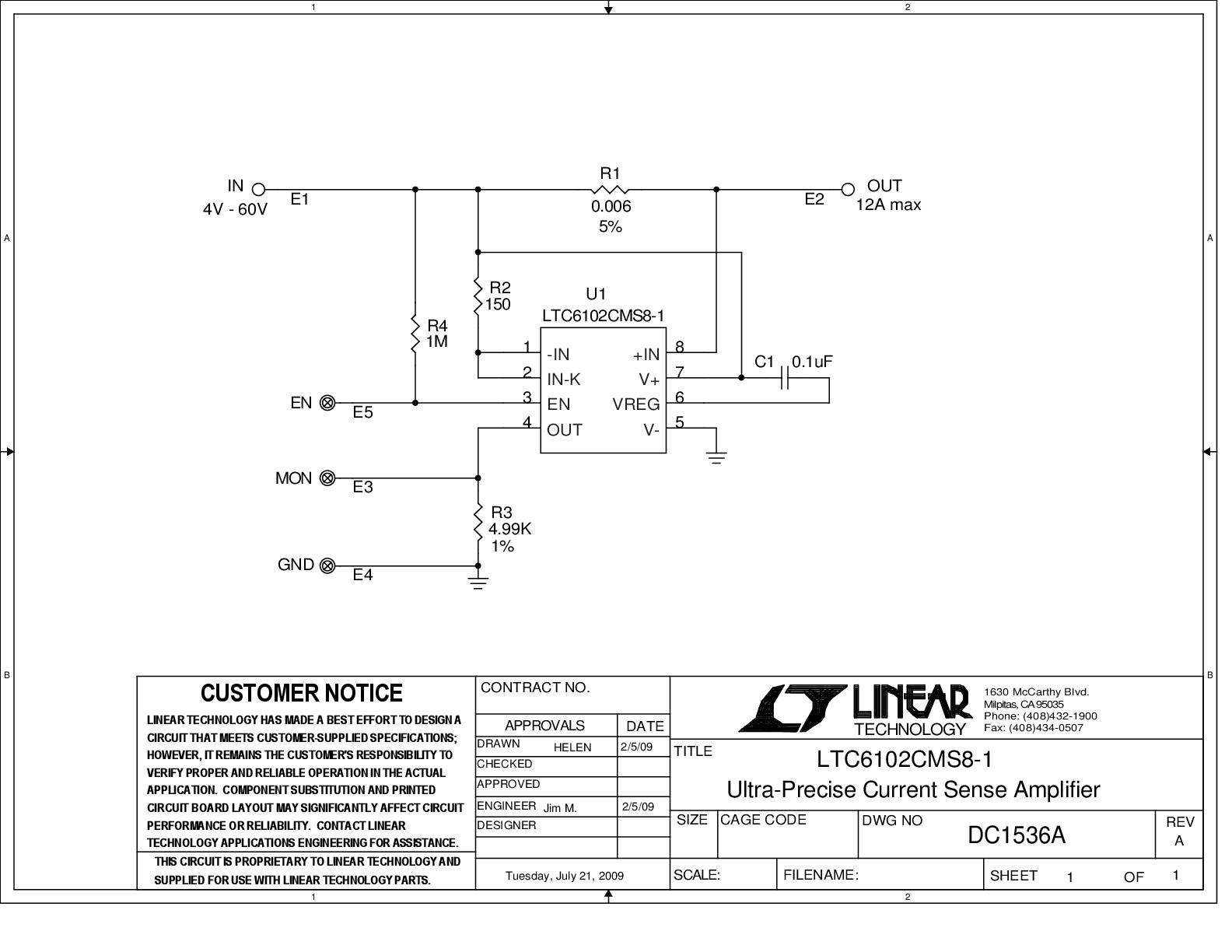

DC1536A: Demo Board for the LTC6102 Precision Zero Drift Current Sense Amplifier.
