概览

优势和特点

  • 22V Maximum Voltage for Wall Adapter andUSB Inputs
  • Charge Single-Cell Li-Ion Batteries from Wall Adapter and USB Inputs
  • Automatic Input Power Detection and Selection
  • Charge Current Programmable up to 950mA from Wall Adapter Input
  • Overvoltage Lockout for Wall Adapter andUSB Inputs
  • No External MOSFET, Sense Resistor or Blocking Diode Needed
  • Thermal Regulation Maximizes Charge Rate Without Risk of Overheating*
  • Preset Charge Voltage with ±0.35% Accuracy
  • Programmable Charge Current Termination
  • 40µA USB Suspend Current in Shutdown
  • Independent “Power Present” Status Outputs
  • Charge Status Output
  • Automatic Recharge
  • Available in a Thermally Enhanced, Low Profile (0.75mm) 10-Lead (3mm × 3mm) DFN Package

产品详情

The LTC4075HVX is a standalone linear charger that is capable of charging a single-cell Li-Ion/Polymer battery from both wall adapter and USB inputs. The charger can detect power at the inputs and automatically select the appropriate power source for charging.

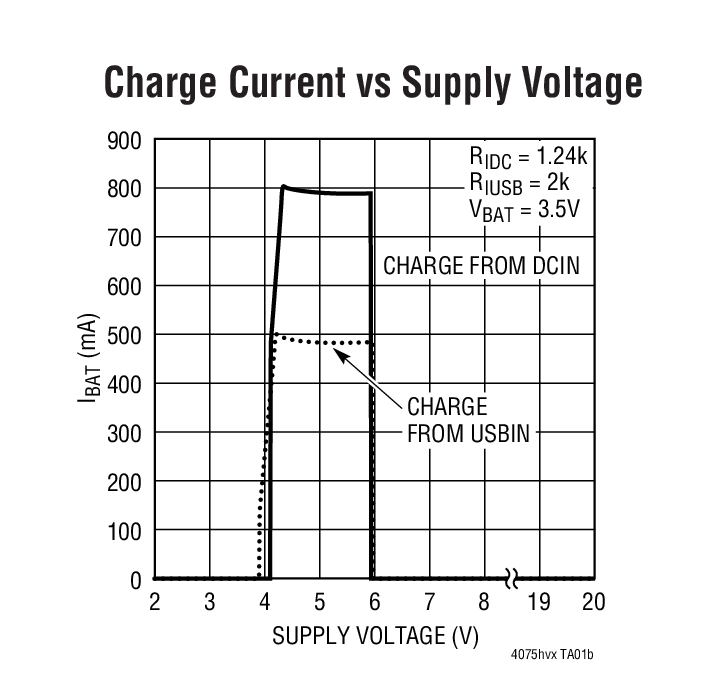

No external sense resistor or blocking diode is required for charging due to the internal MOSFET architecture. The LTC4075HVX features a maximum 22V rating for both wall adapter and USB inputs although charging stops if the selected power source exceeds the overvoltage limit. Internal thermal feedback regulates the battery charge current to maintain a constant die temperature during high power operation or high ambient temperature conditions. The float voltage is fixed at 4.2V and the charge current is programmed with an external resistor. The LTC4075HVX terminates the charge cycle when the charge current drops below the programmed termination threshold after the final float voltage is reached.

Other features include automatic recharge, undervoltage lockout, charge status outputs, and “power present” status outputs to indicate the presence of wall adapter or USB power. No trickle charge allows full current from the charger when a load is connected directly to the battery.

 Trickle ChargeVin Abs Max
LTC4075 Yes 10V
LTC4075X No 10V
LTC4075HVX No 22V

应用
  • Cellular Telephones
  • Handheld Computers
  • Portable MP3 Players
  • Digital Cameras

产品生命周期 icon-recommended 量产

该产品系列中至少有一个型号已量产并可供采购。该产品适合用于新设计,但也可能有更新的替代产品。

设计资源

ADI始终把满足您可靠性水平的产品放在首要位置。我们通过在所有产品、工艺设计和制造过程中引入高质量和可靠性检查实践这一承诺。发运的产品实现“零缺陷”始终是我们的目标。

Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
LTC4075HVXEDD#PBF 材料声明 质量和可靠性 10-Lead DFN (3mm x 3mm w/ EP)
LTC4075HVXEDD#TRPBF 材料声明 质量和可靠性 10-Lead DFN (3mm x 3mm w/ EP)
Wafer Fabrication Data R540 Reliability Data
