LT1579

量产

300mA 双输入智能备份电池稳压器

数据手册产品选型表

产品模型: 32

Viewing:

产品详情

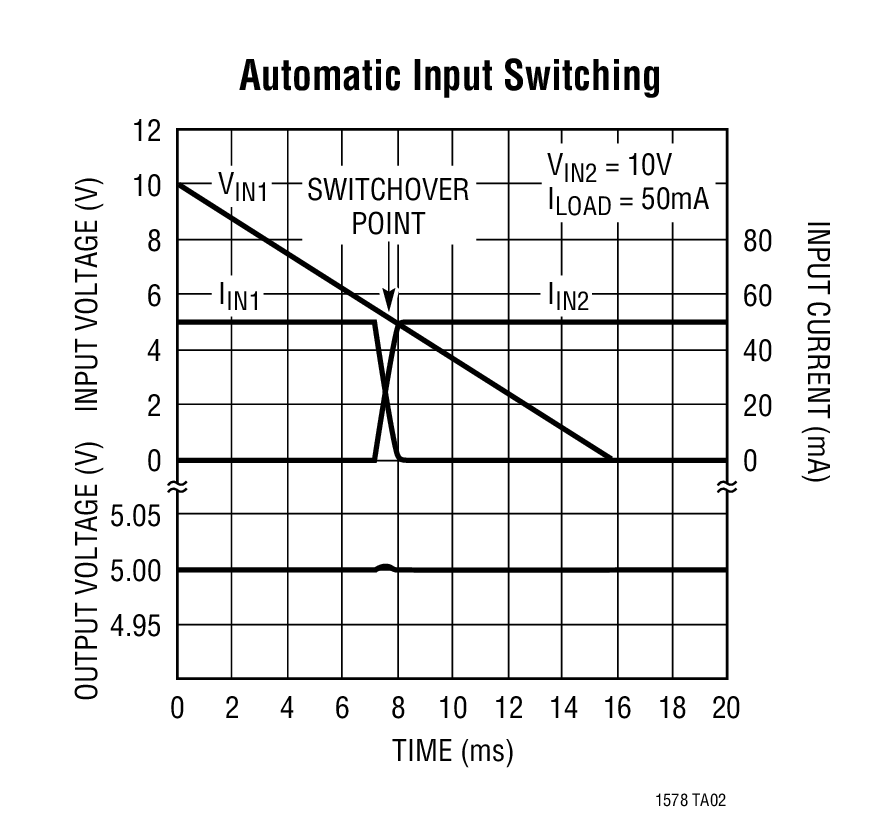

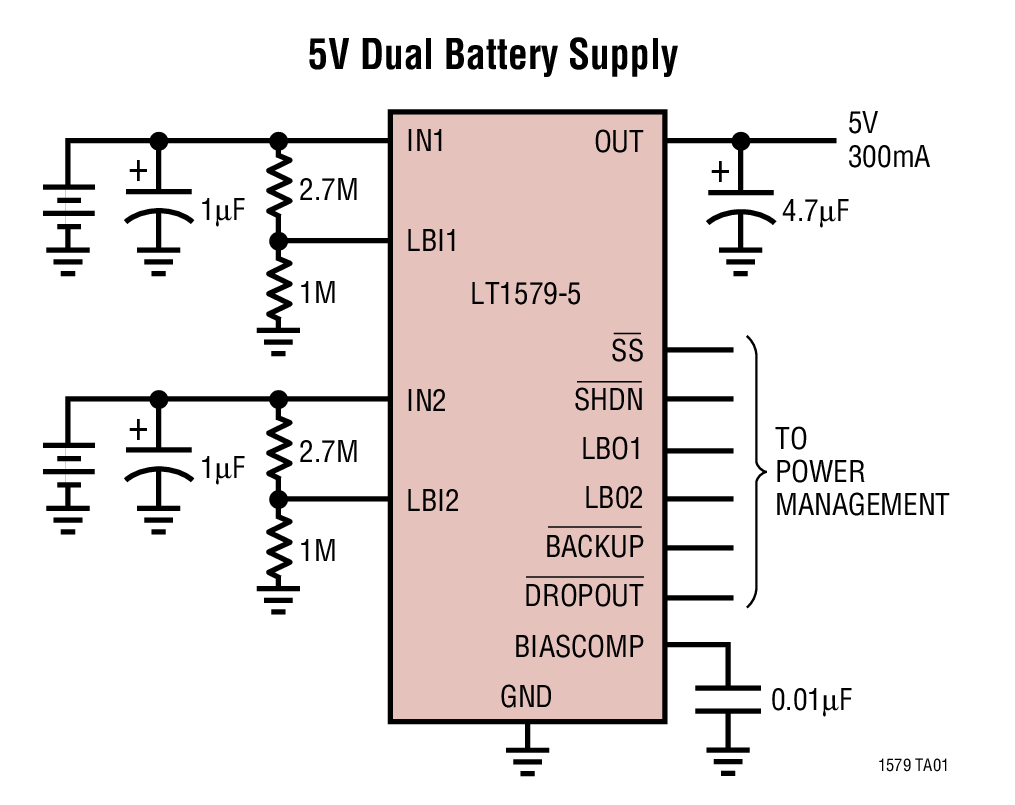

在采用双输入的情况下保持输出稳压状态
压差电压：0.4V
输出电流：300mA
50μA 静态电流
无需保护二极管
两个低电池电量比较器
状态标记有助于电源管理
可调输出：1.5V 至 20V
固定输出电压：3V、3.3V 和 5V
在停机模式中静态电流为 7μA
反向电池保护
反向电流保护
电池的移除、再充电和更换不会导致稳压状态的丧失

参考资料

ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。

产品型号	引脚/封装图-中文版	文档	CAD 符号，脚注和 3D模型

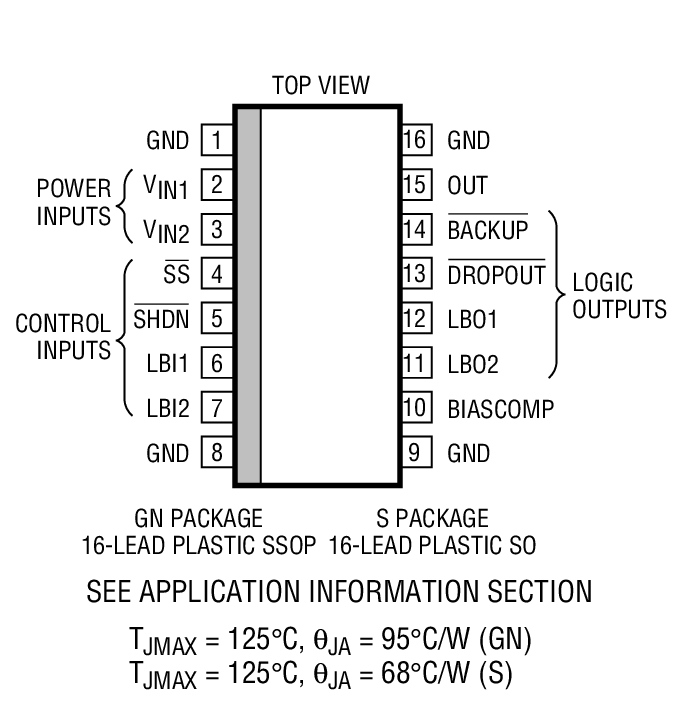

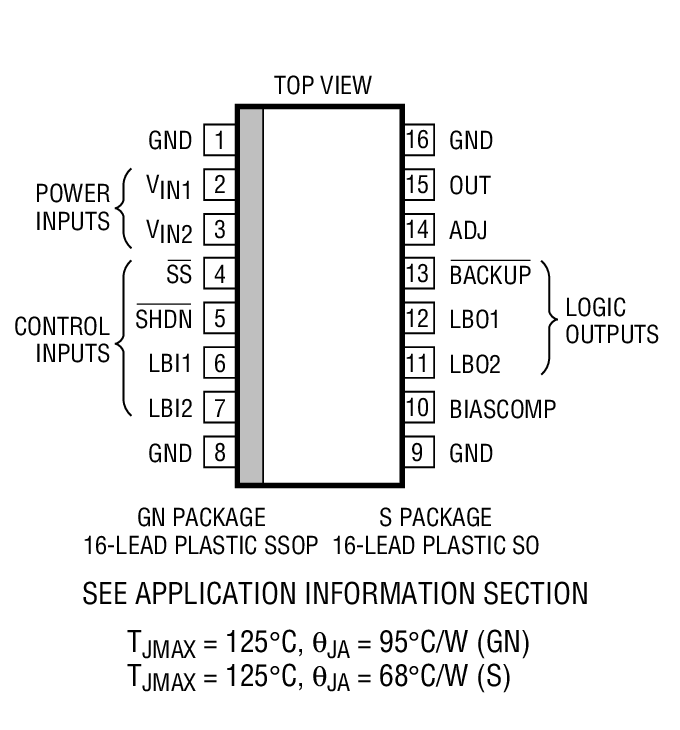

LT1579CGN#PBF	16-Lead SSOP (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1579CGN#TRPBF	16-Lead SSOP (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1579CGN-3#PBF	16-Lead SSOP (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1579CGN-3#TRPBF	16-Lead SSOP (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1579CGN-3.3#PBF	16-Lead SSOP (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1579CGN-3.3#TRPBF	16-Lead SSOP (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1579CGN-5#PBF	16-Lead SSOP (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1579CGN-5#TRPBF	16-Lead SSOP (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1579CS#PBF	16-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1579CS#TRPBF	16-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1579CS-3#PBF	16-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1579CS-3#TRPBF	16-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1579CS-3.3#PBF	16-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1579CS-3.3#TRPBF	16-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1579CS-5#PBF	16-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1579CS-5#TRPBF	16-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

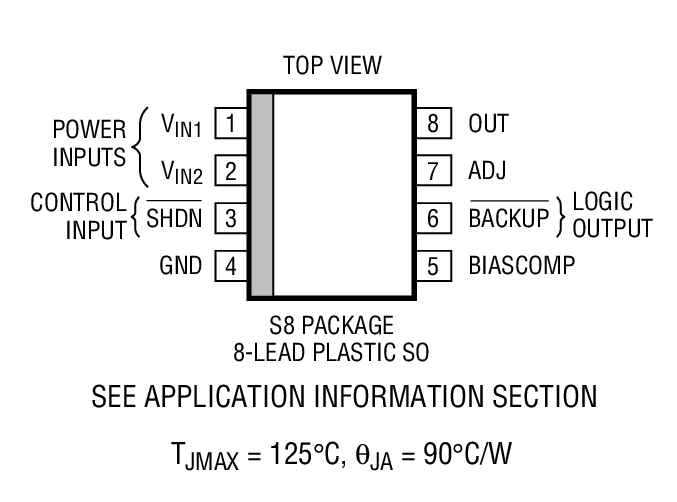

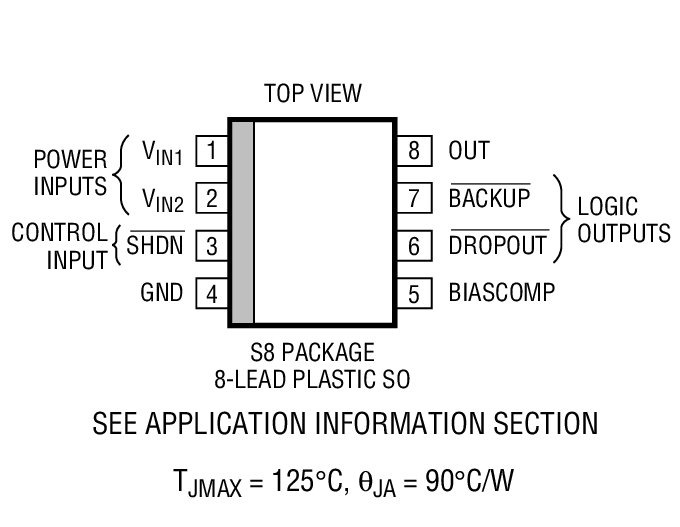

LT1579CS8#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1579CS8#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1579CS8-3#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1579CS8-3#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1579CS8-3.3#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1579CS8-3.3#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1579CS8-5#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1579CS8-5#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1579IGN#PBF	16-Lead SSOP (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1579IGN#TRPBF	16-Lead SSOP (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1579IGN-3#PBF	16-Lead SSOP (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1579IGN-3#TRPBF	16-Lead SSOP (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1579IGN-3.3#PBF	16-Lead SSOP (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1579IGN-3.3#TRPBF	16-Lead SSOP (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1579IGN-5#PBF	16-Lead SSOP (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1579IGN-5#TRPBF	16-Lead SSOP (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

产品型号	产品生命周期	PCN

10月 3, 2024 - 24_0235 (QSOP/SSOP PKG) Migrating Bottom Trace Code Marking to Top Side Laser Marking
		PCN24_0235_Form Material_Report Other Delta Qualification Matrix
LT1579CGN#PBF	量产
LT1579CGN#TRPBF	量产
LT1579CGN-3.3#PBF	量产
LT1579CGN-3.3#TRPBF	量产
LT1579CGN-5#PBF	量产
LT1579CGN-5#TRPBF	量产
LT1579IGN#PBF	量产
LT1579IGN#TRPBF	量产
LT1579IGN-3.3#PBF	量产
LT1579IGN-3.3#TRPBF	量产
LT1579IGN-5#PBF	量产
LT1579IGN-5#TRPBF	量产
10月 11, 2022 - 22_0235 Epoxy Change from Henkel 8290 to 8290A for GN Package
		PCN22_0235_Form Material_Report Qualification Results Summary Delta Qualification Matrix
LT1579CGN#PBF	量产
LT1579CGN#TRPBF	量产
LT1579CGN-3.3#PBF	量产
LT1579CGN-3.3#TRPBF	量产
LT1579CGN-5#PBF	量产
LT1579CGN-5#TRPBF	量产
LT1579IGN#PBF	量产
LT1579IGN#TRPBF	量产
LT1579IGN-3.3#PBF	量产
LT1579IGN-3.3#TRPBF	量产
LT1579IGN-5#PBF	量产
LT1579IGN-5#TRPBF	量产
4月 6, 2022 - 22_0066 Laser Top Mark for 16QSOP Assembled in ADPG [PNG]
		PCN22_0066_Form Material_Report Delta Qualification Matrix
LT1579CGN#PBF	量产
LT1579CGN#TRPBF	量产
LT1579CGN-3.3#PBF	量产
LT1579CGN-3.3#TRPBF	量产
LT1579CGN-5#PBF	量产
LT1579CGN-5#TRPBF	量产
LT1579IGN#PBF	量产
LT1579IGN#TRPBF	量产
LT1579IGN-3.3#PBF	量产
LT1579IGN-3.3#TRPBF	量产
LT1579IGN-5#PBF	量产
LT1579IGN-5#TRPBF	量产
10月 8, 2024 - 24_0236 Migrating Bottom Trace Code Marking to Top Side Laser Marking for SOIC_N Package
		PCN24_0236_Form Material_Report Marking Comparison Delta Qualification Matrix
LT1579CS#PBF	量产
LT1579CS#TRPBF	量产
LT1579CS-3#PBF	量产
LT1579CS-3#TRPBF	量产
LT1579CS-3.3#PBF	量产
LT1579CS-3.3#TRPBF	量产
LT1579CS-5#PBF	量产
LT1579CS-5#TRPBF	量产
LT1579CS8#PBF	量产
LT1579CS8#TRPBF	量产
LT1579CS8-3#PBF	量产
LT1579CS8-3#TRPBF	量产
LT1579CS8-3.3#PBF	量产
LT1579CS8-3.3#TRPBF	量产
LT1579CS8-5#PBF	量产
LT1579CS8-5#TRPBF	量产
10月 12, 2022 - 22_0252 Epoxy Change from Henkel 8290 to 8290A for 16-Lead SOIC Package
		PCN22_0252_Form Material_Report Qualification Results Summary
LT1579CS#PBF	量产
LT1579CS#TRPBF	量产
LT1579CS-3#PBF	量产
LT1579CS-3#TRPBF	量产
LT1579CS-3.3#PBF	量产
LT1579CS-3.3#TRPBF	量产
LT1579CS-5#PBF	量产
LT1579CS-5#TRPBF	量产
8月 6, 2022 - 22_0173 Laser Top Mark Conversion for SOICN14 and SOICN16 Packages Assembled on ADPG [PNG]
		PCN22_0173_Form Material_Report Delta Qualification Matrix
LT1579CS#PBF	量产
LT1579CS#TRPBF	量产
LT1579CS-3#PBF	量产
LT1579CS-3#TRPBF	量产
LT1579CS-3.3#PBF	量产
LT1579CS-3.3#TRPBF	量产
LT1579CS-5#PBF	量产
LT1579CS-5#TRPBF	量产
10月 12, 2022 - 22_0254 Epoxy Change from Henkel 8290 to 8290A for 8-Lead SOIC Package (PCN part 1 of 2)
		PCN22_0254_Form Material_Report Qualification Results Summary Delta Qualification Matrix
LT1579CS8#PBF	量产
LT1579CS8#TRPBF	量产
LT1579CS8-3#PBF	量产
LT1579CS8-3#TRPBF	量产
LT1579CS8-3.3#PBF	量产
LT1579CS8-3.3#TRPBF	量产
LT1579CS8-5#PBF	量产
LT1579CS8-5#TRPBF	量产
6月 11, 2021 - 21_0060 Laser Top Mark for 8SOICN Assembled in ADPG, UTL and CRM
		PCN21_0060_Form Material_Report Delta Qualification Matrix
LT1579CS8#PBF	量产
LT1579CS8#TRPBF	量产
LT1579CS8-3#PBF	量产
LT1579CS8-3#TRPBF	量产
LT1579CS8-3.3#PBF	量产
LT1579CS8-3.3#TRPBF	量产
LT1579CS8-5#PBF	量产
LT1579CS8-5#TRPBF	量产
