ADuM362N

推荐新设计使用

3.0 kV rms 6-Channel Digital Isolator

产品模型
4
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许,也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。

Viewing:

产品详情

  • High common-mode transient immunity: 180 kV/μs typical
  • High robustness to radiated and conducted noise
  • Low propagation delay
    • 6.2 ns typical (10 ns maximum) for 5 V operation
  • Low dynamic power consumption, <1.65 mA/ch at 1 Mbps
  • 2.25 V to 5.5 V level translation
  • 150 Mbps maximum guaranteed data rate for 5 V operation
  • High temperature operation: 125°C
  • Safety and regulatory approvals
  • RQ-16 [QSOP] package
    • UL 1577 (pending)
      • VISO = 3000 VRMS for 1 minute
    • EN IEC 60747-17 (pending)
      • VIORM = 636 VPEAK
      • VIOSM = 10,000 VPEAK (reinforced)
    • IEC/EN/CSA 62368-1 (pending)
    • IEC/CSA 60601-1 (pending)
    • IEC/CSA 61010-1 (pending)
    • CQC GB 4943.1 (pending)
  • ±8 kV IEC 61000-4-2 ESD protection across isolation barrier
  • ±4 kV HBM ESD protection on input/output pins
  • Fail-safe high (N1) or low (N0) options
  • 16-lead, RoHS compliant, QSOP package
ADuM362N
3.0 kV rms 6-Channel Digital Isolator
ADuM362N Functional Block Diagram ADuM362N Pin Configuration
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中(接收通知)。

创建新项目
提问

参考资料

了解更多
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中(接收通知)。

创建新项目

硬件生态系统

部分模型 产品周期 描述
isoPower 1
ADuM6028 推荐新设计使用 低辐射、5 kV 隔离式 DC-DC 转换器
反激、正向和隔离式控制器 2
LT8306 推荐新设计使用 60V低IQ无光耦隔离型反激式控制器
LT3999 量产 具有占空比控制功能的低噪声、1A、1MHz 推挽式 DC/DC 驱动器
高输入电压降压稳压器 2
LT8606 推荐新设计使用 具有 2.5μA 静态电流的 42V、350mA 同步降压型稳压器
LT8618
LT8618-3.3
LT8618C
高效 65V/100mA 同步降压
微功耗降压稳压器 1
LT8604/
LT8604C
高效42V/120mA同步降压
正线性稳压器(LDO) 2
ADP7118 推荐新设计使用 20 V、200 mA、低噪声、CMOS LDO线性稳压器
ADP150 量产 超低噪声、150 mA CMOS线性调节器
Modal heading
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中(接收通知)。

创建新项目

工具及仿真模型

IBIS 模型 1


评估套件

eval board
EVAL-ADuM36xN

Evaluating the 3.0 kV rms ADuM362N 6-Channel Digital Isolator

特性和优点

  • Simplified evaluation of the ADuM36xN digital isolator family
  • Supports evaluation of other 6-channel iCoupler® digital isolators in 16-lead QSOP package
  • Compact, easy configuration, optimized for rapid evaluation on breadboards/prototype boards
  • Test points can be fitted to measure all signals

产品详情

The EVAL-ADuM36xNEBZ evaluation board supports simplified, efficient evaluation of the 3.0 kV rms ADuM36xN family of iCoupler digital isolators. The EVAL-ADuM36xNEBZ evaluation board also grants the ability to examine multiple other 16-lead QSOP iCoupler digital isolators by the unpopulated U1, U3, and U4, which provide the user with multiple JEDEC standard 16-Lead QSOP footprints and routing appropriate for the evaluation of supported devices.

The EVAL-ADuM36xNEBZ evaluation board features V shaped grooves between each component (U1 to U4) that allow the user to split the PCB into sections and examine a specific device of their choice on a breadboard or similar prototyping board for ease of use.

Power supply and input/output pins can be connected either directly to the pin header connectors or onto a prototyping board.

The EVAL-ADuM36xNEBZ evaluation board follows printed circuit board (PCB) design practices, including a ground plane on each side of the isolation barrier. No other electromagnetic interference (EMI) or noise mitigation design features are included on this board.

Full specifications for the device under test (DUT) are available in the ADuM362N data sheet available from Analog Devices, inc., and must be consulted with this user guide when using the EVAL-ADuM36xNEBZ evaluation board.

EVAL-ADuM36xN
Evaluating the 3.0 kV rms ADuM362N 6-Channel Digital Isolator

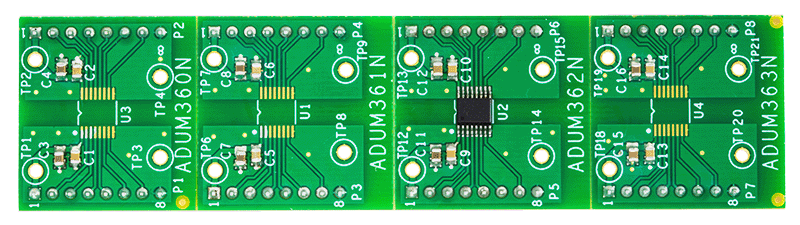

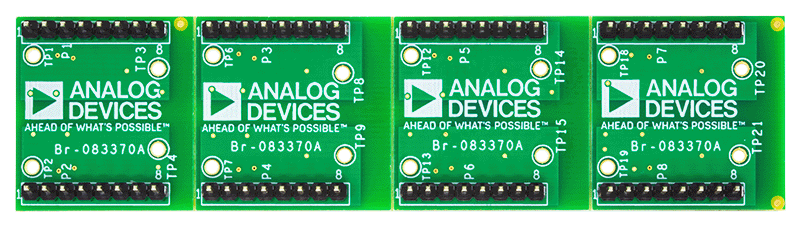

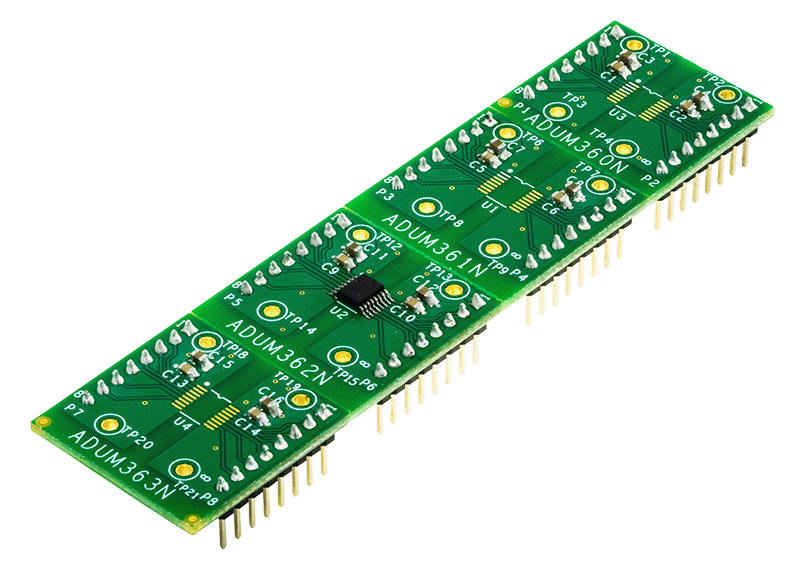

EVAL-ADuM36xNEBZ Board Photo Angle View EVAL-ADuM36xNEBZ Board Photo Top View EVAL-ADuM36xNEBZ Board Photo Bottom View
