ADL8102

推荐用于新设计

GaAs、pHEMT、MMIC、低噪声放大器，1 GHz至22 GHz

数据手册 (Rev. 0) 产品选型表
Viewing:
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。

概述

  • 单个正电源（自偏置）
  • 增益：27 dB（典型值，9 GHz至19 GHz时）
  • OP1dB: 13.5 dB（典型值，1 GHz至9 GHz时）
  • OIP3: 25 dBm（典型值，1 GHz至9 GHz时）
  • 噪声系数：2.5 dB（典型值，9 GHz至19 GHz时）
  • 符合RoHS标准的3 mm x 3 mm、16引脚LFCSP封装
ADL8102
GaAs、pHEMT、MMIC、低噪声放大器，1 GHz至22 GHz
ADL8102 - Functional Block Diagram ADL8102 - Pin Configuration
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目
提问

参考资料

数据手册 1

用户手册 1

应用笔记 3

技术文章 1

了解更多
添加至 myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

创建新项目

软件资源

EM-Plugs 新

EM-Based RF Digital Twin Models

更多内容

工具及仿真模型

S-参数 1

评估套件

eval board
schematic 1
schematic 2
schematic 3
schematic 4
ADXBAND16EBZ

16Tx/16Rx Direct X-Band Sampled Phased-Array/RADAR/SATCOM Development Platform

立即购买 更多内容

特性和优点

ADXBAND16EBZ Digitizing Card
  • Multi-Channel, Wideband System Development Platform Using Apollo (AD9084)
  • Mates With Xilinx VCU118 Evaluation Board (Not Included)
  • 16x RF Receive (Rx) Channels
    • Total 16x 8GSPS to 20GSPS ADC
    • Digital Down Converters (DDCs), Each Including Complex Numerically-Controlled Oscillators (NCOs)
    • Programmable Finite Impulse Response Filters (pFIRs)
    • Complex Finite Impulse Response Filters (CFIRs)
  • 16x RF Transmit (Tx) Channels
    • Total 16x 8GSPS to 28GSPS DAC
    • Digital Up Converters (DUCs), Each Including Complex Numerically-Controlled Oscillators (NCOs)
    • Programmable Finite Impulse Response Filters (pFIRs)
    • Complex Finite Impulse Response Filters (CFIRs)
  • Flexible Rx & Tx RF Front-Ends
    • Rx: Filtering, Amplification, Digital Step Attenuation for Gain Control
    • Tx: Filtering, Amplification
  • Flexible Clock Distribution
    • On-Board Clock Distribution from Single External 400MHz Reference
    • Support for External Converter Clock per AD9084 via solder rework
  • On-Board Power Regulation from Single 12V Power Adapter (Included)
16Tx / 16Rx Calibration Board
  • Mates to ADXBAND16EBZ Digitizing Card & VCU118 PMOD Interface (Cable Included)
  • Provides Both Individual Adjacent Channel Loopback and Combined Channel Loopback Options
  • Combined Tx Channels Out Option
  • Combined Rx Channels In Option
Software Features and Benefits

Easy Control Tools and Platform Interfaces to Simplify Software Framework Developments:

  • IIO Oscilloscope GUI
  • MATLAB Add-Ons & Example Scripts
  • Example HDL Builds including JESD204C Bring-Up
  • Embedded Software Solutions for Linux and Device Drivers
Software Reference Design Examples for ADEF Applications to Reduce Prototyping Time:
  • Multi-Chip Synchronization for Power-Up Phase Determinism
  • System-Level Amplitude/Phase Alignment Using NCOs
  • Low-Latency ADC-to-DAC Loopback Bypassing JESD Interface
  • pFIR Control for Broadband Channel-to-Channel Amplitude/Phase Alignment
  • Fast-Frequency Hopping

产品详情

The ADXBAND16EBZ contains four AD9084 mixed‑signal front‑end devices, including the RF front end, clocking, and power circuitry. The ADXBAND16EBZ serves as a complete system solution targeting common applications such as phased‑array radars, wideband systems, and ground‑based SATCOM. Its primary target application is a 16‑Tx/16‑Rx direct X‑band sampling phased array.

The platform is intended as a testbed for demonstrating multi‑chip synchronization, as well as implementing system‑level calibrations, beamforming algorithms, and other signal‑processing techniques. The system is designed to interface with the VCU118 Evaluation Board from Xilinx®, which features the Virtex® UltraScale+™ XCVU9P FPGA, along with provided reference software, HDL code, and MATLAB system‑level interfaces.

A 16‑Tx/16‑Rx Calibration Board can be used to develop system‑level calibration algorithms, including demonstrations of power‑up phase determinism. The Calibration Board provides improvements in combined‑channel dynamic range, spurious performance, and phase noise, and can be controlled via a MATLAB add‑on when connected to the PMOD interface of the VCU118.

eval board
schematic 5
schematic 6
schematic 7
EVAL-ADL8102

评估采用单个正电源的1 GHz至20 GHz宽带低噪声放大器ADL8102

立即购买 更多内容

特性和优点

  • 2层Rogers 4350B评估板
  • 端接型、2.9 mm RF连接器
  • 直通校准路径（减少布线）

    • 产品详情

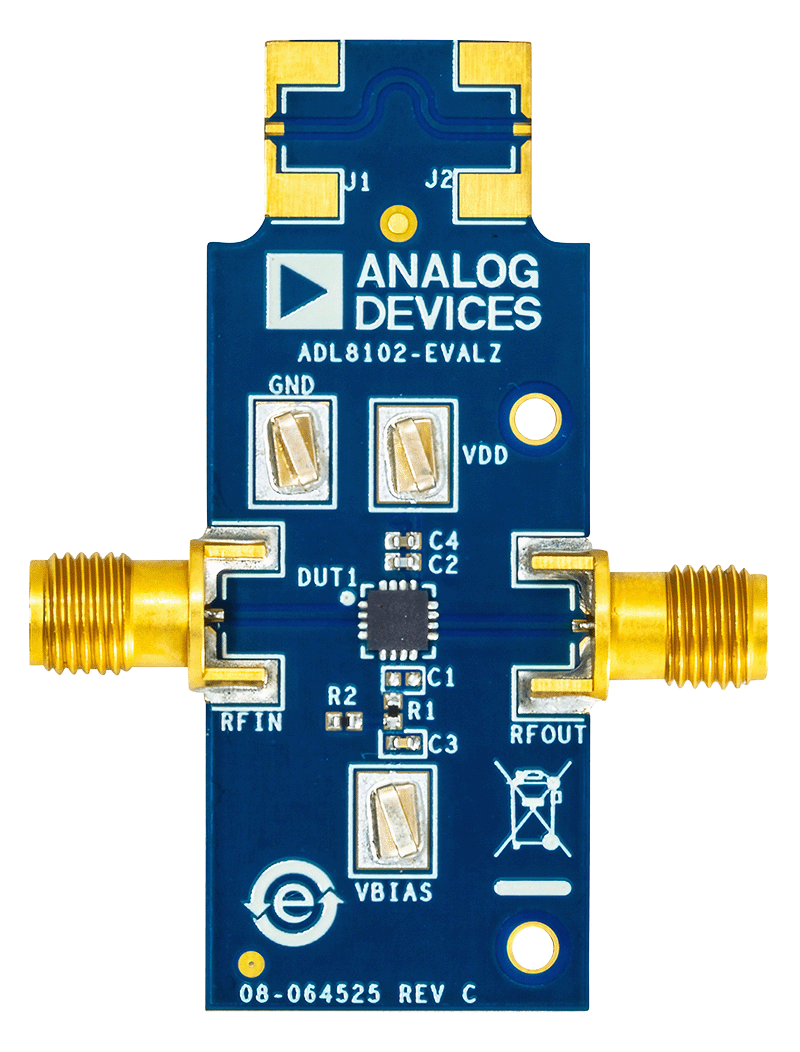

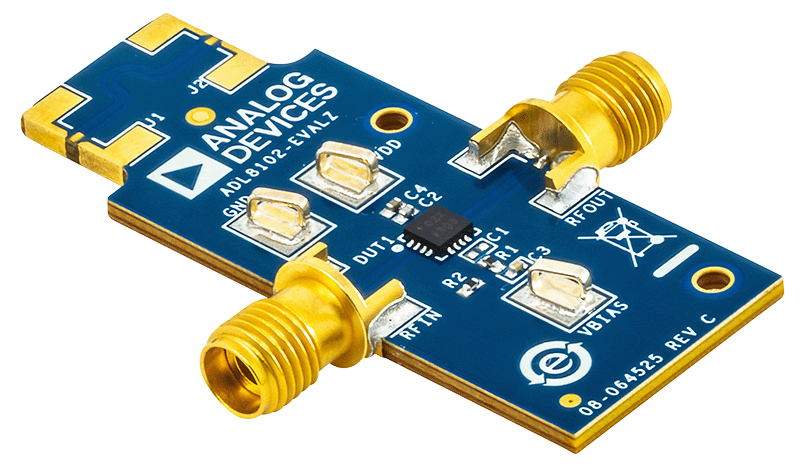

    ADL8102-EVALZ是一块2层印刷电路板(PCB)，由10 mil厚的Rogers 4350B和铜箔制成。

    ADL8102-EVALZ上的RFIN和RFOUT端口配有2.9 mm插口同轴连接器，相应的RF走线具有50 Ω特征阻抗。ADL8102-EVALZ上装配的组件适合在−40°C至+85°C整个工作温度范围内使用。

    为校准电路板的走线损耗，在J1和J2连接器之间提供了一个直通校准路径THRUCAL。J1和J2必须安装RF连接器才能使用该直通校准路径。有关直通校准路径性能的信息，请参阅用户指南中的表1和图3。

    通过表贴技术(SMT)测试点连接器GND和VDD访问ADL8102-EVALZ接地路径和VDD引脚。可通过RBIAS引脚轻松访问VBIAS的辅助测试点（有关测试点位置，请参见用户指南中的图5）。

    ADL8102-EVALZ上的RF走线为50 Ω、接地共面波导走线。封装接地引线和裸露焊盘直接连接到接地平面。多个导通孔用于连接顶部和底部接地平面，并特别集中在接地焊盘正下方的区域，以便提供充分的导电性和导热性。

    ADL8102-EVALZ上的电源去耦电容代表用于表征和评定器件的配置。

    有关ADL8102的完整规格，请参考ADI公司的ADL8102数据手册。使用ADL8102-EVALZ评估板时，必须同时参阅数据手册和用户指南。
    ADXBAND16EBZ
    16Tx/16Rx Direct X-Band Sampled Phased-Array/RADAR/SATCOM Development Platform
    ADXBAND16EBZ Top Angle Evaluation Board ADXBAND16EBZ Top Evaluation Board ADXBAND16EBZ Bottom Evaluation Board ADXBAND16EBZ Bottom Angle Evaluation Board
    EVAL-ADL8102
    评估采用单个正电源的1 GHz至20 GHz宽带低噪声放大器ADL8102

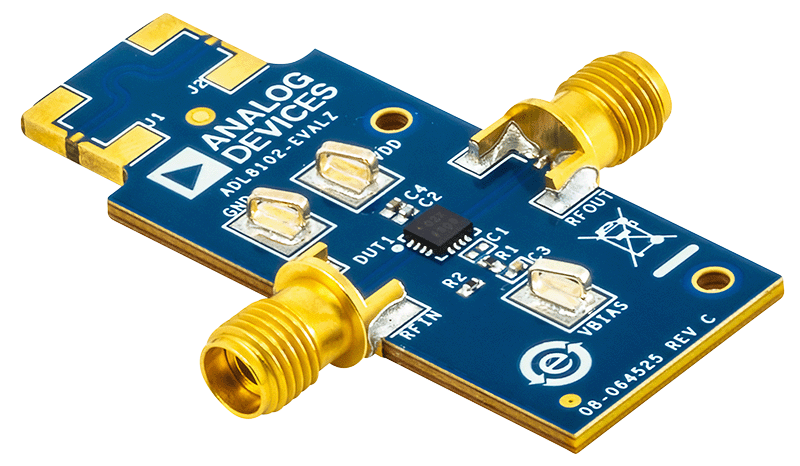

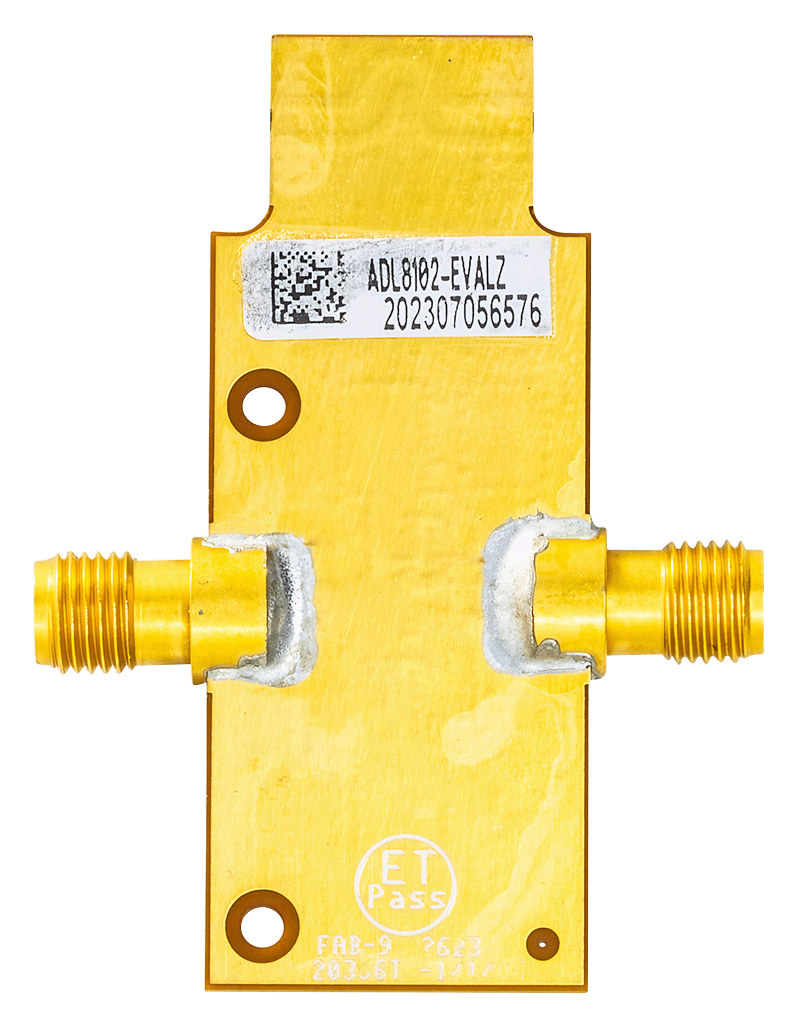

    ADL8102 Evaluation Board - Angle ADL8102 Evaluation Board - Top ADL8102 Evaluation Board - Bottom
