ADH943AS
推荐用于新设计Aerospace, >1.5 W (34 dBm), 24 GHz to 34 GHz Power Amplifier
- 产品模型
- 1
概述
- High frequency capable hermetic package (ADH943A-701LSH7)
- High saturated output power (PSAT): 34 dBm
- High output IP3: 39 dBm
- High gain: 23 dB
- DC supply: 5.5 V at 1300 mA
- No external matching needed
- Space Qualification & Testing:
- HMC7874PM5E: Screening derived from MIL-PRF-38535, Class Level S
- ADH943A-701LHS7: Screened in accordance with MIL-PRF-38535, Class Q

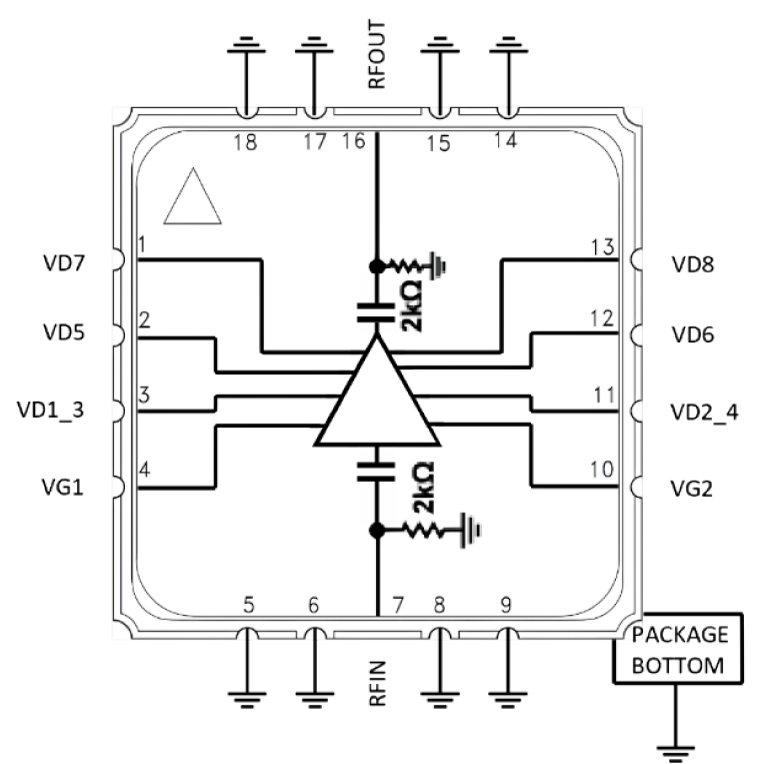

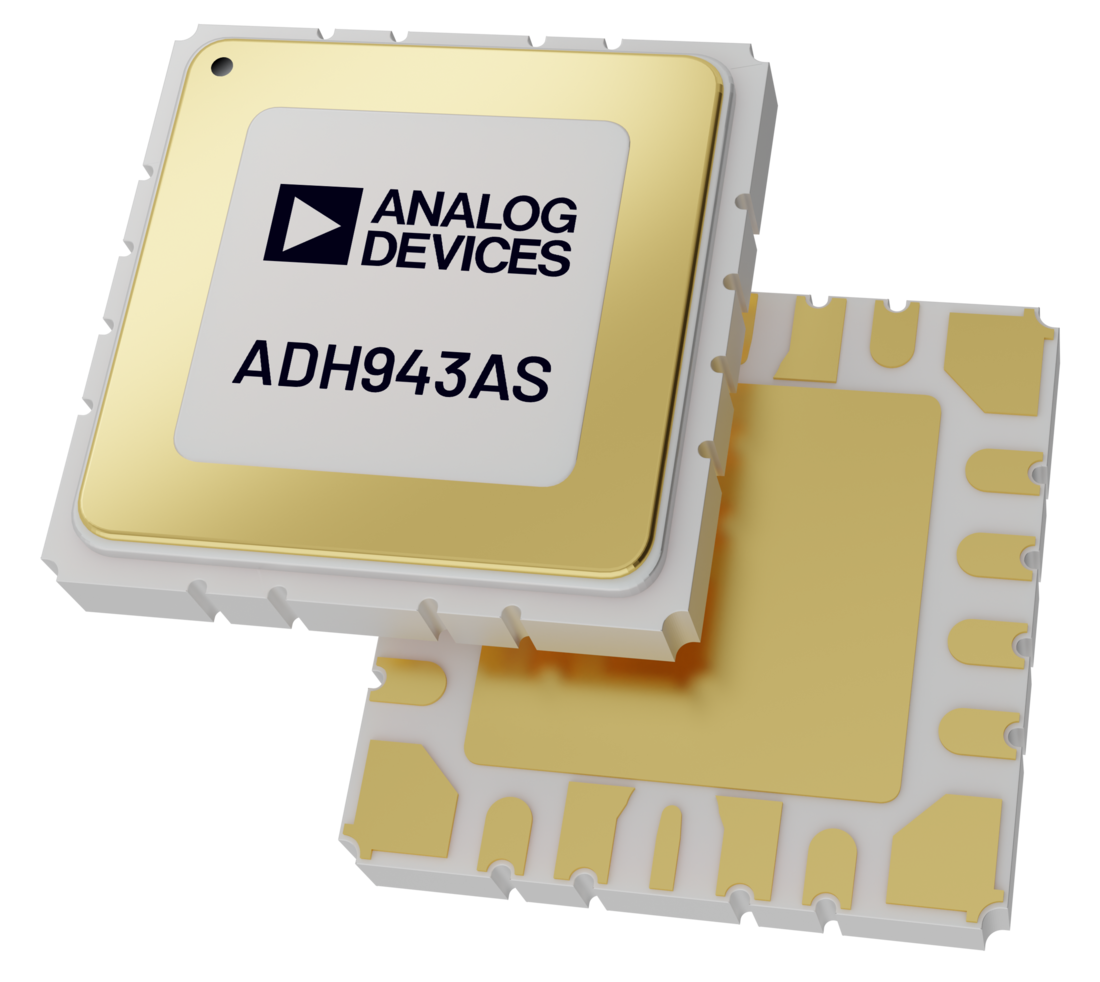

The ADH943AS is a four stage, gallium arsenide (GaAs), pseudomorphic high electron mobility transistor (pHEMT), monolithic microwave integrated circuit (MMIC), >1.5 W power amplifier that operates between 24 GHz to 34 GHz. The ADH943AS provides typ. 23 dB of gain, 34 dBm of saturated output power (PSAT), and 23% power added efficiency (PAE) from a 5.5 V supply at +25 °C. The high output third-order intercept (OIP3) of 39 dBm (typ.) makes the ADH943AS ideal for microwave radio applications. The ADH943AS amplifier input/outputs (I/Os) are internally matched to 50 Ω. The device is available in a hermetic 18-Lead ceramic leadless SMT package (ADH943A-701LHS7) or a 32-Lead Lead Frame Chip-Scale Package (HMC7874PM5E) and requires no external matching components.
Applications
- Point-to-Point Radios
- Point-to-Multi-Point Radios
- Satellite communication (SATCOM)
- Ka-band Datalink
- Military & Space
参考资料
数据手册 1
应用笔记 1
控制图纸 1
ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。
| 产品型号 | 引脚/封装图-中文版 | 文档 | CAD 符号，脚注和 3D模型 |
|---|---|---|---|
| HMC7874PM5E | 32-Lead LFCSP (5mm x 5mm w/ EP) |
