AD4130-4

推荐用于新设计

32 μA, Ultra-Low Power, 24-Bit Sigma-Delta ADC with Integrated PGA and FIFO

Viewing:
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许,也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。

概述

  • Ultra-low current consumption (typical)
    • 32 µA: continuous conversion mode (gain = 128)
    • 5 µA: duty cycling mode (ratio = 1/16)
    • 0.5 µA: standby mode
    • 0.1 µA: power-down mode
  • Built-in features for system level power savings
    • Current saving duty cycle ratio: 1/4 or 1/16
    • Smart sequencer and per channel configuration minimizes host processor load
    • Deep embedded FIFO minimizes host processor load (depth of 256 samples)
    • Autonomous FIFO interrupt functionality, threshold detection
    • Single supply as low as 1.71 V increasing battery length
  • RMS noise: 25 nV rms at 1.17 SPS (gain = 128) − 48 nV/√Hz
  • Up to 22 noise free bits (gain = 1)
  • Output data rate: 1.17 SPS to 2.4 kSPS
  • Operates from 1.71 V to 3.6 V single supply or ±1.8 V split supplies
  • Band gap reference with 15 ppm/°C maximum drift
  • PGA with rail-to-rail analog input
  • Adaptable sensor interfacing functionality
    • Matched programmable excitation currents for RTDs
    • On-chip bias voltage generator for thermocouples
    • Low-side power switch for bridge transducers
    • Sensor open-wire detection
  • Internal temperature sensor and oscillator
  • Self and system calibration
  • Flexible filter options
  • Simultaneous 50 Hz/60 Hz rejection (on selected filter options)
  • General-purpose outputs
  • Diagnostic functionality
  • Crosspoint multiplexed inputs
    • 4 differential/8 pseudo differential inputs
  • 5 MHz SPI (3-wire or 4-wire)
  • Available in 35-ball, 2.7 mm × 3.56 mm WLCSP and 32-lead, 5 mm × 5 mm LFCSP
  • Temperature range: −40°C to +105°C (WLCSP), −40°C to +125°C (LFCSP)
  • AD4130-4 LFCSP pin compatible with AD7124-4 LFCSP
AD4130-4
32 μA, Ultra-Low Power, 24-Bit Sigma-Delta ADC with Integrated PGA and FIFO

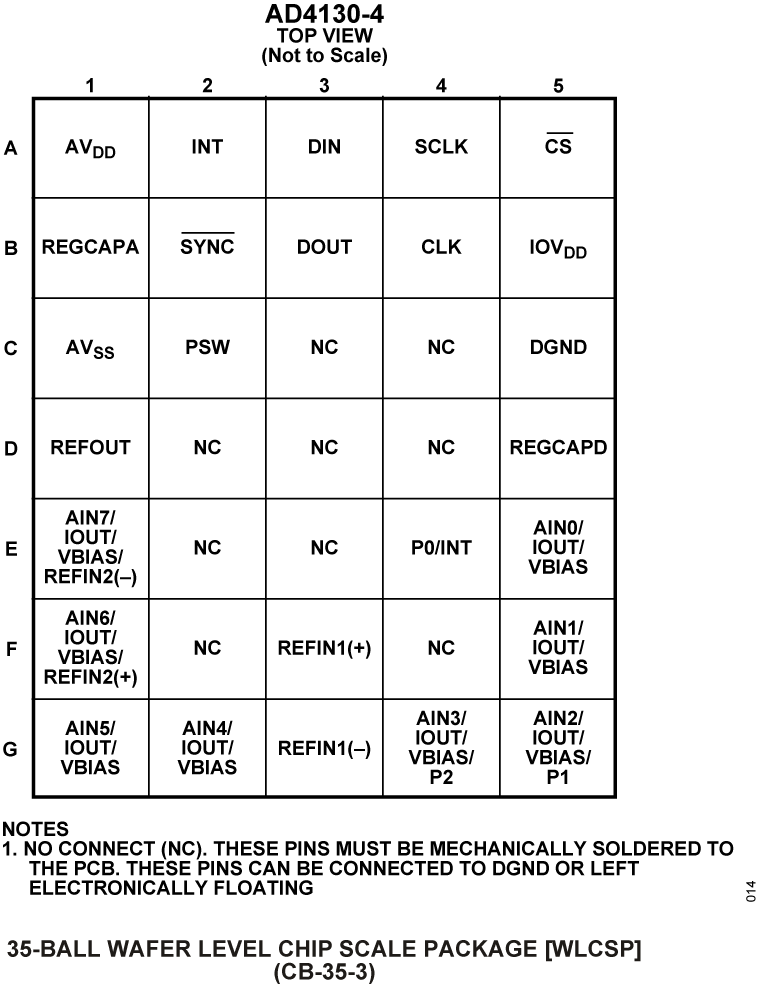

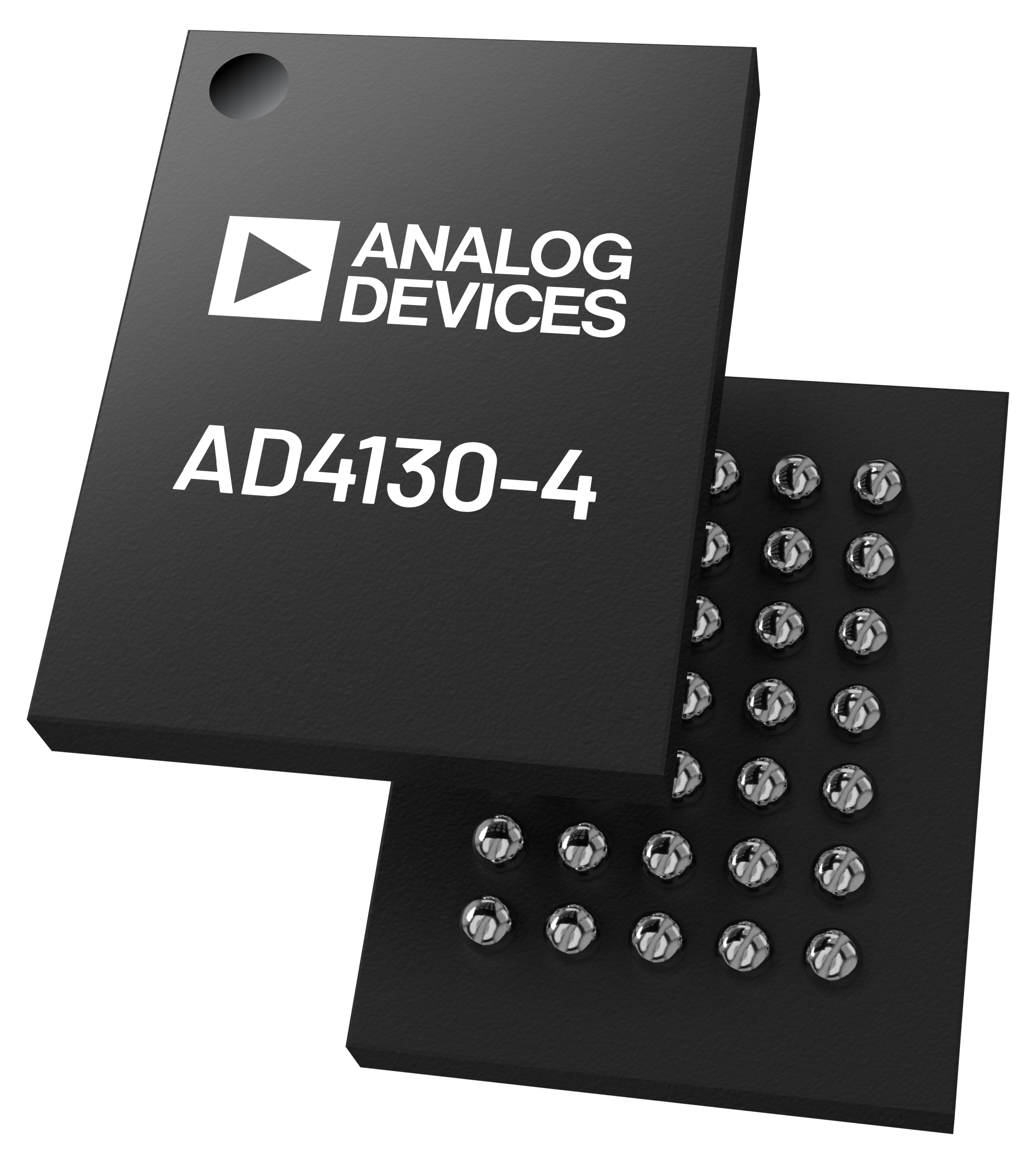

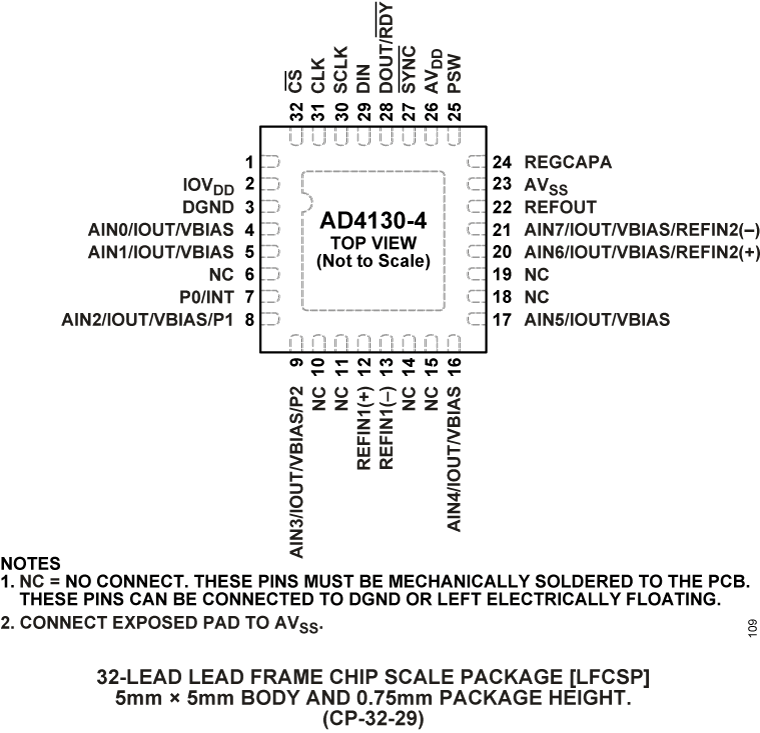

AD4130-4 Functional Block Diagram AD4130 4 Pin Configuration AD4130-4 Pin Configuration AD4130 4 Chip Illustration
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中(接收通知)。

创建新项目
提问

参考资料

了解更多
添加至 myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

创建新项目

软件资源


硬件生态系统

部分模型 产品周期 描述
充电泵 2
LTC3260 推荐用于新设计 低噪声、双通道电源的负输出充电泵
LTC1983 量产 采用 ThinSOT 封装的 100mA 稳压充电泵负输出转换器
线性稳压器 4
ADP150 量产 超低噪声、150 mA CMOS线性调节器
ADP151 量产 超低噪声 200 mA CMOS 线性稳压器
ADPL40502 推荐用于新设计 低噪声、200mA、CMOS 线性稳压器
ADP7182 推荐用于新设计 -28 V、 −200 mA、,低噪声、线性稳压器
Modal heading
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中(接收通知)。

创建新项目

工具及仿真模型

LTspice


LTspice中提供以下器件型号:

  • AD4130-8
LTspice

LTspice®是一款强大高效的免费仿真软件、原理图采集和波形观测器,为改善模拟电路的仿真提供增强功能和模型。


评估套件

eval board
EVAL-AD4130-8

AD4130-8 评估板

特性和优点

  • 适用于 AD4130-8 的功能完备的评估板
  • PC 控制配合系统演示平台 (EVAL-SDP-CK1Z) 一起使用
  • 用于控制和数据分析的 PC 软件(时域)
  • 独立功能

产品详情

EVAL-AD4130-8WARDZ 评估套件采用 AD4130-8 24 位超低功耗低噪声模数转换器 (ADC)。

通过连接到 EVAL-SDP-CK1Z 母板,EVAL-AD4130-8WARDZ 板连接到 PC 的 USB 端口。通过 PC 提供的 5V USB 电源可调节至 3.3 V,以便为 AD4130-8 供电并支持所有必要的元件。

AD4130-8 ACE 插件可以全面配置 AD4130-8 套件寄存器功能,并以波形图、直方图和相关噪声分析的形式为 ADC 性能评估提供直流和交流时域分析。

EVAL-AD4130-8WARDZ 是一款可以让用户评估 ADC 特性的评估板。凭借 EVAL-SDP-CK1Z 系统演示平台 (SDP),用户 PC 可执行软件可通过 USB 控制 AD4130-8。

应用

  • 温度测量,如热电偶、RTD 和热敏电阻
  • 压力测量,如电桥传感器
  • 医疗健康和可穿戴设备中的智能变送器

EVAL-AD4130-8
AD4130-8 评估板
EVAL-AD4130-8 Evaluation Board EVAL-AD4130-8 Evaluation Board - Top View EVAL-AD4130-8 Evaluation Board - Bottom View
