MAX17617A

推荐用于新设计

3V to 80V, 7A, Power-Limiter with OV/Surge, UV, Reverse Polarity and Loss of Ground Protection

数据手册 (Rev. 1) 产品选型表
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
Viewing:

概述

  • Robust Protection Reduces System Downtime
    • Wide Input Supply Range: +3V to +80V (without Reverse Current Protection)
    • Wide Input Supply Range: +3V to +75V (with Reverse Current Protection)
    • ±3% Accurate Programmable Current Limit between 3A to 7A across Full Temperature Range
    • ±4% Accurate Programmable Current Limit between 2A to 3A across Full Temperature Range
    • ±7% Accurate Programmable Current Limit between 0.7A to 2A across Full Temperature Range
    • ±6% Accurate Power Limit at 100W, 24V for
    • Class 2 Applications
    • Input-Voltage Reverse-Polarity Protection (with External nFET)
    • Dual Stage Reverse Current Protection (with External nFET) with Fast 100ns Response Time
    • Low RON Internal nFET (20mΩ typ)
    • Output-Voltage Reverse-Polarity Tolerant
    • Loss of Ground Protection
    • 200% Short Term Overload capability
    • Programmable Overvoltage Surge Protection (MAX17617A)
  • Flexible Design to Maximize Reuse and Minimize Requalification
    • Adjustable UVLO and OVLO/OVFB Thresholds
    • ±2% Accurate Bandwidth Current Monitoring Read-Out, IMON (3A to 7A, up to +85ºC)
    • Programmable Startup Inrush Current Limit
    • Programmable Current Limit Fault Response: Continuous, Autoretry, and Latch-off Modes
    • Logic Level Enable Input (EN)
    • Protected External N-type Field Effect Transistor (nFET) Gate Drive
    • Open Drain Fault Indicator (FLAG)
    • Power Good Output (PGOOD)
    • Programmable Output Under Voltage Sense (OUTUV)
    • Junction Temperature Monitoring (TJ)
    • Thermal Foldback Current Limit
  • Reduced Solution Footprint
    • 4.5mm x 5.75mm, 23-Pin FCQFN package
    • Integrated nFET for Common-Use Protection Requirements

The MAX17617/MAX17617A offers highly versatile and programmable protection boundaries for systems against input voltage faults and output overcurrent faults. In addition, MAX17617/MAX17617A offers a programmable power limiting function. Input-voltage faults (with positive polarity) are protected up to +80V (without Reverse Current Protection)/+75V (with Reverse Current Protection), by an internal nFET featuring low ON-resistance (20mΩ typ). The devices feature a programmable undervoltage-lockout (UVLO) thresholds by using external voltage-dividers. The MAX17617 features a programmable overvoltage-lockout (OVLO) while MAX17617A offers a programmable output voltage clamp function through the OVFB pin that features an output voltage limiting regulation during input transient surge events. Input undervoltage and overvoltage protection (MAX17617)/output voltage clamp function (MAX17617A) can be programmed across the entire 3V to 80V operating range.

Input reverse-polarity protection is realized using an external nFET that is controlled by the devices. The magnitude of reverse-polarity voltage protection is dependent on the operating load-bus voltage (VOUT) and the voltage-blocking capability of the external nFET. For example, for protection down to a -55V input range with VOUT = 30V, an external nFET rated at 85V is needed. The external nFET is also needed for the optional reverse-current protection. When used with a Reverse Protection external nFET (Q1), the devices prevent reverse current flow from load to source by turning off Q1. The reverse current thresholds and forward bias characteristics of the reverse current protection feature are tuned to achieve an ideal diode function suited for OR-ing and Power Multiplexer applications. If reverse polarity protection and reverse-current protection are not needed, SN and GN pins must be connected to IN. The devices are tolerant against accidental output reverse-polarity application due to incorrect wiring across the output terminals.

The current limit of the devices is programmed by connecting a resistor from the SETI pin to GND. The current limit can be programmed from 0.7A to 7.0A. When the current through the devices reaches or exceeds the set current limit, the resistance of the internal nFET is modulated to limit the current. The devices offer three current-limit behavioral modes: Continuous, Auto-retry, and Latch-off modes. In addition, the devices allow programmable startup inrush current limit during startup events, to prevent inrush current from limited power sources flowing into capacitive or negative impedance output loads.

Please see data sheet for the full description

APPLICATIONS

  • Input Voltage and Output Overcurrent Protections
  • Loss of Ground Protection
  • Surge Protection
  • UL1310 Class 2 Power Limiter
MAX17617A
3V to 80V, 7A, Power-Limiter with OV/Surge, UV, Reverse Polarity and Loss of Ground Protection

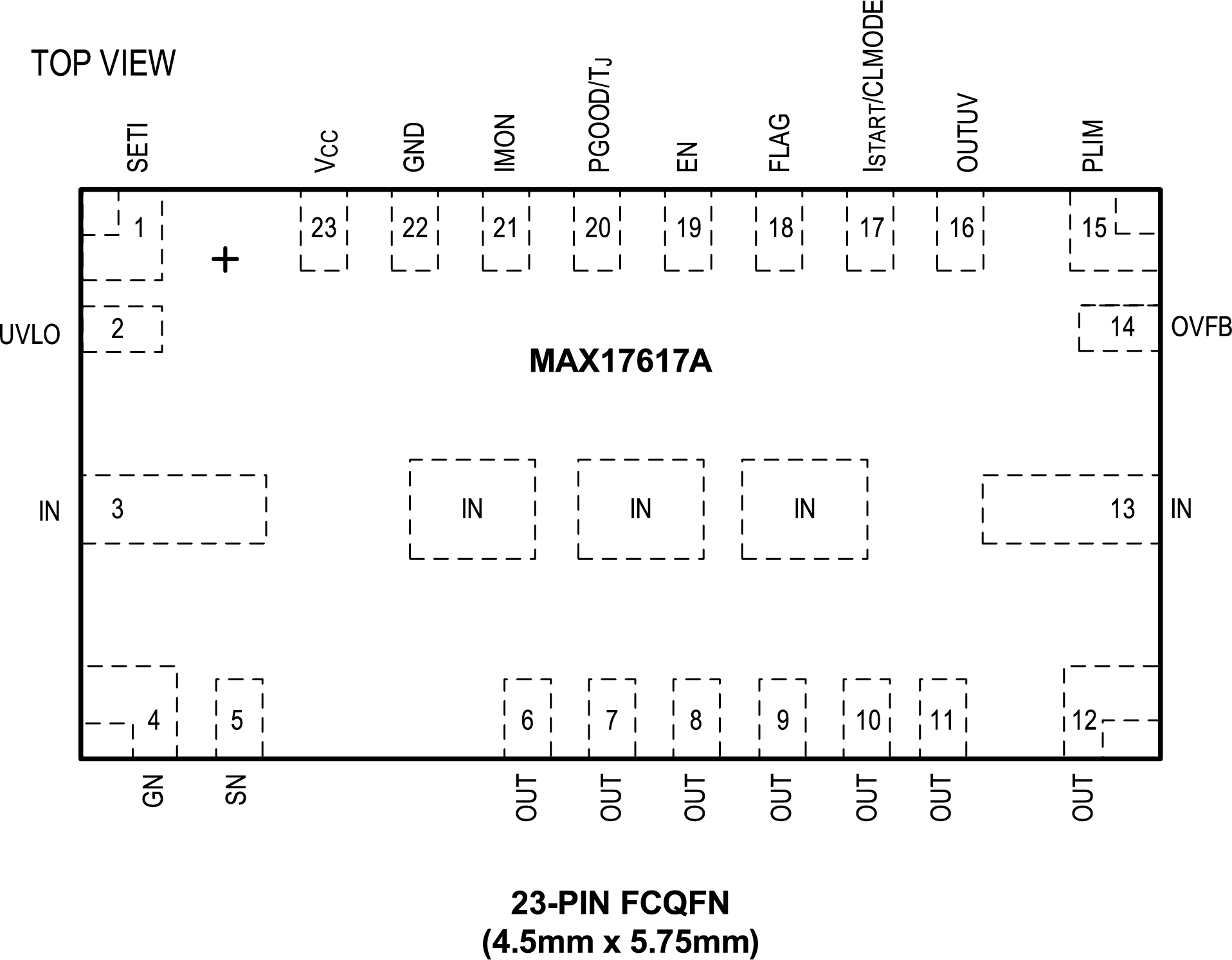

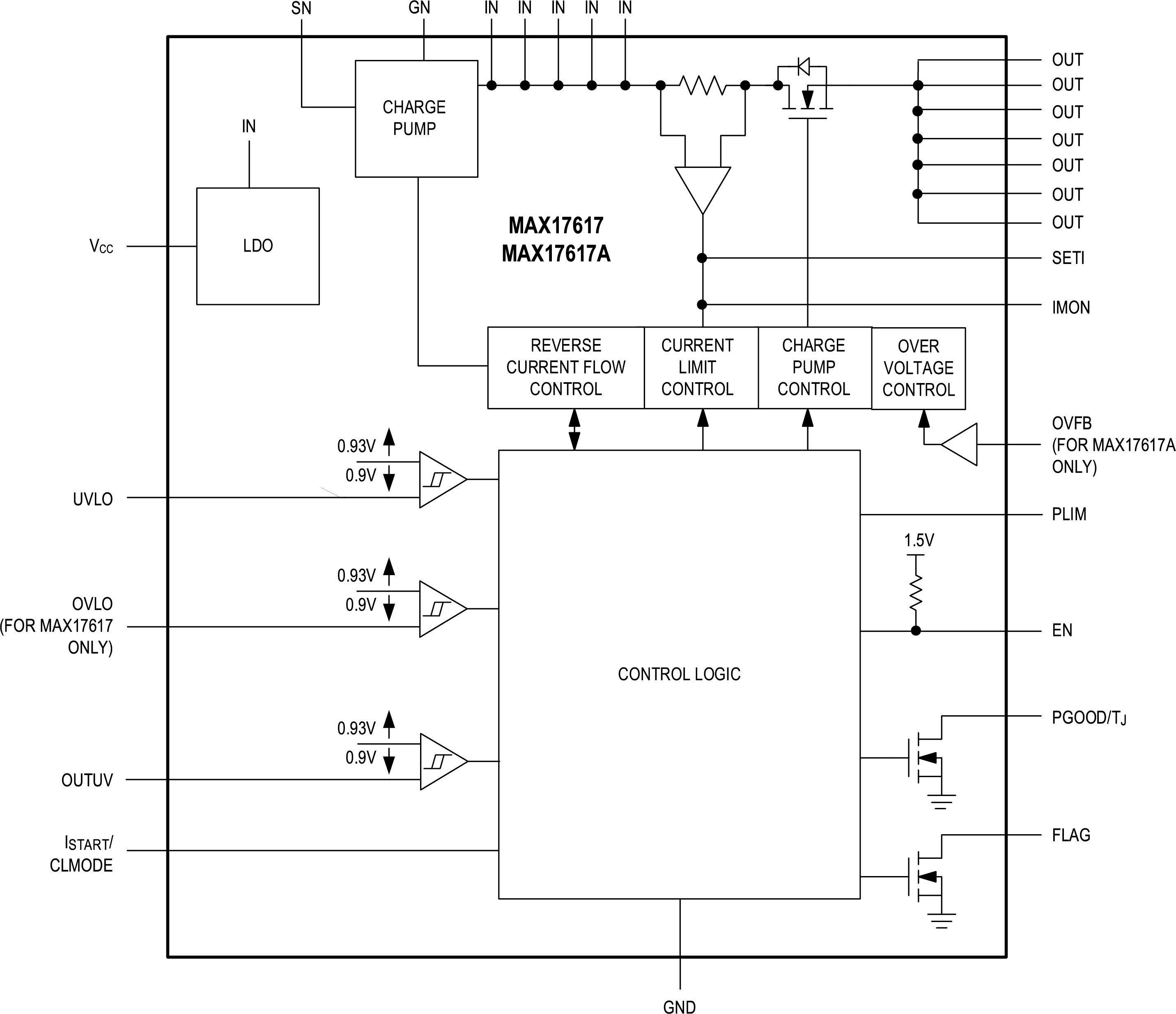

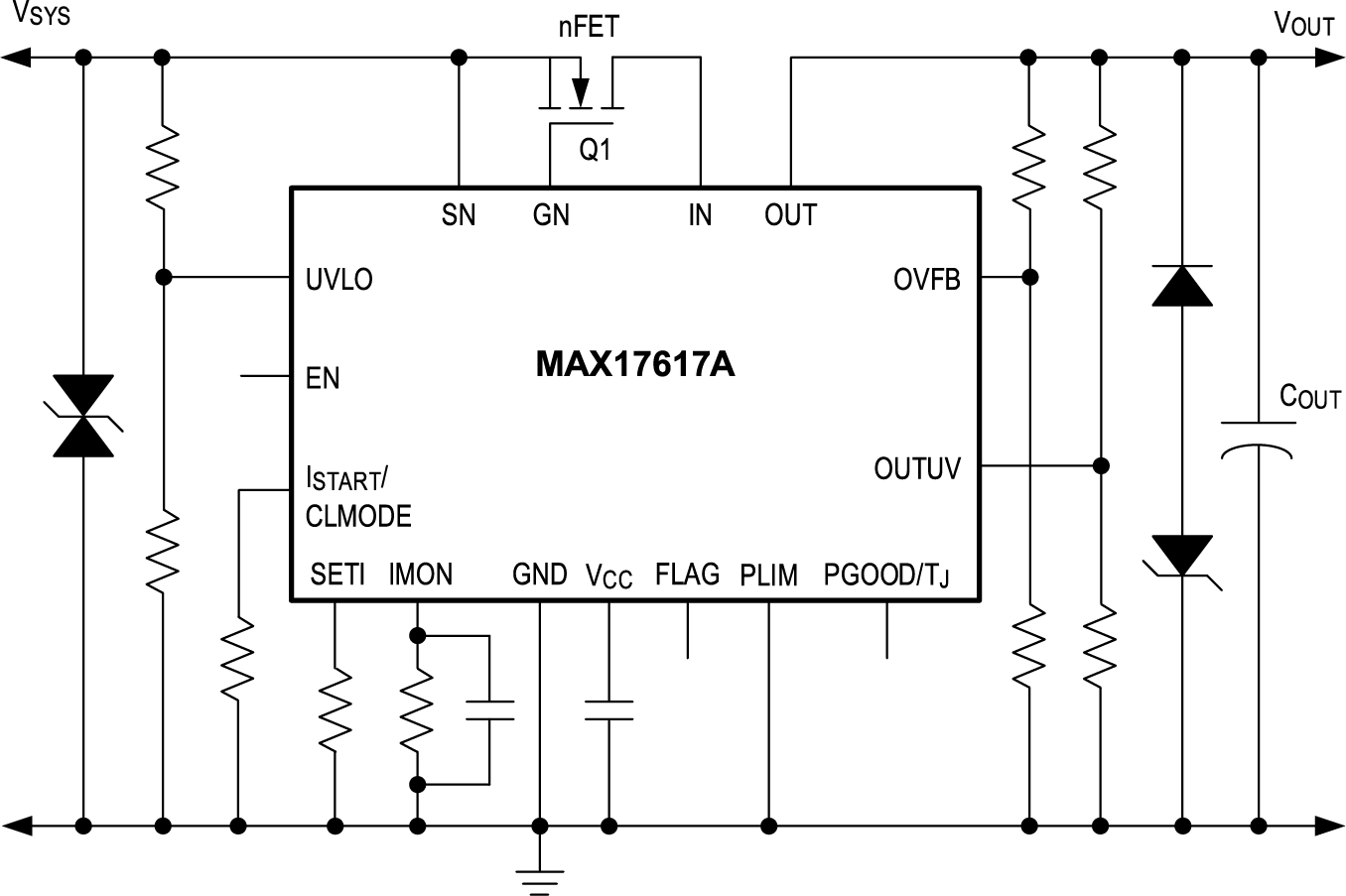

MAX17617-MAX17617A Functional Diagram MAX17617-MAX17617A Simplified Application Diagram MAX17617A Pin Configuration MAX17617A Chip Illustration
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目
提问

参考资料

数据手册 1

用户手册 1

了解更多
添加至 myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

创建新项目

软件资源

找不到您所需的软件或驱动?

申请驱动/软件

评估套件

eval board
schematic 1
schematic 2
schematic 3
MAX17617AEVKIT

具有浪涌、欠压、反向极性、接地失效保护和功率限制功能的 3V 至 80V、7A 功率限制器

立即购买 更多内容

特性和优点

  • 3V 至 80V 输入电压范围
    • 如果使用反向保护 FET，则为 3V 至 75V
  • 3% 精确电流监测
  • 可编程电流限制响应
  • 反向电压/电流保护
  • 失地保护
  • 6% 精确功率限制（输入或输出）
  • 工作温度范围 −40°C 至 +125°C
  • 23 引脚 4.5mm x 5.75mm FC2QFN 封装

产品详情

MAX17617AEVKIT# 评估套件 (EV kit) 具有 MAX17617A 电子保险丝 (eFuse)，工作电压为 5V 至 28V，具有 2A 自动重试电流限制。3.3V 降压调节器为上拉电阻和逻辑提供电压，以运行电路板上的指示灯 LED。该板还包括一个额外的外部 N 沟道场效应晶体管 (FET)，用于反向传导保护。
MAX17617AEVKIT
具有浪涌、欠压、反向极性、接地失效保护和功率限制功能的 3V 至 80V、7A 功率限制器

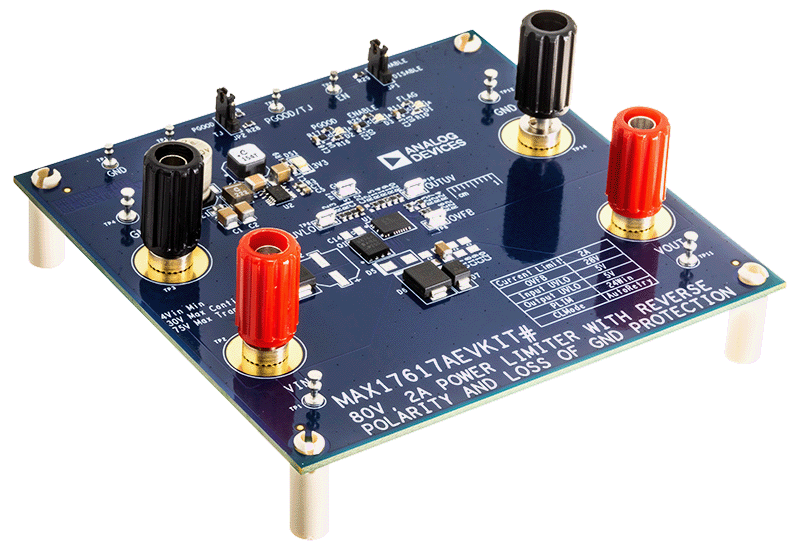

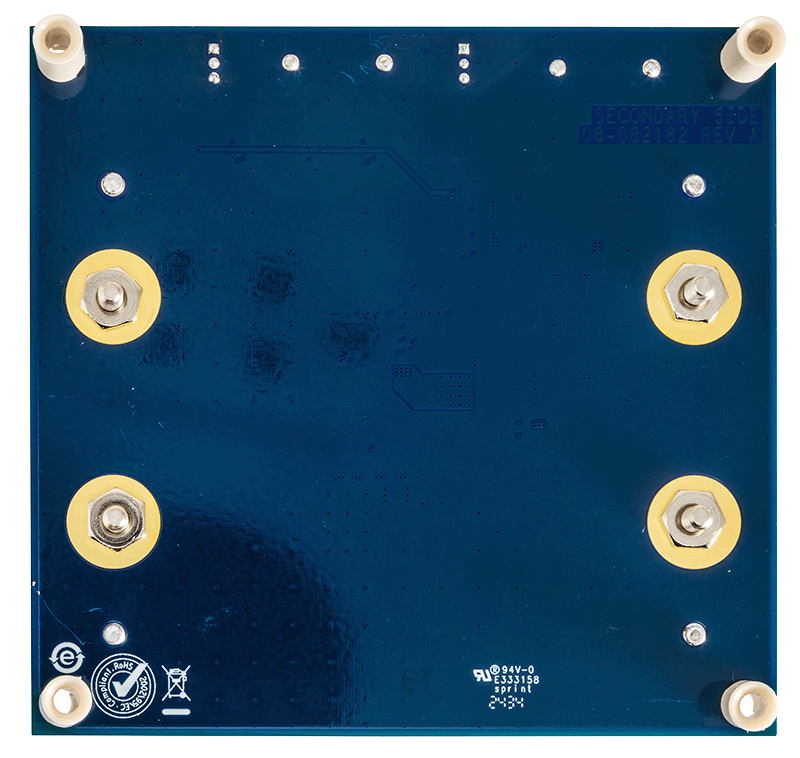

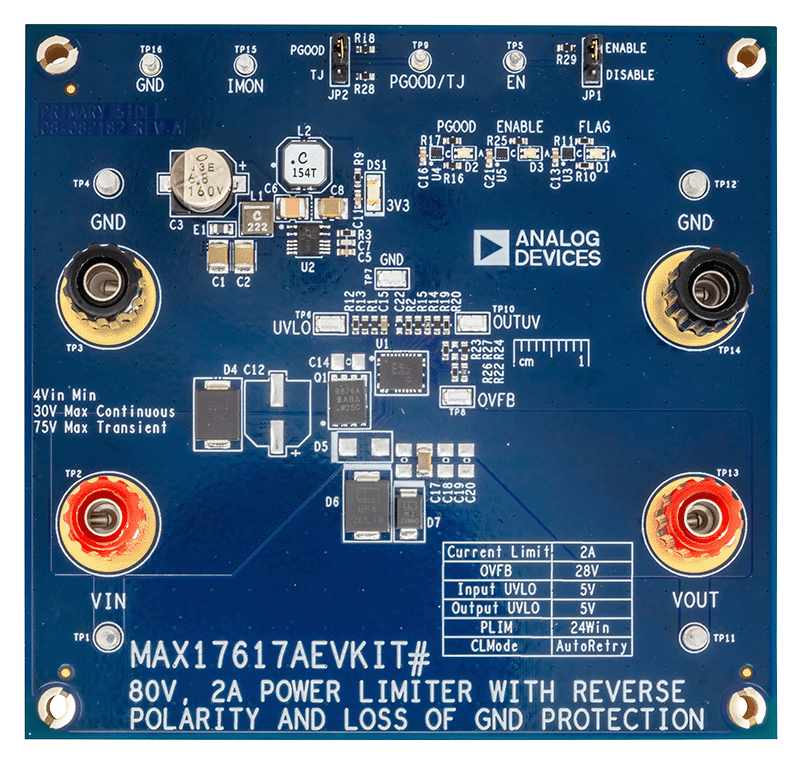

MAX17617AEVKIT Board Photo Angle View MAX17617AEVKIT Board Photo Top View MAX17617AEVKIT Board Photo Bottom View
