3.8 mm × 5.0 mm × 0.9 mm module with integrated optical components
1 blue LED, 1 IR LED, and 2 photodiodes
2 external inputs for other sensors (for example, CO and temperature)
Three 370 mA LED drivers

20-bit burst accumulator enabling 20 bits per sample period
On-board sample to sample accumulator enabling up to 27 bits per data read
Optimized SNR for signal limited cases
I²C or SPI communications

产品详情

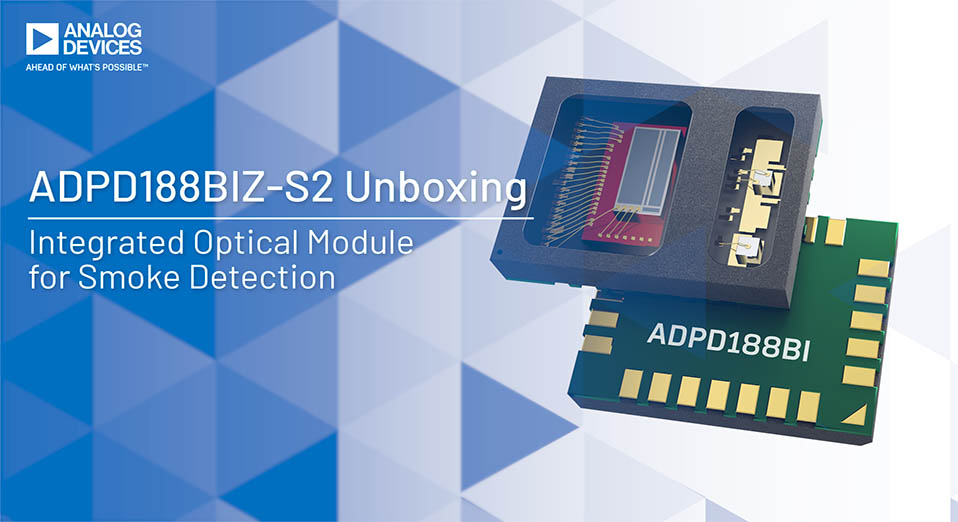

The ADPD188BI is a complete photometric system for smoke detection using optical dual wavelength technology. The module integrates a highly efficient photometric front end, two light emitting diodes (LEDs), and two photodiodes (PDs). These items are housed in a custom package that prevents light from going directly from the LED to the photodiode without first entering the smoke detection chamber.

The front end of the application specific integrated circuit (ASIC) consists of a control block, a 14-bit analog-to-digital converter (ADC) with a 20-bit burst accumulator, and three flexible, independently configurable LED drivers. The control circuitry includes flexible LED signaling and synchronous detection. The analog front end (AFE) features best-in-class rejection of signal offset and corruption due to modulated interference commonly caused by ambient light. The data output and functional configuration occur over a 1.8 V I²C interface or serial peripheral interface (SPI) port.

Applications

Smoke Detection

产品分类

光通信和光学传感
- Optical Mixed Signal Devices
- Optical Sensors

领域

楼宇技术
- 烟雾探测
- 楼宇控制和自动化

类似器件点击在参数搜索中查看所有

产品生命周期推荐新设计使用

本产品已上市。数据手册包含所有最终性能规格和工作条件。ADI公司推荐新设计使用这些产品。

评估套件 (1)

EVAL-ADPD188BI

ADPD188BI 评估板

EVAL-ADPD188BI

查看此评估套件详细信息

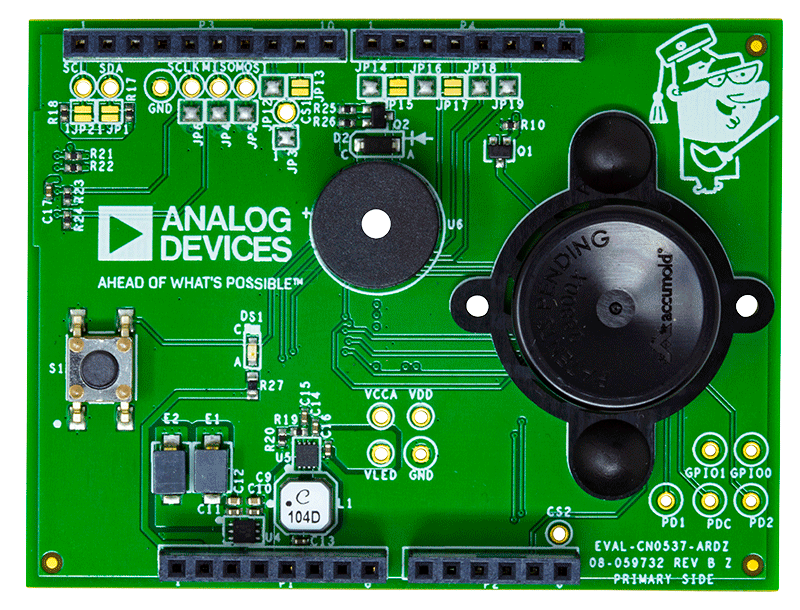

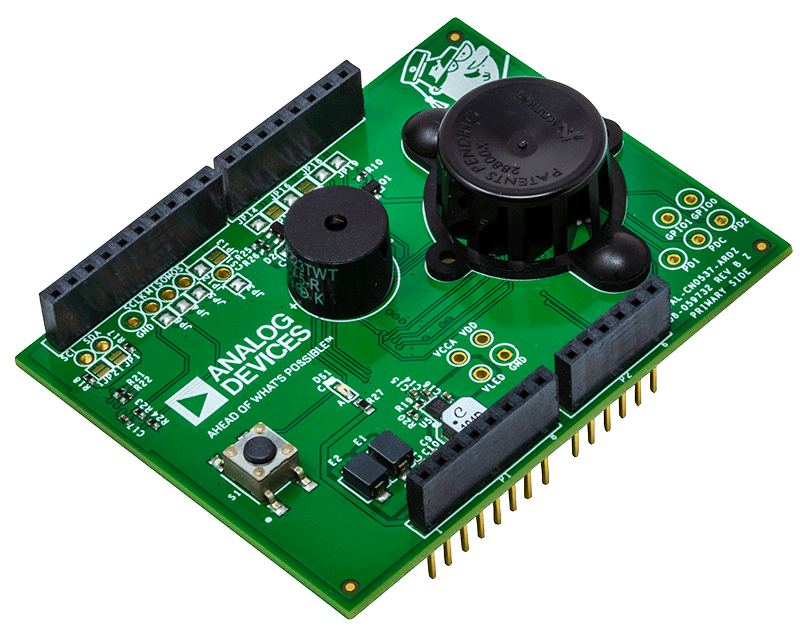

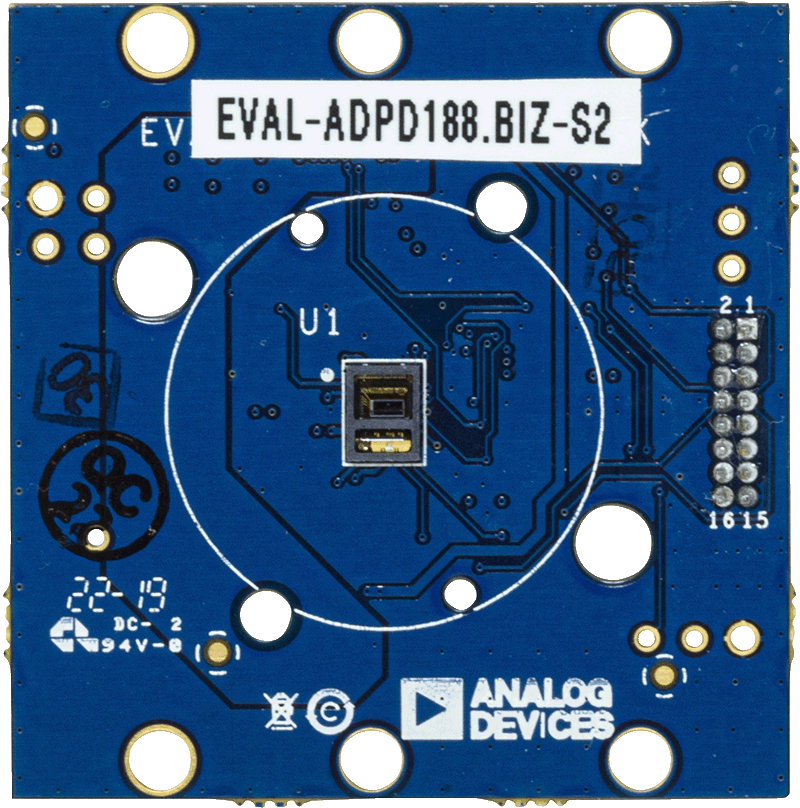

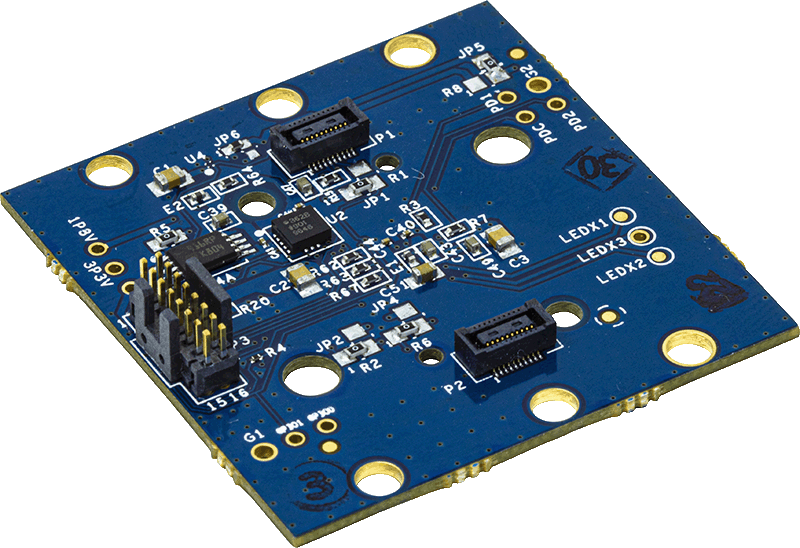

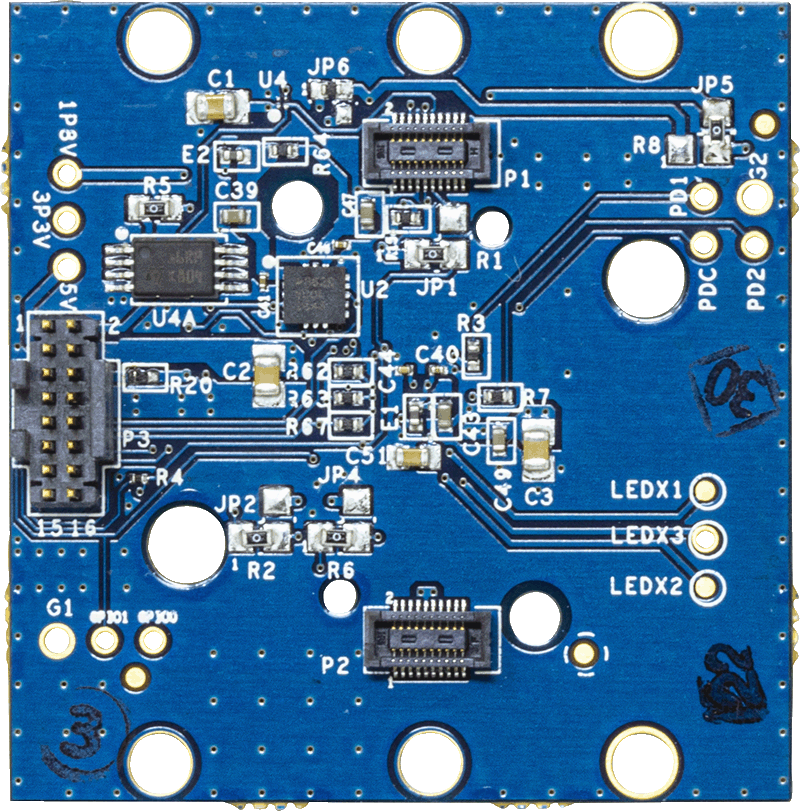

EVAL-ADPD188BIZ-SK 评估板为用户提供了一种评估适用于烟雾和气溶胶探测应用的 ADPD188BI 光学模块的简单方式，此评估板采用优化的离散光学设计，适用于生命体征监测应用。评估系统包括应用程序 WaveTool 图形用户界面 (GUI)，可为用户提供低级和高级可配置性、实时频域和时域分析以及用户数据报协议 (UDP) 传输功能，因此，该评估板可以轻松地连接到用户开发系统。

EVAL-ADPD188BIZ-SK 由 EVAL-ADPDUCZ 微控制器板（单独获取）通过带状电缆供电。

有关 ADPD188BI 功能的其他信息，请参阅 ADPD188BI 数据手册。
