MAX31875

量产

低功耗I²C温度传感器，WLP封装

MAX31875为±1°C精度的本地温度传感器，带有I²C/SMBus接口。

数据手册 (Rev. 8) 产品选型表

产品模型: 16

Viewing:

产品详情

微小、0.84mm x 0.84mm x 0.35mm WLP封装
优异的温度精度
- -40°C至+145°C时为±1.75°C
- -0°C至+70°C时为±1°C
平均耗流小于10µA
可选超时，防止总线锁定(默认使能)
支持I²C和SMBus
可选PEC，实现可靠通信
总线速度高达1MHz
+1.6V至+3.6V电源电压

参考资料

ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。

产品型号	引脚/封装图-中文版	文档	CAD 符号，脚注和 3D模型
MAX31875R0TZS+	4-WLCSP-N/A	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX31875R0TZS+T	4-WLCSP-N/A	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX31875R1TZS+	4-WLCSP-N/A	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX31875R1TZS+T	4-WLCSP-N/A	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX31875R2TZS+	4-WLCSP-N/A	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX31875R2TZS+T	4-WLCSP-N/A	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX31875R3TZS+	4-WLCSP-N/A	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX31875R3TZS+T	4-WLCSP-N/A	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX31875R4TZS+	4-WLCSP-N/A	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX31875R4TZS+T	4-WLCSP-N/A	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX31875R5TZS+	4-WLCSP-N/A	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX31875R5TZS+T	4-WLCSP-N/A	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX31875R6TZS+	4-WLCSP-N/A	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX31875R6TZS+T	4-WLCSP-N/A	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX31875R7TZS+	4-WLCSP-N/A	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX31875R7TZS+T	4-WLCSP-N/A	Material Declaration Reliablity Data	Ultra Librarian SamacSys

产品型号	产品生命周期	PCN

2月 14, 2019 - 1901 DESIGN,ELECTRICAL DA
		pcn_1901
MAX31875R0TZS+	量产
MAX31875R0TZS+T	量产
MAX31875R6TZS+	量产

这是最新版本的数据手册

软件资源

找不到您所需的软件或驱动?

申请驱动/软件

工具及仿真模型

软件开发 1

MAX31875 Temp Sensor EV Kit Software, 1.0.0

IBIS 模型 1

MAX31875 IBIS Model

评估套件

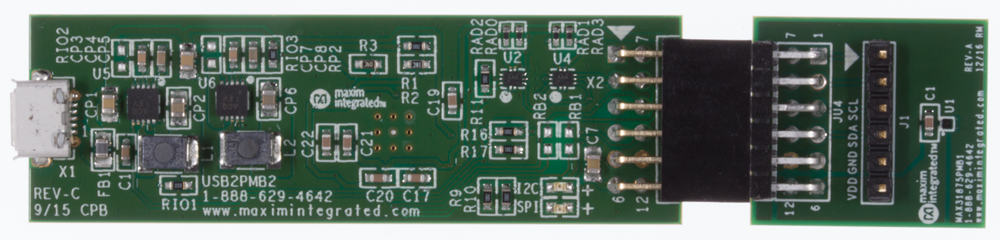

MAX31875评估套件

立即购买更多内容

特性和优点

提供兼容 Windows^® 7、Windows 8/8.1和Windows 10的软件

产品详情

MAX31875评估套件（EV套件）用于演示MAX31875，这是一款精度为±2°C的本地温度传感器，带 I²C/SMBus 接口。该评估套件内含一个图形用户界面(GUI)，可通过 I²C 与板载主控IC进行通信。

MAX31875评估套件已安装MAX31875ROTZS+。

应用

电池供电设备
数据通信设备
手持式电子设备
工业设备
服务器

资料

MAX31875EVKIT ODB File - Design Files
0001/1/1

参考电路

Multistandard Micropower Verified Smoke Detection System-on-Module

查看参考设计详情

特性和优点

The CN0583 reference design plus related software is designed and tested to meet UL 217 8th edition, EN14604:2005, and similar smoke/fire detection standards. To address the needs of different customers, a number of solution offerings are available which are summarized in the table below.

The hardware is designed to accelerate prototyping and the evaluation of the embedded smoke detection algorithm. The hardware is comprised of the EVAL-CN0583-SOM and EVAL-CN0583-CRR1 Carrier Board.

The Data package (ADSW-SMOKEDATA-PRODLIC) provides an extensive (1000+) smoke dataset taken at UL 217 and EN14604 certified facilities for those who wish to develop their own algorithm. It includes the CN0583 source code for initialization, calibration, environmental compensation, data pre-processing - but excludes the detection algorithm.

The Algorithm package (ADSW-SMOKEDATA-PRODLIC) includes everything in the Data package and adds UL & EN validated smoke detection algorithm and associated algorithm project files.
