ADES1830

推荐用于新设计

16 通道多元电池组监控器

数据手册 (Rev. A) 产品选型表
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
Viewing:

概述

  • 最多可测量 16 个串联电池单元
  • 最大寿命 TME：ADES1830 每个电池单元 3.3 V 时为 ±1.8 mV，对于 ADES1831 为 ±5 mV（–40°C 至 +105°C）
  • 同时连续测量电池电压
  • 可配置的集成低通滤波
  • 用于高压电池组的可堆叠架构
  • 内置式 isoSPI
    • 2Mbps 隔离式串行通信
    • 使用一根双绞线，每段最长 20 米
    • 低 EMI 易感性和辐射
    • 双向断线保护
    • 电容器或变压器耦合
  • 可热插拔，无需外部保护
  • 无源单元平衡，每通道高达 300mA，具有可编程 PWM
  • 多达 9 个通用模拟输入或数字 I/O
    • 温度或其他传感器输入
    • 可配置为 I2C 或 SPI 控制器
  • 休眠方式电源电流为 4 μA
  • 对母线的规定

ADES1830/ADES1831 是多电池堆栈监视器，可测量多达 16 个串联电池单元，在整个温度范围内，ADES1830 的寿命总测量误差（TME）小于 2 mV，ADES1831 的寿命总测量误差（TME）小于 5 mV。−2 V 至 +5.5 V 的测量输入范围使 ADES1830/ADES1831 适用于大多数电池化学成分，并允许测量母线间的电压。为绕过母线而不指定任何测量通道做出了规定。

可以使用两个单独的模数转换器 (ADC) 同时和冗余地测量所有电池。具有 4.096 MHz 高采样速率的连续运行 ADC 可减少外部模拟滤波，并获得无混叠测量结果。后续可编程无限脉冲响应 (IIR) 滤波器可以实现更高的降噪效果。

多个 ADES1830/ADES1831 器件可以串联连接，从而可以同时对长高压电池串进行电池监控。每个 ADES1830/ADES1831 都有一个隔离室串行端口接口 (isoSPI™)，用于进行不受 RF 干扰的远距离高速通信。多个套件以菊花链模式连接在一起，并共用一个主机处理器连接。此菊花链可以双向操作，即使在沿通信路径发生故障的情况下，也能确保通信完整性。

ADES1830/ADES1831 可由电池组供电，或由隔离式电源供电。ADES1830/ADES1831 包括被动平衡功能，具有单独的脉冲宽度调制（PWM）占空比控制和每个电池高达 300 mA 的放电电流。其他功能包括板载 5 V 稳压器、最多 9 个通用输入/输出和睡眠模式，其中电流消耗降低至 4 μA。

应用

  • 公用事业储能
  • 商业和工业储能
  • 住宅储能
  • 备用电池系统
ADES1830
16 通道多元电池组监控器
ADES1830 Chip ADES1830/ADES1831 Functional Block Diagram ADES1830/ADES1831 Pin Configuration
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目
提问

参考资料

数据手册 1

用户手册 1

了解更多
添加至 myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

创建新项目

软件资源

找不到您所需的软件或驱动?

申请驱动/软件

评估套件

eval board
schematic 1
schematic 2
schematic 3
EVAL-ADES1830

Evaluation Board for the ADES1830 16-Channel Multicell Battery Monitor

立即购买 更多内容

特性和优点

  • Full featured demonstration board for the ADES1830
  • Built features
    • Demonstrates the high performance measurements of the ADES1830
    • Two isoSPI® ports for reversible isoSPI® support
    • Daisy-chain capability
    • isoSPI® connections through simple RJ45 to RJ45 connectors or RJ45 to DuraClik® connectors
  • Compatible boards
    • AD-APARD32690 microcontroller

产品详情

The EV-ADES1830CCSZ is a multicell battery stack monitor featuring the ADES1830, a 16-channel battery stack monitor. Multiple boards can be linked through a 2-wire isolated serial interface (isoSPI®) to monitor a long series of cells in a stack. The EVADES1830CCSZ also features reversible isoSPI enabling a ring communication path. The printed circuit board (PCB), components, and connectors are optimized for low electromagnetic interference (EMI) susceptibility and emissions.

The EV-ADES1830CCSZ can communicate with a PC by connecting to the AD-APARD32690 microcontroller via the SPI pins.

Design files for this circuit board are available.

eval board
schematic 4
schematic 5
schematic 6
schematic 7
schematic 8
schematic 9
schematic 10
schematic 11
EVAL-ESS1-SYS

Scalable BMS Kit for Cell and Pack Monitoring

立即购买 更多内容

特性和优点

  • Accurate voltage and current measurement
  • Highly scalable and ease of integration
  • Robust isoSPI capability implementable in daisy chain high count
  • Inclusive passive balancing with individual pulse-width modulation
  • Isolated power supply between microcontroller and battery monitoring devices
  • High voltage and current supply measurement
  • Fast overcurrent (OC) measurement
  • Redundancy measurement
  • Modular BMS Solution

产品详情

The EVAL-ESS1-SYS Solution Kit contains all the necessary building blocks to create a complete BMS solution stack.

The accompanying PC-based graphical user interface provides an intuitive interface that allows the user to configure the BMS signal chain components and view cell and stack voltage and current measurement results.

The package includes one application processor (AD-APARD32690-SL), one dual isoSPI adapter (EVAL-ADBMS6822), two 16-cell battery monitors (EV-ADES1830CCSZ), two 16-cell battery emulators (DC2472A), and one battery pack monitor (EVAL-ADBMS2950-BASIC).

Upon purchase, the EVAL-ESS1-SYS kit comes with the following boards and accessories:

Boards

  • 2x EV-ADES1830CCSZ 16-Channel Battery Cell Monitor
  • 2x DC2472A Battery Cell Emulator with harness fitted
  • 1x EVAL-ADBMS2950-BASIC Battery Pack Monitor
  • 1x EVAL-ADBMS6822 Dual isoSPI Adapter
  • 1x AD-APARD32690-SL ARM Cortex M4 Controller Board
  • 1x AD-USB2.0T1L-EBZ
  • 1x MAX32625PICO Programming Adapter with 10-pin SWD cable

Cables and Other Accessories

  • 1x RJ45-to-RJ45
  • 2x DuraClik-to-RJ45 Twisted Pair Cables
  • 3x DuraClik isoSPI Twisted Pair Cables
  • 3x USB Type A to Micro-B Cable
  • 1x USB A to C-Type Cable
  • 1x T1L STP Cable

APPLICATIONS

  • IoT Battery Management
  • Industrial Machine Vision
  • Power Tools
  • Mobile Robotics Battery Management
  • Industrial Equipment Battery Monitoring
  • Adaptive Battery Type System Monitoring
  • Portable Energy Storage Systems

EVAL-ADES1830
Evaluation Board for the ADES1830 16-Channel Multicell Battery Monitor

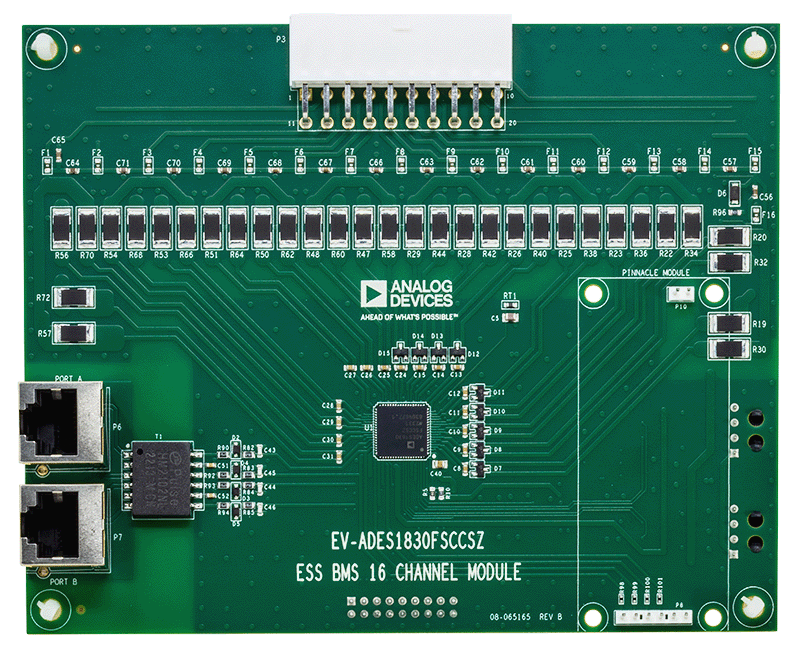

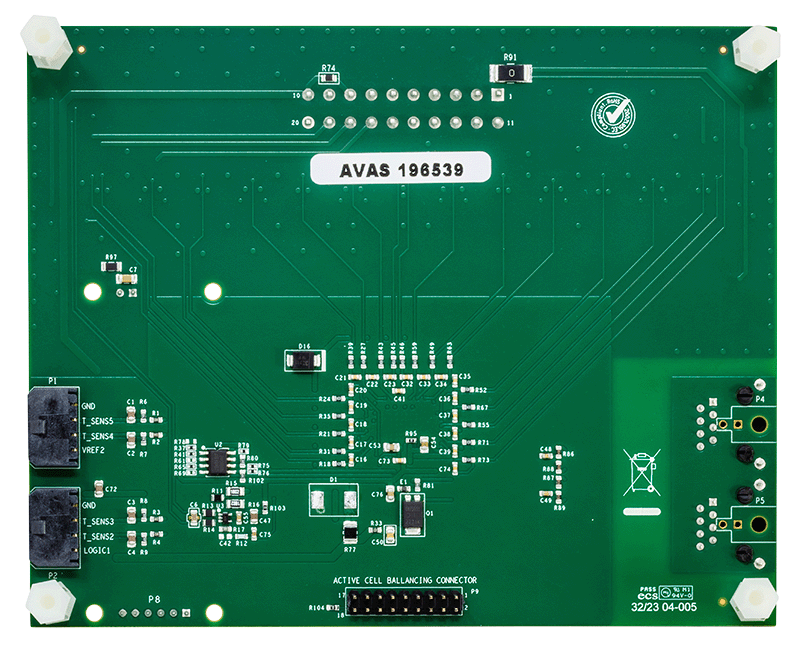

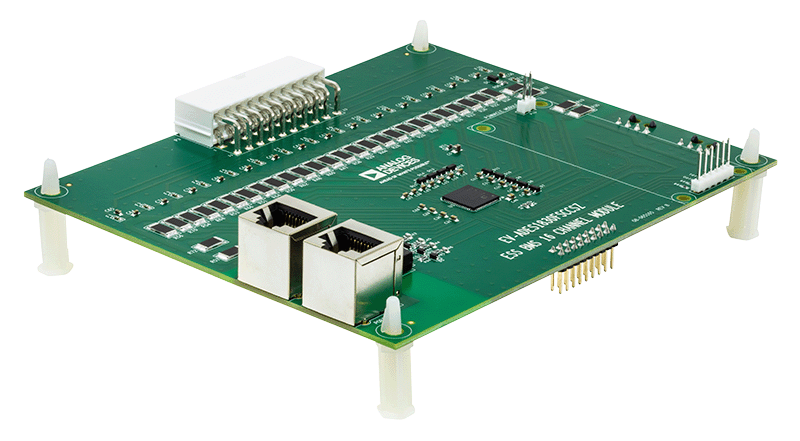

EVAL-ADES1830 Board Photo Angle View EVAL-ADES1830 Board Photo Top View EVAL-ADES1830 Board Photo Bottom View
EVAL-ESS1-SYS
Scalable BMS Kit for Cell and Pack Monitoring
EVAL-ESS1-SYS Kit Photo Angle View EVAL-ESS1-SYS-KIT Board Photo Top View EV-ADES1830 Board Photo Angle View EVAL-ADBMS2950 BASIC Board Photo Angle View EVAL-ADBMS6822 Board Photo Angle View EVAL-MAX32690-ARDZ Board Photo Angle View DC2472A Board Photo Angle View EVAL-ESS1-SYS Block Diagram
