HMC311ST89
製造中InGaP HBT Gain Block MMIC Amplifier, DC - 6 GHz
- 製品モデル
- 3
- 1Ku当たりの価格
- 価格は未定
製品の詳細
- P1dB Output Power: +15.5 dBm
- Output IP3: +31.5 dBm
- Gain: 16 dB
- 50 Ohm I/O’s
- Industry Standard SOT89 Package
- Included in the HMC-DK001 Designer’s Kit

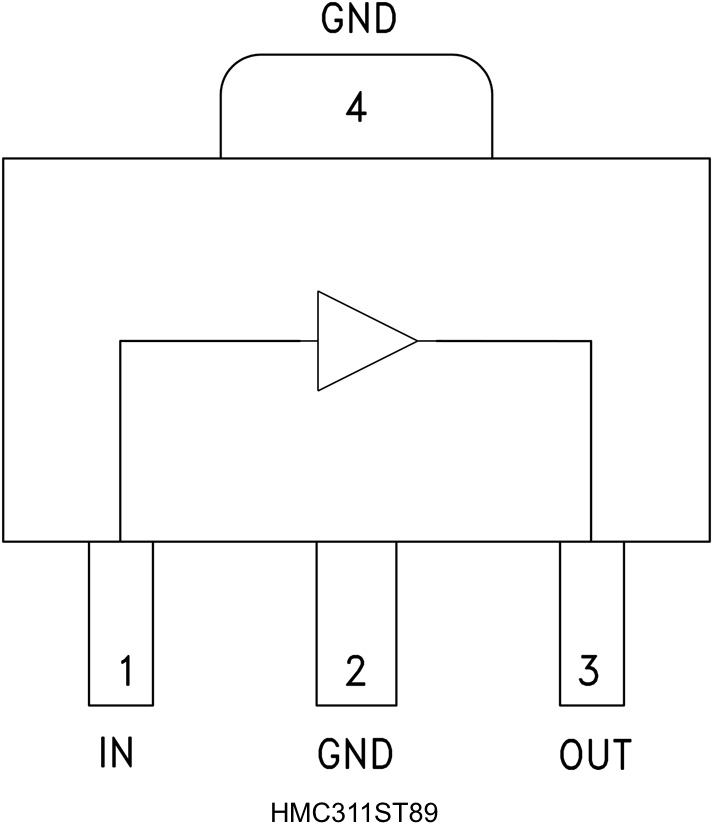

The HMC311ST89(E) is a GaAs InGaP Heterojunction Bipolar Transistor (HBT) Gain Block MMIC SMT DC to 6 GHz amplifier. Packaged in an industry standard SOT89E, the amplifier can be used as either a cascadable 50 Ohm gain stage or to drive the LO of HMC mixers with up to +16.5 dBm output power. The HMC311ST89(E) offers 16 dB of gain and an output IP3 of +31.5 dBm while requiring only 54 mA from a +5V supply. The Darlington feedback pair used results in reduced sensitivity to normal process variations and yields excellent gain stability over temperature while requiring a minimal number of external bias components.
Applications
- Cellular / PCS / 3G
- Fixed Wireless & WLAN
- CATV & Cable Modem
- Microwave Radio
ドキュメント
データシート 1
アプリケーション・ノート 2
品質関連資料 3
製品選択ガイド 1
テープ&リール仕様 1
