TMC6100
Low voltage BLDC motor driver 8 to 60V, for external N-channel MOSFETs up to 1.5A gate current
Show More
Not the part you were looking for?
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
Features
- 3-phase motors up to 100A coil current (external MOSFETs)
- Voltage Range 8 to 60V DC
- Gate Drive Programmable 0.5A / 1A / 1.5A
- Full Protection and Diagnostics via SPI interface
- Gate Off Drive with 1Ω (LS) / 1.3Ω (HS) safe hold off resistance
- SPI & Stand-Alone operation
- Optional BBM break-before-make logic for single line control
- Charge Pump for 100% Duty Cycle operation
- Programmable Short and Overload current threshold and retry
- Programmable Control Interface with 3-line or 6-line drive
- Full Protection & Diagnostics
- Compact Size 7x7mm2 QFN package
- Double Pin Distance for safe operation at high voltage
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}
The TMC6100 is a high-power gate-driver for PMSM servo or BLDC motors. Using six external MOSFETs it controls motors from Watt to Kilowatt. Software controlled drive strength allows insystem EME optimization. Programmable safety features like short detection and overtemperature thresholds together with an SPI interface for diagnostics allow robust and reliable designs. With the TMC6100, a minimum number of external components is required to build a rugged drive with full protection and diagnostics.
APPLICATIONS:
- PMSM FOC drives and BLDC motors
- Industrial Drives
- Factory Automation
- Lab Automation
- Robotics
- CNC machines
- Textile Machines
- Pumps
- Surveillance Cameras
- Home Automation
- Printers
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
Documentation
Data Sheet 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| TMC6100-LA |
37-LFCSP-7X7X0.9
|
|
|
| TMC6100-LA-T |
37-LFCSP-7X7X0.9
|
|
- TMC6100-LA
- Pin/Package Drawing
-
37-LFCSP-7X7X0.9
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- TMC6100-LA-T
- Pin/Package Drawing
-
37-LFCSP-7X7X0.9
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Software & Part Ecosystem
Evaluation Kits 3

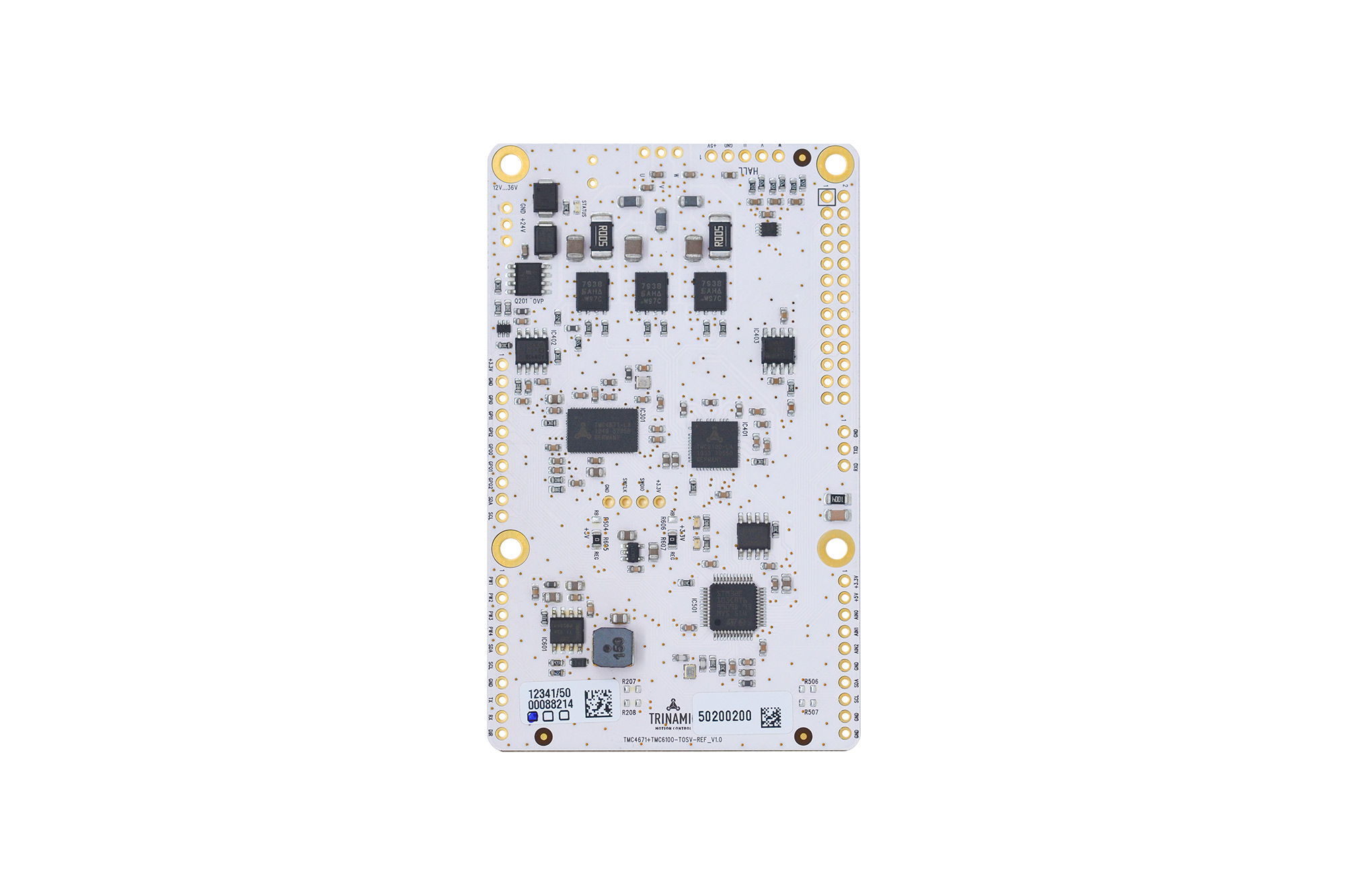

TMC4671-TOSV-REF
OBSOLETE: Evaluation Board for TMC4671-TOSV-REF
Features and Benefits
- Single axis BLDC servo driver for up to 6A rms / phase
- Supply Voltage 12V..36V
- Integrated overvoltage protection
- HALL sensor interface
- Onboard temperature sensor
- Digital I/O and analog inputs
- Addon board connector for standard or custom sensor interface board
- Raspberry Pi connector for external SBC
Product Detail
This evaluation board is obsolete and no longer recommended.
TMC4671-TOSV-REF is an open source reference design for ventilators / respirator systems. It is a BDLC servo driver for voltages from +12V to +36V and motor RMS phase currents up to 6A. It offers a wide range of connectivity with its SBC connector in Raspberry Pi style, the addon board header for a standard or custom pressure sensor addon board, and general purpose I/O. Communication is via standard TTL UART or RS485 (when using the standard addon board TOSV-SENSOR-REF).
Resources

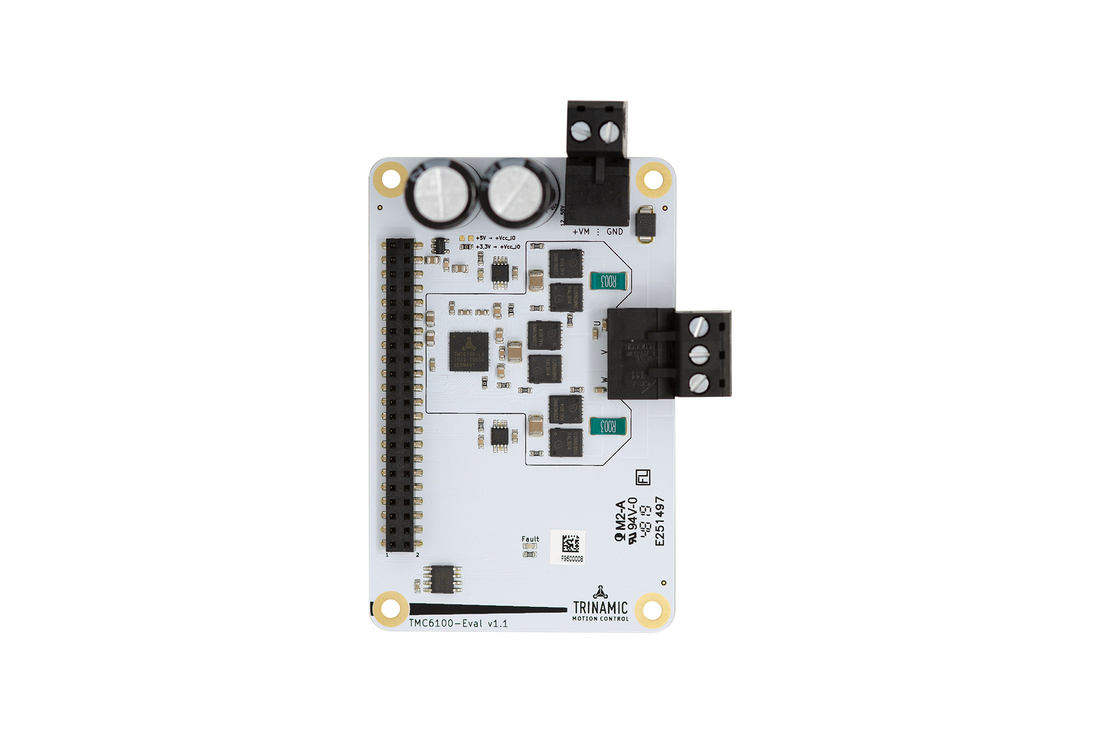

TMC6100-EVAL
Evaluation Board for TMC6100
Features and Benefits
- 3-phase BLDC/PMSM motor with up to 10A coil current
- Gate Drive Programmable 0.5A/1A/1.5A
- Supply Voltage 12 to 48V (55V max)
- SPI Interface for diagnostics / configuration
- Optional BBM logic for single line control
- Programmable Control Interface with 3 or 6 line drive
- Full Protection & programmable Diagnostics
- Onboard Current Shunt Amplifiers
- 1 to 256 Microsteps
- 10A RMS, 48V
Product Detail
The TMC6100-EVAL allows you to explore all functions of the TMC6100-LA.
The TMC6100-EVAL-KIT is a set of one MCU board Landungsbruecke, two Eselsbruecke bridge boards, one TMC4671-EVAL motion controller board as well as one TMC6100-EVAL driver board.
In addition we recommend to use the USB adapter for real-time-monitoring interface (RTMI): USB-2-RTMI.
The EVAL-KIT + USB-2-RTMI allows for a quick and simple start within only minutes to make your motor turning, while still providing full access to all registers and full functionality and diagnostics.
For diagnosis, all signals between MCU and TMC6100 are accessible with probes on the bridge board. TMC6100-EVAL can be used with or without the Landungsbruecke MCU board.
All you need to get started is a power supply and ADI Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data. All settings can simply be exported for your own firmware project.
Resources

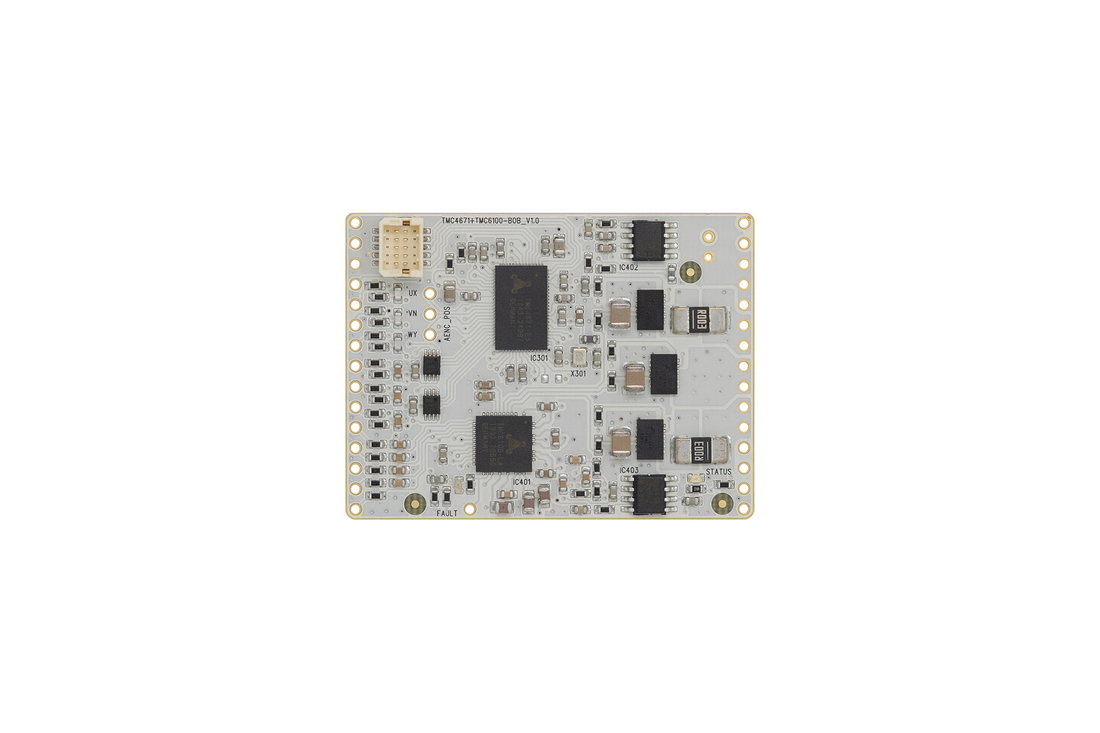

TMC4671-TMC6100-BOB
Evaluation Board for TMC4671-TMC6100
Features and Benefits
- TMC4671-LA Hardware Servo Controller
- TMC6100-LA Hardware Gate Driver + MOSFETs
- Supply and I/O voltage 3.3V and 5V
- Motor supply voltage input (8 to 50V)
- Motor phase current up to 10A peak (Please consider proper soldering)
- Communication and configuration via SPI
- Real-time Monitoring Interface for live debugging and tuning using ADI Trinamic’s RTMI adapter
- Additional Step/Direction Interface from a motion controller
- Encoder- and Hall-Feedback, analog hall via solder pads
- Driver Fault and Status indicator LEDs
- Board width 2", board height 1.5"
- 2x15 pin 0.1" header rows for pins/connectors, distance of rows 1.9"
- 10A RMS, 50V
Product Detail
The TMC4671+TMC6100 breakout board is a development board with the dedicated TMC4671 and TMC6100 chip. It is designed to give users the chance to rapidly prototype their applications - making it possible to immediately check how the motor performs with TMC chips while developing the application's software.
Please find a dedicated firmware in the download section below, when using TMC4671+TMC6100-BOB with Landungsbruecke interface board.
Resources
Tools & Simulations 1
Design Tool
Design Tool
