Overview

Features and Benefits

  • Connector board for ADI TRINAMIC’S evaluation board system
  • Board width 1.5", board height 2.4"
  • 2x 44-pin header rows, 0.1"
  • Connector type MPE Garry 090-3-044-1-F-XT0-0910
  • Standard 2.54mm pin header with probing points for all signals.

Product Details

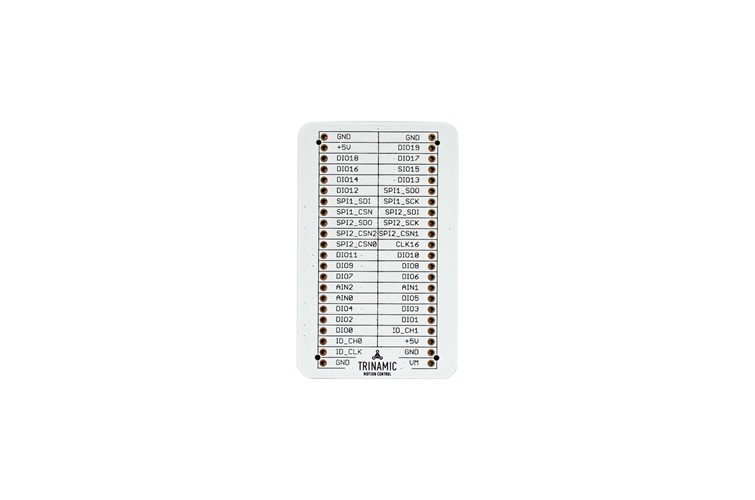

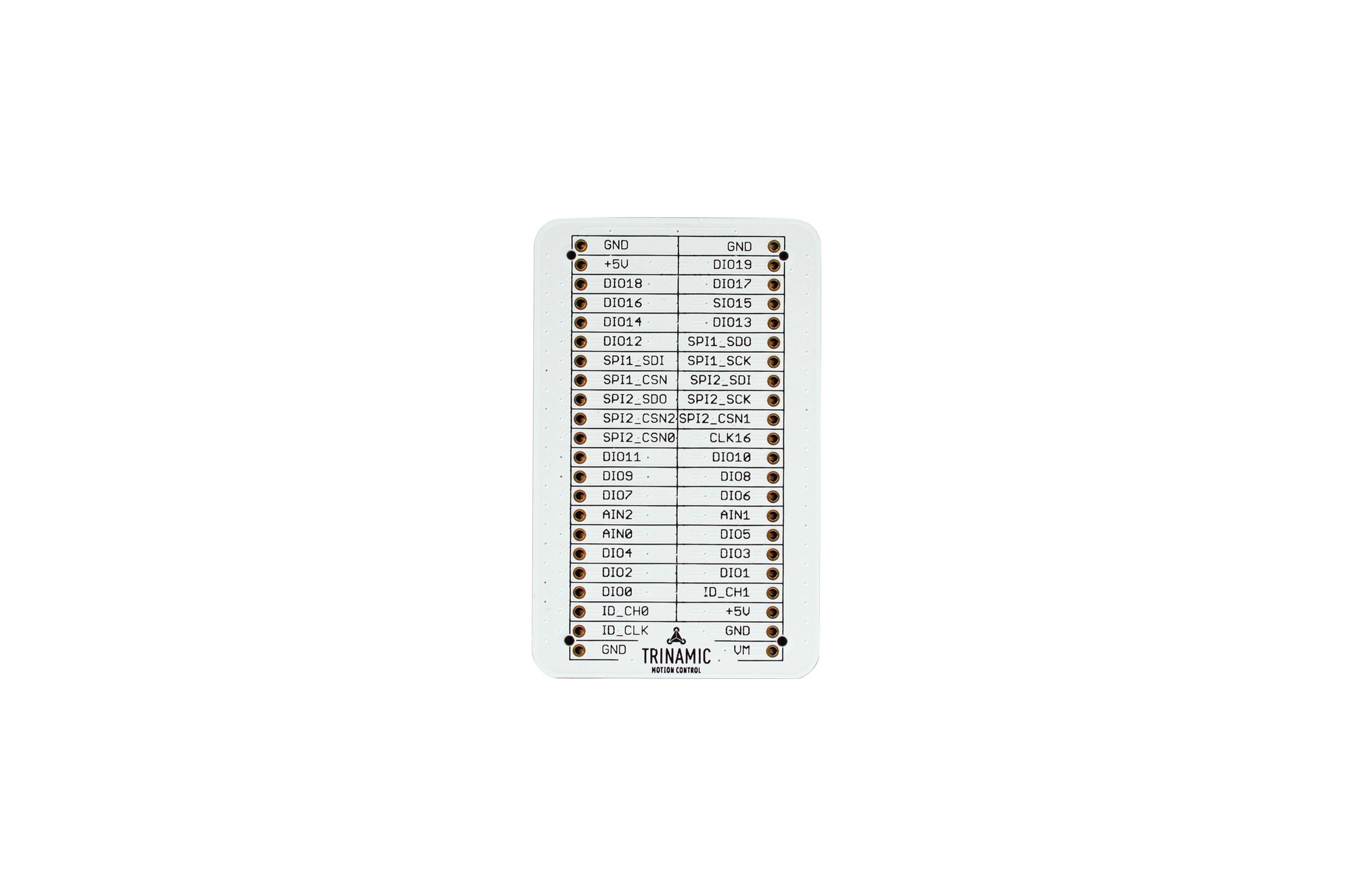

The Eselsbruecke is a connector board for ADI Trinamic’s evaluation board system.

With probes on the "Eselsbruecke" bridge board, all signals between MCU and corresponding evaluation board are accessible. Therefore, it allows quick and simple diagnosis for your application.
