LANDUNGSBRUECKE
Overview
Features and Benefits
- Easy connection between ADI Trinamic chip evaluation board and PC with TMCL-IDE tool chain.
- Landungsbruecke Evaluation Platform
- TMC Tech Access Pack Firmware Project
Product Details
The Landungsbruecke is the connection between your desktop computer and ADI Trinamic’s Chip solutions. Just connect the desired board combination and start to discover ADI Trinamic’s unique features.

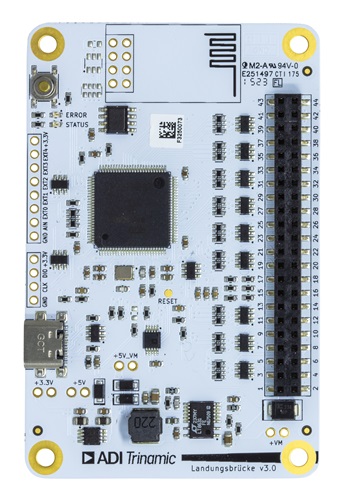

The heart of the ADI Trinamic Evalsystem is the Landungsbruecke featuring a Cortex M4 microcontroller running a unified open-source firmware to connect to all of ADI Trinamic's Evaluation boards. Users can download the latest revisions, modify the firmware or create your own and easily update it via USB. The code and hardware design files of the Landungsbruecke are open source for download.
Please note that all official firmware releases can be downloaded below. However, we also release nightly build versions on our GitHub page, which you can find here:
System Requirements
Documentation & Resources
-
Landungsbruecke Pcb - Outline Drawing (Rev. 20)1/18/2022ZIP4M
-
Landungsbruecke Pcb - Outline Drawing (Rev. 12)2/13/2020ZIP492K
-
Programming Adapter (Rev. 3)6/28/2024ZIP2 M
-
Landungsbruecke Kicad Design Files (Rev. 30)6/28/2024ZIP8 M
-
Landungsbruecke Gerber - Design Files (Rev. 20)2/13/2020ZIP956K
-
Landungsbruecke Ecad Kicad - Design Files (Rev. 20)2/13/2020ZIP1M
-
Landungsbruecke Gerber - Design Files (Rev. 12)11/8/2016ZIP255K
-
Landungsbruecke Eagle - Design Files (Rev. 12)11/8/2016ZIP149K
