LTC6951
Ultralow Jitter Multi-Output Clock Synthesizer with Integrated VCO
Show More
Not the part you were looking for?
6
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
Features
- Low Noise Integer-N PLL with Integrated VCO
- Output Jitter:
- 90fs RMS (12kHz to 20MHz)

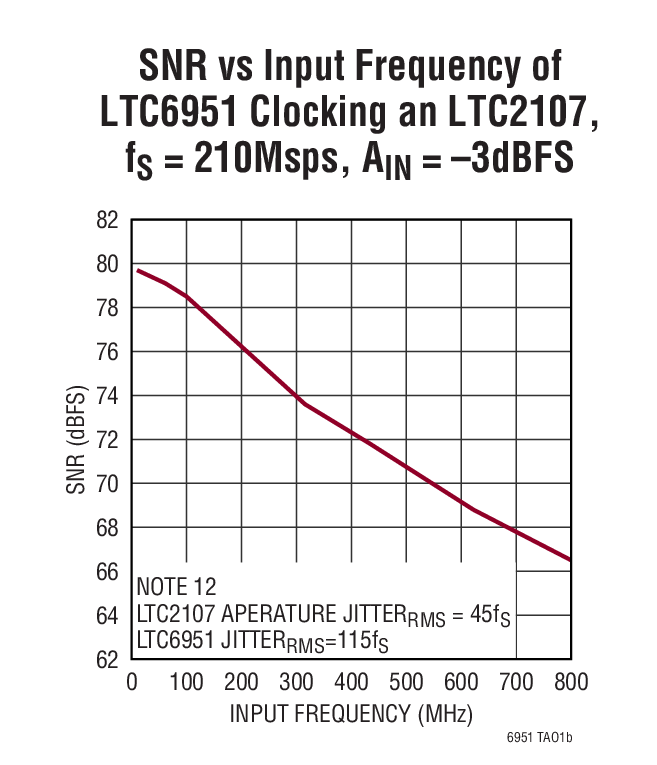

- 115fs RMS (ADC SNR Method)
- Noise Floor = –165dBc/Hz at 250MHz
- EZSync™, ParallelSync™ Multichip Synchronization
- SYSREF Generation for JESD204B/JESD204C, Subclass 1
- Output Frequency Range:
- 1.95MHz to 2.5GHz (LTC6951)
- 2.1MHz to 2.7GHz (LTC6951-1)
- –229dBc/Hz Normalized In-Band Phase Noise Floor
- –277dBc/Hz Normalized In-Band 1/f Noise
- Five Independent, Low Noise Outputs
- Reference Input Frequency up to 425MHz
- LTC6951Wizard™ Software Design Tool Support
- –40°C to 105°C Operating Junction Temperature Range
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}
The LTC6951 is a high performance, low noise, Phase Locked Loop (PLL) with a fully integrated VCO. The low noise VCO uses no external components and is internally calibrated to the correct output frequency with no external system support.
The clock generation section provides five outputs based on the VCO prescaler signal with individual dividers for each output. Four outputs feature very low noise, low skew CML logic. The fifth output is low noise LVDS. All outputs can be synchronized and set to precise phase alignment using the programmable delays.
Choose the LTC6951-1 if any desired output frequency falls in the ranges 2.5GHz to 2.7GHz, 1.66GHz to 1.8GHz, or 1.25GHz to 1.35GHz. Choose the LTC6951 for all other frequencies.
Applications
- High Performance Data Converter Clocking
- Wireless Infrastructure
- Test and Measurement
6
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
LTC6951
Documentation
Filters
1 Applied
-
All
-
User Guide
-
Application Note
-
Data Sheet
-
All
-
English
-
Japanese
Data Sheet
2
User Guide
2
518.00K
1.00M
Application Note
2
Documentation
Product Selector Card 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| LTC6951IUHF#PBF |

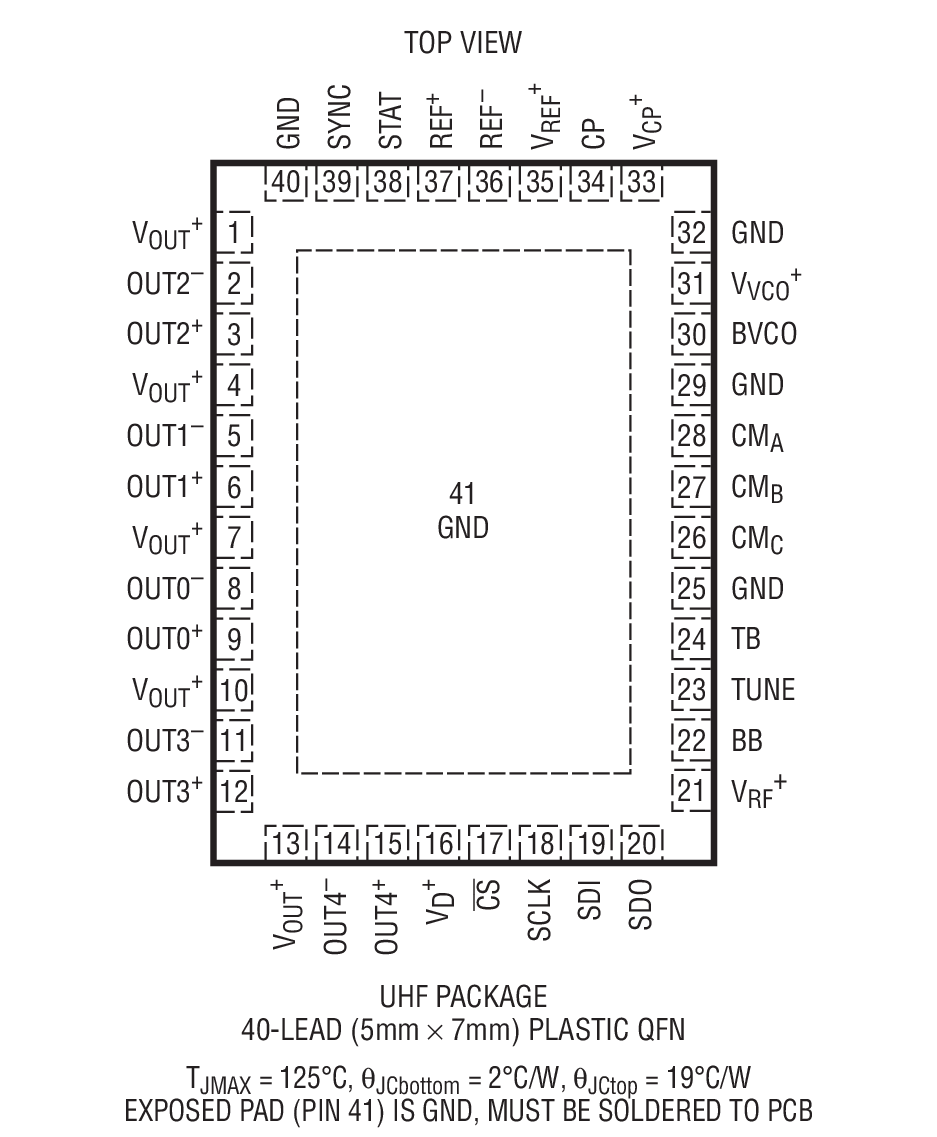

40-Lead QFN (5mm x 7mm x 0.75mm w/ EP)
|
|
|
