LTC6803-1

12 Channel Multicell Battery Monitor, Upgrade to LTC6802-1

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet
Documentation View All Documentation
Linduino LTC6803-1 Linduino.CPP Download 9.00KB Linduino LTC6803-1 - DC1651A.ino Download 13.00KB Linduino LTC6803-1 Linduino Header File Download 4.00KB
Part Models 9
1ku List Price Starting From $11.78
Features
  • Measures Up to 12 Battery Cells in Series
  • Stackable Architecture
  • Supports Multiple Battery Chemistries and Supercapacitors
  • Serial Interface Daisy Chains to Adjacent Devices
  • 0.25% Maximum Total Measurement Error
  • Engineered for ISO26262 Compliant Systems
  • 13ms to Measure All Cells in a System
  • Passive Cell Balancing:
    • Integrated Cell Balancing MOSFETs
    • Ability to Drive External Balancing MOSFETs
  • On-board Temperature Sensor and Thermistor Inputs
  • 1MHz Serial Interface with Packet Error Checking
  • Safe with Random Connection of Cells
  • Built-In Self Tests
  • Delta-Sigma Converter With Built-In Noise Filter
  • Open-Wire Connection Fault Detection
  • 12μA Standby Mode Supply Current
  • High EMI Immunity
  • 44-Lead SSOP Package
Additional Details
show more Icon

The LTC6803 is a 2nd generation, complete battery monitoring IC that includes a 12-bit ADC, a precision voltage reference, a high voltage input multiplexer and a serial interface. Each LTC6803 can measure up to 12 series-connected battery cells or supercapacitors. Using a unique level shifting serial interface, multiple LTC6803-1/LTC6803-3 devices can be connected in series, without opto-couplers or isolators, allowing for monitoring of every cell in a long string of series-connected batteries. Each cell input has an associated MOSFET switch for discharging overcharged cells. The LTC6803-1 connects the bottom of the stack to V– internally. It is pin compatible with the LTC6802-1, providing a drop-in upgrade. The LTC6803-3 separates the bottom of the stack from V–, improving cell 1 measurement accuracy.

The LTC6803 provides a standby mode to reduce supply current to 12μA. Furthermore, the LTC6803 can be powered from an isolated supply, providing a technique to reduce battery stack current draw to zero.

For applications requiring individually addressable serial communications, see the LTC6803-2/LTC6803-4.


 SPI Interface Isolated V– LTC6802 Pin Compatible
LTC6803-1 Daisy Chain No Yes
LTC6803-2 Addressable No Yes
LTC6803-3 Daisy Chain Yes No
LTC6803-4 Addressable Yes No

Applications

  • Electric and Hybrid Electric Vehicles
  • High Power Portable Equipment
  • Backup Battery Systems
  • Electric Bicycles, Motorcycles, Scooters


Show More Arrow image
file View Data Sheet
Documentation View All Documentation
Linduino LTC6803-1 Linduino.CPP Download 9.00KB Linduino LTC6803-1 - DC1651A.ino Download 13.00KB Linduino LTC6803-1 Linduino Header File Download 4.00KB
Part Models 9
1ku List Price Starting From $11.78
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LTC6803-1

Documentation

9
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • User Guide
  • Data Sheet
  • Reliability Data
  • Technical Articles
  • All
    TickIcon
  • English
  • Japanese
  • Chinese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 08/03/2012
English

LTC6803-1/LTC6803-3: Multicell Battery Stack Monitor Data Sheet

Open PDF File

redirect
421.00K
download

Download PDF

PDF Vector

PDF

UPDATED 09/28/2012
Japanese

LTC6803-1/LTC6803-3: マルチセル・バッテリ・スタック・モニタ データシート

Open PDF File

redirect
829.00K
download

Download PDF

User Guide

2

PDF Vector

PDF

UPDATED 04/01/2011
English
DC1653A - Demo Manual redirect icon

1.00M

download

Download PDF

PDF Vector

PDF

UPDATED 11/24/2010
English
DC1651A - Demo Manual redirect icon

1.00M

download

Download PDF

Reliability Data

1

PDF Vector

PDF

UPDATED 03/26/2018
English
R525 Reliability Data redirect icon

87.3 K

download

Download PDF

Technical Articles

4

PDF Vector

HTML

UPDATED 07/01/2011
English
Simple Circuit Monitors Health of –48V Telecom Lead-Acid Battery Backup Systems redirect icon

PDF Vector

HTML

UPDATED 08/18/2016
English
Passive Battery Cell Balancing redirect icon

PDF Vector

HTML

UPDATED 08/18/2016
Chinese
被动均衡可让所有电芯容量近乎具有相同容量 redirect icon

PDF Vector

HTML

UPDATED 08/18/2016
Japanese
パッシブ・セル・バランシングにより、全バッテリ・セルの電圧を均一化 redirect icon

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

Product Selection Guide 1

Road Proven Battery Stack Monitor

Product Selector Card 1

Power and Thermal Monitoring

Video

1

Thumbnail Image

Video

2017-09-18

Multicell Battery Stack Monitor IC for High Voltage Applications

Learn More
Show More Arrow image

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC6803HG-1#3ZXTRPBF 44-Lead SSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC6803HG-1#3ZZPBF 44-Lead SSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC6803HG-1#3ZZTRPBF 44-Lead SSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC6803HG-1#PBF 44-Lead SSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC6803HG-1#TRPBF 44-Lead SSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC6803IG-1#3ZZPBF 44-Lead SSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC6803IG-1#3ZZTRPBF 44-Lead SSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC6803IG-1#PBF 44-Lead SSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC6803IG-1#TRPBF 44-Lead SSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Oct 11, 2022

- 22_0242

Epoxy Change from Henkel 8290 to 8290A for SSOP PKG

LTC6803HG-1#3ZXTRPBF

PRODUCTION

LTC6803HG-1#3ZZPBF

PRODUCTION

LTC6803HG-1#3ZZTRPBF

PRODUCTION

LTC6803HG-1#PBF

PRODUCTION

LTC6803HG-1#TRPBF

PRODUCTION

LTC6803IG-1#3ZZPBF

PRODUCTION

LTC6803IG-1#3ZZTRPBF

PRODUCTION

LTC6803IG-1#PBF

PRODUCTION

LTC6803IG-1#TRPBF

PRODUCTION

pdf

PCN22_0242_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

xlsm

Delta Qualification Matrix

Download

Nov 18, 2019

- 19_0266

Laser Top Mark for SSOP36/44/48 Packages assembled in ADPG and UTAC

LTC6803HG-1#3ZXTRPBF

PRODUCTION

LTC6803HG-1#3ZZPBF

PRODUCTION

LTC6803HG-1#3ZZTRPBF

PRODUCTION

LTC6803HG-1#PBF

PRODUCTION

LTC6803HG-1#TRPBF

PRODUCTION

LTC6803IG-1#3ZZPBF

PRODUCTION

LTC6803IG-1#3ZZTRPBF

PRODUCTION

LTC6803IG-1#PBF

PRODUCTION

LTC6803IG-1#TRPBF

PRODUCTION

pdf

PCN19_0266_Form

external-icon

xls

Material_Report

Download

Detailed Parts List

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Oct 11, 2022

- 22_0242

arrow down

Epoxy Change from Henkel 8290 to 8290A for SSOP PKG

LTC6803HG-1#3ZXTRPBF

PRODUCTION

LTC6803HG-1#3ZZPBF

PRODUCTION

LTC6803HG-1#3ZZTRPBF

PRODUCTION

LTC6803HG-1#PBF

PRODUCTION

LTC6803HG-1#TRPBF

PRODUCTION

LTC6803IG-1#3ZZPBF

PRODUCTION

LTC6803IG-1#3ZZTRPBF

PRODUCTION

LTC6803IG-1#PBF

PRODUCTION

LTC6803IG-1#TRPBF

PRODUCTION

pdf

PCN22_0242_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

xlsm

Delta Qualification Matrix

Download
Nov 18, 2019

- 19_0266

arrow down

Laser Top Mark for SSOP36/44/48 Packages assembled in ADPG and UTAC

LTC6803HG-1#3ZXTRPBF

PRODUCTION

LTC6803HG-1#3ZZPBF

PRODUCTION

LTC6803HG-1#3ZZTRPBF

PRODUCTION

LTC6803HG-1#PBF

PRODUCTION

LTC6803HG-1#TRPBF

PRODUCTION

LTC6803IG-1#3ZZPBF

PRODUCTION

LTC6803IG-1#3ZZTRPBF

PRODUCTION

LTC6803IG-1#PBF

PRODUCTION

LTC6803IG-1#TRPBF

PRODUCTION

pdf

PCN19_0266_Form

external-icon

xls

Material_Report

Download
Detailed Parts List

Software & Part Ecosystem

Parts Product Life Cycle Description

Battery Cell Balancers3
LTC3300-1
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

High Efficiency Bidirectional Multicell Battery Balancer

LT8584
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

2.5A Monolithic Active Cell Balancer with Telemetry Interface

LTC3300-2
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

Addressable High Efficiency Bidirectional Multicell Battery Balancer

Parts Product Life Cycle Description
LTC6804-1
popup image
Cart

PRODUCTION

12 Channel Multicell Battery Monitor with Daisy Chain Interface, Generation 3

Evaluation Kits 2

reference details image

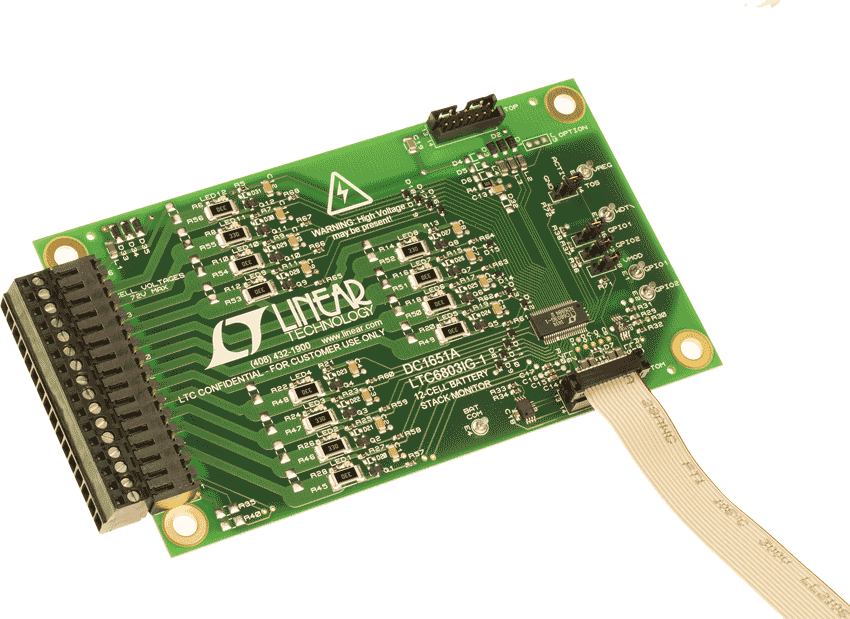

DC1651A

LTC6803-1 (Requires DC590B) | Demo Board

reference details image

DC1653A

LTC6803-3 (Requires DC590B) | Demo Board

Evaluation Kits2

evaluation kit item images

DC1651A

LTC6803-1 (Requires DC590B) | Demo Board
evaluation kit item images

DC1653A

LTC6803-3 (Requires DC590B) | Demo Board

Tools & Simulations 1

Linduino

Linduino is Analog Devices’ Arduino compatible system for developing and distributing firmware libraries and example code for our integrated circuits. Each Linduino-supported product includes an example main program, defined in the LTSketchbook/Part Number folder and driver code, defined in the LTSketchbook/libraries folder.

Linduino code repository on GitHub and instructions on how to use the code.

Purchase Linduino

windows iconapple iconcomputer icon
Linduino download and documentation
redirectbutton
Code Files

toolicon Linduino

LTC6803-1 Linduino.CPP redirect

LTC6803-1 - DC1651A.ino redirect

LTC6803-1 Linduino Header File redirect
