LTC3300-1

High Efficiency Bidirectional Multicell Battery Balancer

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Part Models 8
1ku List Price Starting From $7.07
Features
  • Bidirectional Synchronous Flyback Balancing of Up to 6 Li-Ion or LiFePO4 Cells in Series
  • Up to 10A Balancing Current (Set by Externals)
  • Integrates Seamlessly with the LTC680x Family of Multicell Battery Stack Monitors
  • Bidirectional Architecture Minimizes Balancing Time and Power Dissipation
  • Up to 92% Charge Transfer Efficiency
  • Stackable Architecture Enables >1000V Systems
  • Uses Simple 2-Winding Transformers
  • 1MHz Daisy-Chainable Serial Interface with 4-Bit CRC Packet Error Checking
  • High Noise Margin Serial Communication
  • Numerous Fault Protection Features

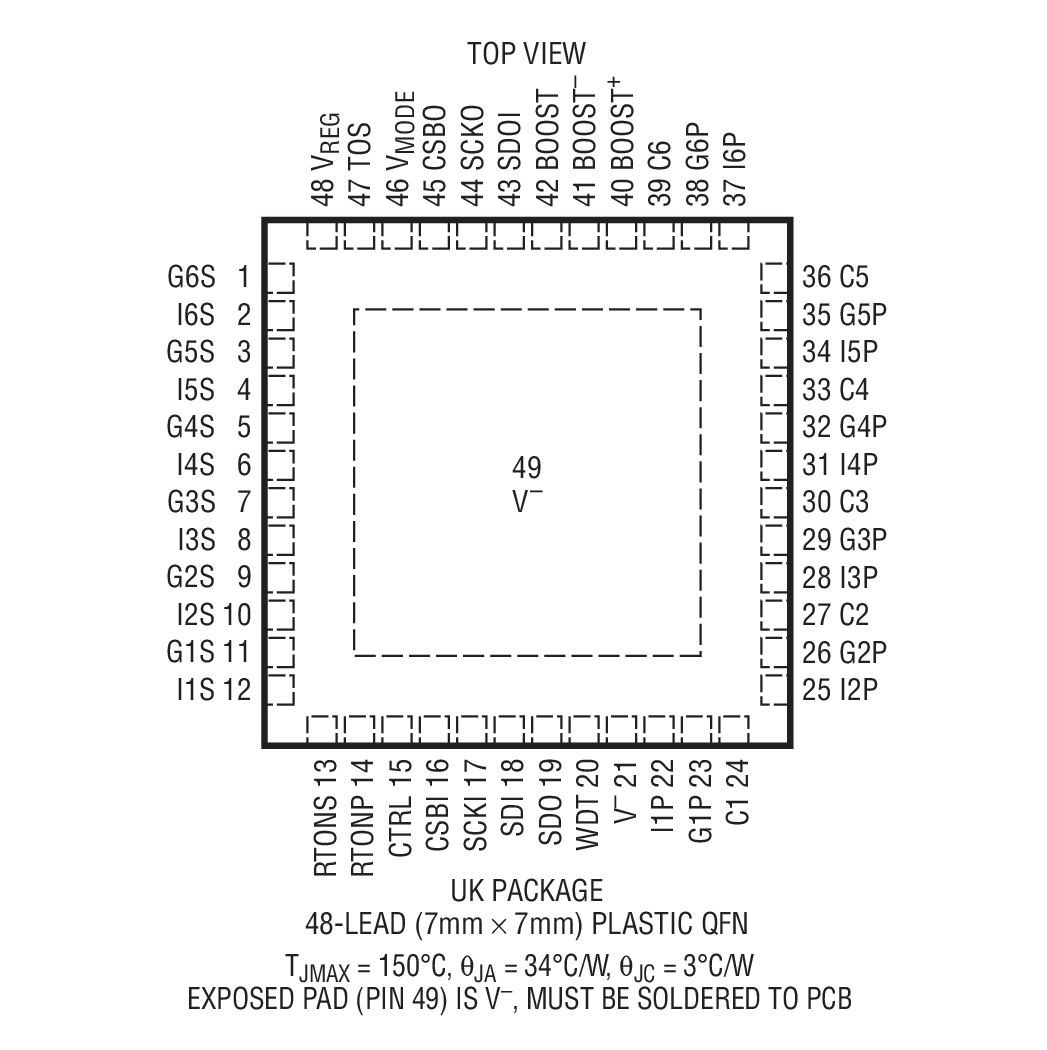

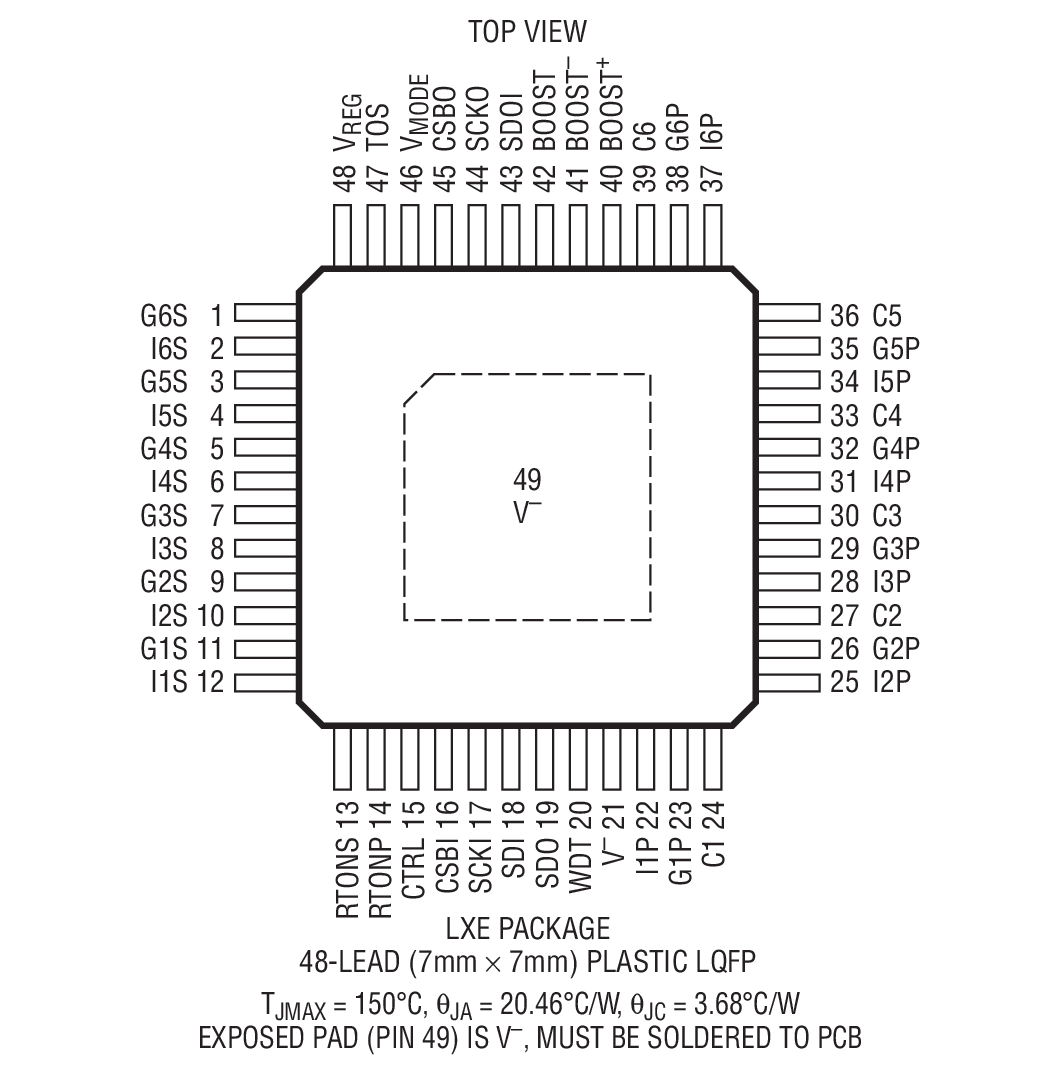

  • 48-Lead Exposed Pad QFN and LQFP Packages
  • AEC-Q100 Qualified for Automotive Applications
Additional Details
show more Icon

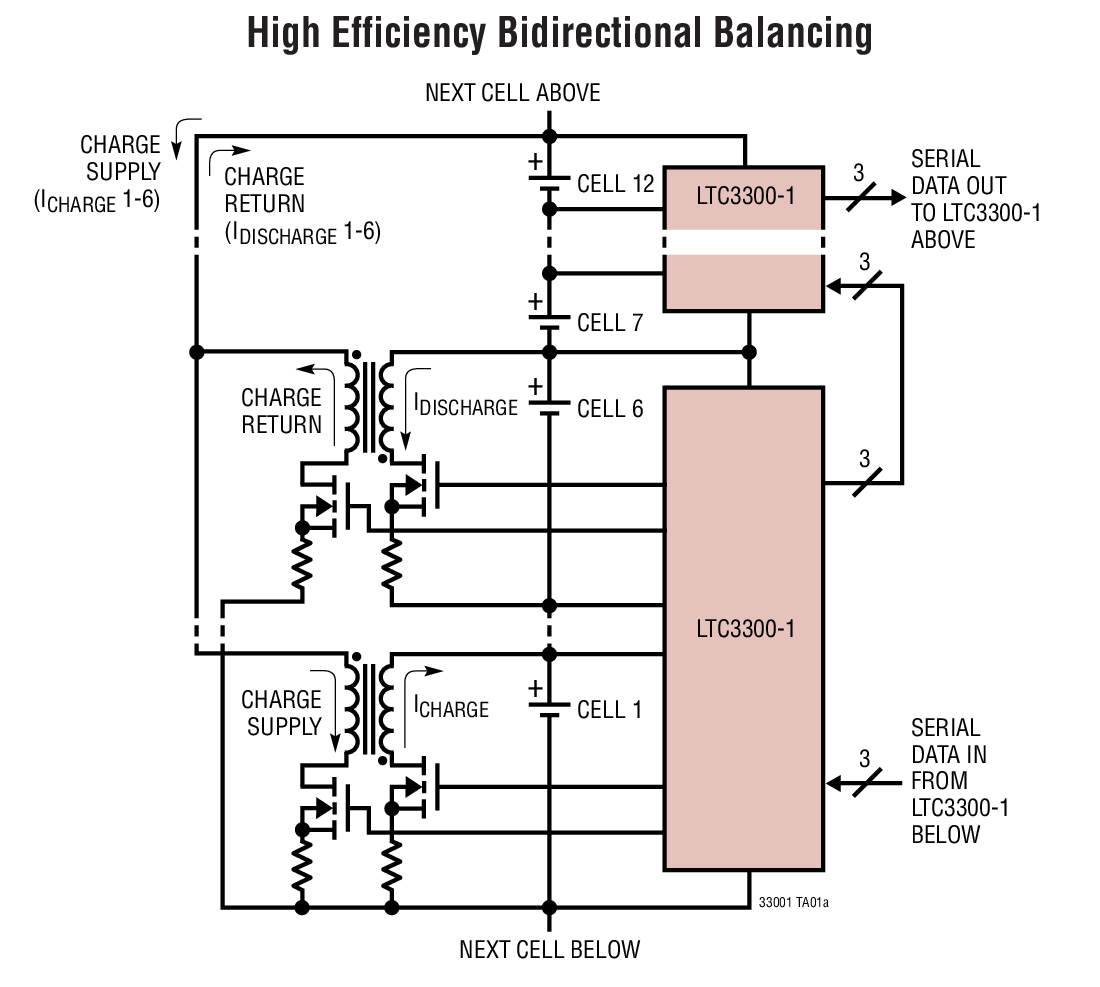

The LTC3300-1 is a fault-protected controller IC for transformer-based bidirectional active balancing of multicell battery stacks. All associated gate drive circuitry, precision current sensing, fault detection circuitry and a robust serial interface with built-in watchdog timer are integrated.

Each LTC3300-1 can balance up to 6 series-connected battery cells with an input common mode voltage up to 36V. Charge from any selected cell can be transferred at high efficiency to or from 12 or more adjacent cells. A unique level-shifting SPI-compatible serial interface enables multiple LTC3300-1 devices to be connected in series, without opto-couplers or isolators, allowing for balancing of every cell in a long string of series-connected batteries.

When multiple LTC3300-1 devices are connected in series they can operate simultaneously, permitting all cells in the stack to be balanced concurrently and independently. Fault protection features include readback capability, cyclic redundancy check (CRC) error detection, maximum on-time volt-second clamps, and overvoltage shutoffs.

Features
LTC3300-1 SPI-compatible serial interface in which each chip in the stack communicates bidirectionally to the chips of the same type above and below it via currents. There is no limit to the stack height. Large common mode voltage differences are handled by each LTC3300-1. The microprocessor in the BMS system communicates ONLY with the bottom chip in the stack and subsequently all of the chips use the same fixed internal address.
LTC3300-2 SPI-compatible serial interface in which each chip has a unique 5-bit pin-strapped address. The microprocessor in the BMS system communicates directly with every chip in the stack with common mode voltage differences handled by digital isolators or opto-couplers. Because of the 5-bit address, the stack height is limited to 32 LTC3300-2 ICs or 192 cells (~800V). There are 5 pins which have a different assignment, all of them serial interface related.

Applications

  • Electric Vehicles/Plug-in HEVs
  • High Power UPS/Grid Energy Storage Systems
  • General Purpose Multicell Battery Stacks
Part Models 8
1ku List Price Starting From $7.07

close icon
Documentation

Documentation

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC3300HLXE-1#PBF
  • HTML
  • HTML
LTC3300HLXE-1#WPBF
  • HTML
  • HTML
LTC3300HUK-1#PBF
  • HTML
  • HTML
LTC3300HUK-1#TRPBF
  • HTML
  • HTML
LTC3300ILXE-1#PBF
  • HTML
  • HTML
LTC3300ILXE-1#WPBF
  • HTML
  • HTML
LTC3300IUK-1#PBF
  • HTML
  • HTML
LTC3300IUK-1#TRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 6, 2021

- 21_0046

Transfer of LQFP and LQFP_EP from AEM to AET

LTC3300HLXE-1#PBF

PRODUCTION

LTC3300ILXE-1#PBF

PRODUCTION

Apr 5, 2022

- 21_0046

Transfer of LQFP and LQFP_EP from AEM to AET

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 6, 2021

- 21_0046

arrow down

Transfer of LQFP and LQFP_EP from AEM to AET

LTC3300HLXE-1#PBF

PRODUCTION

LTC3300ILXE-1#PBF

PRODUCTION

Apr 5, 2022

- 21_0046

arrow down

Transfer of LQFP and LQFP_EP from AEM to AET

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 5

reference details image

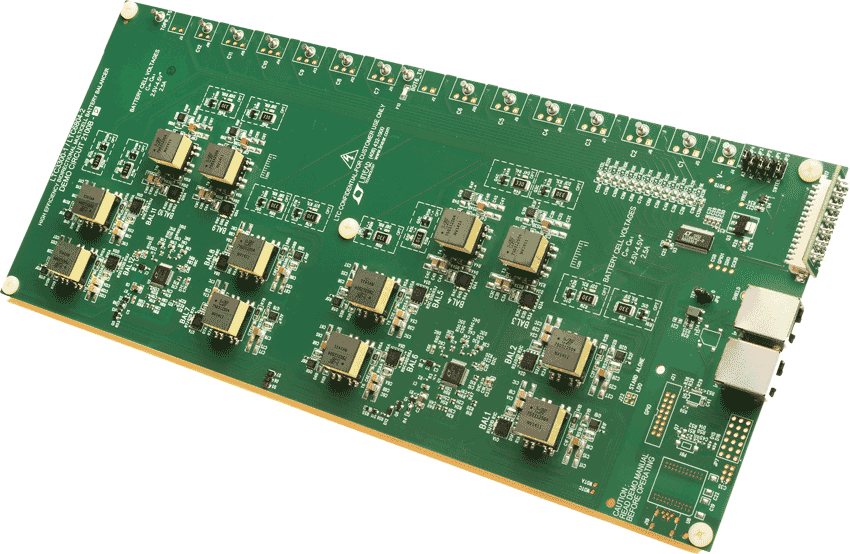

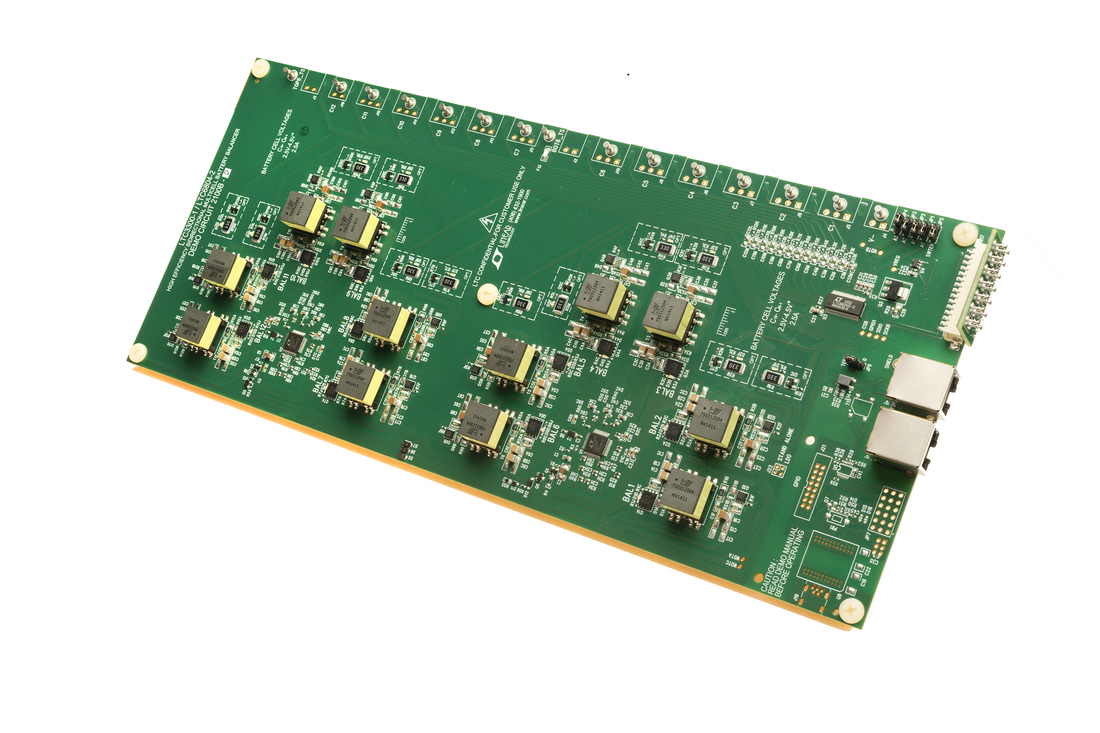

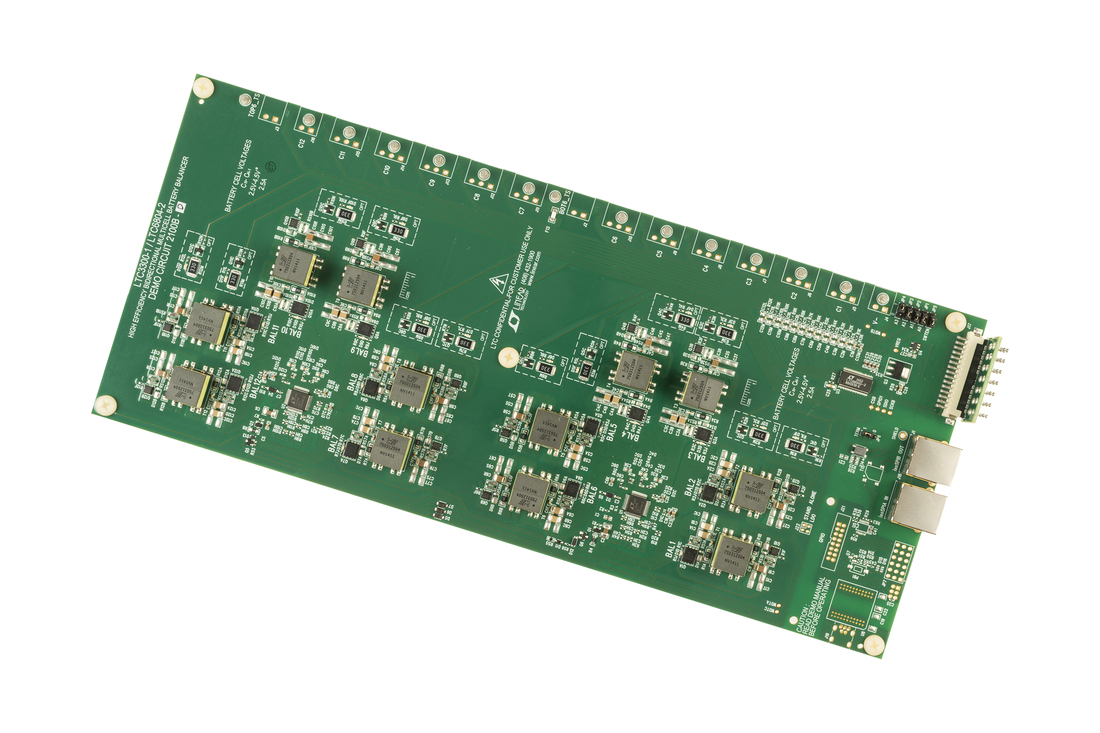

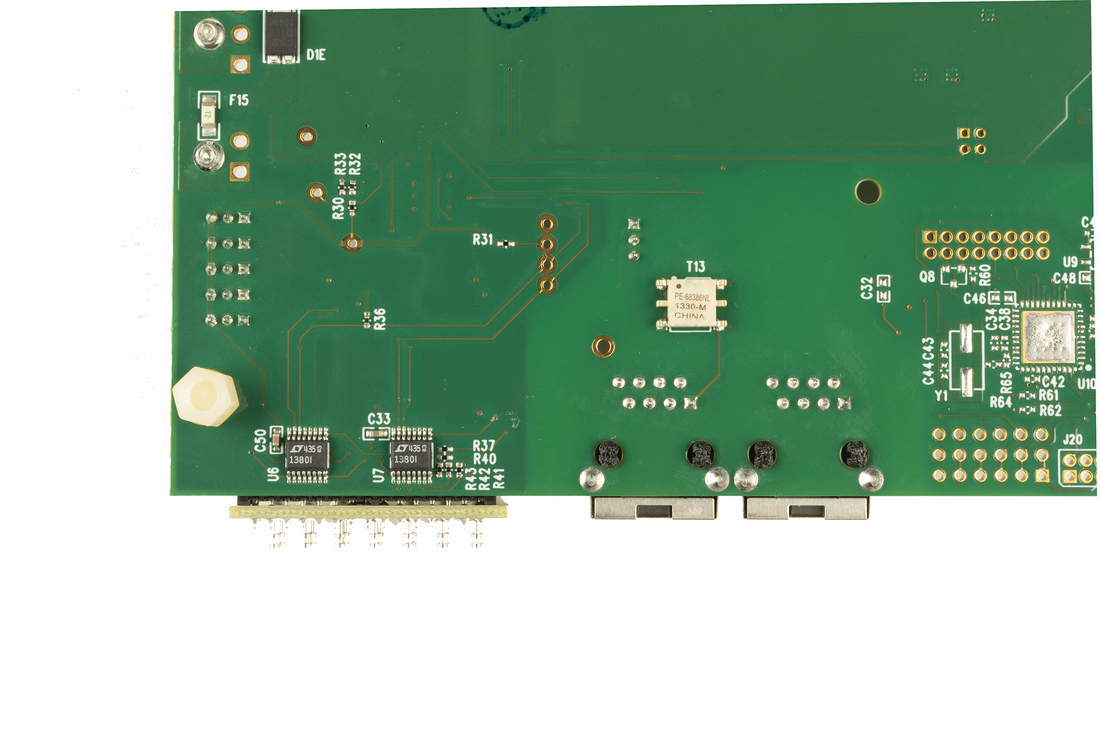

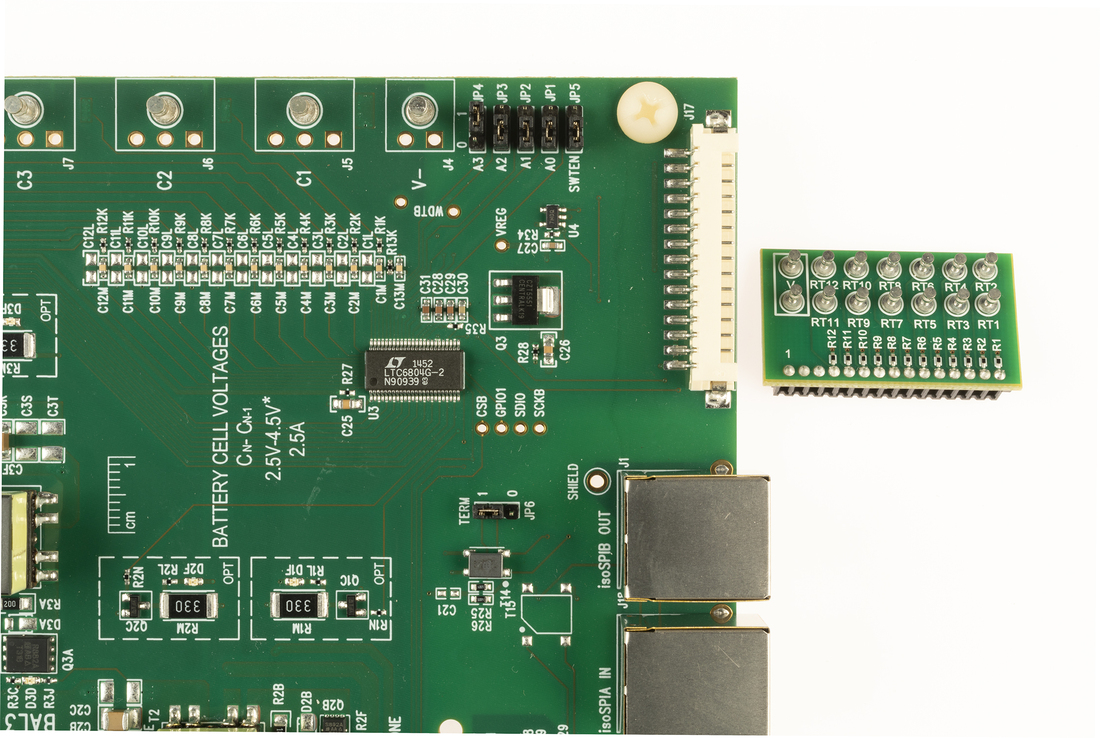

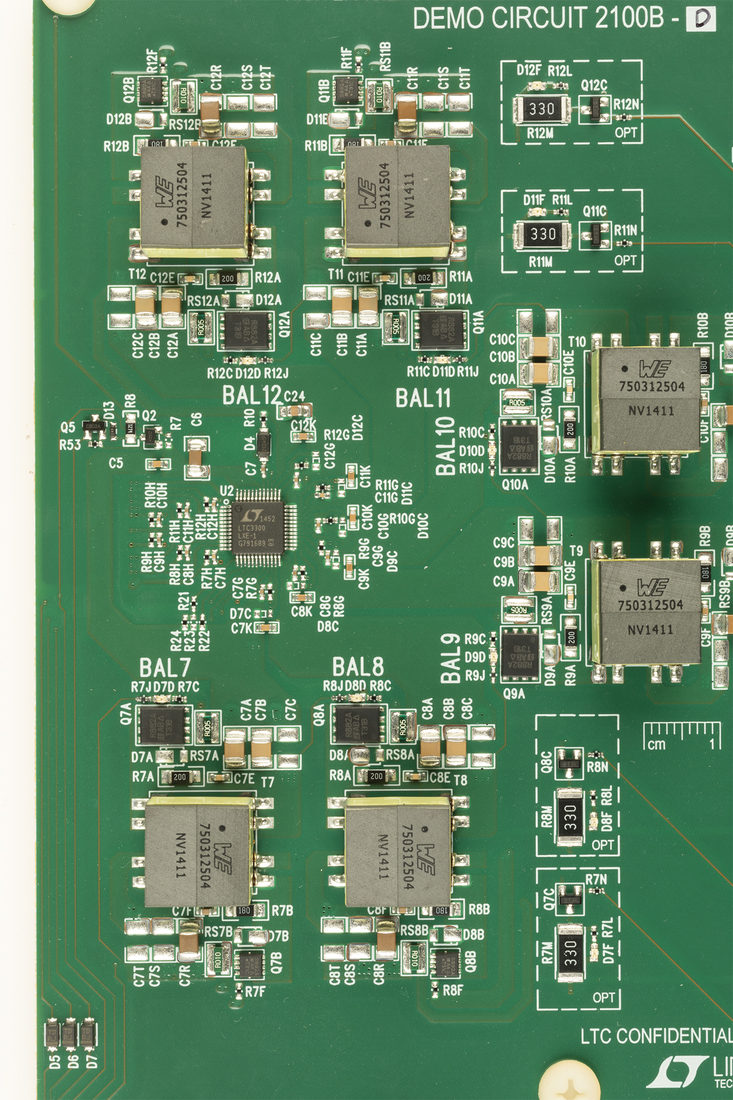

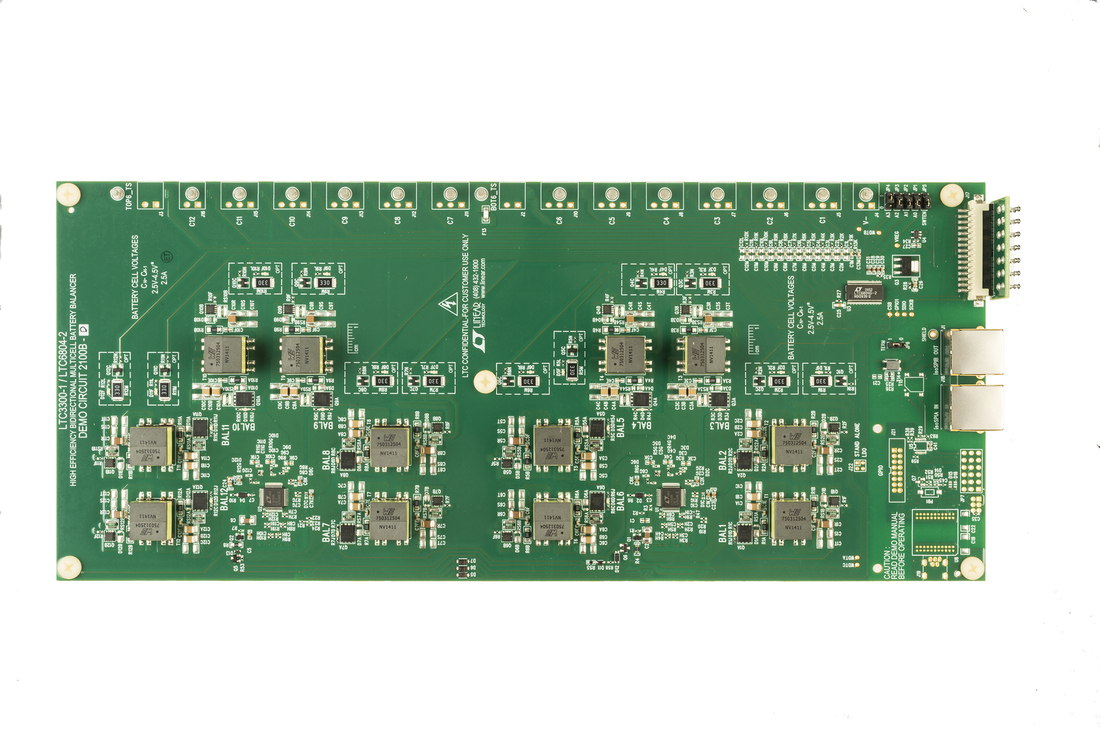

DC2100B-D

12 Cell 4A Stackable Slave Bidirectional Active Cell Balancer Featuring LTC6804-2 and LTC3300-1(x2)

zoom

DC2100B-D

12 Cell 4A Stackable Slave Bidirectional Active Cell Balancer Featuring LTC6804-2 and LTC3300-1(x2)

12 Cell 4A Stackable Slave Bidirectional Active Cell Balancer Featuring LTC6804-2 and LTC3300-1(x2)

Product Detail

Demonstration Circuit DC2100B-D is a stackable, bidirectional cell balancer slave board using the LTC6804-2 and the LTC3300-1 ICs to achieve active balancing of up to 12 Li-Ion cells. It requires the DC2100B-C for proper operation. The DC2100B-D uses a single LTC6804-2 Multi-Cell Addressable Battery Stack Monitor IC to measure cell voltages and two LTC3300-1 Synchronous Flyback ICs to provide active cell balancing. The DC2100B-C controller board contains a PIC18F47J53 microcontroller, the LTM2884 isolated USB transceiver, the LTC6804-2, two LTC3300-1 ICs, and the LTC6820 isoSPI Interface IC to facilitate isolated communication. Up to seven DC2100B-D boards can be connected to a DC2100B-C to build a stacked system of eight total boards.

reference details image

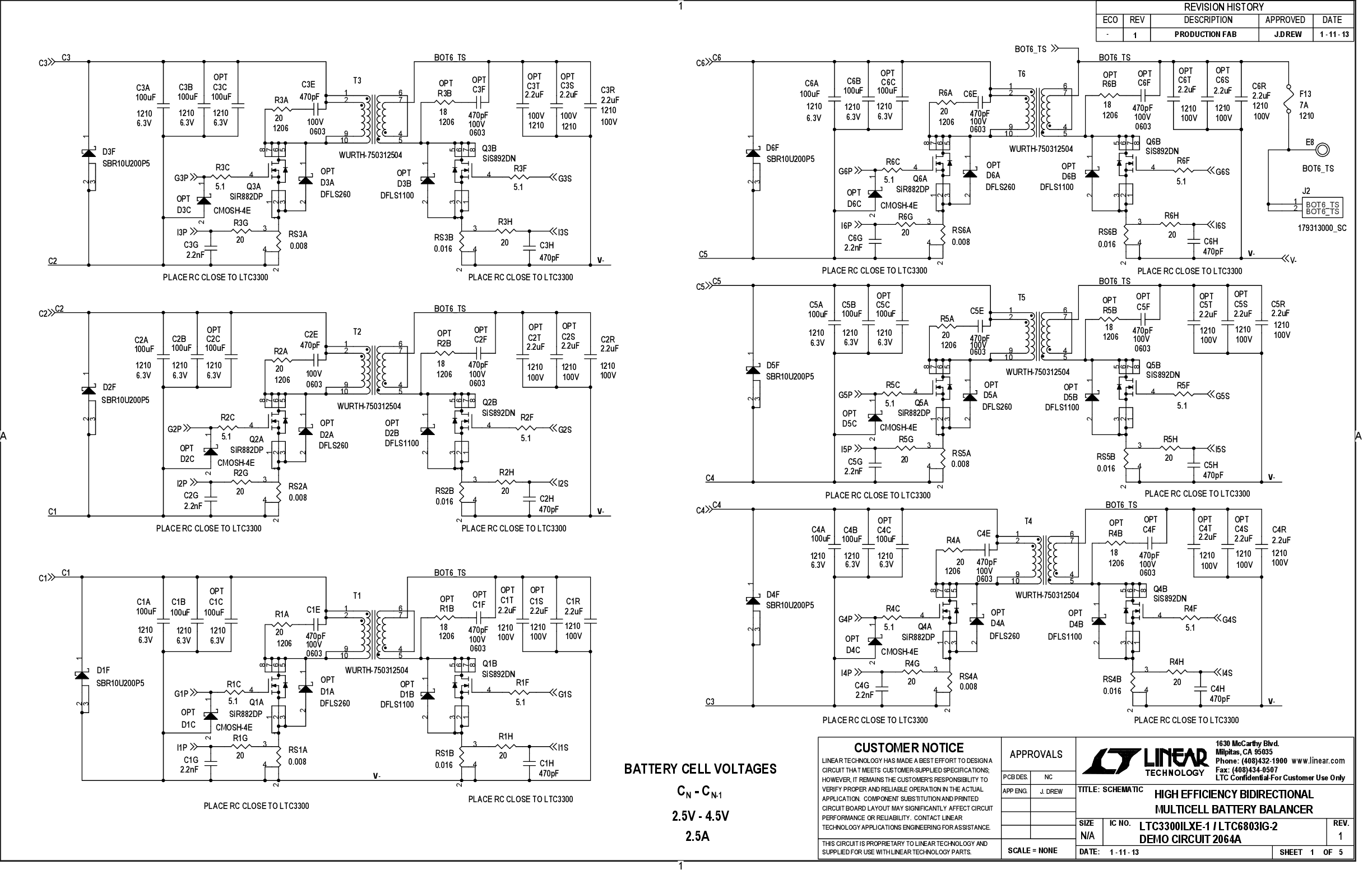

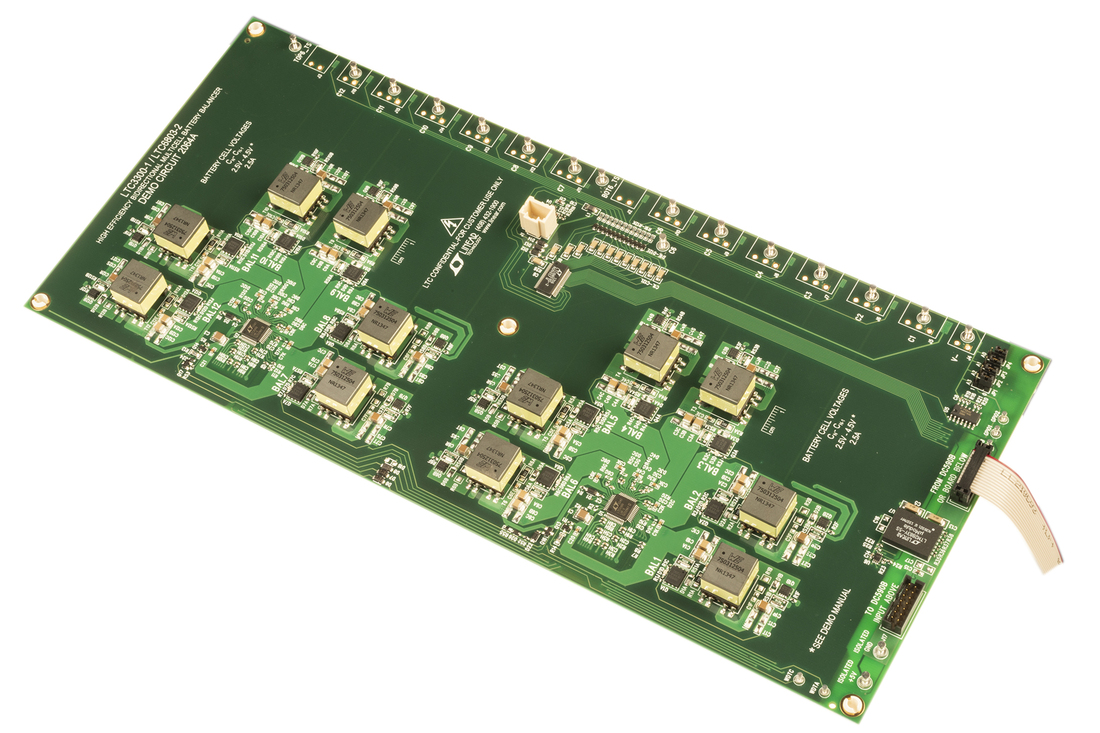

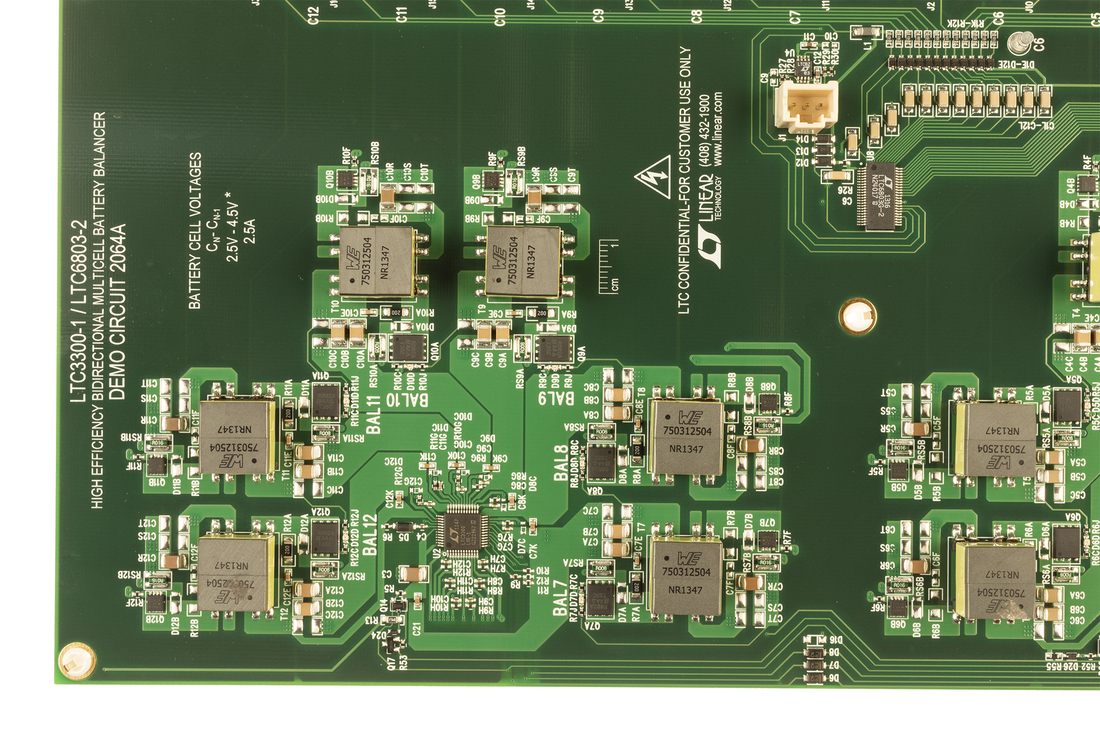

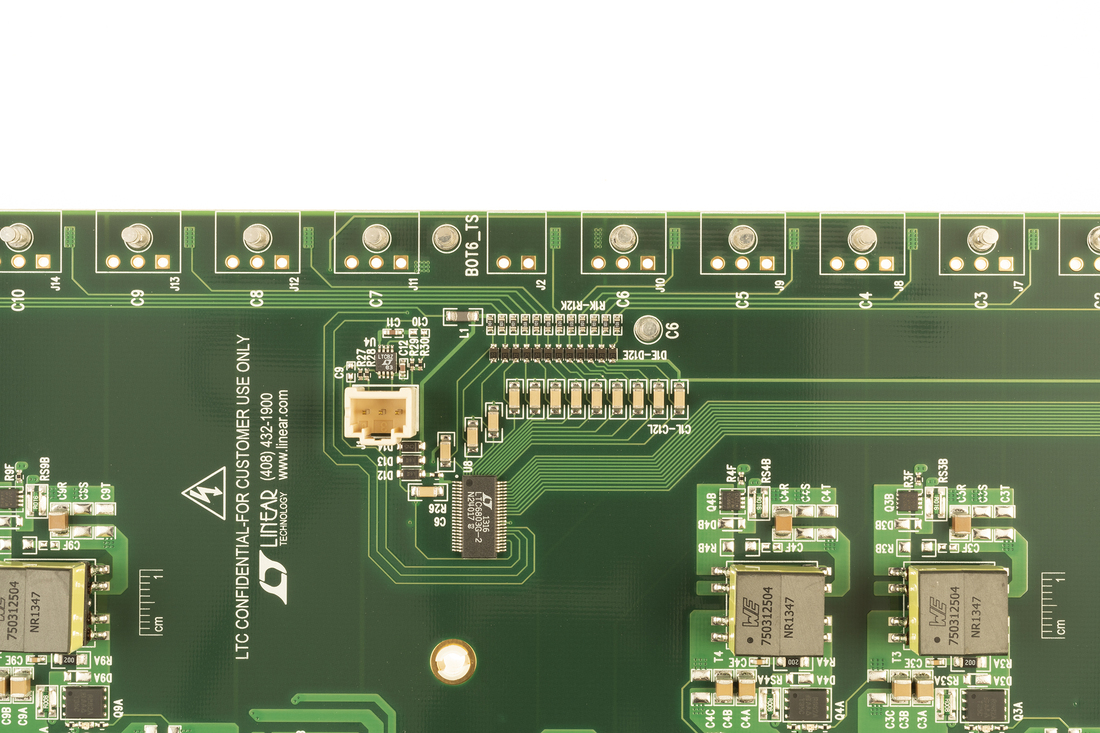

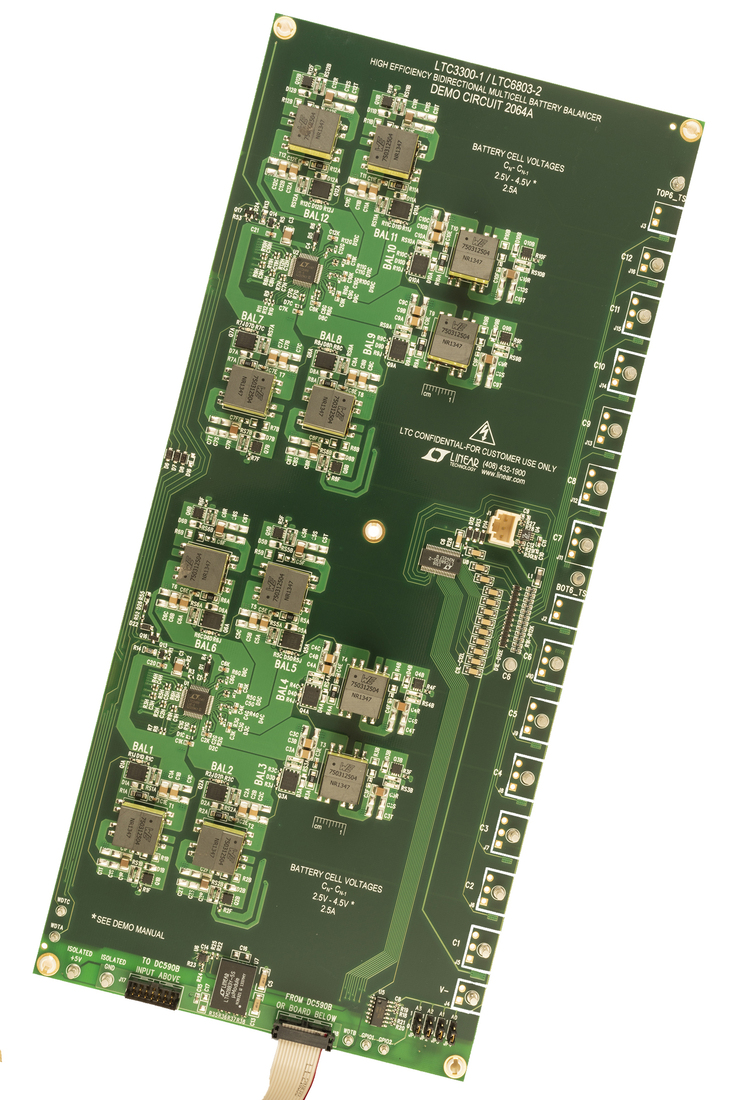

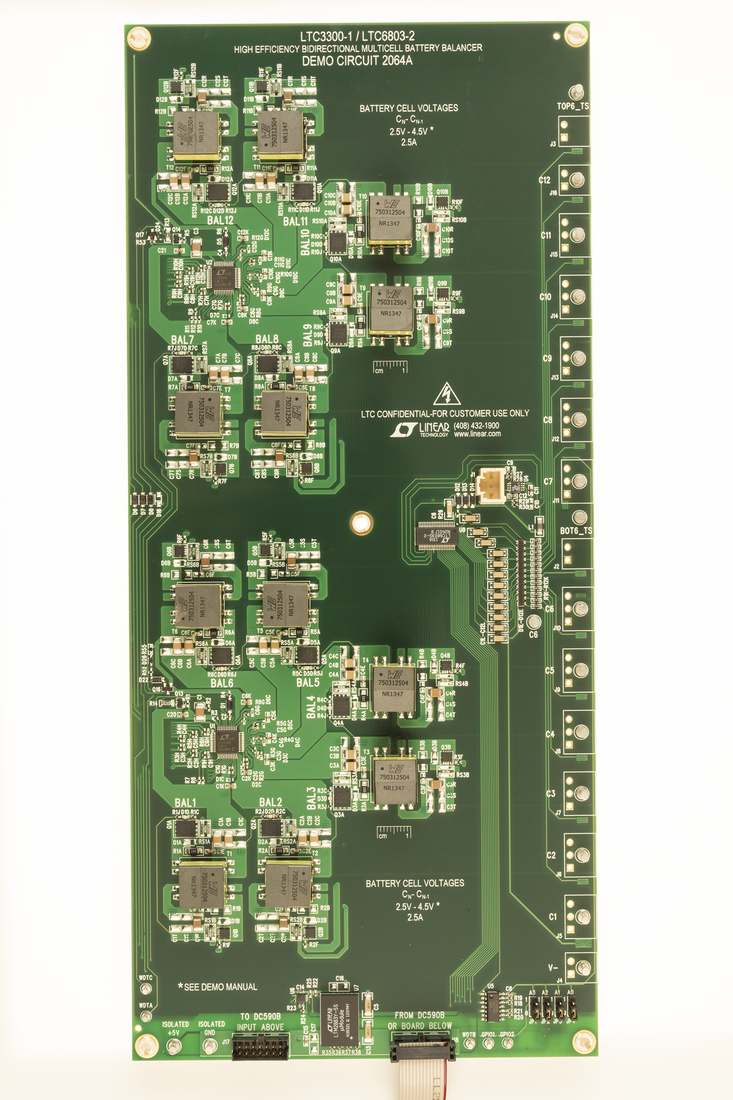

DC2064A

OBSOLETE: LTC3300ILXE-1 | LTC6803IG-2 High Frequency Bidirectional Multicell Battery Balancer- Companion Board DC590B

zoom

DC2064A

OBSOLETE: LTC3300ILXE-1 | LTC6803IG-2 High Frequency Bidirectional Multicell Battery Balancer- Companion Board DC590B

OBSOLETE: LTC3300ILXE-1 | LTC6803IG-2 High Frequency Bidirectional Multicell Battery Balancer- Companion Board DC590B

Product Detail

This evaluation board is obsolete and no longer recommended. The replacement board is the DC2100B-C.

DC2064A Demo Board for:
LTC3300-1 High Efficiency Bidirectional Multicell Battery Balancer
LTC6803-2 and -4 Multicell Battery Stack Monitor

reference details image

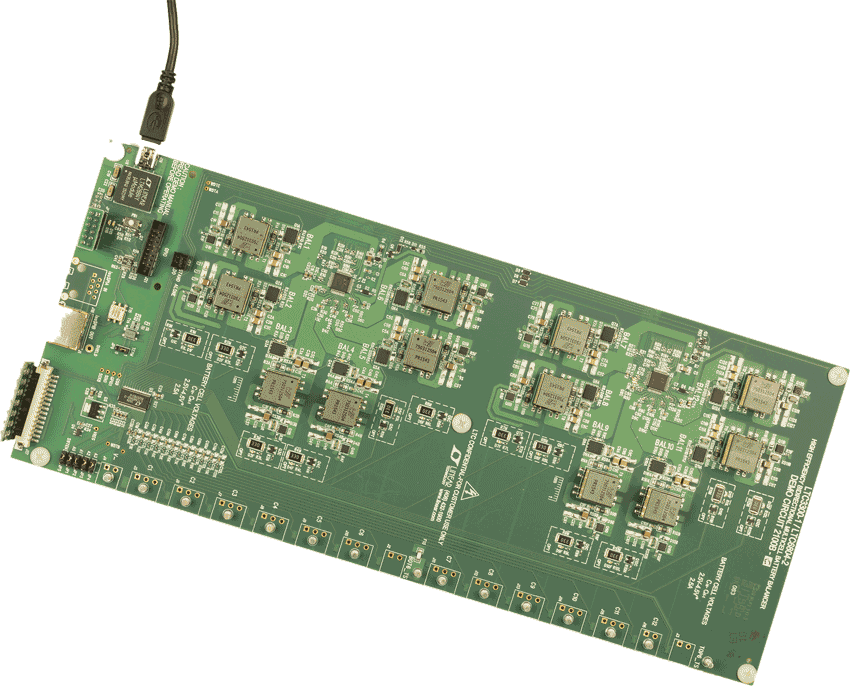

DC2100B-C

12 Cell 4A Controller Board Bi-Directional Active Cell Balancer with LTC3300-1, LTC6804-2 and LTC6820

zoom

DC2100B-C

12 Cell 4A Controller Board Bi-Directional Active Cell Balancer with LTC3300-1, LTC6804-2 and LTC6820

12 Cell 4A Controller Board Bi-Directional Active Cell Balancer with LTC3300-1, LTC6804-2 and LTC6820

Product Detail

Demonstration Circuit DC2100B-D is a stackable, bidirectional cell balancer slave board using the LTC6804-2 and the LTC3300-1 ICs to achieve active balancing of up to 12 Li-Ion cells. It requires the DC2100B-C for proper operation. The DC2100B-D uses a single LTC6804-2 Multi-Cell Addressable Battery Stack Monitor IC to measure cell voltages and two LTC3300-1 Synchronous Flyback ICs to provide active cell balancing. The DC2100B-C controller board contains a PIC18F47J53 microcontroller, the LTM2884 isolated USB transceiver, the LTC6804-2, two LTC3300-1 ICs, and the LTC6820 isoSPI Interface IC to facilitate isolated communication. Up to seven DC2100B-D boards can be connected to a DC2100B-C to build a stacked system of eight total boards.

reference details image

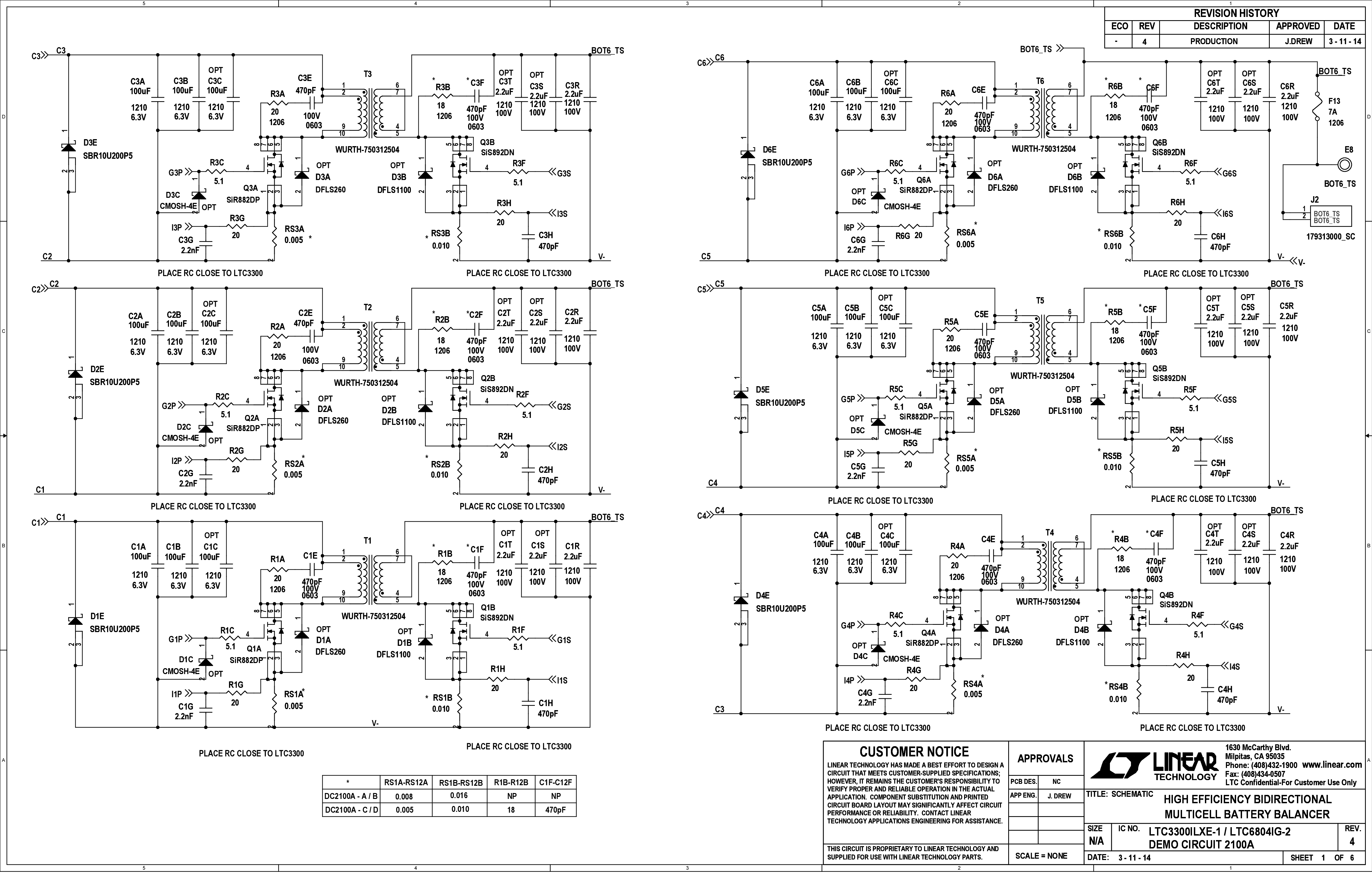

DC2100A-C

OBSOLETE: 12 Cell 4A Controller Board Featuring LTC6804-2 and LTC3300-1 (x2) for Bidirectional Active Cell Balancing

zoom

DC2100A-C

OBSOLETE: 12 Cell 4A Controller Board Featuring LTC6804-2 and LTC3300-1 (x2) for Bidirectional Active Cell Balancing

OBSOLETE: 12 Cell 4A Controller Board Featuring LTC6804-2 and LTC3300-1 (x2) for Bidirectional Active Cell Balancing

Product Detail

This evaluation board is obsolete and no longer recommended. The replacement board is the DC2100B-C.

Demonstration Circuit DC2100A-C is a stand-alone Active Cell Balancer for balancing up to 12 Li-Ion cells; it also is the master controller board when used with DC2100B-D slave boards for a stackable battery balancing solution. It consists of the LTC6804-2 Multicell Addressable Battery Stack Monitor and two LTC3300-1 Active Cell Balancers. It contains a PIC18F47J53 microcontroller, the LTM2884 Isolated USB Transceiver, and an LTC6820 isoSPI Interface IC to facilitate isolated communication with the LTC6804-2 and the LTC3300-1 ICs. Up to 7 DC2100B-D boards can be connected to the DC2100A-C to build a stacked system of 8 total boards.

reference details image

DC2100A-D

OBSOLETE: 12 Cell 4A Stackable Slave Bidirectional Active Cell Balancer Featuring LTC6804-2 and LTC3300-1(x2)

zoom

DC2100A-D

OBSOLETE: 12 Cell 4A Stackable Slave Bidirectional Active Cell Balancer Featuring LTC6804-2 and LTC3300-1(x2)

OBSOLETE: 12 Cell 4A Stackable Slave Bidirectional Active Cell Balancer Featuring LTC6804-2 and LTC3300-1(x2)

Product Detail

This evaluation board is obsolete and no longer recommended. The replacement board is the DC2100B-D.

Demonstration Circuit DC2100A-D is a stackable, bidirectional cell balancer slave board using the LTC6804-2 and the LTC3300-1 ICs to achieve active balancing of up to 12 Li-Ion cells. It requires the DC2100A-C for proper operation. The DC2100B-D uses a single LTC6804-2 Multi-Cell Addressable Battery Stack Monitor IC to measure cell voltages and two LTC3300-1 Synchronous Flyback ICs to provide active cell balancing. The DC2100A-C controller board contains a PIC18F47J53 microcontroller, the LTM2884 isolated USB transceiver, the LTC6804-2, two LTC3300-1 ICs, and the LTC6820 isoSPI Interface IC to facilitate isolated communication. Up to seven DC2100A-D boards can be connected to a DC2100A-C to build a stacked system of eight total boards.

Tools & Simulations

Tools & Simulations 1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
