LTC6362

Precision, Low Power Rail-to-Rail Input/Output Differential Op Amp/SAR ADC Driver

Show More showmore-icon

warning : LAST TIME BUY tooltip
warning : LAST TIME BUY tooltip
Part Details
Part Models 12
1ku List Price Starting From $1.87
Features
  • 1mA Supply Current
  • Single 2.8V to 5.25V supply
  • Fully Differential Input and Output
  • 200μV Max Offset Voltage
  • 260nA Max Input Bias Current
  • Fast Settling: 550ns to 18-Bit, 8VP-P Output

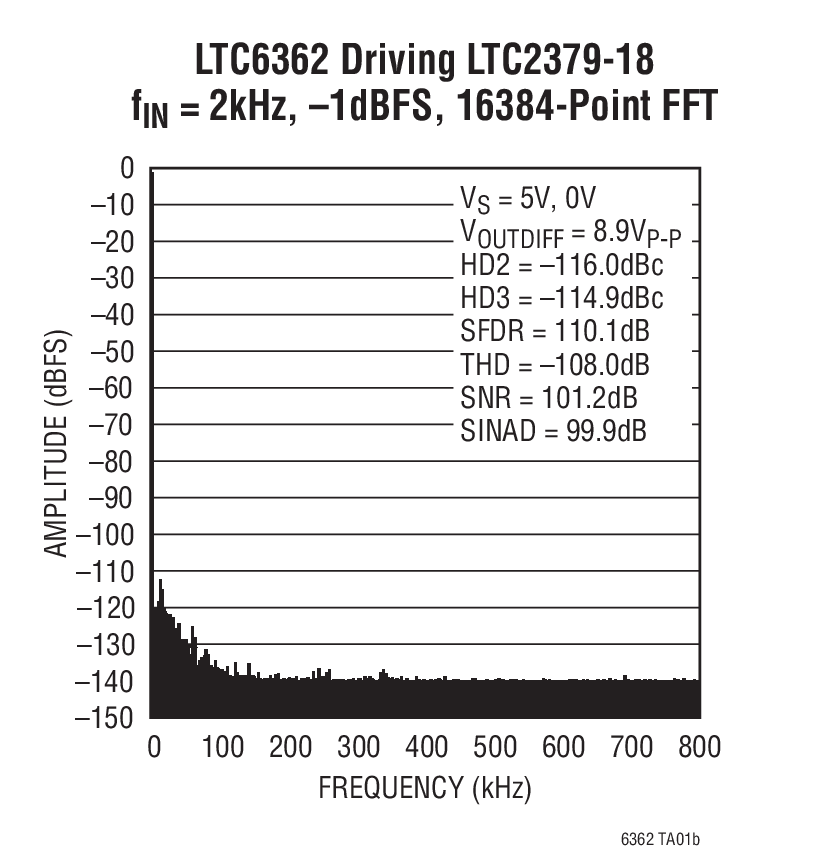

  • Low Distortion: –116dBc at 1kHz, 8VP-P
  • Rail-to-Rail Inputs and Outputs
  • 3.9nV/√Hz Input-Referred Noise
  • 180MHz Gain-Bandwidth Product
  • 34MHz –3dB Bandwidth
  • Low Power Shutdown: 70μA

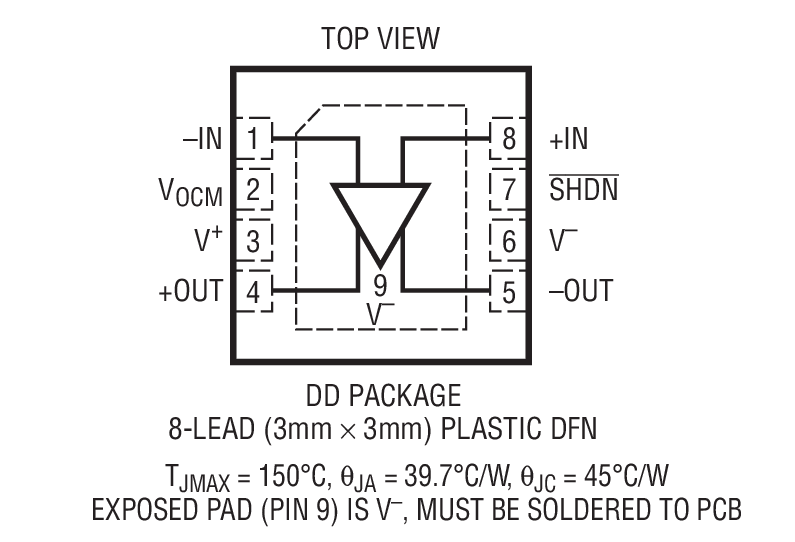

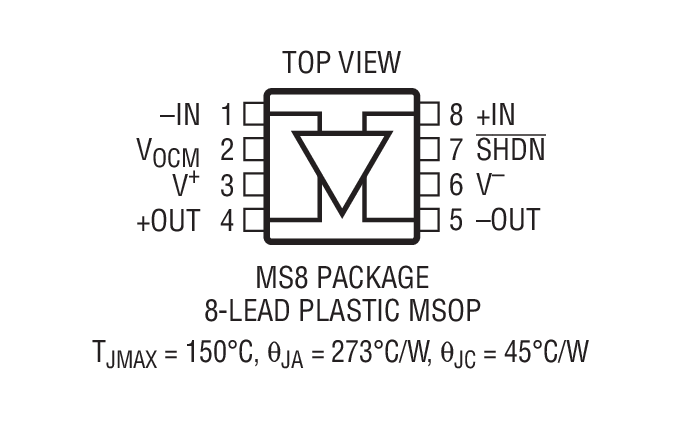

  • 8-Lead MSOP and 3mm × 3mm 8-Lead DFN Packages
Additional Details
show more Icon

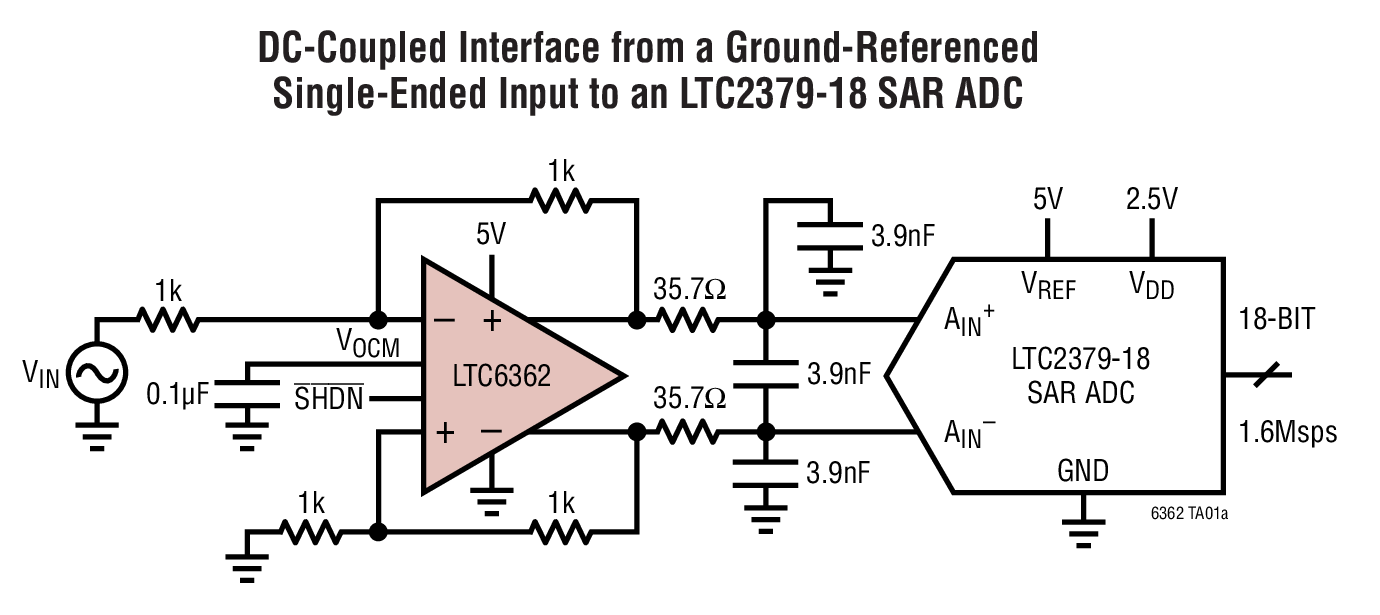

The LTC6362 is a low power, low noise differential op amp with rail-to-rail input and output swing that has been optimized to drive low power SAR ADCs. The LTC6362 draws only 1mA of supply current in active operation, and features a shutdown mode in which the current consumption is reduced to 70μA.

The amplifier may be configured to convert a single-ended input signal to a differential output signal, and is capable of being operated in an inverting or noninverting configuration.

Low offset voltage, low input bias current, and a stable high impedance configuration make this amplifier suitable for use not only as an ADC driver but also earlier in the signal chain, to convert a precision sensor signal to a balanced (differential) signal for processing in noisy industrial environments.

The LTC6362 is available in an 8-lead MSOP package and also in a compact 3mm × 3mm 8-pin leadless DFN package, and operates with guaranteed specifications over a –40°C to 125°C temperature range.

Applications

  • 16-Bit and 18-Bit SAR ADC Drivers
  • Single-Ended-to-Differential Conversion
  • Low Power Pipeline ADC Driver
  • Differential Line Drivers
  • Battery-Powered Instrumentation
Part Models 12
