LTC5800-WHM

SmartMesh WirelessHART Mote-on-Chip

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 2
1ku List Price Starting From $46.22
Features
Additional Details
show more Icon

SmartMesh WirelessHART wireless sensor networks are self managing, low power networks built from wireless nodes called motes. The LTC5800-WHM is the WirelessHART Mote-on-Chip integrated circuit in the Eterna® family of IEEE 802.15.4 System-on-Chip (SoC) solutions, featuring a highly integrated, low power radio design by Analog Devices as well as an ARM Cortex-M3 32-bit microprocessor running our embedded SmartMesh WirelessHART networking software.

With Analog Devices' time-synchronized WirelessHART networks all motes in the network may route, source or terminate data while providing many years of battery powered operation. The SmartMesh WirelessHART software provided with the LTC5800-WHM is fully tested and validated, and is readily configured via a software Application Programming Interface.

SmartMesh WirelessHART motes deliver a highly flexible network with proven reliability and low power performance in an easy-to-integrate platform.

Network Features
Feature Benefit
Time Synchronized, Channel Hopping Communications >99.999% network reliability in even the most challenging RF environments
Sub 50 µA Routers Can build out a network without any line powered devices. Flexibility to be line powered or energy harvested if desired.
Secure Mesh with 128-bit AES Encryption NIST Certified Security. Compromise of one node does not compromise network.
Standards-based Compliant to international standard IEC 62591 (WirelessHART)
Highly Accurate Time Stamping Time stamping on every node is available to applications with millisecond accuracy

Device Features
Feature Benefit
Industry-Leading Low Power Radio Technology
  • 4.5mA to Receive a Packet
  • 5.4mA to Transmit at 0dBm
  • 9.7mA to Transmit at 8dBm
Pre-engineered RF RF elements include an on-chip power amplifier and are pre-tuned for optimized performance, including temperature compensation, saving development time.
Energy Harvesting Support Very low power design enables motes to be powered by a wide variety of energy harvesters

Applications

Learn more about SmartMesh applications.

Part Models 2
1ku List Price Starting From $46.22

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC5800HWR-WHMA#PBF
  • HTML
  • HTML
LTC5800IWR-WHMA#PBF
  • HTML
  • HTML
Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 3

reference details image

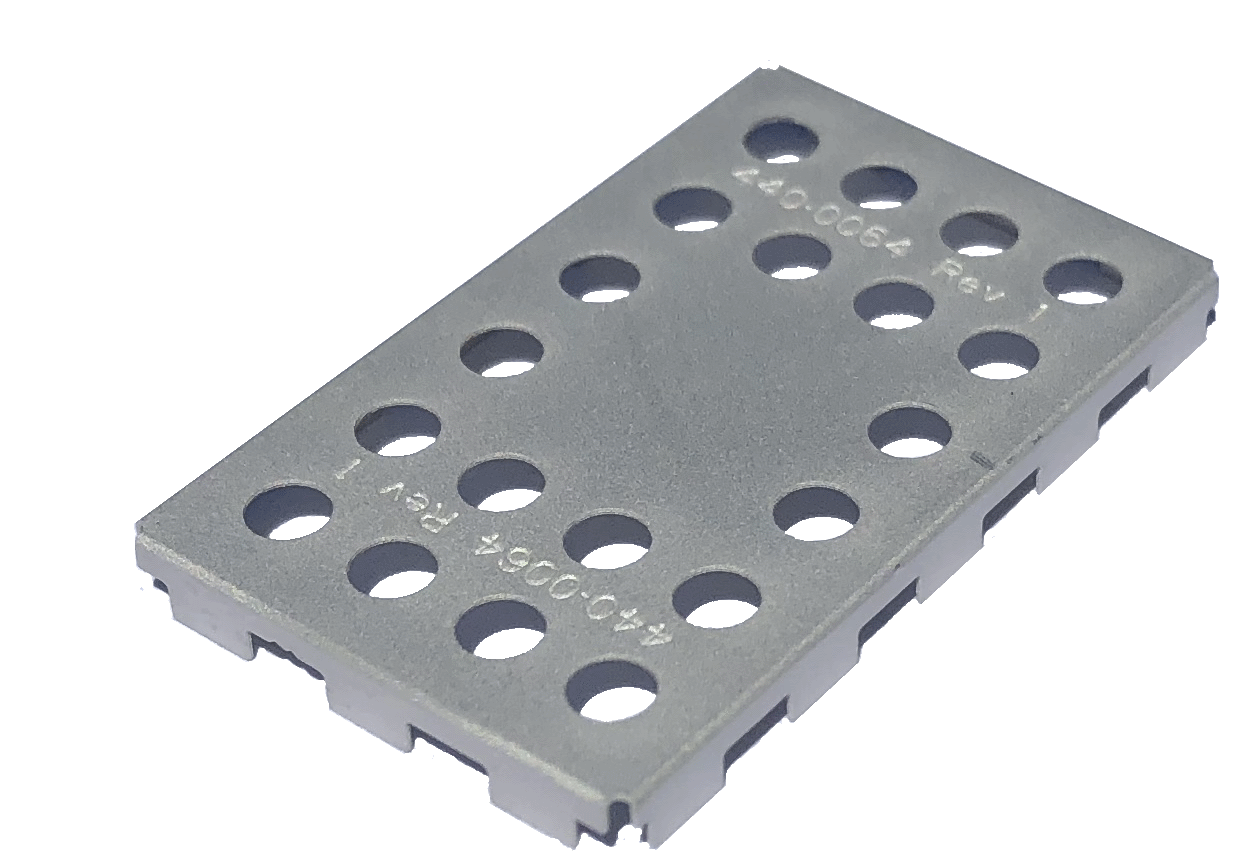

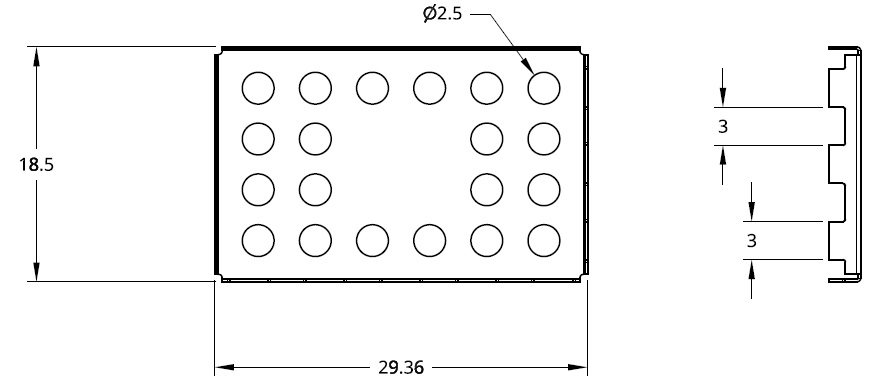

SMARTMESH-SHIELD02

RF Shield for Eterna (LTC5800) Designs

reference details image

DC9022A

SmartMesh WirelessHART RF Certified Starter Kit

zoom

DC9022A

SmartMesh WirelessHART RF Certified Starter Kit

SmartMesh WirelessHART RF Certified Starter Kit

Product Detail

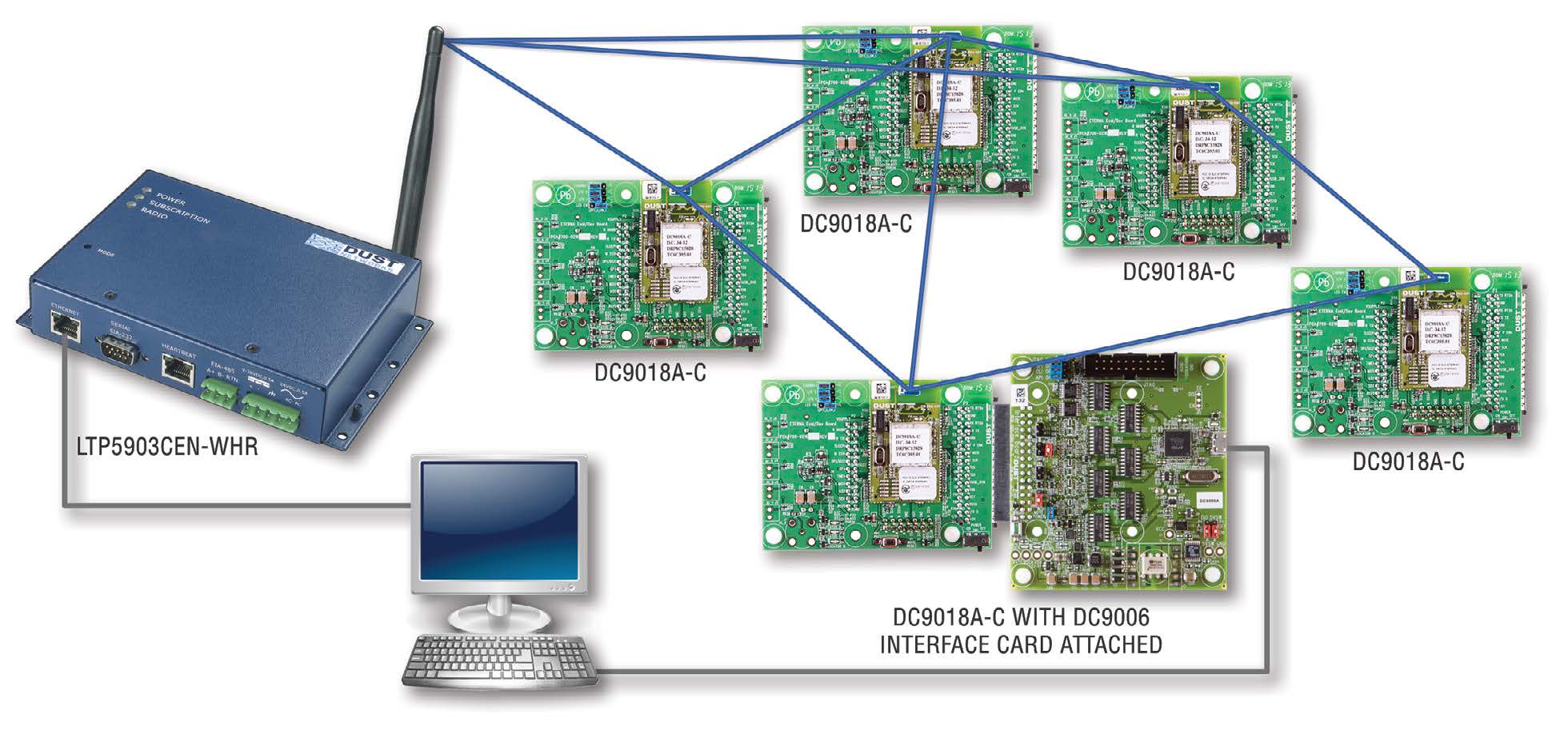

The DC9022 SmartMesh®WirelessHART RF Certified Starter Kit provides all the tools for evaluating SmartMesh network performance for your application needs, including high reliability, ultralow power, scalability and ease of installation. This accelerates device integration and application development.

The DC9022 Starter Kit includes five motes or nodes (DC9018A-C) to enable users to quickly deploy a multi-hop mesh network in the RF environment for your specific application. The software graphical user interface (GUI) allows you to quickly see the mesh network form, as well as key performance statistics, such as data reliability and latency.

The DC9018A-C Evaluation/Development Mote Modules feature easy-to-probe signal pins. In addition, the starter kit provides access to both manager and mote software application programming interfaces (APIs) to enable application software development.

The DC9022 Starter Kit operates in the 2.4000GHz to 2.4835GHz international license-free frequency band and includes RF intentional radiator certifications for Japan, as well as the United States, Canada and Europe. Starter kits and demo boards are for evaluation purposes only. It remains the user’s responsibility to verify proper and reliable operation in the actual end application.

The SmartMesh WirelessHART Starter Kit – includes the following items:

reference details image

DC9007A

SmartMesh WirelessHART Starter Kit

zoom

DC9007A

SmartMesh WirelessHART Starter Kit

SmartMesh WirelessHART Starter Kit

Product Detail

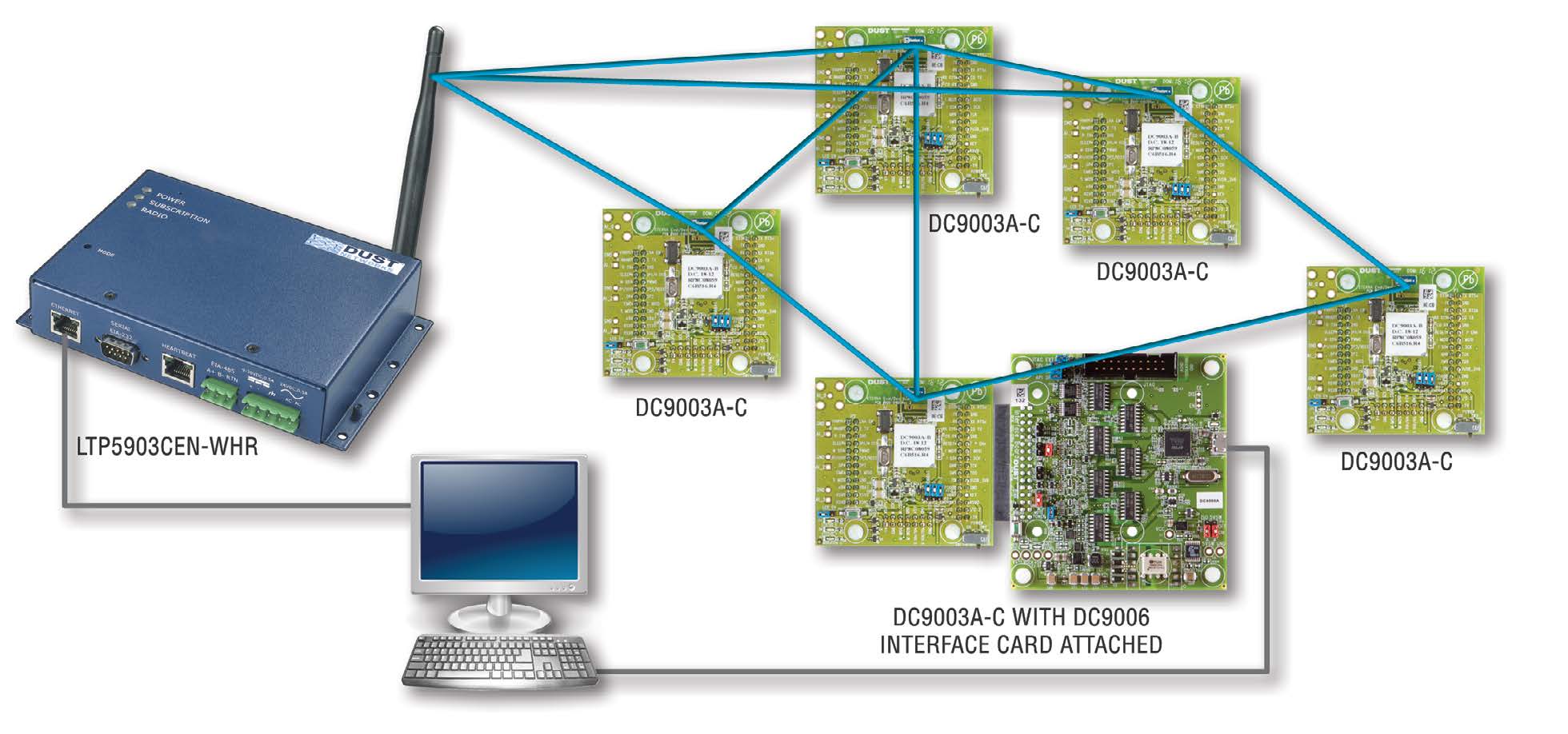

The DC9007 SmartMesh® WirelessHART Starter Kit provides all the tools for evaluating SmartMesh network performance with respect to your application needs, including high reliability, ultralow power, scalability and ease of installation. This accelerates device integration and application development.

The DC9007 Starter Kit includes five motes, or nodes (DC9003A-C), to enable users to quickly deploy a multi-hop mesh network in the RF environment specific to your application. The software graphical user interface (GUI) allows you to quickly see the mesh network form, as well as key performance statistics, such as data reliability and latency.

The DC9003A-C Evaluation/Development Mote Modules feature easy-to-probe signal pins. In addition, the starter kit provides access to both manager and mote software application programming interfaces (APIs) to enable application software development. The DC9007 Starter Kit operates in the 2.4000GHz to 2.4835GHz international license-free frequency band. Starter kits and demo boards are for evaluation purposes only. It remains the customer’s responsibility to verify proper and reliable operation in the actual end application.

The SmartMesh WirelessHART Starter Kit – includes the following items:

SmartMesh WirelessHART Starter Kit Software
Software Utility Description Download Link
SmartMesh SDK (optional) Software development kit used to interact with the devices’ Application Programming Interface (API) GitHub Repository
