Features and Benefits
- 12 Independent PSE Channels
- Compliant with IEEE 802.3at Type 1 and 2
- Chipset Provides Electrical Isolation
- Reduced BOM Cost
- Eliminates up to 6 High Speed Opto-Couplers
- Eliminates Isolated 3.3V Power Supply
- Low Power Dissipation
- 0.25Ω Sense Resistance Per Channel
- Very High Reliability 4-Point PD Detection
- 2-Point Forced Voltage
- 2-Point Forced Current
- VEE and VPORT Monitoring
- 1 Second Rolling IPORT Averaging
- Supports 2-Pair and 4-Pair Output Power
- 1MHz I2C Compatible Serial Control Interface
- Available In Three Power Grades
- A-Grade – LTPoE++™ 38.7W to 90W
- B-Grade – PoE+ 25.5W
- C-Grade – PoE 13W
- Available In 52-Lead 7mm × 8mm (LTC4270) and 24‑Lead 4mm × 4mm (LTC4271) QFN Packages
The LTC4270/LTC4271 chipset is a 12-port power sourcing equipment (PSE) controller designed for use in IEEE 802.3at Type 1 and Type 2 (high power) compliant Power over Ethernet (PoE) systems. Transformer-isolated communication protocol replaces expensive opto-couplers and complex isolated 3.3V supply resulting in significant BOM cost savings. The LTC4270/LTC4271 chipset delivers lowest-in-industry heat dissipation by utilizing low-RDS(ON) external MOSFETs and 0.25Ω sense resistors.
Advanced power management features include per-port 12‑bit current monitoring ADCs, DAC-programmable current limit, and versatile fast shut-down of preselected ports. Advanced power management host software is available under a no-cost license. PD discovery uses a proprietary dual-mode 4-point detection mechanism ensuring excellent immunity from false PD detection. Midspan PSEs are supported with 2-event classification and a 2 second backoff timer. The LTC4270/LTC4271 includes an I2C serial interface operable up to 1MHz.
The LTC4270/LTC4271 is available in multiple power grades allowing delivered PD power up to 90W.
- PoE PSE Switches/Routers
- PoE PSE Midspans
Product Lifecycle Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
Evaluation Kits (2)
DC590B - Demo Board

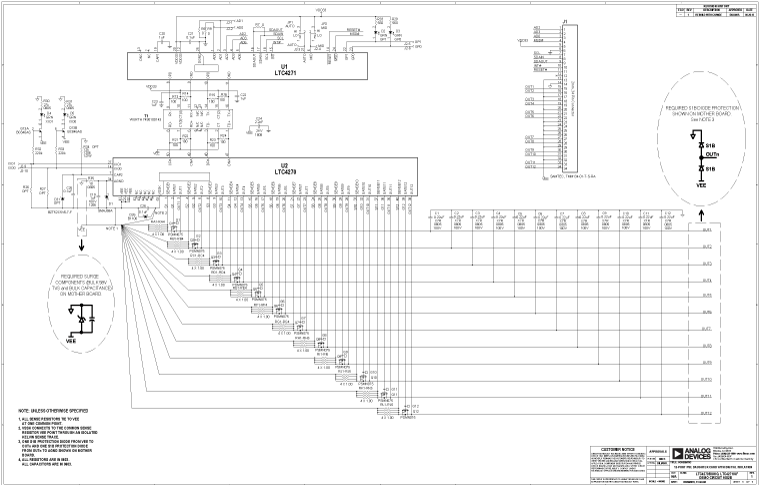

Demonstration kit DC1840C is a 12-port Ethernet Alliance™ certified IEEE 802.3at Type 2 power sourcing equipment (PSE) composed of a DC1682B daughter card and DC1680B mother board. The kit is used for evaluation of the LTC4270B and LTC4271 PSE chipset. Up to 12 powered devices (PDs) can be connected and powered from this system using a single power supply. A DC590 is connected to the DC1840 for I2C interfacing with QuikEval™. This demonstration manual provides a Quick Start Procedure, a DC1682 overview, a DC1680 overview, schematics, and layout printouts.
Documentation & Resources
R547 Reliability Data3/26/2018146 K
R558 Reliability Data3/23/201830 K
DC1840C - Demo Manual (Rev. E)6/1/20162M
Power over Ethernet Solutions4/4/20171 M
PoE PD Controllers6/22/2015552K
LTPoE++ PSE Controllers6/10/2013886K
Isolated 12-Port PoE10/24/2011688K
PoE++ Video Product Brief10/15/2018
LTPoE++ Extends PoE to 90W with Reliable and Easy-to-Use Standard11/1/2011 LT Journal
