LTC4100

PRODUCTION

Smart Battery Charger Controller

Part Models: 2
1ku List Price: Starting From $6.60

Viewing:

Overview

Single Chip Smart Battery Charger Controller
100% Compliant (Rev. 1.1) SMBus Support Allows for Operation with or without Host
SMBus Accelerator Improves SMBus Timing
Wide Output Voltage Range: 3.5V to 26V
Hardware Interrupt and SMBAlert Response Eliminate Interrupt Polling
High Efficiency Synchronous Buck Charger
0.5V Dropout Voltage; Maximum Duty Cycle > 98%
AC Adapter Current Limit Maximizes Charge Rate
±0.8% Voltage Accuracy; ±4% Current Accuracy
Up to 4A Charging Current Capability
10-Bit DAC for Charge Current Programming
11-Bit DAC for Charger Voltage Programming
User-Selectable Overvoltage and Overcurrent Limits
High Noise Immunity SafetySignal Sensor

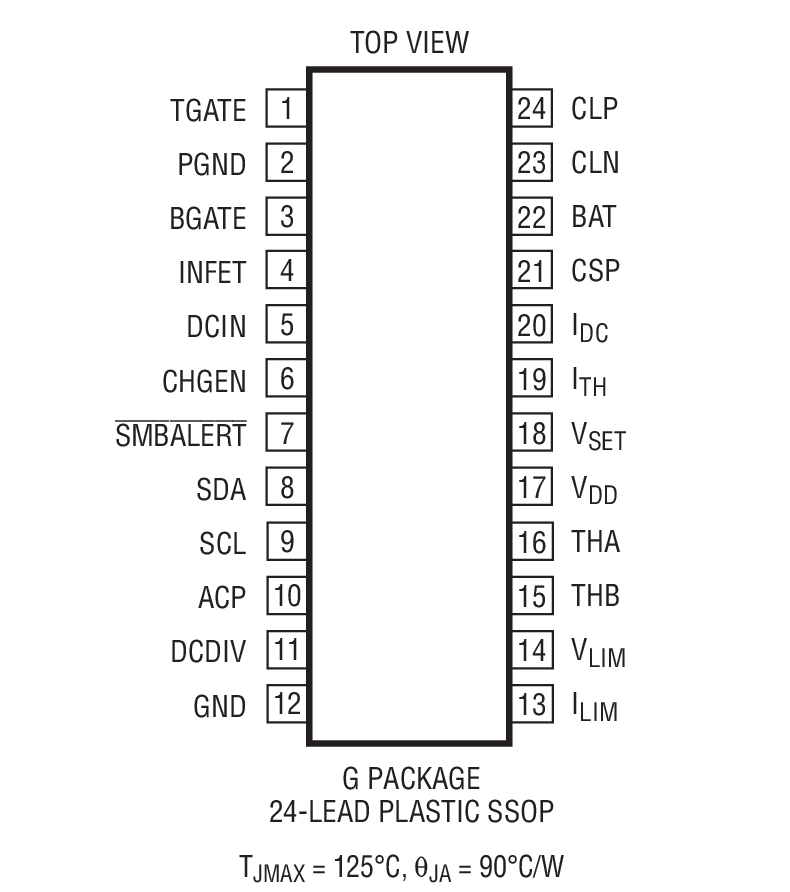

Available in a 24-Pin SSOP Package

The LTC4100 Smart Battery Charger is a single chip charging solution that dramatically simplifies construction of an SBS compliant system. The LTC4100 implements a Level 2 charger function whereby the charger can be programmed by the battery or by the host. A SafetySignal on the battery being charged is monitored for temperature, connectivity and battery type information. The SMBus interface remains alive when the AC power adapter is removed and responds to all SMBus activity directed to it, including SafetySignal status (via the ChargerStatus command). The charger also provides an interrupt to the host whenever a status change is detected (e.g., battery removal, AC adapter connection).

Charging current and voltage are restricted to chemistry specific limits for improved system safety and reliability. Limits are programmable by two external resistors. Additionally, the maximum average current from the AC adapter is programmable to avoid overloading the adapter when simultaneously supplying load current and charging current. When supplying system load current, charging current is automatically reduced to prevent adapter overload.

Applications

Portable Instruments and Computers
Data Storage Systems and Battery Backup Servers

Part Models: 2
1ku List Price: Starting From $6.60

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTC4100EG#PBF	24-Lead SSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC4100EG#TRPBF	24-Lead SSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Aug 6, 2022 - 22_0171 Laser Top Mark Conversion for SSOP Packages Assembled in PNG
		PCN22_0171_Form Material_Report Delta Qualification Matrix
LTC4100EG#PBF	PRODUCTION
LTC4100EG#TRPBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Hardware Ecosystem

Parts	Product Life Cycle	Description
Battery Monitors & Fuel Gauges 1
LTC2942-1	Obsolete	1A Battery Gas Gauge with Internal Sense Resistor and Temperature/Voltage Measurement
Level Translators & Buffers 1
LTC4307	PRODUCTION	Low Offset Hot Swappable 2-Wire Bus Buffer with Stuck Bus Recovery
Protection Switches & Controllers 2
LTC4364	RECOMMENDED FOR NEW DESIGNS	Surge Stopper with Ideal Diode
LTC2955	RECOMMENDED FOR NEW DESIGNS	Pushbutton On/Off Controller with Automatic Turn-On

Evaluation Kits

LTC4100EG | 3-/4-Cell Li-Ion Smart Battery Charger, DCIN = 15V to 20V, up to 4A Charge Current, (Requires DC1223)

Buy Now View Details

Product Details

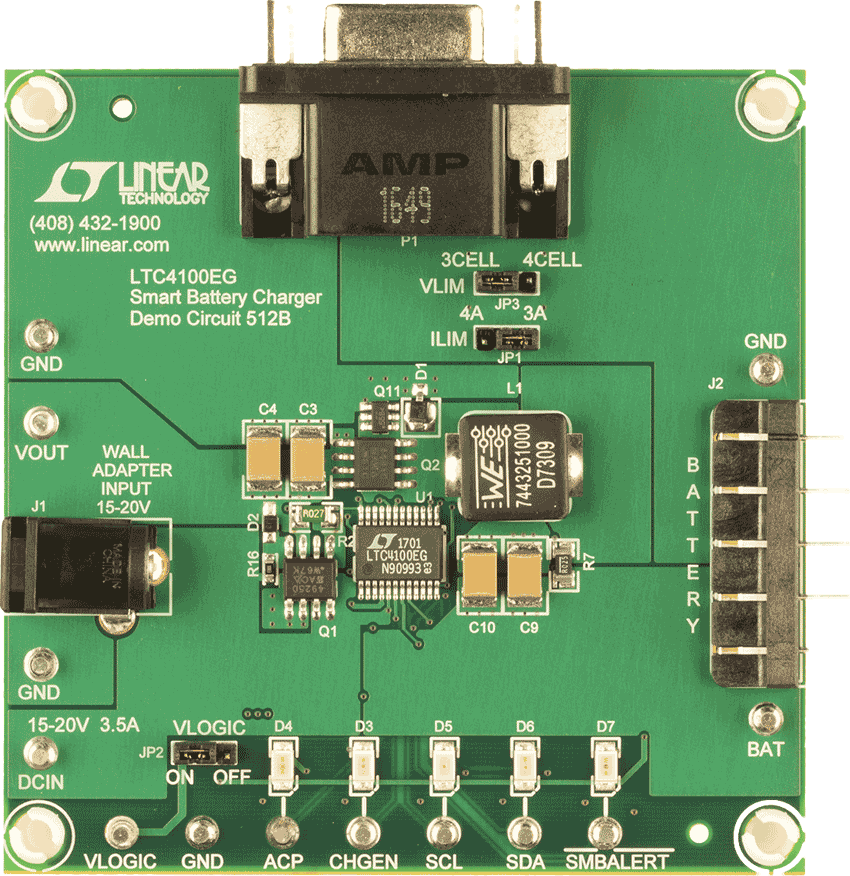

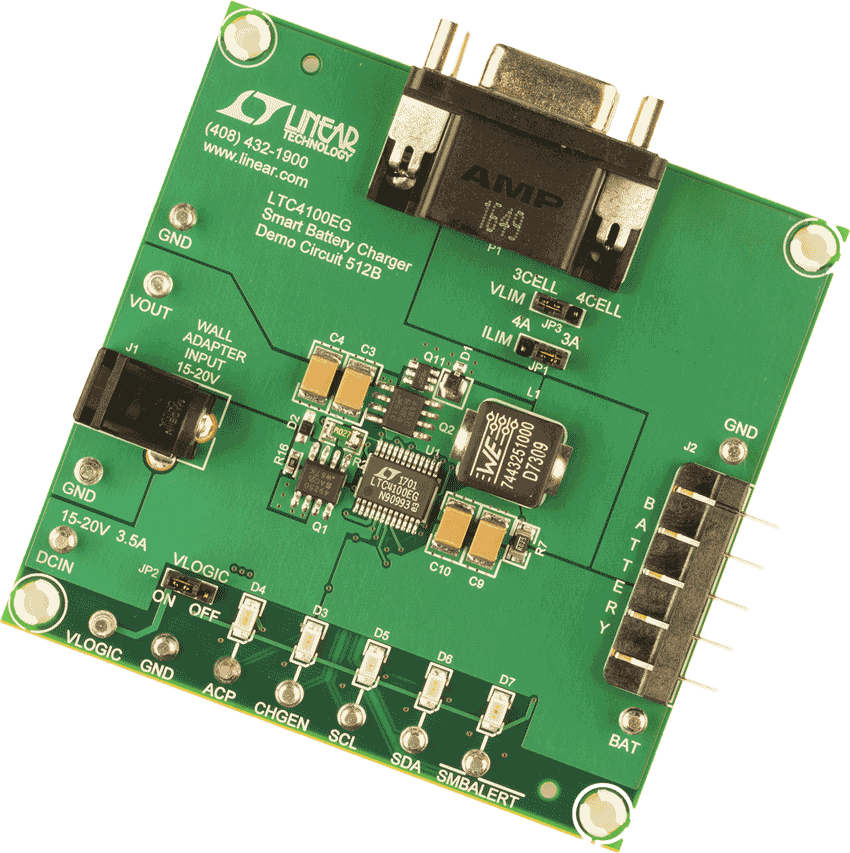

Demonstration circuit DC512B is a single battery switching step-down charge controller featuring the LTC4100. The recommended input power is 15 to 20V at 3.5A. A two-position jumper allows choice of protected output voltage range suitable for 3- and 4-Cell Li-ion batteries. Removal of the jumper allows full output voltage range. The maximum charge current is 4A.

The demo board is initially configured for 12.6V at 3A for popular 3-cell Li-ion battery packs. LTC4100 will automatically charge a Smart Battery to termination as soon as input power is applied with a battery connected prior to power up. A V_OUT pin automatically provides power to the system load from the wall adapter or battery. Status LEDs are provided for CHG, ACP, SMBALERT and SMBus activity.
