LTC2942-1

1A Battery Gas Gauge with Internal Sense Resistor and Temperature/Voltage Measurement

Show More showmore-icon

alert : Obsolete tooltip
alert : Obsolete tooltip
Part Details
Part Models 4
1ku List Price
price unavailable
Features
  • Indicates Accumulated Battery Charge and Discharge
  • SMBus/I2C Interface
  • Integrated 50mΩ High Side Sense Resistor
  • ±1A Sense Current Range
  • High Accuracy Analog Integration
  • ADC Measures Battery Voltage and Temperature
  • Integrated Temperature Sensor
  • 1% Voltage and Charge Accuracy
  • Configurable Alert Output/Charge Complete Input
  • 2.7V to 5.5V Operating Range
  • Quiescent Current Less than 100μA
  • Small 6-Pin 2mm × 3mm DFN package
Additional Details
show more Icon

The LTC2942-1 measures battery charge state, battery voltage and chip temperature in handheld PC and portable product applications. Its operating range is perfectly suited for single cell Li-Ion batteries. A precision coulomb counter integrates current through an internal sense resistor between the battery’s positive terminal and the load or charger. Battery voltage and on-chip temperature are measured with an internal 14-bit No Latency ΔΣ ADC. The three measured quantities (charge, voltage and temperature) are stored in internal registers accessible via the onboard SMBus/I2C interface.

The LTC2942-1 features programmable high and low thresholds for all three measured quantities. If a programmed threshold is exceeded, the device communicates an alert using either the SMBus alert protocol or by setting a flag in the internal status register.

Integrated Sense Resistor
LTC2942 No
LTC2942-1 Yes

Applications

  • Low Power Handheld Products
  • Cellular Phones
  • MP3 Players
  • Cameras
  • GPS
Part Models 4
1ku List Price
price unavailable

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC2942CDCB-1#TRMPBF
  • HTML
  • HTML
LTC2942CDCB-1#TRPBF
  • HTML
  • HTML
LTC2942IDCB-1#TRMPBF
  • HTML
  • HTML
LTC2942IDCB-1#TRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Oct 29, 2020

- 20_0067

Obsolescence of LTC2941-1, LTC2942-1 and LTC2943-1 products

LTC2942CDCB-1#TRMPBF

LAST TIME BUY

LTC2942CDCB-1#TRPBF

Obsolete

LTC2942IDCB-1#TRMPBF

LAST TIME BUY

LTC2942IDCB-1#TRPBF

Obsolete

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Oct 29, 2020

- 20_0067

arrow down

Obsolescence of LTC2941-1, LTC2942-1 and LTC2943-1 products

LTC2942CDCB-1#TRMPBF

LAST TIME BUY

LTC2942CDCB-1#TRPBF

Obsolete

LTC2942IDCB-1#TRMPBF

LAST TIME BUY

LTC2942IDCB-1#TRPBF

Obsolete

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 1

reference details image

DC1496B-D

LTC2942-1 Demo Board | Battery Gas Gauge w/ I2C (req. DC590)

zoom

DC1496B-D

LTC2942-1 Demo Board | Battery Gas Gauge w/ I2C (req. DC590)

LTC2942-1 Demo Board | Battery Gas Gauge w/ I2C (req. DC590)

Product Detail

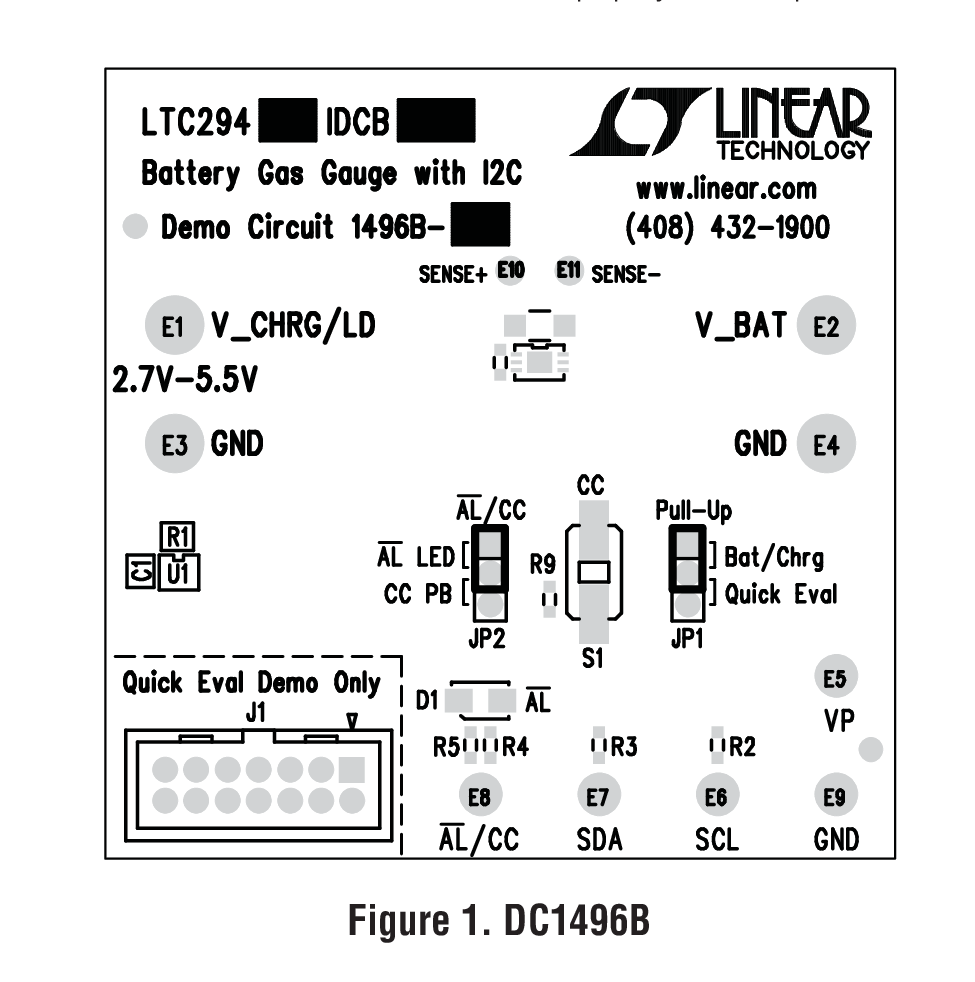

Demonstration circuit 1496C-A features the LTC2941. Demonstration circuit 1496C-B features the LTC2942. Demonstration circuit 1496C-C features the LTC2941-1. Demonstration circuit 1496C-D features the LTC2942-1. The C, D options have parts that use an internal sense resistor while the A, B options rely on an external precision sense resistor. All four devices measure battery charge state in handheld PC and portable product applications. The operating range is perfectly suited for single cell Li-Ion batteries. A precision analog coulomb counter integrates current through a sense resistor between the battery’s positive terminal and the load or charger. The LTC2942 adds battery voltage and on-chip temperature measurement with an internal 14-bit No Latency ΔΣ ADC. The three measured quantities (charge, voltage and temperature) are stored in internal registers accessible via the onboard SMBus/I2C interface.
