LTC3413

PRODUCTION

3A, 2MHz Monolithic Synchronous Regulator for DDR/QDR Memory Termination

Data Sheet Product Selection Table
Viewing:

Overview

  • High Efficiency: Up to 90%
  • ±3A Output Current
  • Symmetrical Source and Sink Output Current Limit
  • Low RDS(ON) Internal Switch: 85mΩ
  • No Schottky Diode Required
  • 2.25V to 5.5V Input Voltage Range
  • VOUT = VREF/2
  • ±1% Output Voltage Accuracy
  • Programmable Switching Frequency: Up to 2MHz
  • Power Good Output Voltage Monitor
  • Overtemperature Protected
  • Available in 16-Lead TSSOP Exposed Pad Package

The LTC3413 is a high efficiency monolithic synchronous step-down DC/DC converter utilizing a constant frequency, current mode architecture. It operates from an input voltage range of 2.25V to 5.5V and provides a regulated output voltage equal to (0.5)VREF while sourcing or sinking up to 3A of output current. An internal voltage divider reduces component count and eliminates the need for external resistors by dividing the reference voltage in half. The internal synchronous power switch with 85mΩ on-resistance increases efficiency and eliminates the need for an external Schottky diode. Switching frequencies up to 2MHz are set by an external resistor.

Forced-continuous operation in the LTC3413 reduces noise and RF interference. Fault protection is provided by an overcurrent comparator that limits output current during both sourcing and sinking operations. Adjustable compensation allows the transient response to be optimized over a wide range of loads and output capacitors.

Applications

  • Bus Termination: DDR and QDR™ Memory, SSTL, HSTL, ...
  • Notebook Computers
  • Distributed Power Systems
LTC3413
3A, 2MHz Monolithic Synchronous Regulator for DDR/QDR Memory Termination
Figure 1a. High Effi ciency Bus Termination Supply Figure 1b. Efficiency vs Load Current Product Package 1
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project
Ask a Question

Documentation

Data Sheet 1

Reliability Data 1

User Guide 1

Design Note 2

Data Sheet

This is the most up-to-date revision of the Data Sheet.

Learn More
Add to myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

Create New Project

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Hardware Ecosystem

Parts Product Life Cycle Description
Power System Management (PSM) & Sequencers 1
LTC2975
RECOMMENDED FOR NEW DESIGNS 4-Channel PMBus Power System Manager Featuring Accurate Input Current and Energy Measurement
Modal heading
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project

Tools & Simulations

LTspice

Models for the following parts are available in LTspice:

  • LTC3413
LTspice

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Evaluation Kits

eval board
schematic 1
DC492A

LTC3413EFE | ±3A Monolithic DDR Memory Termination Supply, VIN = 2.25V to 5.5V, VOUT = VREF/2 ±3A

Buy Now View Details

Product Details

DC492A: Demo Board for the LTC3413 3A, 2MHz Monolithic Synchronous Regulator for DDR/QDR Memory Termination.
DC492A
LTC3413EFE | ±3A Monolithic DDR Memory Termination Supply, VIN = 2.25V to 5.5V, VOUT = VREF/2 ±3A

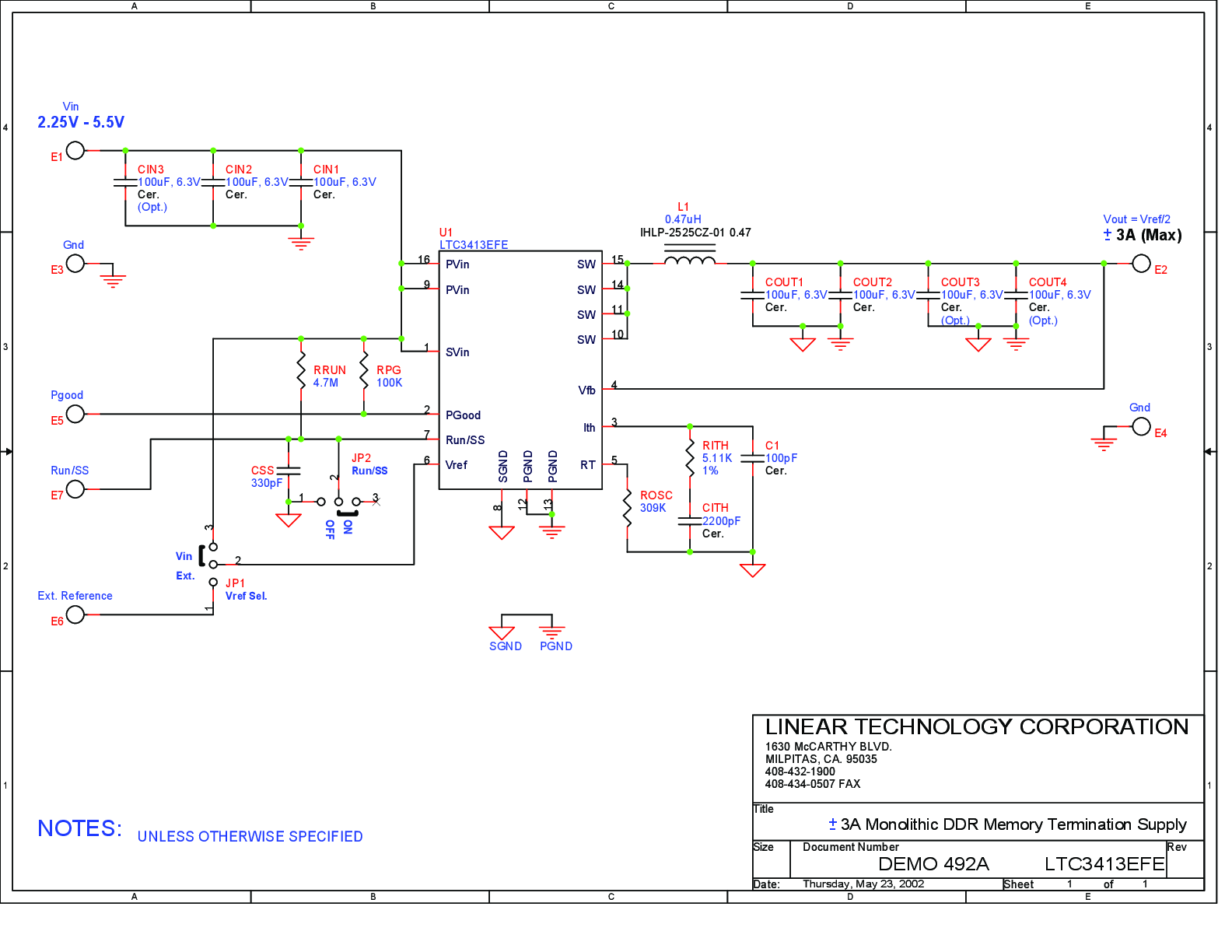

DC492A - Schematic
