Overview

Features and Benefits

  • 1.6Msps Throughput Rate
  • ±2LSB INL (Max)
  • Guaranteed 18-Bit No Missing Codes
  • Low Power: 18mW at 1.6Msps, 18μW at 1.6ksps
  • 101.2dB SNR (typ) at fIN = 2kHz
  • –120dB THD (typ) at fIN = 2kHz
  • Digital Gain Compression (DGC)
  • Guaranteed Operation to 125°C
  • 2.5V Supply
  • Fully Differential Input Range ±VREF
  • VREF Input Range from 2.5V to 5.1V
  • No Pipeline Delay, No Cycle Latency
  • 1.8V to 5V I/O Voltages
  • SPI-Compatible Serial I/O with Daisychain Mode
  • Internal Conversion Clock
  • 16-pin MSOP and 4mm × 3mm DFN Packages

Product Details

The LTC2379-18 is a low noise, low power, high speed 18-bit successive approximation register (SAR) ADC. Operating from a 2.5V supply, the LTC2379-18 has a ±VREF fully differential input range with VREF ranging from 2.5V to 5.1V. The LTC2379-18 consumes only 18mW and achieves ±2LSB INL maximum, no missing codes at 18‑bits with 101.2dB SNR.

The LTC2379-18 has a high speed SPI-compatible serial interface that supports 1.8V, 2.5V, 3.3V and 5V logic while also featuring a daisychain mode. The fast 1.6Msps throughput with no cycle latency makes the LTC2379-18 ideally suited for a wide variety of high speed applications. An internal oscillator sets the conversion time, easing external timing considerations. The LTC2379-18 automatically powers down between conversions, leading to reduced power dissipation that scales with the sampling rate.

The LTC2379-18 features a unique digital gain compression (DGC) function, which eliminates the driver amplifier’s negative supply while preserving the full resolution of the ADC. When enabled, the ADC performs a digital scaling function that maps zero-scale code from 0V to 0.1 • VREF and full-scale code from VREF to 0.9 • VREF. For a typical reference voltage of 5V, the full-scale input range is now 0.5V to 4.5V, which provides adequate headroom for powering the driving amplifier from a single 5.5V supply.

Applications

  • Medical Imaging
  • High Speed Data Acquisition
  • Portable or Compact Instrumentation
  • Industrial Process Control
  • Low Power Battery-Operated Instrumentation
  • ATE

Product Categories

Comparable Parts Click to see all in Parametric Search

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

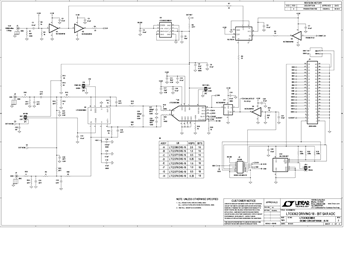

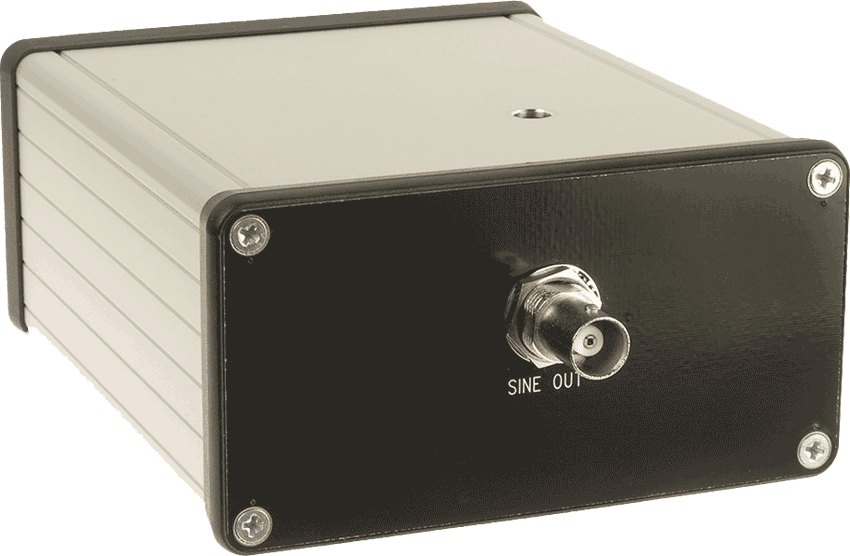

Evaluation Kits (3)

Documentation & Resources

  • View All (16)
  • Data Sheet (1)
  • Reliability Data (1)
  • Application Note (1)
  • User Guide (3)
  • Design Note (1)
  • Product Selector Card (5)
  • Video (1)
  • Technical Article (3)
    • Document Type

    Software & Systems Requirements

    Evaluation Code

    ZIP
    10.00K

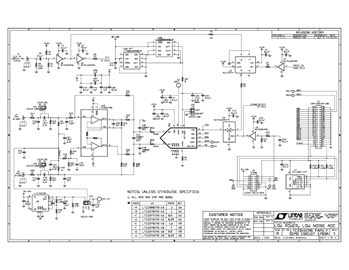

    DC1783A_REVA FPGA/CPLD Source Code

    Evaluation Software

    QuikEval
    The QuikEval system is a USB-based product demonstration and data acquisition system that allows users to quickly evaluate the performance of products. The system consists of a USB Data Acquisition Controller board (DC590B) that connects to individual daughter cards for specific products.

    LinearLab Tools
    A collection of Matlab and Python programs that provide direct access to Linear Technology’s data converter evaluation boards.

    PScope
    The PScope System is a USB-based product demonstration and data acquisition system for use with high performance ADCs and signal chain receiver family. PScope allows users to evaluate the SNR, SFDR, THD, as well as other key parameters, quickly and easily.

    Tools & Simulations

    IBIS Model

    Product Recommendations

    LTC2379-18 Companion Parts

    Recommended µModule Isolator

    Recommended ADC Drivers

    Recommended External Voltage References

    Recommended Related Parts

    Design Resources

    ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

    Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
    LTC2379CDE-18#PBF Material Declaration Reliability Data 16-Lead DFN (4mm x 3mm w/ EP)
    LTC2379CDE-18#TRPBF Material Declaration Reliability Data 16-Lead DFN (4mm x 3mm w/ EP)
    LTC2379CMS-18#PBF Material Declaration Reliability Data 16-Lead MSOP
    LTC2379CMS-18#TRPBF Material Declaration Reliability Data 16-Lead MSOP
    LTC2379HMS-18#PBF Material Declaration Reliability Data 16-Lead MSOP
    LTC2379HMS-18#TRPBF Material Declaration Reliability Data 16-Lead MSOP
    LTC2379IDE-18#PBF Material Declaration Reliability Data 16-Lead DFN (4mm x 3mm w/ EP)
    LTC2379IDE-18#TRPBF Material Declaration Reliability Data 16-Lead DFN (4mm x 3mm w/ EP)
    LTC2379IMS-18#PBF Material Declaration Reliability Data 16-Lead MSOP
    LTC2379IMS-18#TRPBF Material Declaration Reliability Data 16-Lead MSOP
    Wafer Fabrication Data R549 Reliability Data

    PCN-PDN Information

    Select a model from the dropdown below to subscribe to PCN/PDN notifications and view past notifications as well.

    Select Model for PCN Information
    • LTC2379CMS-18#PBF Production
    • LTC2379CMS-18#TRPBF Production
    • LTC2379HMS-18#PBF Production
    • LTC2379HMS-18#TRPBF Production
    • LTC2379IMS-18#PBF Production
    • LTC2379IMS-18#TRPBF Production
