LT6350

Low Noise Single-Ended to Differential Converter/ADC Driver

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Part Models 12
1ku List Price Starting From $3.12
Features
  • Rail-to-Rail Input and Outputs
  • Fast Settling Time: 240ns, 0.01%, 8VP-P Output Step
  • 1.9nV/√Hz Input-Referred Op Amp Noise
  • High Impedance Input
  • –3dB Bandwidth: 33MHz
  • 2.7V to 12V Supply Operation
  • No External Gain Resistors Required
  • 4.8mA Supply Current
  • Low Power Shutdown
  • Low Distortion (HD2/HD3): –102dBc/–97dBc at 100kHz, VOUTDIFF = 4VP-P
  • Low Offset Voltage: ±400μV Max
  • High DC Linearity: <±1LSB, 16-Bit, 8VP-P
  • Low Input Current Noise: 1.1pA/√Hz
  • 3mm × 3mm 8-Pin DFN and 8-Lead MSOP Packages
Additional Details
show more Icon

The LT6350 is a rail-to-rail input and output low noise single-ended to differential converter/ADC driver featuring fast settling time. It converts a high or low impedance, single-ended input signal to a low impedance, balanced, differential output suitable for driving high performance differential succesive approximation register (SAR) ADCs. The two op amp topology features very low noise op amps, that can support SNR >110dB in a 1MHz bandwidth.

The input op amp is trimmed for constant low input-referred voltage offset over the input range to prevent VOS steps from degrading distortion.

On a single 5V supply, the outputs can swing from 55mV to 4.945V. With the addition of a negative supply, the LT6350 can swing from 0V to 4.945V. Output common mode voltage is set by applying a voltage to the +IN2 pin.

The LT6350 draws 4.8mA from a 5V supply and consumes just 60μA in shutdown mode.

The LT6350 is available in a compact 3mm × 3mm, 8-pin leadless DFN package and also in an 8-pin MSOP package and operates over a –40°C to 125°C temperature range.

Applications

  • 16-Bit and 18-Bit SAR ADC Drivers
  • Single-Ended to Differential Conversion
  • Differential Line Driver
Part Models 12
1ku List Price Starting From $3.12

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LT6350CDD#PBF
  • HTML
  • HTML
LT6350CDD#TRPBF
  • HTML
  • HTML
LT6350CMS8#PBF
  • HTML
  • HTML
LT6350CMS8#TRPBF
  • HTML
  • HTML
LT6350HDD#PBF
  • HTML
  • HTML
LT6350HDD#TRPBF
  • HTML
  • HTML
LT6350HMS8#PBF
  • HTML
  • HTML
LT6350HMS8#TRPBF
  • HTML
  • HTML
LT6350IDD#PBF
  • HTML
  • HTML
LT6350IDD#TRPBF
  • HTML
  • HTML
LT6350IMS8#PBF
  • HTML
  • HTML
LT6350IMS8#TRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Oct 11, 2022

- 22_0244

Epoxy Change from Henkel 8290 to 8290A for MSOP Package

LT6350CMS8#PBF

PRODUCTION

LT6350CMS8#TRPBF

PRODUCTION

LT6350HMS8#PBF

PRODUCTION

LT6350HMS8#TRPBF

PRODUCTION

LT6350IMS8#PBF

PRODUCTION

LT6350IMS8#TRPBF

PRODUCTION

Feb 3, 2020

- 20_0128

Laser Top Mark for 8 Lead MSOP Packages Assembled in ADPG and UTAC

LT6350CMS8#PBF

PRODUCTION

LT6350CMS8#TRPBF

PRODUCTION

LT6350HMS8#PBF

PRODUCTION

LT6350HMS8#TRPBF

PRODUCTION

LT6350IMS8#PBF

PRODUCTION

LT6350IMS8#TRPBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Oct 11, 2022

- 22_0244

arrow down

Epoxy Change from Henkel 8290 to 8290A for MSOP Package

LT6350CMS8#PBF

PRODUCTION

LT6350CMS8#TRPBF

PRODUCTION

LT6350HMS8#PBF

PRODUCTION

LT6350HMS8#TRPBF

PRODUCTION

LT6350IMS8#PBF

PRODUCTION

LT6350IMS8#TRPBF

PRODUCTION

Feb 3, 2020

- 20_0128

arrow down

Laser Top Mark for 8 Lead MSOP Packages Assembled in ADPG and UTAC

LT6350CMS8#PBF

PRODUCTION

LT6350CMS8#TRPBF

PRODUCTION

LT6350HMS8#PBF

PRODUCTION

LT6350HMS8#TRPBF

PRODUCTION

LT6350IMS8#PBF

PRODUCTION

LT6350IMS8#TRPBF

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 12

reference details image

DC1783A-E

LTC2379-18 with LTC6655-5/LT6350 Demo Board | 18-Bit, 1.6Msps, SAR ADC with 101dB SNR. Requires DC718 or DC2026

zoom

DC1783A-E

LTC2379-18 with LTC6655-5/LT6350 Demo Board | 18-Bit, 1.6Msps, SAR ADC with 101dB SNR. Requires DC718 or DC2026

LTC2379-18 with LTC6655-5/LT6350 Demo Board | 18-Bit, 1.6Msps, SAR ADC with 101dB SNR. Requires DC718 or DC2026

Product Detail

The LTC2380/LTC2379/LTC2378/LTC2377/LTC2376 are low power, low noise ADCs with serial outputs that can operate from a single 2.5V supply. The demo manual refers to the LTC2379-18 but applies to all parts in the family, the only difference being the maximum sample rates and the number of bits. The LTC2379-18 supports a ±5V fully differential input range with a 101dB SNR, consumes only 18mW and achieves ±2LSB INL max with no missing codes at 18-bits. The DC1783A demonstrates the DC and AC performance of the LTC2379-18 in conjunction with the DC590 QuikEval and DC718 PScope data collection boards.

reference details image

DC1783A-C

LTC2377-16 with LTC6655-5/LT6350 Demo Board | 16-Bit, 500ksps, SAR ADC with 97dB SNR. Requires DC718 or DC2026

zoom

DC1783A-C

LTC2377-16 with LTC6655-5/LT6350 Demo Board | 16-Bit, 500ksps, SAR ADC with 97dB SNR. Requires DC718 or DC2026

LTC2377-16 with LTC6655-5/LT6350 Demo Board | 16-Bit, 500ksps, SAR ADC with 97dB SNR. Requires DC718 or DC2026

Product Detail

The LTC2380/LTC2379/LTC2378/LTC2377/LTC2376 are low power, low noise ADCs with serial outputs that can operate from a single 2.5V supply. The demo manual refers to the LTC2379-18 but applies to all parts in the family, the only difference being the maximum sample rates and the number of bits. The LTC2379-18 supports a ±5V fully differential input range with a 101dB SNR, consumes only 18mW and achieves ±2LSB INL max with no missing codes at 18-bits. The DC1783A demonstrates the DC and AC performance of the LTC2379-18 in conjunction with the DC590 QuikEval and DC718 PScope data collection boards.

reference details image

DC1500A-B

LTC2392-16 with LT6350 Optimized Driver | 5V 16-Bit 500ksps Int Ref Parallel/Serial SAR ADC in LQFP-48, Requires DC718

zoom

DC1500A-B

LTC2392-16 with LT6350 Optimized Driver | 5V 16-Bit 500ksps Int Ref Parallel/Serial SAR ADC in LQFP-48, Requires DC718

LTC2392-16 with LT6350 Optimized Driver | 5V 16-Bit 500ksps Int Ref Parallel/Serial SAR ADC in LQFP-48, Requires DC718

Product Detail

DC1500A-B: Demo Board for the LTC2392-16 16-Bit, 500ksps SAR ADC with 94dB SNR and for LT6350 Low Noise Single-Ended to Differential Converter/ADC Driver.

reference details image

DC1783A-D

LTC2376-16 with LTC6655-5/LT6350 Demo Board | 16-Bit, 250ksps, SAR ADC with 97dB SNR. Requires DC718 or DC2026

zoom

DC1783A-D

LTC2376-16 with LTC6655-5/LT6350 Demo Board | 16-Bit, 250ksps, SAR ADC with 97dB SNR. Requires DC718 or DC2026

LTC2376-16 with LTC6655-5/LT6350 Demo Board | 16-Bit, 250ksps, SAR ADC with 97dB SNR. Requires DC718 or DC2026

Product Detail

The LTC2380/LTC2379/LTC2378/LTC2377/LTC2376 are low power, low noise ADCs with serial outputs that can operate from a single 2.5V supply. The demo manual refers to the LTC2379-18 but applies to all parts in the family, the only difference being the maximum sample rates and the number of bits. The LTC2379-18 supports a ±5V fully differential input range with a 101dB SNR, consumes only 18mW and achieves ±2LSB INL max with no missing codes at 18-bits. The DC1783A demonstrates the DC and AC performance of the LTC2379-18 in conjunction with the DC590 QuikEval and DC718 PScope data collection boards.

reference details image

DC1783A-G

LTC2377-18 with LTC6655-5/LT6350 Demo Board | 18-Bit, 500ksps, SAR ADC with 102dB SNR. Requires DC718 or DC2026

zoom

DC1783A-G

LTC2377-18 with LTC6655-5/LT6350 Demo Board | 18-Bit, 500ksps, SAR ADC with 102dB SNR. Requires DC718 or DC2026

LTC2377-18 with LTC6655-5/LT6350 Demo Board | 18-Bit, 500ksps, SAR ADC with 102dB SNR. Requires DC718 or DC2026

Product Detail

The LTC2380/LTC2379/LTC2378/LTC2377/LTC2376 are low power, low noise ADCs with serial outputs that can operate from a single 2.5V supply. The demo manual refers to the LTC2379-18 but applies to all parts in the family, the only difference being the maximum sample rates and the number of bits. The LTC2379-18 supports a ±5V fully differential input range with a 101dB SNR, consumes only 18mW and achieves ±2LSB INL max with no missing codes at 18-bits. The DC1783A demonstrates the DC and AC performance of the LTC2379-18 in conjunction with the DC590 QuikEval and DC718 PScope data collection boards.

reference details image

DC1500A-C

LTC2391-16 with LT6350 Optimized Driver | 5V 16-Bit 250ksps Int Ref Parallel/Serial SAR ADC in LQFP-48, Requires DC718

zoom

DC1500A-C

LTC2391-16 with LT6350 Optimized Driver | 5V 16-Bit 250ksps Int Ref Parallel/Serial SAR ADC in LQFP-48, Requires DC718

LTC2391-16 with LT6350 Optimized Driver | 5V 16-Bit 250ksps Int Ref Parallel/Serial SAR ADC in LQFP-48, Requires DC718

Product Detail

DC1500A-C: Demo Board for the LT6350 Low Noise Single-Ended to Differential Converter/ADC Driver and for LTC2391-16, 16-Bit, 250ksps SAR ADC with 94dB SNR.

reference details image

DC1783A-H

LTC2376-18 with LTC6655-5/LT6350 Demo Board | 18-Bit, 250ksps, SAR ADC with 102dB SNR. Requires DC718 or DC2026

zoom

DC1783A-H

LTC2376-18 with LTC6655-5/LT6350 Demo Board | 18-Bit, 250ksps, SAR ADC with 102dB SNR. Requires DC718 or DC2026

LTC2376-18 with LTC6655-5/LT6350 Demo Board | 18-Bit, 250ksps, SAR ADC with 102dB SNR. Requires DC718 or DC2026

Product Detail

The LTC2380/LTC2379/LTC2378/LTC2377/LTC2376 are low power, low noise ADCs with serial outputs that can operate from a single 2.5V supply. The demo manual refers to the LTC2379-18 but applies to all parts in the family, the only difference being the maximum sample rates and the number of bits. The LTC2379-18 supports a ±5V fully differential input range with a 101dB SNR, consumes only 18mW and achieves ±2LSB INL max with no missing codes at 18-bits. The DC1783A demonstrates the DC and AC performance of the LTC2379-18 in conjunction with the DC590 QuikEval and DC718 PScope data collection boards.

reference details image

DC1783A-A

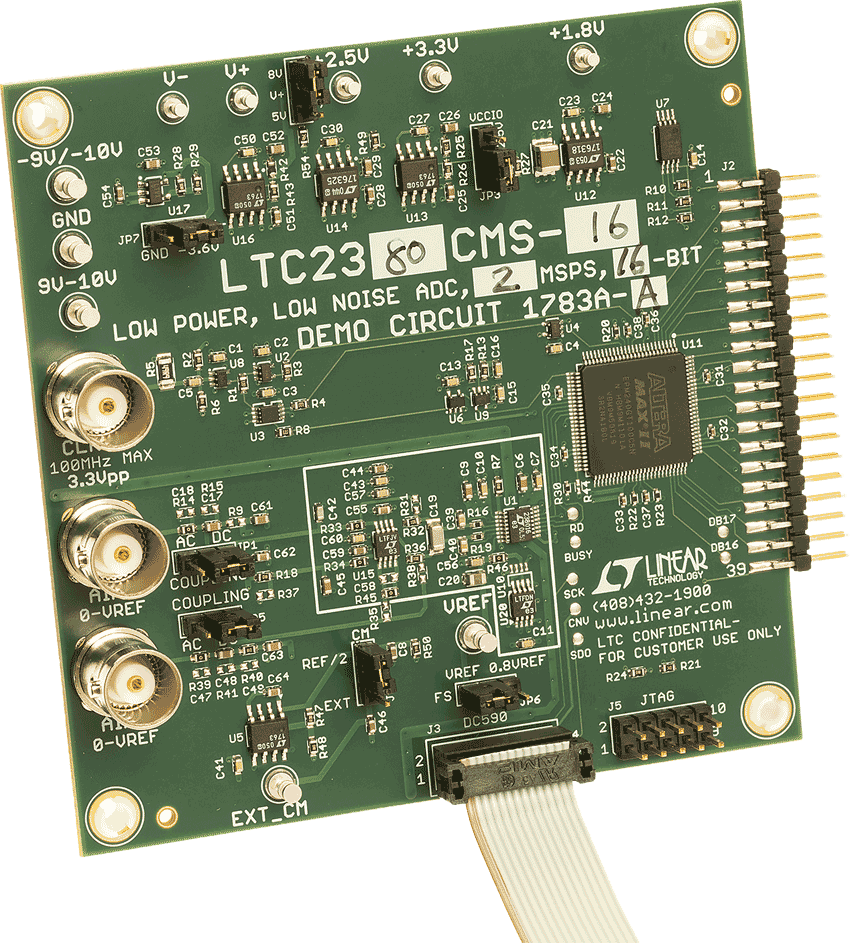

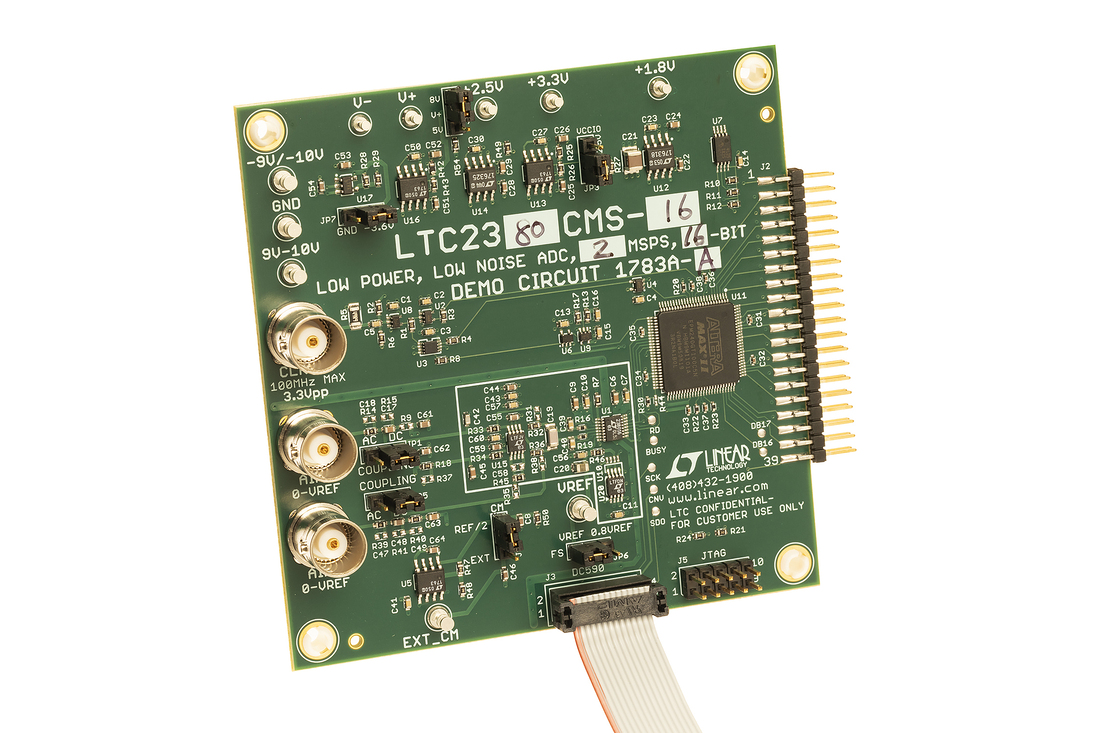

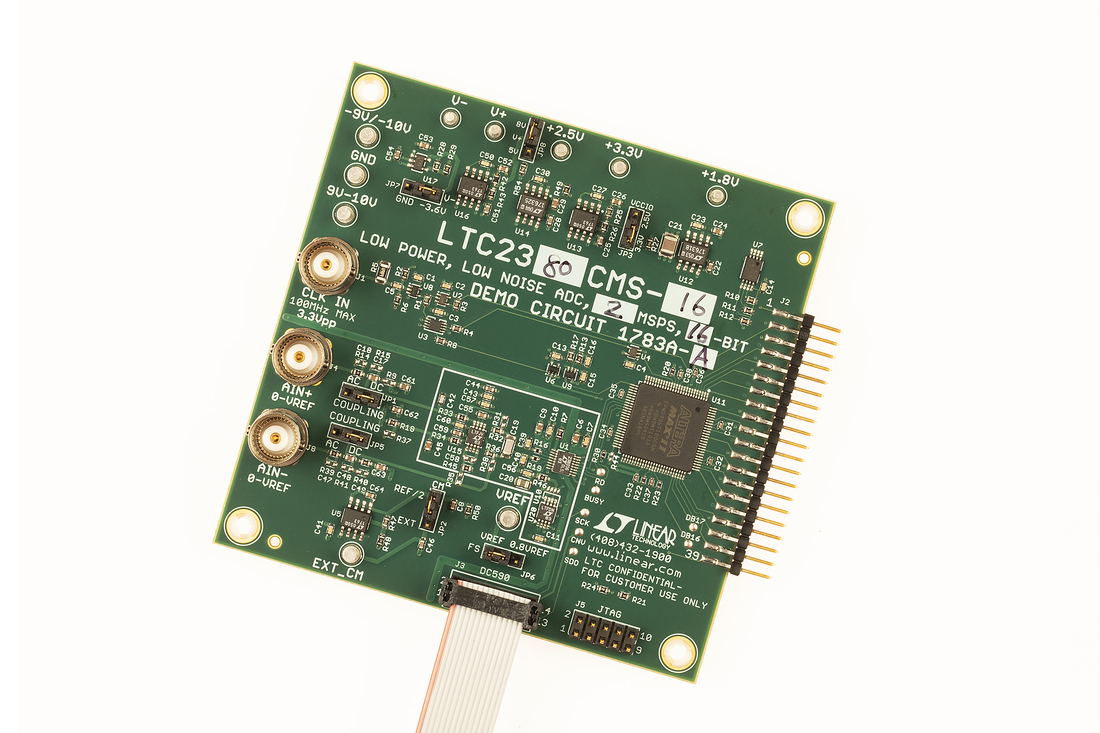

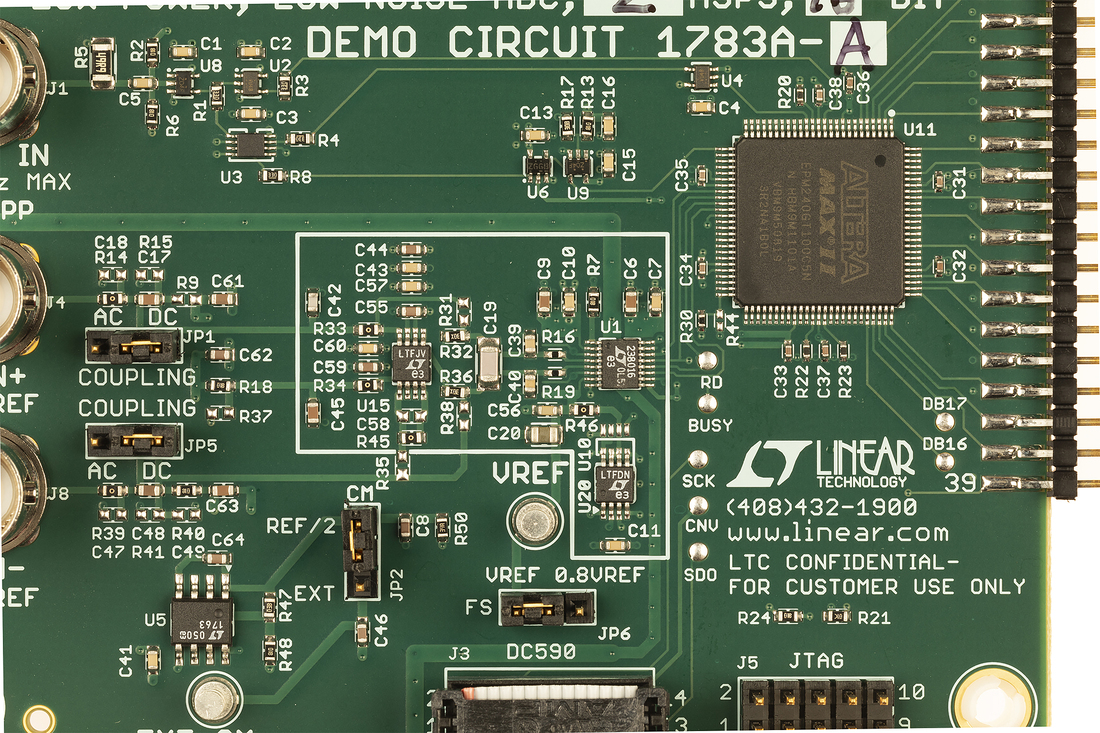

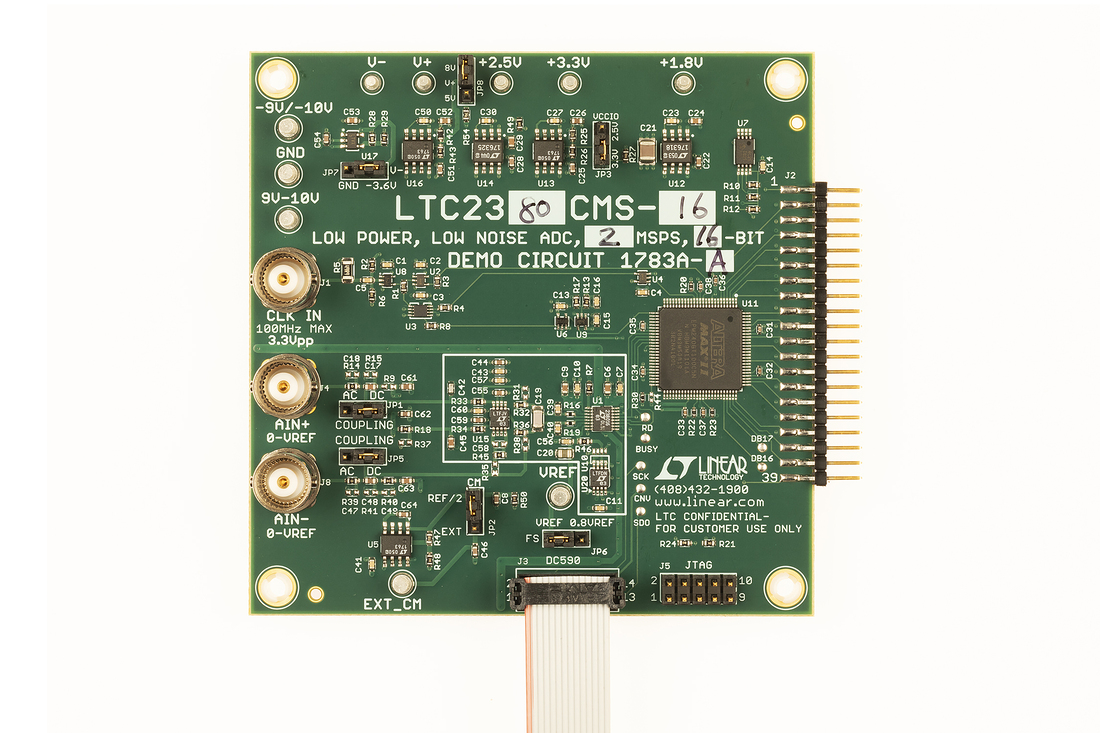

LTC2380-16 with LTC6655-5/LT6350 Demo Board | 16-Bit, 2Msps, SAR ADC with 96dB SNR. Requires DC718 or DC2026A

zoom

DC1783A-A

LTC2380-16 with LTC6655-5/LT6350 Demo Board | 16-Bit, 2Msps, SAR ADC with 96dB SNR. Requires DC718 or DC2026A

LTC2380-16 with LTC6655-5/LT6350 Demo Board | 16-Bit, 2Msps, SAR ADC with 96dB SNR. Requires DC718 or DC2026A

Product Detail

DC1783A-A Demo Board for:
LTC2380-16 16-Bit, 2Msps, Low Power SAR ADC with 96dB SNR
LTC6655 0.25ppm Noise, Low Drift Precision References
LT6350 Low Noise Single-Ended to Differential Converter/ADC Driver





reference details image

DC1783A-F

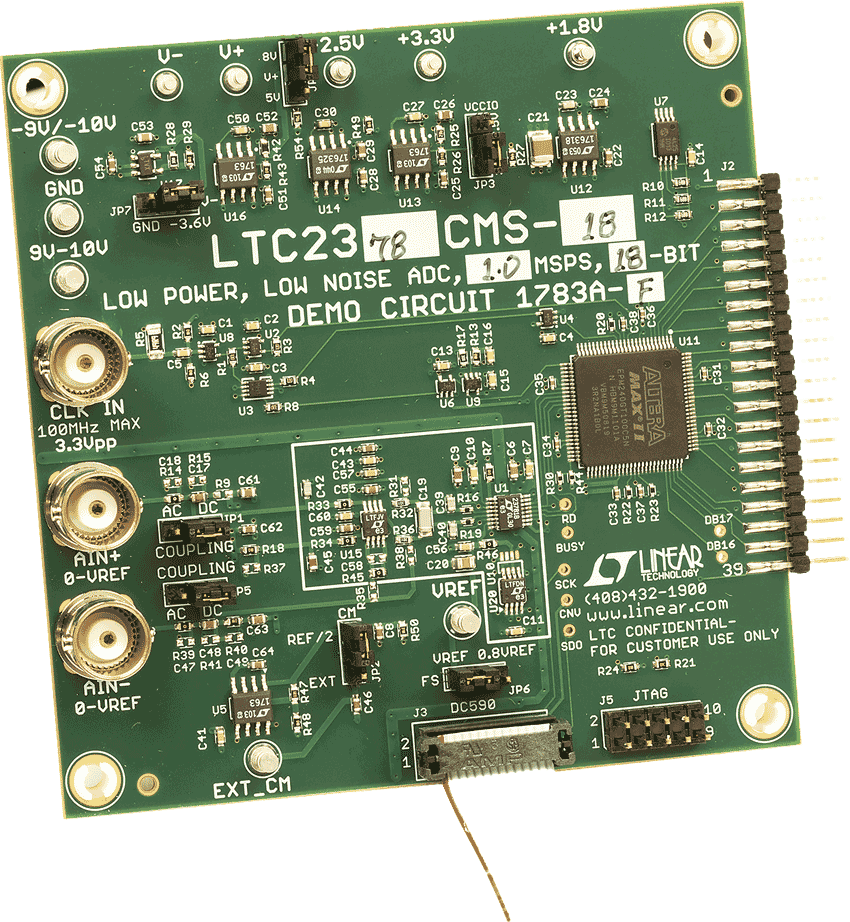

LTC2378-18 with LTC6655-5/LT6350 Demo Board | 18-Bit, 1Msps, SAR ADC with 102dB SNR. Requires DC718 or DC2026

zoom

DC1783A-F

LTC2378-18 with LTC6655-5/LT6350 Demo Board | 18-Bit, 1Msps, SAR ADC with 102dB SNR. Requires DC718 or DC2026

LTC2378-18 with LTC6655-5/LT6350 Demo Board | 18-Bit, 1Msps, SAR ADC with 102dB SNR. Requires DC718 or DC2026

Product Detail

The LTC2380/LTC2379/LTC2378/LTC2377/LTC2376 are low power, low noise ADCs with serial outputs that can operate from a single 2.5V supply. The demo manual refers to the LTC2379-18 but applies to all parts in the family, the only difference being the maximum sample rates and the number of bits. The LTC2379-18 supports a ±5V fully differential input range with a 101dB SNR, consumes only 18mW and achieves ±2LSB INL max with no missing codes at 18-bits. The DC1783A demonstrates the DC and AC performance of the LTC2379-18 in conjunction with the DC590 QuikEval and DC718 PScope data collection boards.

reference details image

DC1500A-A

LTC2393-16 with LT6350 Optimized Driver | 5V 16-Bit 1Msps Int Ref Parallel/Serial SAR ADC in LQFP-48, Requires DC718

zoom

DC1500A-A

LTC2393-16 with LT6350 Optimized Driver | 5V 16-Bit 1Msps Int Ref Parallel/Serial SAR ADC in LQFP-48, Requires DC718

LTC2393-16 with LT6350 Optimized Driver | 5V 16-Bit 1Msps Int Ref Parallel/Serial SAR ADC in LQFP-48, Requires DC718

Product Detail

DC1500A-A: Demo Board for the LTC2393-16 16-Bit, 1Msps SAR ADC with 94dB SNR.

reference details image

DC1783A-B

LTC2378-16 with LTC6655-5/LT6350 Demo Board | 16-Bit, 1Msps, SAR ADC with 97dB SNR. Requires DC718 or DC2026

zoom

DC1783A-B

LTC2378-16 with LTC6655-5/LT6350 Demo Board | 16-Bit, 1Msps, SAR ADC with 97dB SNR. Requires DC718 or DC2026

LTC2378-16 with LTC6655-5/LT6350 Demo Board | 16-Bit, 1Msps, SAR ADC with 97dB SNR. Requires DC718 or DC2026

Product Detail

The LTC2380/LTC2379/LTC2378/LTC2377/LTC2376 are low power, low noise ADCs with serial outputs that can operate from a single 2.5V supply. The demo manual refers to the LTC2379-18 but applies to all parts in the family, the only difference being the maximum sample rates and the number of bits. The LTC2379-18 supports a ±5V fully differential input range with a 101dB SNR, consumes only 18mW and achieves ±2LSB INL max with no missing codes at 18-bits. The DC1783A demonstrates the DC and AC performance of the LTC2379-18 in conjunction with the DC590 QuikEval and DC718 PScope data collection boards.

reference details image

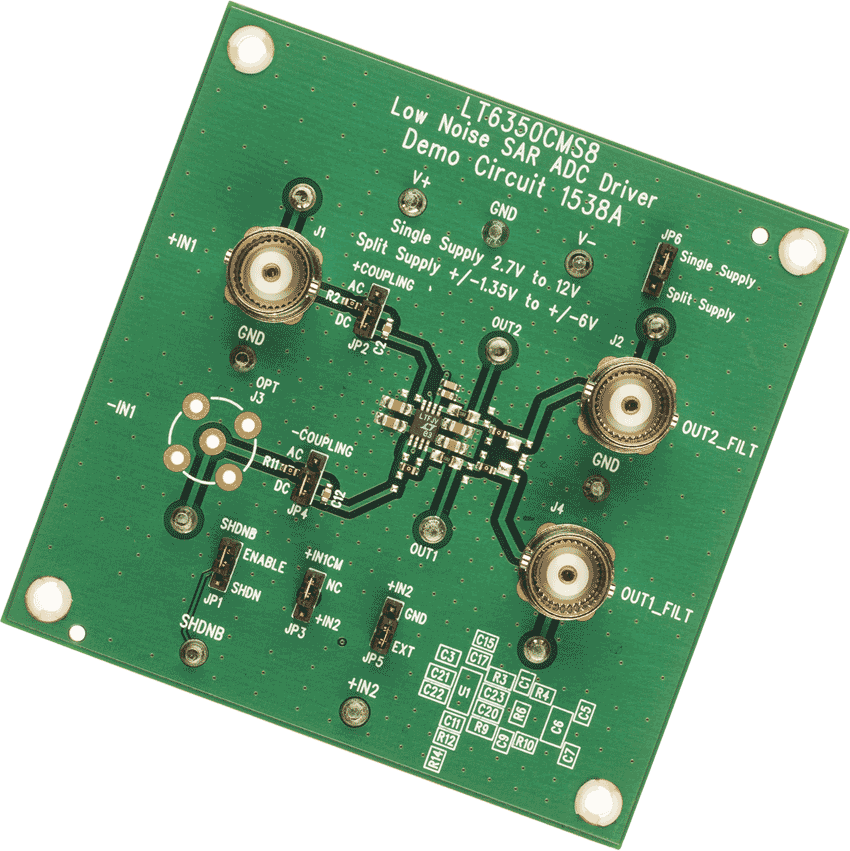

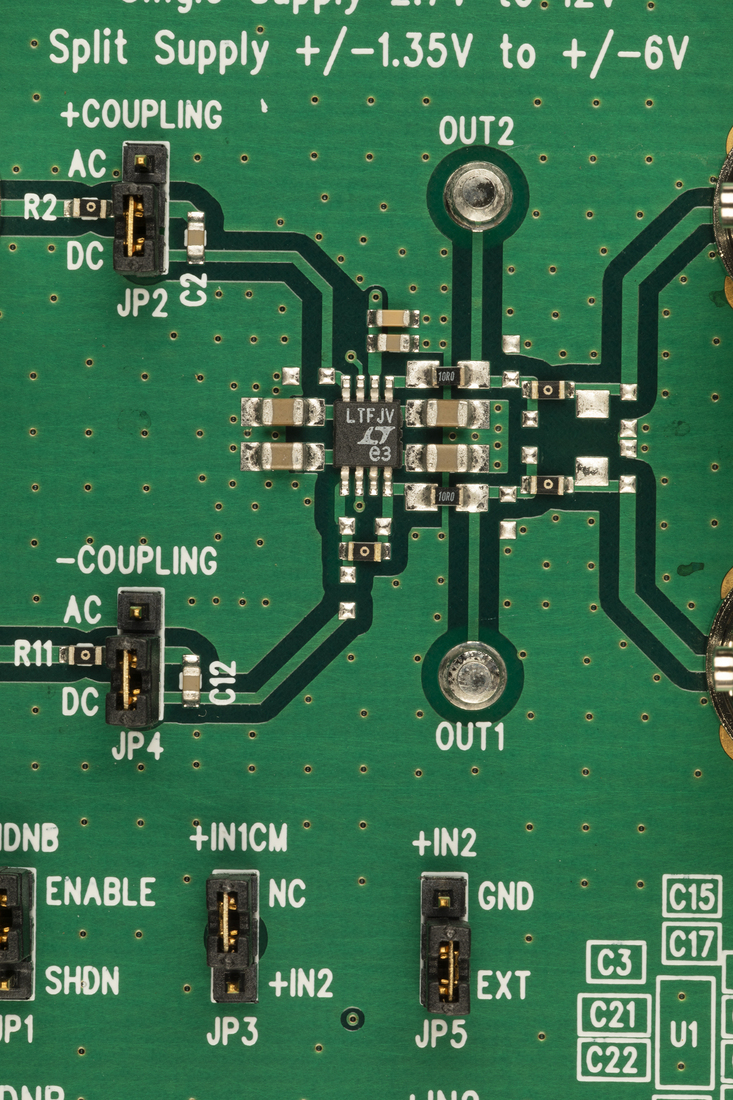

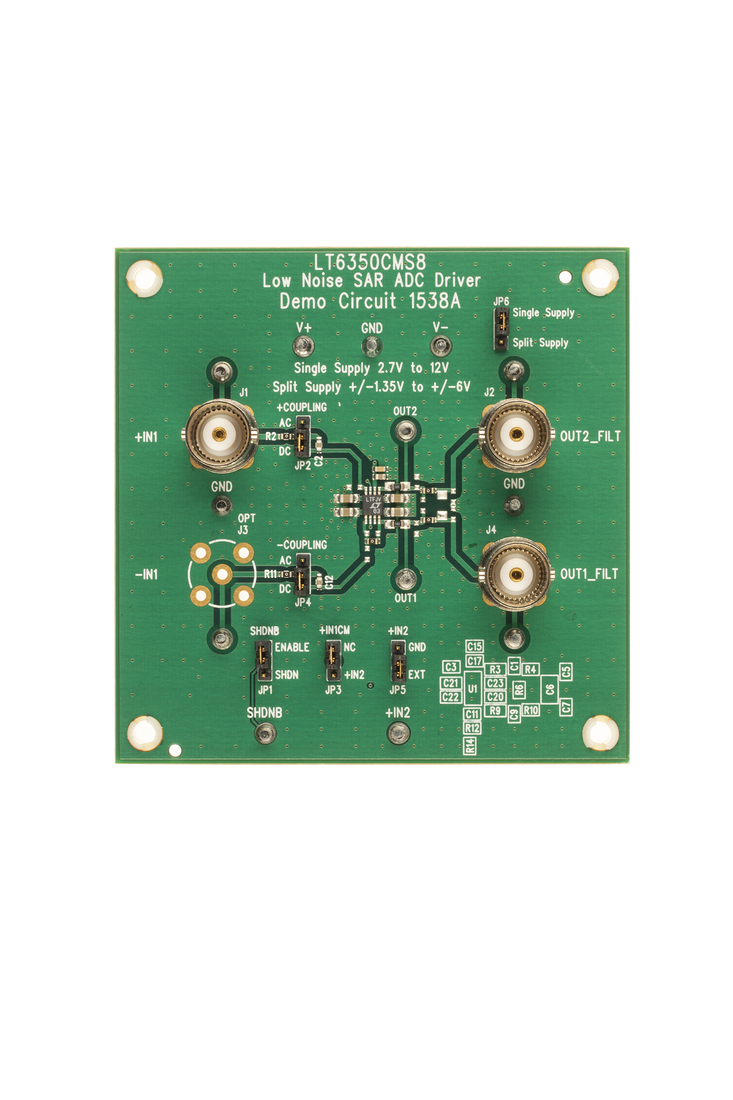

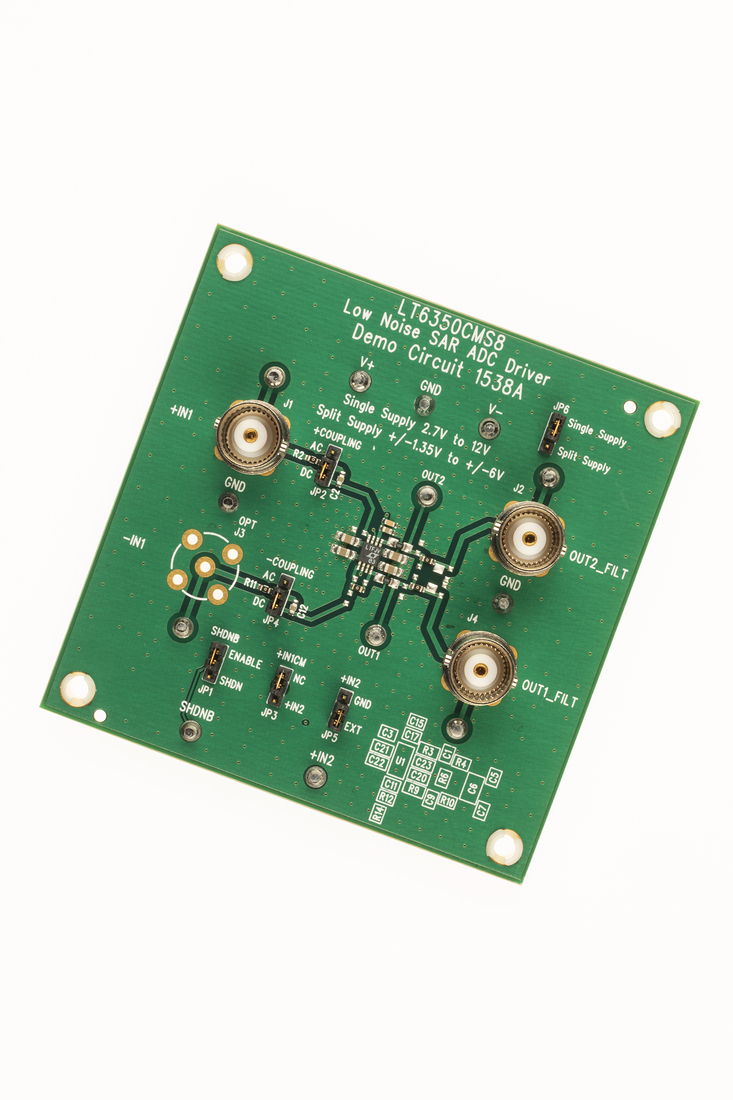

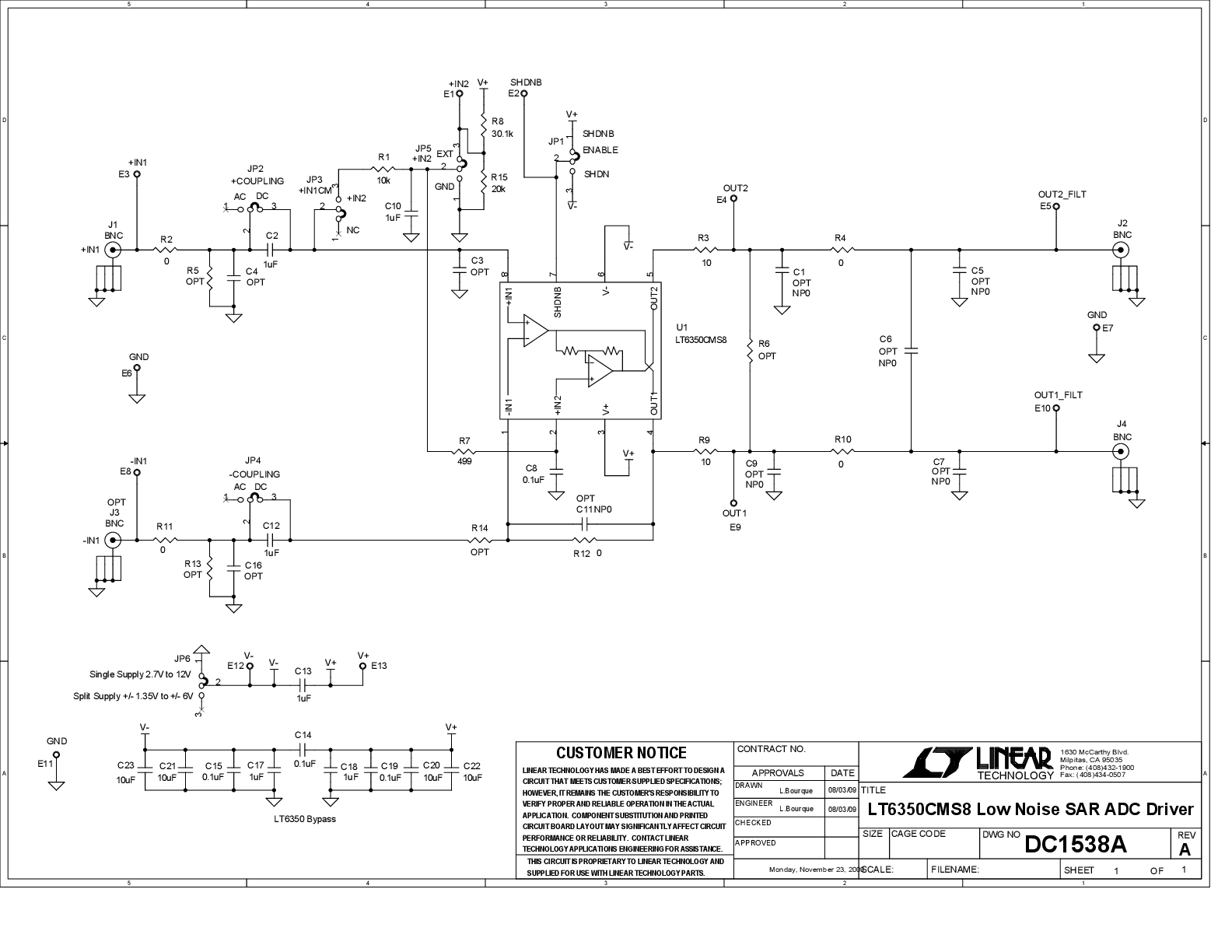

DC1538A

LT6350 Demo Board

Tools & Simulations

Tools & Simulations 1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
