LTM2893

100MHz Isolated ADC Serial Interface

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 6
1ku List Price Starting From $9.58
Features
  • Isolated Interface: 6000VRMS for 1 Minute
  • UL-CSA Recognition Pending
  • 100MHz SPI-Compatible I/O
  • Configurable SPI Word Length 8 to 32 Bits
  • Low Jitter Conversion Start (30psRMS)
  • Supports Simultaneously Sampled ADCs
  • Read Only (LTM2893), Read/Write (LTM2893-1)
  • Three Isolated Multiplexer Select Signals
  • 1.71V to 5.5V I/O Voltages
  • 3V to 5.5V Supply Voltages
  • High Common Mode Transient Immunity

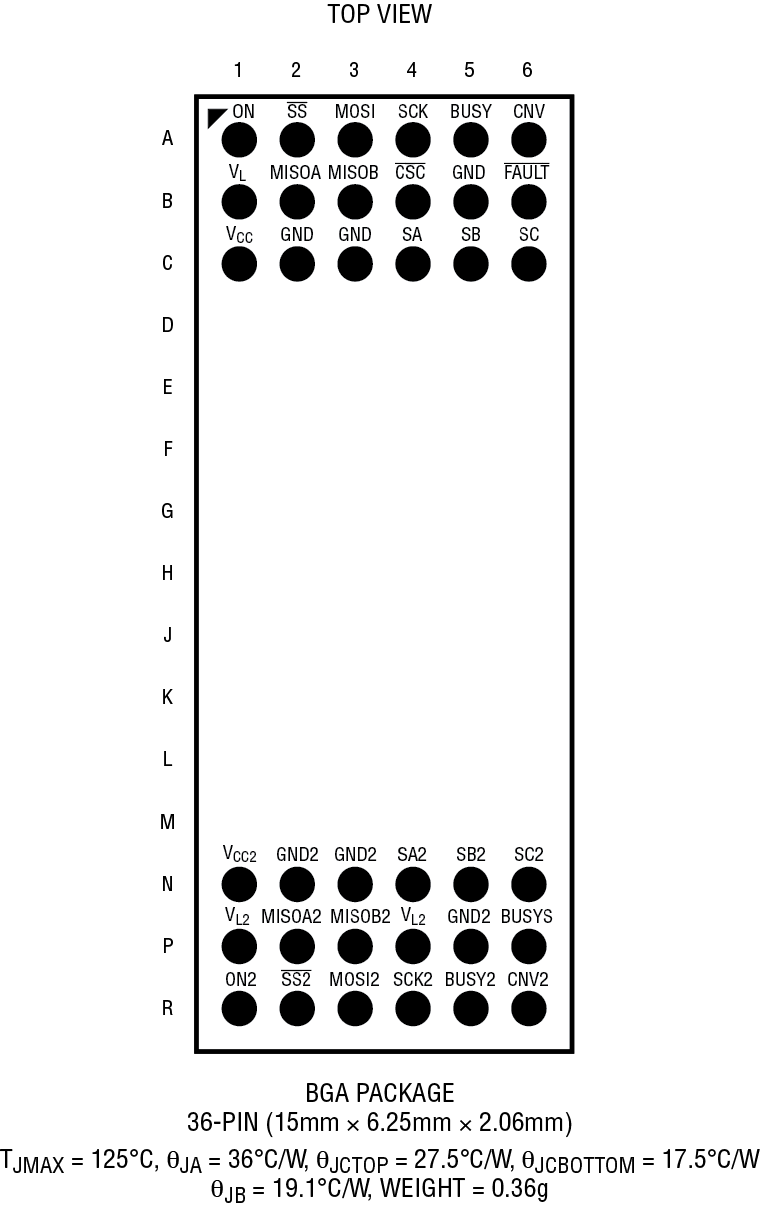

  • 15mm × 6.25mm BGA Package
Additional Details
show more Icon

The LTM2893 is a high speed isolated μModule (micromodule) SPI interface with ADC control signals. The LTM2893 is optimized for isolating 1Msps high resolution 18-bit SAR ADCs, such as the LTC2338 and similar families, and can interface with most general purpose ADCs. The LTM2893-1 is optimized for isolating the LTC2348 and similar families of simultaneous sampling ADCs that require writing configuration settings into the ADC. LTM2893 isolates the conversion start, sampling signal, with very low aperture jitter (30ps) and low latency (20ns).

The interface enables fast throughput with no cycle latency, which makes the LTM2893 ideally suited for a wide variety of applications. The LTM2893 has a high speed SPI-compatible serial port that supports 1.71V to 5.5V logic and is configurable for ADCs with 8 to 32 bit SPI word lengths. It also isolates three select signals (SA, SB, SC) for controlling analog multiplexers or gain settings.

The isolation barrier tolerates large voltage ground variations between the logic interface and the isolated side of the LTM2893. Uninterrupted communication is maintained during voltage transients greater than 50kV/μs.

Applications

  • Remote Sensing
  • High Speed Data Acquisition
  • Industrial Process Control
  • Test and Measurement Equipment
Part Models 6
1ku List Price Starting From $9.58

close icon
Documentation

Documentation

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTM2893CY#PBF
  • HTML
  • HTML
LTM2893CY-1#PBF
  • HTML
  • HTML
LTM2893HY#PBF
  • HTML
  • HTML
LTM2893HY-1#PBF
  • HTML
  • HTML
LTM2893IY#PBF
  • HTML
  • HTML
LTM2893IY-1#PBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jul 21, 2021

- 21_0159

Ink Mark to Laser Mark Conversion for µModule

LTM2893CY#PBF

LTM2893CY-1#PBF

LTM2893HY#PBF

LTM2893HY-1#PBF

LTM2893IY#PBF

LTM2893IY-1#PBF

Feb 28, 2020

- 20_0123

Micro-Module, Test Site Transfer from Analog Devices Singapore to Analog Devices Penang, Malaysia

LTM2893CY#PBF

LTM2893CY-1#PBF

LTM2893HY#PBF

LTM2893HY-1#PBF

LTM2893IY#PBF

LTM2893IY-1#PBF

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jul 21, 2021

- 21_0159

arrow down

Ink Mark to Laser Mark Conversion for µModule

LTM2893CY#PBF

LTM2893CY-1#PBF

LTM2893HY#PBF

LTM2893HY-1#PBF

LTM2893IY#PBF

LTM2893IY-1#PBF

Feb 28, 2020

- 20_0123

arrow down

Micro-Module, Test Site Transfer from Analog Devices Singapore to Analog Devices Penang, Malaysia

LTM2893CY#PBF

LTM2893CY-1#PBF

LTM2893HY#PBF

LTM2893HY-1#PBF

LTM2893IY#PBF

LTM2893IY-1#PBF

Software & Part Ecosystem

Software & Part Ecosystem



LinearLab Tools

Info:False

A collection of Matlab and Python programs that provide direct access to Linear Technology’s data converter evaluation boards.

Evaluation Kit

Evaluation Kits 2

reference details image

DC2405A

LTM2893 Demo Board | 100MHz SPI µModule Isolator

zoom

DC2405A

LTM2893 Demo Board | 100MHz SPI µModule Isolator

LTM2893 Demo Board | 100MHz SPI µModule Isolator

Product Detail

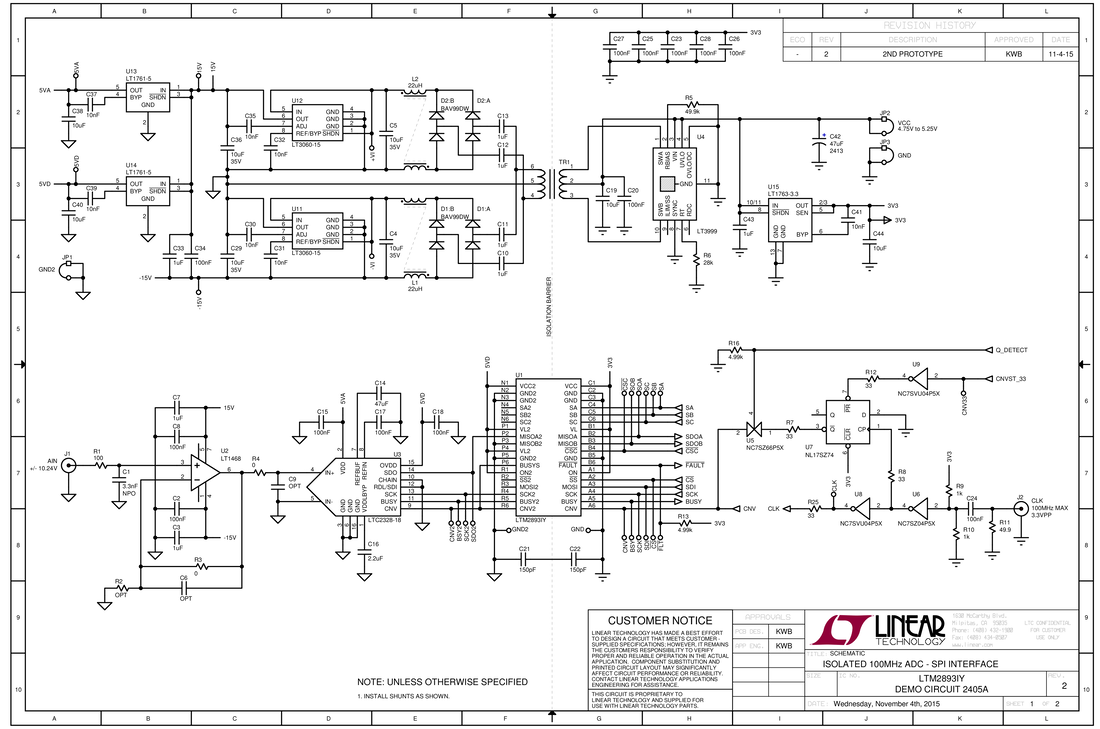

Demonstration circuit 2405A shows an LTM2893 isolating and interfacing an LTC2328-18. The LTM2893 is a high speed SPI isolator for interfacing read only ADCs with a full complement of control signals. The LTC2328-18 is a low noise, high speed 18-bit successive approximation register (SAR) ADC. Low noise isolated power is delivered to the isolated side with an LT3999 push-pull driver and isolation transformer.

reference details image

DC2542A

LTC2358-18, LTM2893, ADA4522-1, LT6658 Demo Board | Isolated Industrial Data Acquisition Board (Requires ArrowSoCkit)

zoom

DC2542A

LTC2358-18, LTM2893, ADA4522-1, LT6658 Demo Board | Isolated Industrial Data Acquisition Board (Requires ArrowSoCkit)

LTC2358-18, LTM2893, ADA4522-1, LT6658 Demo Board | Isolated Industrial Data Acquisition Board (Requires ArrowSoCkit)

Product Detail

Demonstration circuit 2542A is a reference design for robust industrial data acquisition applications based on the LTC2358-18. The LTC2358-18 is capable of high voltage measurements with a large input common range; however, the DC2542A implements input protection that allows up to 400V of continuous input protection. Combined with gas discharge tubes, which provide protection from surges, the DC2542A is capable of surviving extreme abuse.


Please click here for the Arrow SoCkit

Tools & Simulations

Tools & Simulations 1

Linduino

Linduino is Analog Devices’ Arduino compatible system for developing and distributing firmware libraries and example code for our integrated circuits. Each Linduino-supported product includes an example main program, defined in the LTSketchbook/Part Number folder and driver code, defined in the LTSketchbook/libraries folder.

Linduino code repository on GitHub and instructions on how to use the code.
