LT3652

Power Tracking 2A Battery Charger for Solar Power

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet
Documentation View All Documentation
LTspice LT3652 - Power Management Download 1.66 KB LTspice LT3652 Demo Circuit - 1A Solar Panel Powered 3-Stage 12V Lead-Acid Fast/Float Charger (16V to 14.4V @ 1A) Download 4.00KB
Part Models 8
1ku List Price Starting From $3.66
Features

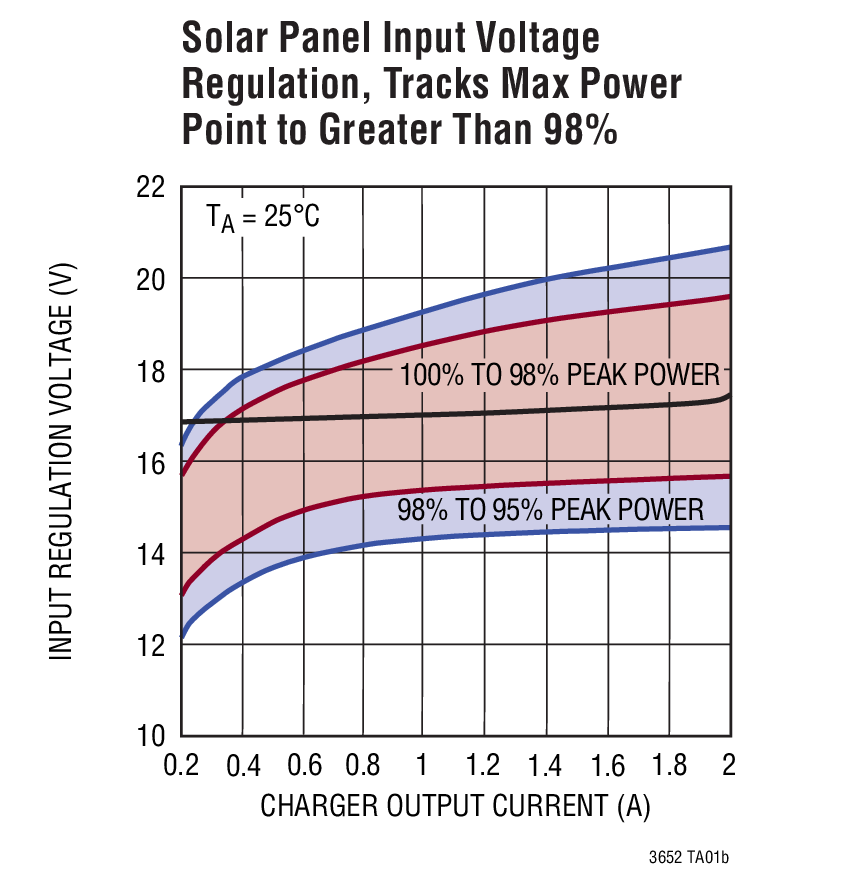

  • Input Supply Voltage Regulation Loop for Peak Power Tracking in (MPPT) Solar Applications
  • Wide Input Voltage Range: 4.95V to 32V (40V Abs Max)
  • Programmable Charge Rate Up to 2A
  • User Selectable Termination: C/10 or On-Board Termination Timer
  • Resistor Programmable Float Voltage Up to 14.4V Accommodates Li-Ion/Polymer, LiFePO4, SLA Chemistries
  • No VIN Blocking Diode Required for Battery Voltages ≤ 4.2V
  • 1MHz Fixed Frequency
  • 0.5% Float Voltage Reference Accuracy
  • 5% Charge Current Accuracy
  • 2.5% C/10 Detection Accuracy
  • Binary-Coded Open-Collector Status Pins

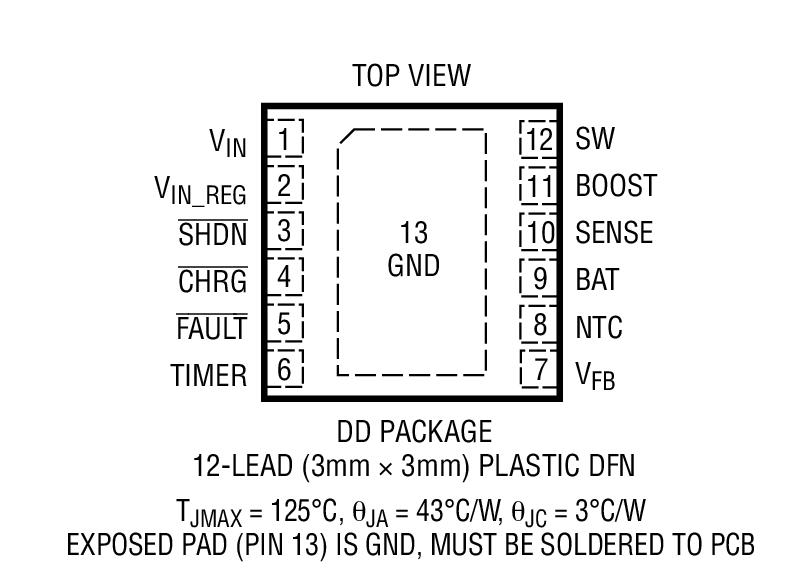

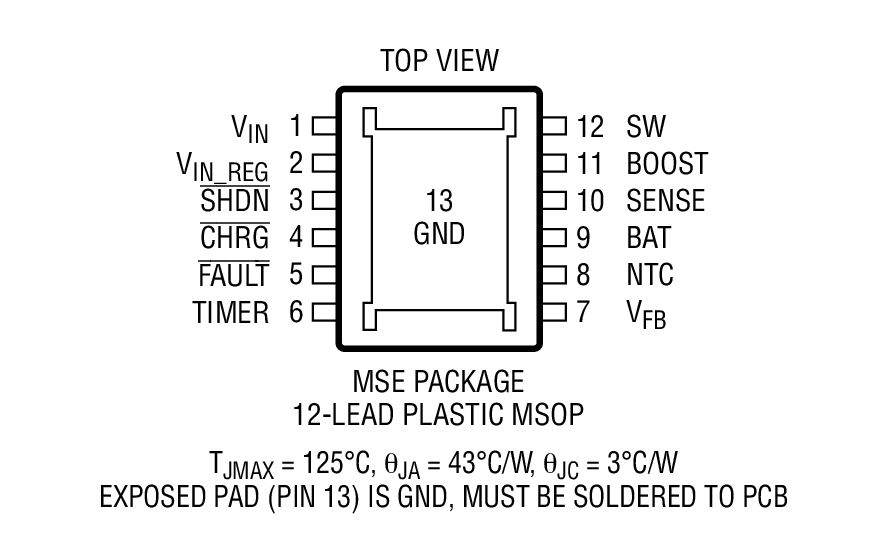

  • Thermally Enhanced 12-Lead 3mm × 3mm DFN and MSE Packages
Additional Details
show more Icon

The LT3652 is a complete monolithic step-down battery charger that operates over a 4.95V to 32V input voltage range. The LT3652 provides a constant-current/constant-voltage charge characteristic, with maximum charge current externally programmable up to 2A. The charger employs a 3.3V float voltage feedback reference, so any desired battery float voltage up to 14.4V can be programmed with a resistor divider.

The LT3652 employs an input voltage regulation loop, which reduces charge current if the input voltage falls below a programmed level, set with a resistor divider. When the LT3652 is powered by a solar panel, the input regulation loop is used to maintain the panel at peak output power.

The LT3652 can be configured to terminate charging when charge current falls below 1/10 of the programmed maximum (C/10). Once charging is terminated, the LT3652 enters a low-current (85μA) standby mode. An auto-recharge feature starts a new charging cycle if the battery voltage falls 2.5% below the programmed float voltage. The LT3652 also contains a programmable safety timer, used to terminate charging after a desired time is reached. This allows top-off charging at currents less than C/10.

VIN Max VFLOAT Max Features
LT3652 32V 14.4V Internal Reverse Blocking VBAT < 4.2V
LT3652HV 34V 18V

APPLICATIONS

  • Solar Powered Applications
  • Remote Monitoring Stations
  • LiFePO4 (Lithium Phosphate) Applications
  • Portable Handheld Instruments
  • 12V to 24V Automotive Systems
Show More Arrow image
file View Data Sheet
Documentation View All Documentation
LTspice LT3652 - Power Management Download 1.66 KB LTspice LT3652 Demo Circuit - 1A Solar Panel Powered 3-Stage 12V Lead-Acid Fast/Float Charger (16V to 14.4V @ 1A) Download 4.00KB
Part Models 8
1ku List Price Starting From $3.66
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LT3652

Documentation

13
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • User Guide
  • Technical Articles
  • Data Sheet
  • Reliability Data
  • Application Note
  • All
    TickIcon
  • English
  • Japanese
  • Chinese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 12/16/2015
English

LT3652: Power Tracking 2A Battery Charger for Solar Power Data Sheet

Open PDF File

redirect
521.00K
download

Download PDF

PDF Vector

PDF

UPDATED 04/15/2013
Japanese

LT3652: ソーラーパワー向けパワー・トラッキング2Aバッテリ・チャージャ データシート

Open PDF File

redirect
630.00K
download

Download PDF

User Guide

1

PDF Vector

PDF

UPDATED 03/29/2013
English
DC1568A - Demo Manual redirect icon

232.00K

download

Download PDF

Technical Articles

7

PDF Vector

PDF

UPDATED 12/22/2010
English
Power-Tracking Battery-Charger IC Supports Solar-Power Systems - P.E.T. Sep 2009 redirect icon

251.00K

download

Download PDF

PDF Vector

HTML

UPDATED 10/01/2013
English
Solar Battery Charger Maintains High Efficiency in Low Light redirect icon

PDF Vector

HTML

UPDATED 10/01/2013
Japanese
低照度で高い効率を維持する太陽電池チャージャ redirect icon

PDF Vector

HTML

UPDATED 01/01/2011
English
Battery Charger’s Unique Input Regulation Loop Simplifies Solar Panel Maximum Power Point Tracking redirect icon

PDF Vector

HTML

UPDATED 12/01/2009
English
Designing a Solar Cell Battery Charger redirect icon

PDF Vector

HTML

UPDATED 02/03/2014
English
Techniques to Maximize Solar Panel Power Output redirect icon

PDF Vector

HTML

UPDATED 02/03/2014
Japanese
ソーラー・パネルの電力出力を最大限まで高めるテクニック redirect icon

Reliability Data

1

PDF Vector

PDF

UPDATED 03/26/2018
English
R541 Reliability Data redirect icon

17.69 K

download

Download PDF

Application Note

2

PDF Vector

HTML

UPDATED 06/01/2020
English
Reverse Voltage Protection for Battery Chargers redirect icon

PDF Vector

HTML

UPDATED 06/01/2020
Chinese
电池充电器的反向电压保护 redirect icon

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

Technical Documents 9
show more Icon

Data Sheet 1

LT3652: Power Tracking 2A Battery Charger for Solar Power Data Sheet

Reliability Data 1

R541 Reliability Data

User Guide 1

DC1568A - Demo Manual

Application Note 1

Reverse Voltage Protection for Battery Chargers

Technical Articles 5

Power-Tracking Battery-Charger IC Supports Solar-Power Systems - P.E.T. Sep 2009
Solar Battery Charger Maintains High Efficiency in Low Light
Battery Charger’s Unique Input Regulation Loop Simplifies Solar Panel Maximum Power Point Tracking
Designing a Solar Cell Battery Charger
Techniques to Maximize Solar Panel Power Output

Solutions Bulletin & Brochure 2

Industrial Battery Chargers Overview
Energy Harvesting Now

Product Selector Card 4

High Voltage Battery Charging and Management Solutions
20V Battery Gas Gauge
Practical Ambient Energy Harvesting for WSNs
Practical Ambient Energy Harvesting for WSNs

Video

1

Thumbnail Image

Video

2017-09-18

LT3652 Video Product Brief

Learn More
Show More Arrow image

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LT3652EDD#PBF 12-Lead DFN (3mm x 3mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3652EDD#TRPBF 12-Lead DFN (3mm x 3mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3652EMSE#PBF 12-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3652EMSE#TRPBF 12-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3652IDD#PBF 12-Lead DFN (3mm x 3mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3652IDD#TRPBF 12-Lead DFN (3mm x 3mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3652IMSE#PBF 12-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3652IMSE#TRPBF 12-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jun 5, 2024

- 24_0003

Epoxy Change from Henkel 8290 to 8290A for MSOP Package (2)

LT3652EMSE#PBF

PRODUCTION

LT3652EMSE#TRPBF

PRODUCTION

LT3652IMSE#PBF

PRODUCTION

LT3652IMSE#TRPBF

PRODUCTION

pdf

PCN24_0003_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

xlsm

Delta Qualification Matrix

Download

Feb 4, 2020

- 20_0129

Laser Mark Conversion for 12-Lead MSOP Packages Assembled in ADPG and UTAC

LT3652EMSE#PBF

PRODUCTION

LT3652EMSE#TRPBF

PRODUCTION

LT3652IMSE#PBF

PRODUCTION

LT3652IMSE#TRPBF

PRODUCTION

pdf

PCN20_0129_Form

external-icon

xls

Material_Report

Download

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jun 5, 2024

- 24_0003

arrow down

Epoxy Change from Henkel 8290 to 8290A for MSOP Package (2)

LT3652EMSE#PBF

PRODUCTION

LT3652EMSE#TRPBF

PRODUCTION

LT3652IMSE#PBF

PRODUCTION

LT3652IMSE#TRPBF

PRODUCTION

pdf

PCN24_0003_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

xlsm

Delta Qualification Matrix

Download
Feb 4, 2020

- 20_0129

arrow down

Laser Mark Conversion for 12-Lead MSOP Packages Assembled in ADPG and UTAC

LT3652EMSE#PBF

PRODUCTION

LT3652EMSE#TRPBF

PRODUCTION

LT3652IMSE#PBF

PRODUCTION

LT3652IMSE#TRPBF

PRODUCTION

pdf

PCN20_0129_Form

external-icon

xls

Material_Report

Download

Software & Part Ecosystem

Parts Product Life Cycle Description

µModule Battery Chargers1
LTM8062
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

32VIN, 2A μModule (Power Module) Power Tracking Battery Charger

Battery Fuel Gauge and Coulomb Counter1
LTC2943
popup image
Cart

PRODUCTION

Multicell Battery Gas Gauge with Temperature, Voltage and Current Measurement

Digital Temperature Sensors1
LTC2991
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

Octal I2C Voltage, Current, and Temperature Monitor

Dual-Supply Monitors1
LTC2960
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

36V Nano-Current Two-Input Voltage Monitor

PowerPath, Ideal Diodes, and Load Switches2
LTC4359
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

Ideal Diode Controller with Reverse Input Protection

LTC4417
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

Prioritized PowerPath™ Controller

Pushbutton Controllers1
LTC2956
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

Wake-Up Timer with Pushbutton Control

Parts Product Life Cycle Description
LT3652HV
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

Power Tracking 2A Battery Charger

Evaluation Kits 1

reference details image

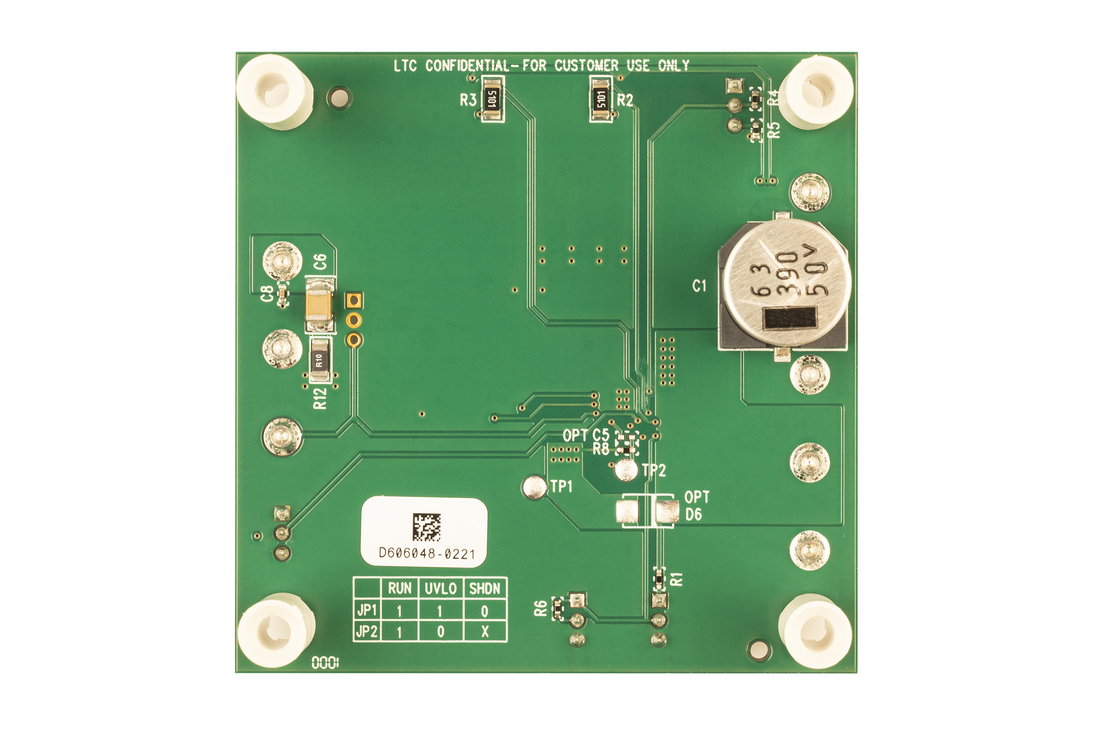

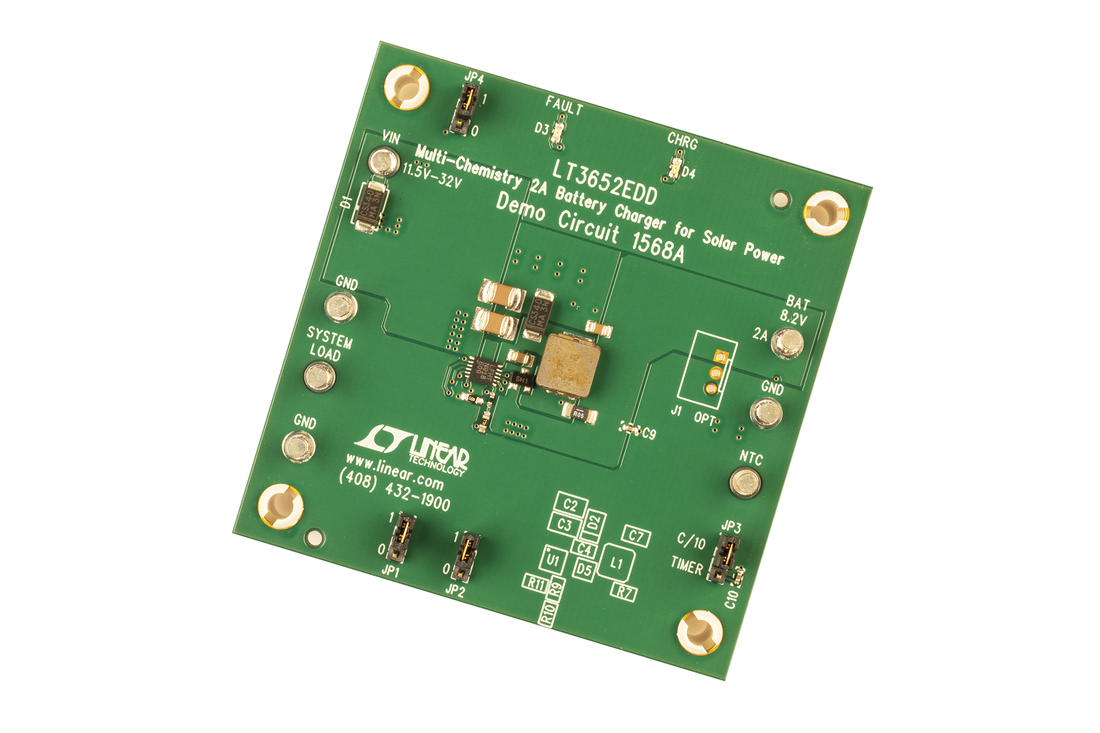

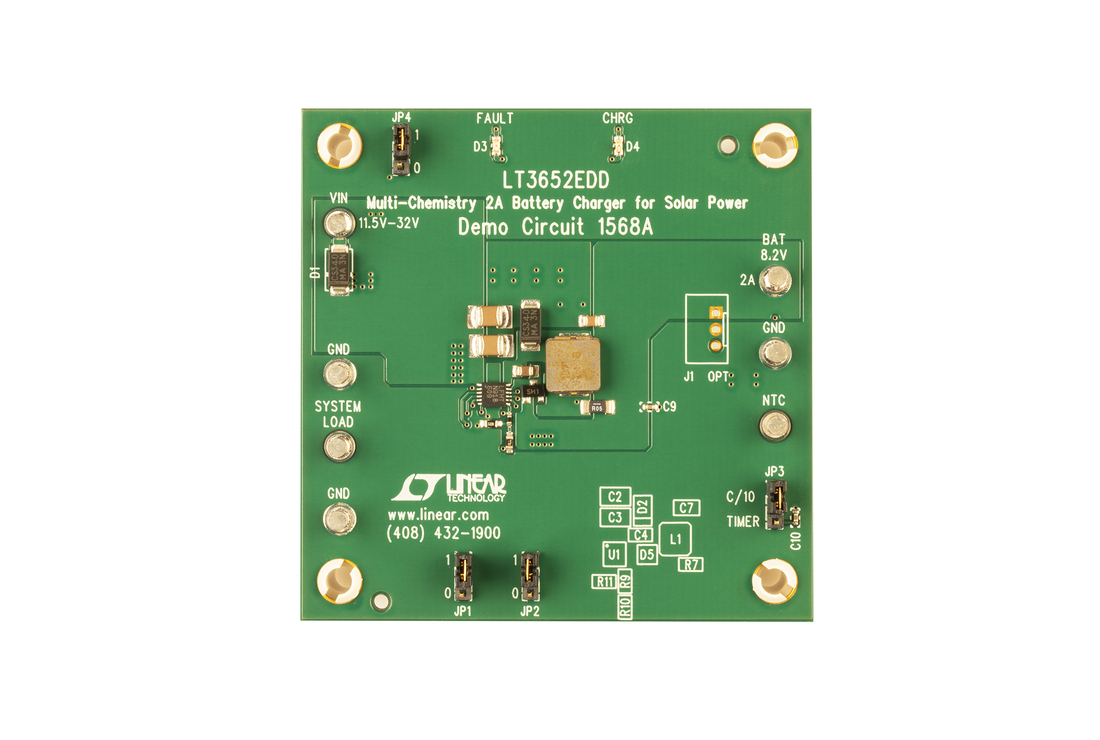

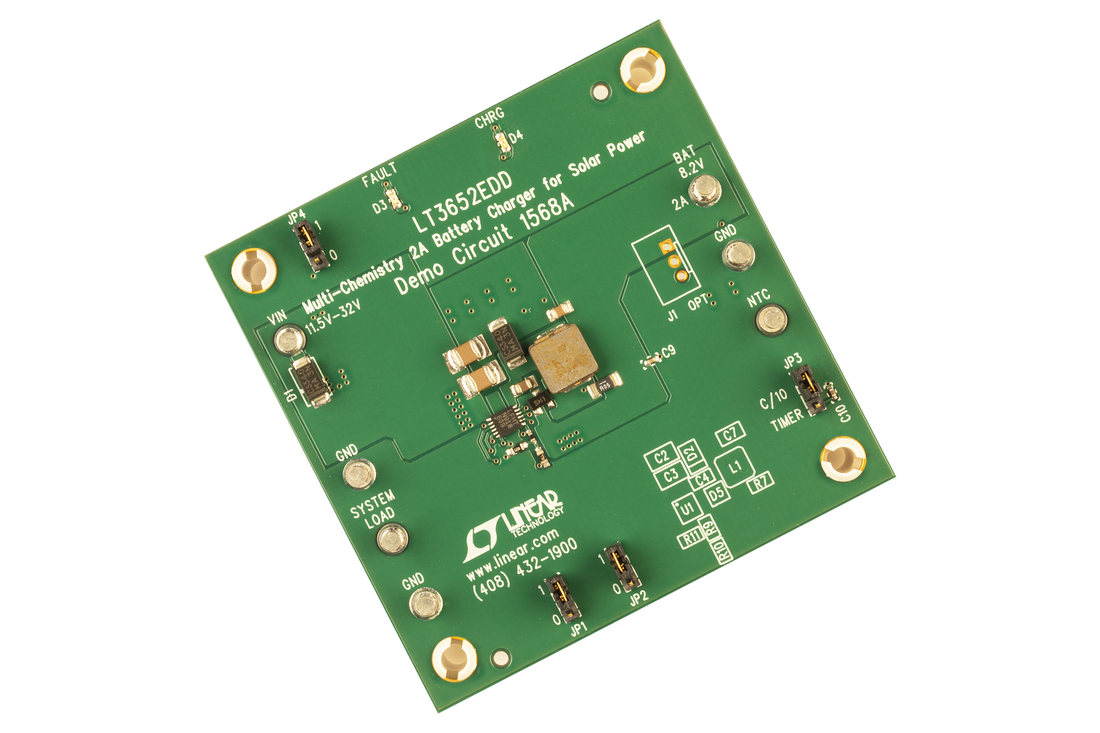

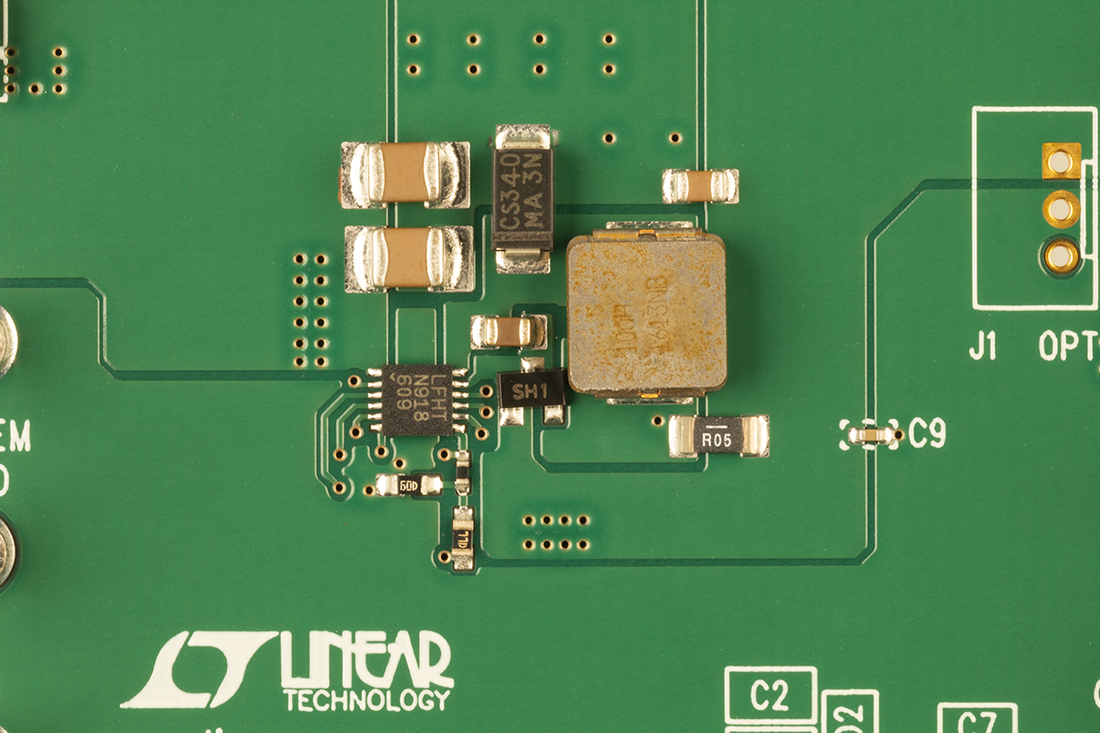

DC1568A

LT3652EDD Demo Board | 11.5V to 32VIN, 2A Buck Battery Charger, MPPC for Solar Power Input

zoom

DC1568A

LT3652EDD Demo Board | 11.5V to 32VIN, 2A Buck Battery Charger, MPPC for Solar Power Input

download icon

Download

 print icon

Print
DC1568A
LT3652EDD Demo Board | 11.5V to 32VIN, 2A Buck Battery Charger, MPPC for Solar Power Input
Buy Now View Details

Product Detail

Demonstration circuit 1568A is a 2A monolithic multichemistry battery charger for solar power applications featuring the LT3652EDD. The LT3652 is a complete mid-power Li-Ion battery charger that can operate over a wide input voltage range. The charger employs a 3.3V float voltage feedback reference that allows the battery float voltage to be adjusted up to 14.4V.


The LT3652 has an input voltage regulation loop which reduces charge current if the input falls below a programmed level, set with a resistor divider. The circuit provides CC/CV charging with a 2A maximum charge current that is programmed by a sense resistor.





Resources

pdf icon

ZIP

DC1568A - Design Files Download

741.00K

pdf icon

PDF

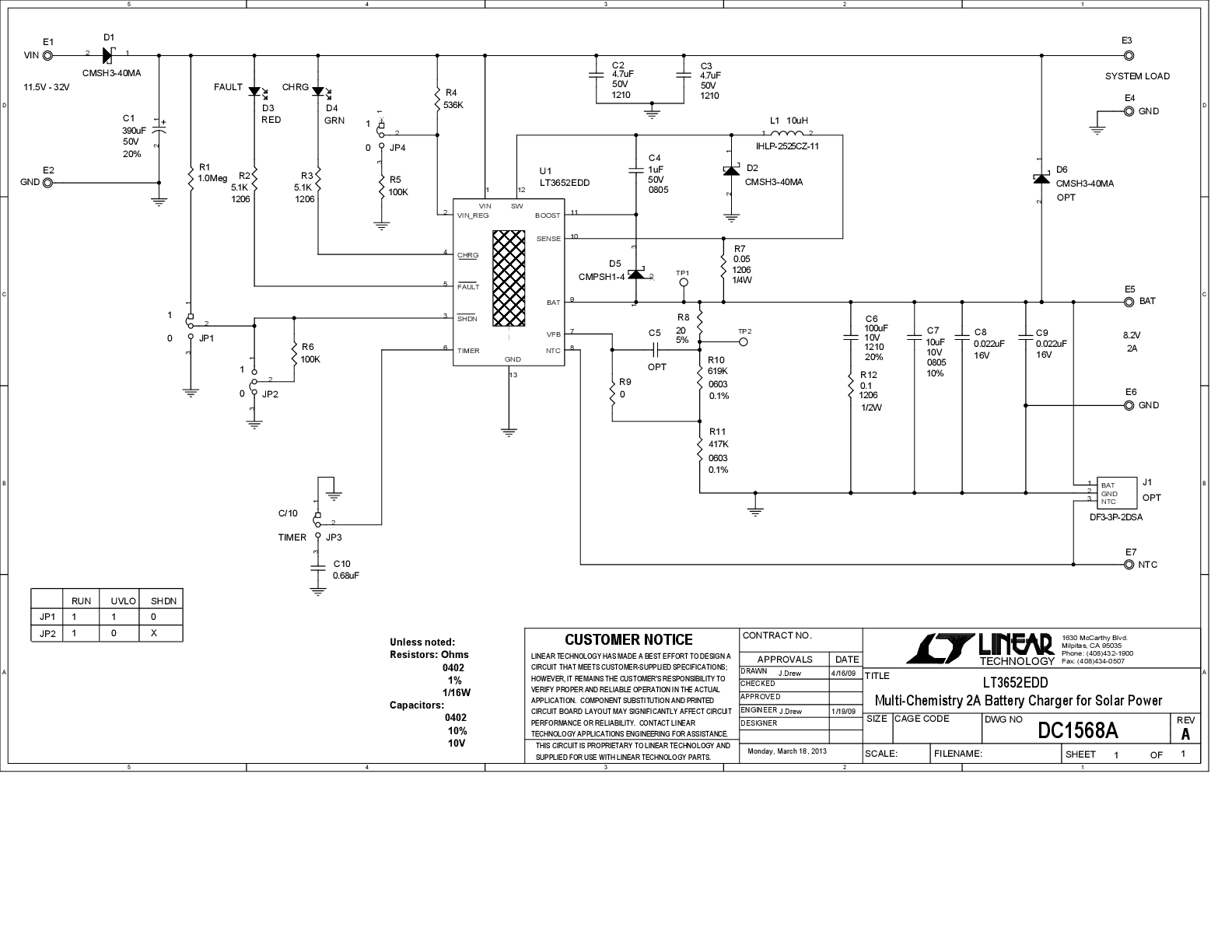

DC1568A - Schematic Download

82.00K

pdf icon

PDF

DC1568A - Demo Manual Download

232.00K

Show More Arrow image

Evaluation Kits1

evaluation kit item images

DC1568A

LT3652EDD Demo Board | 11.5V to 32VIN, 2A Buck Battery Charger, MPPC for Solar Power Input

Tools & Simulations 1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.

spice tool Lt Spice

LT3652 - Power Management Download

1.66 K

spice tool Lt Spice

LT3652 Demo Circuit - 1A Solar Panel Powered 3-Stage 12V Lead-Acid Fast/Float Charger (16V to 14.4V @ 1A) Download

4.00K
