ADV7180

NOT RECOMMENDED FOR NEW DESIGNS

10-Bit, 4× Oversampling SDTV Video Decoder

Data Sheet (Rev. K) Product Selection Table

Part Models: 20
1ku List Price: Starting From $4.87

Viewing:

Overview

AEC-Q100 qualified for automotive applications
Worldwide NTSC/PAL/SECAM color demodulation support
One 10-bit ADC, 4× oversampling for CVBS, 2× oversampling for Y/C mode, and 2× oversampling for YPrPb (per channel)
3 video input channels with on-chip antialiasing filter
CVBS (composite), Y/C (S-Video), and YPrPb (component) video input support
5-line adaptive comb filters and CTI/DNR video enhancement
Mini-TBC functionality provided by adaptive digital line length tracking (ADLLT), signal processing, and enhanced FIFO management
Integrated AGC with adaptive peak white mode
Macrovision copy protection detection
NTSC/PAL/SECAM autodetection
8-bit ITU-R BT.656 YCrCb 4:2:2 output and HS, VS, and FIELD; the 48-Lead LQFP, 40-lead LFCSP, and 32-lead LFCSP use one pin to output VS or FIELD.
1.0 V analog input signal range

Full-featured VBI data slicer with teletext support (WST)
Power-down mode and ultralow sleep mode current
2-wire serial MPU interface (I²C compatible)
Single 1.8 V supply possible
1.8 V analog, 1.8 V PLL, 1.8 V digital, 1.8 V to 3.3 V I/O supply
−10°C to +70°C commercial temperature grade
−40°C to +85°C industrial/automotive qualified temperature grade
−40°C to +125°C temperature grade for automotive qualified

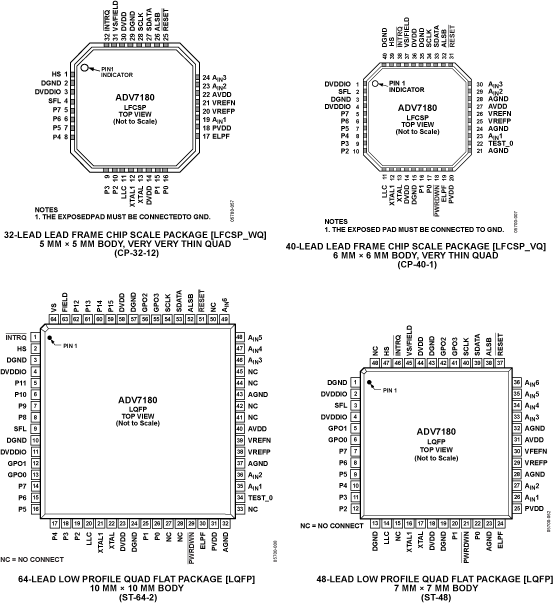

4 package types

64-lead, 10 mm × 10 mm, RoHS compliant LQFP
48-Lead, 7 mm × 7 mm, RoHS compliant LQFP
40-lead, 6 mm × 6 mm, RoHS compliant LFCSP
32-lead, 5 mm × 5 mm, RoHS compliant LFCSP

The ADV7180 automatically detects and converts standard analog baseband television signals compatible with worldwide NTSC, PAL, and SECAM standards into 4:2:2 component video data compatible with the 8-bit ITU-R BT.656 interface standard.

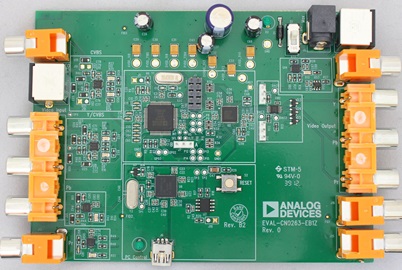

The simple digital output interface connects gluelessly to a wide range of MPEG encoders, codecs, mobile video processors, and Analog Devices, Inc., digital video encoders, such as the ADV7391. External HS, VS, and FIELD signals provide timing references for LCD controllers and other video ASICs, if required. Accurate 10-bit analog-to-digital conversion provides professional quality video performance for consumer applications with true 8-bit data resolution. Three analog video input channels accept standard composite, S-video, or component video signals, supporting a wide range of consumer video sources. AGC and clamp-restore circuitry allow an input video signal peak-to-peak range to 1.0 V. Alternatively, these can be bypassed for manual settings.

The line-locked clock output allows the output data rate, timing signals, and output clock signals to be synchronous, asynchronous, or line locked even with ±5% line length variation. Output control signals allow glueless interface connections in many applications. The ADV7180 is programmed via a 2-wire, serial bidirectional port (I²C^®compatible) and is fabricated in a 1.8 V CMOS process. Its monolithic CMOS construction ensures greater functionality with lower power dissipation. LFCSP package options makes the decoder ideal for space-constrained portable applications. A 64-lead LQFP package is pin compatible with the ADV7181C.

The 48-Lead LQFP, 40-lead LFCSP, and 32-lead LFCSP use one pin to output VS or FIELD.

Applications

Digital camcorders and PDAs
Low cost SDTV PIP decoder for digital TVs
Multichannel DVRs for video security
AV receivers and video transcoding
PCI-/USB-based video capture and TV tuner cards
Personal media players and recorders
Smartphone/multimedia handsets
In-car/automotive infotainment units
Rearview camera/vehicle safety systems

Part Models: 20
1ku List Price: Starting From $4.87

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADV7180BCP32Z	32-Lead LFCSP (5mm x 5mm x 0.75mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADV7180BCP32Z-RL	32-Lead LFCSP (5mm x 5mm x 0.75mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADV7180BCPZ	40-Lead LFCSP (6mm x 6mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADV7180BCPZ-REEL	40-Lead LFCSP (6mm x 6mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADV7180BST48Z	48-Lead LQFP (7mm x 7mm)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADV7180BST48Z-RL	48-Lead LQFP (7mm x 7mm)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADV7180BSTZ	64-Lead LQFP (10mm x 10mm)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADV7180BSTZ-REEL	64-Lead LQFP (10mm x 10mm)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADV7180KCP32Z	32-Lead LFCSP (5mm x 5mm x 0.75mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADV7180KCP32Z-RL	32-Lead LFCSP (5mm x 5mm x 0.75mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADV7180KST48Z	48-Lead LQFP (7mm x 7mm)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADV7180KST48Z-RL	48-Lead LQFP (7mm x 7mm)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADV7180WBCP32Z	32-Lead LFCSP (5mm x 5mm x 0.75mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADV7180WBCP32Z-RL	32-Lead LFCSP (5mm x 5mm x 0.75mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADV7180WBCPZ	40-Lead LFCSP (6mm x 6mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADV7180WBCPZ-REEL	40-Lead LFCSP (6mm x 6mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADV7180WBST48Z	48-Lead LQFP (7mm x 7mm)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADV7180WBST48Z-RL	48-Lead LQFP (7mm x 7mm)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADV7180WBSTZ	64-Lead LQFP (10mm x 10mm)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADV7180WBSTZ-REEL	64-Lead LQFP (10mm x 10mm)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Jul 3, 2025 - 24_0009 Qualification of Alternative Wafer Fab for TSMC 0.18um Mixed Signal CMOS Process
		PCN24_0009_Form Material_Report Delta Qualification Matrix Qualification Results Summary
ADV7180BCP32Z	PRODUCTION
ADV7180BCP32Z-RL	PRODUCTION
ADV7180BCPZ	PRODUCTION
ADV7180BCPZ-REEL	PRODUCTION
ADV7180BST48Z	PRODUCTION
ADV7180BST48Z-RL	PRODUCTION
ADV7180BSTZ	PRODUCTION
ADV7180BSTZ-REEL	PRODUCTION
ADV7180KCP32Z	PRODUCTION
ADV7180KCP32Z-RL	PRODUCTION
ADV7180KST48Z	PRODUCTION
ADV7180KST48Z-RL	PRODUCTION
ADV7180WBCP32Z	PRODUCTION
ADV7180WBCP32Z-RL	PRODUCTION
ADV7180WBST48Z	PRODUCTION
ADV7180WBST48Z-RL	PRODUCTION
ADV7180WBSTZ	PRODUCTION
ADV7180WBSTZ-REEL	PRODUCTION
Jun 5, 2014 - 13_0303 Assembly Transfer to Amkor Philippines and Test Transfer to STATS ChipPAC China of Select 5x5 LFCSP Products
		PCN13_0303_Form Material_Report Qualification Results Summary Detailed Change Description Test Correlation Report Test Correlation Report Test Correlation Report Test Correlation Report Test Correlation Report
ADV7180BCP32Z	PRODUCTION
ADV7180BCP32Z-RL	PRODUCTION
ADV7180KCP32Z	PRODUCTION
ADV7180KCP32Z-RL	PRODUCTION
Jun 26, 2023 - 23_0025 Package Outline Drawing and Data Sheet Revision for Select LFCSP Products in Amkor
		PCN23_0025_Form Material_Report Package Outline Drawing Qualification Results Summary
ADV7180BCPZ	PRODUCTION
ADV7180BCPZ-REEL	PRODUCTION
Dec 7, 2016 - 16_0033 Assembly Relocation to Stats ChipPAC Jiangyin and Test Transfer to Stats ChipPAC Singapore of Select QFP Products
		PCN16_0033_Form Material_Report Qualification Results Summary Qualification Results Summary Qualification Results Summary Test Correlation Report
ADV7180BST48Z	PRODUCTION
ADV7180BST48Z-RL	PRODUCTION
ADV7180BSTZ	PRODUCTION
ADV7180BSTZ-REEL	PRODUCTION
ADV7180KST48Z	PRODUCTION
ADV7180KST48Z-RL	PRODUCTION
ADV7180WBST48Z	PRODUCTION
ADV7180WBST48Z-RL	PRODUCTION
ADV7180WBSTZ	PRODUCTION
ADV7180WBSTZ-REEL	PRODUCTION
Oct 22, 2009 - 09_0227 Metal2 mask edit for ADV7180BSTZ & ADV7180WBSTZ
		Material_Report PCN09_0227_Form
ADV7180BSTZ	PRODUCTION
ADV7180BSTZ-REEL	PRODUCTION
ADV7180WBSTZ	PRODUCTION
ADV7180WBSTZ-REEL	PRODUCTION
Jan 5, 2009 - 07_0077 Certification of STATSChipPAC Shanghai, China and AMKOR Philippines as additional sources for Assembly & Test of QFP Packages
		07_0077Rev D_LQFP_Dec17 07_0077Rev D_MQFP_Dec15 07_0077Rev D_Obsolesence_Dec15 07_0077Rev D_TQFP_Dec15 Material_Report PCN07_0077_Form QFP Transfer Qualification Results-tests_DEC12CL
ADV7180BSTZ	PRODUCTION
ADV7180WBSTZ	PRODUCTION
ADV7180WBSTZ-REEL	PRODUCTION
Jun 25, 2014 - 13_0266 Test Transfer of Select LFCSP Products to STATS ChipPAC China
		PCN13_0266_Form Material_Report Test Correlation Report
ADV7180WBCP32Z	PRODUCTION
ADV7180WBCP32Z-RL	PRODUCTION
May 1, 2024 - 24_0009 Qualification of Alternative Wafer Fab for TSMC 0.18um Mixed Signal CMOS Process
		PCN24_0009_Form Material_Report Delta Qualification Matrix Qualification Results Summary
ADV7180WBCPZ	PRODUCTION
ADV7180WBCPZ-REEL	PRODUCTION
Sep 10, 2014 - 14_0177 Conversion of 6x6mm LFCSP Package Outlines from Punch to Sawn and Transfer of Assembly Site to Amkor Philippines
		PCN14_0177_Form Material_Report Detailed Change Description Package Outline Drawing Qualification Results Summary
ADV7180WBCPZ	PRODUCTION
ADV7180WBCPZ-REEL	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Device Drivers 1

ADV718x GitHub Linux Driver Source Code

Hardware Ecosystem

Parts	Product Life Cycle	Description
ADV7182A	RECOMMENDED FOR NEW DESIGNS	10-Bit, SDTV Video Decoder with Differential Inputs
ADV7280A	RECOMMENDED FOR NEW DESIGNS	10-Bit, 4× Oversampled SDTV Video Decoder with Deinterlacer
ADV7281A	RECOMMENDED FOR NEW DESIGNS	10-Bit, 4× Oversampled SDTV Video Decoder with Differential Inputs
ADV7282A	RECOMMENDED FOR NEW DESIGNS	10-Bit, 4× Oversampled SDTV Video Decoder with Differential Inputs
