ADV7280A

RECOMMENDED FOR NEW DESIGNS

10-Bit, 4× Oversampled SDTV Video Decoder with Deinterlacer

Data Sheet (Rev. A) Product Selection Table

Part Models: 6
1ku List Price: Starting From $5.20

Viewing:

Overview

Worldwide NTSC/PAL/SECAM color demodulation support
One 10-bit ADC, 4× oversampling per channel for CVBS, Y/C, and YPrPb modes
Analog video input channels with on-chip antialiasing filter
- ADV7280A: up to 4 input channels
- ADV7280A-M: up to 8 input channels
Video input support for CVBS (composite), S-Video (Y/C), and YPrPb (component)
NTSC/PAL/SECAM autodetection
Up to 1.47 V common-mode input range solution
Excellent common-mode noise rejection capabilities
5-line adaptive 2D comb filter and CTI video enhancement
Integrated AGC with adaptive peak white mode
Fast switching capability
Integrated I²P video output converter (deinterlacer)
ACE
Downdither (8-bit to 6-bit)
Rovi copy protection detection
MIPI CSI-2 output interface (ADV7280A-M)
8-bit ITU-R BT.656 YCrCb 4:2:2 output and HS, VS, or field synchronization (ADV7280A)
Full featured VBI data slicer with WST support
Power-down mode available
2-wire, I²C-compatible serial interface
Qualified for automotive applications
−40°C to +105°C temperature grade
32-lead, 5 mm × 5 mm, RoHS compliant LFCSP

The ADV7280A has the same pinout as and is software compati-ble with the ADV7280. The mobile industry processor interface (MIPI^®) model of the ADV7280A (ADV7280A-M) has the same pinout and is software compatible with the ADV7280-M.

All features, functionality, and specifications are shared by the ADV7280A and the ADV7280A-M, unless otherwise noted.

The ADV7280A is a versatile one-chip, multiformat video decoder that automatically detects standard analog baseband video signals and converts them into YCrCb 4:2:2 component video data streams.

The analog input of the ADV7280A is designed for single-ended input video signals. It features an input mux (4-channel on ADV7280A, 8-channel on ADV7280A-M) and a single 10-bit analog-to-digital converter (ADC).

The standard definition processor (SDP) in the ADV7280A automatically detects PAL, NTSC and SECAM standards in the form of composite, S-Video (Y/C) and component. The analog video is converted into a 4:2:2 component video data stream that is output either via an 8-bit ITU-R BT.656 standard compatible interface (ADV7280A) or via a MIPI CSI-2 Tx (hereafter referred to as MIPI Tx) interface (ADV7280A-M). The ADV7280A also features a deinterlacer for interlaced to progressive (I²P) conversion.

The ADV7280A is provided in a space-saving LFCSP surface-mount, RoHS compliant package. The ADV7280A is offered in an automotive grade rated over the −40°C to +105°C temperature range, as well as a −40°C to +85°C temperature range, making the device ideal for automotive, industrial, and consumer applications.

The ADV7280A must be configured in accordance with the I²C writes provided in the evaluation board script files.

Applications

Advanced driver assistance
Automotive infotainment
DVRs for video security
Media players

Part Models: 6
1ku List Price: Starting From $5.20

Documentation

Data Sheet 1

ADV7280A: 10-Bit, 4× Oversampled SDTV Video Decoder with Deinterlacer Data Sheet (Rev.A) 09/20/2017

User Guide 3

UG-1176: ADV7280A/ADV7281A/ADV7282A Functionality and Features (Rev.A) 09/19/2017

UG-1179: Evaluation Board for the ADV7280A-M 10-Bit, 4× Oversampled SDTV Video Decoder with Deinterlacer (Rev.0) 09/20/2017

UG-1178: Evaluation Board for the ADV7280A 10-Bit, 4× Oversampled SDTV Video Decoder with Deinterlacer (Rev.0) 09/20/2017

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADV7280ABCPZ-M	32-Lead LFCSP (5mm x 5mm x 0.75mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADV7280ABCPZ-M-RL	32-Lead LFCSP (5mm x 5mm x 0.75mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADV7280AWBCPZ	32-Lead LFCSP (5mm x 5mm x 0.75mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADV7280AWBCPZ-M	32-Lead LFCSP (5mm x 5mm x 0.75mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADV7280AWBCPZ-M-RL	32-Lead LFCSP (5mm x 5mm x 0.75mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADV7280AWBCPZ-RL	32-Lead LFCSP (5mm x 5mm x 0.75mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Tools & Simulations

IBIS Model 3

Design Tool 3

Evaluation Kits

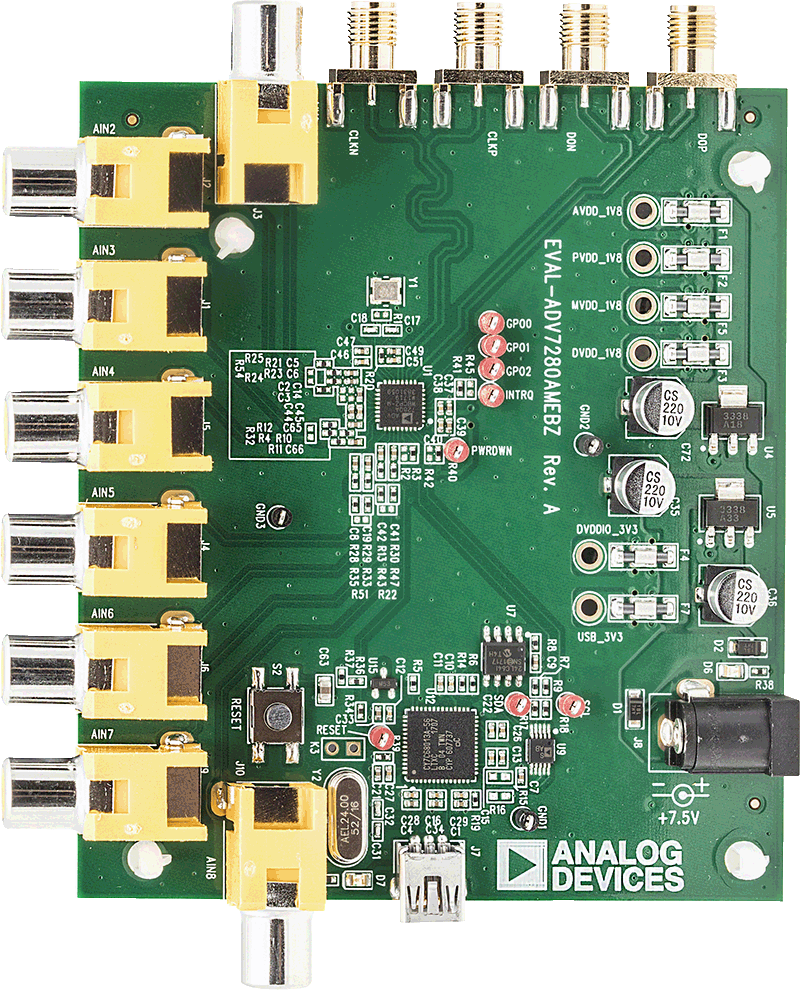

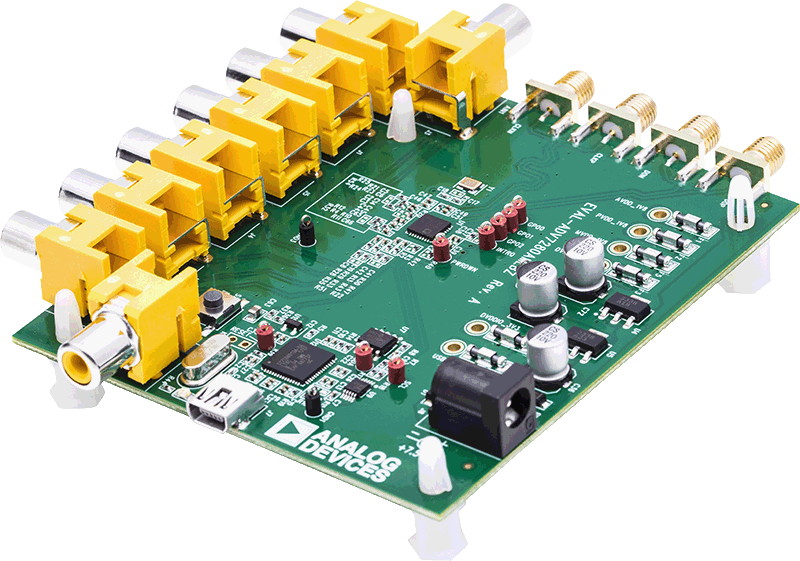

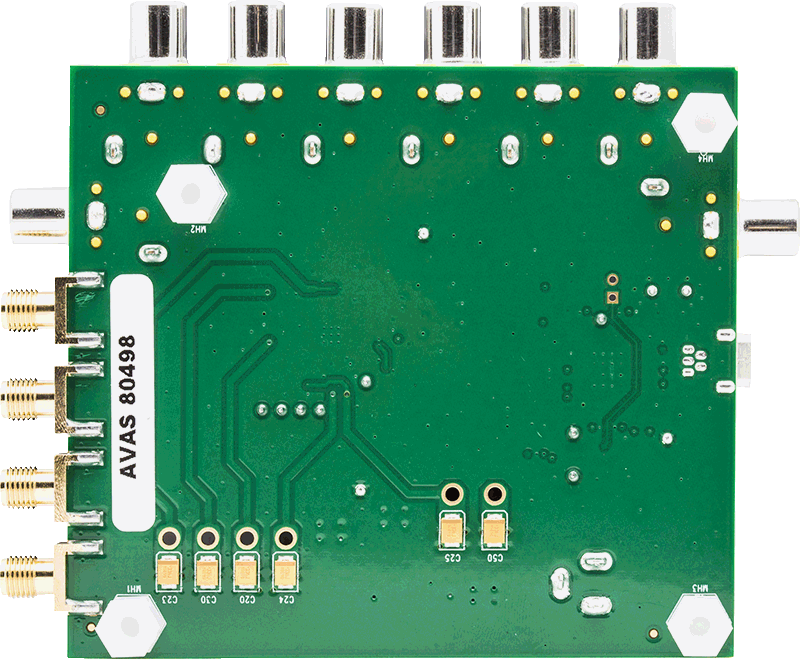

ADV7280A-M Evaluation Board

Buy Now View Details

Features and Benefits

Eight video input ports capable of accepting any of the following formats: single-ended CVBS, S-video (Y/C), and component (YPbPr)
MIPI CSI-2 Tx output

Product Details

The EVAL-ADV7280AMEBZ evaluation kit is the platform provided by Analog Devices, Inc., to evaluate the ADV7280A-M video decoder. The EVAL-ADV7280AMEBZ evaluation kit contains an EVAL-ADV7280AMEBZ evaluation board and all of its necessary peripherals.

This user guide provides a detailed overview of the EVAL- ADV7280AMEBZ evaluation board hardware and the software required to use it.

The ADV7280A data sheet and the ADV7280A/ADV7281A/ADV7282A Device Manual should be consulted in conjunction with this user guide when using the EVAL-ADV7280AMEBZ evaluation board.

EngineerZone can be accessed to find additional information about the ADV7280A-M.

Resources

UG-1176: ADV7280A/ADV7281A/ADV7282A Functionality and Features (Rev.A)
9/19/2017

UG-1179: Evaluation Board for the ADV7280A-M 10-Bit, 4× Oversampled SDTV Video Decoder with Deinterlacer (Rev.0)
9/20/2017

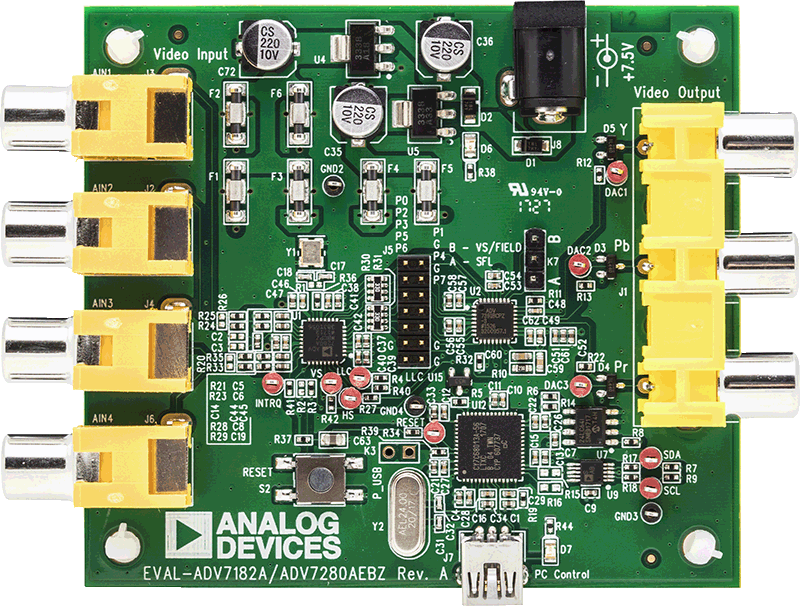

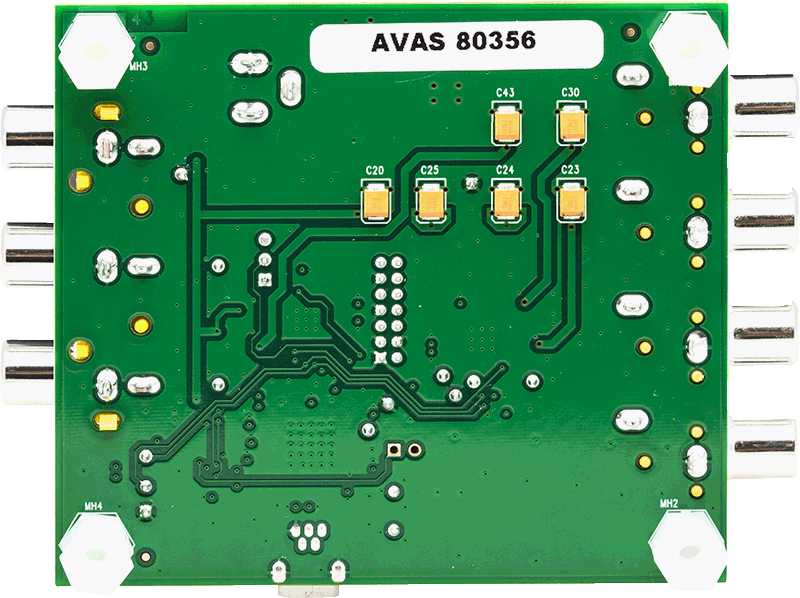

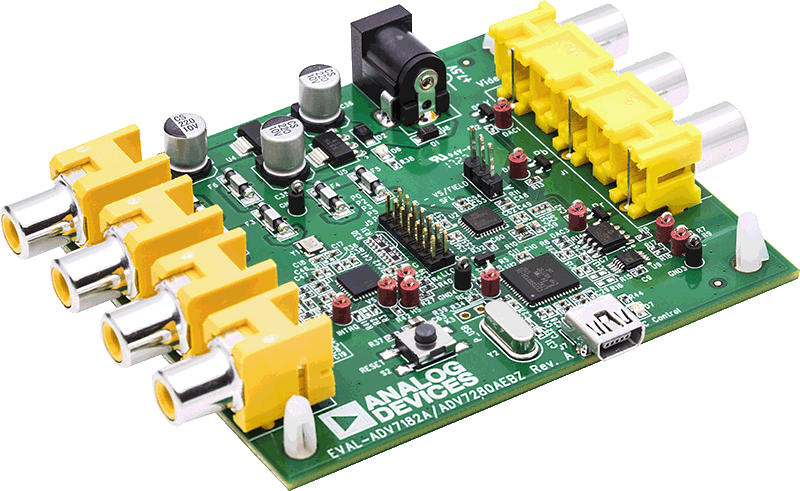

ADV7280A Evaluation Board

Buy Now View Details

Features and Benefits

Four video input ports capable of accepting any of the following formats: single-ended CVBS, S-video (Y/C), and component (YPbPr)
Digital (ITU-R BT.656) and YPbPr outputs

Product Details

The EVAL-ADV7280AEBZ evaluation kit is the platform provided by Analog Devices, Inc., to evaluate the ADV7280A video decoder. The EVAL-ADV7280AEBZ evaluation kit contains an EVAL-ADV7280AEBZ evaluation board and all of its necessary peripherals.

This user guide provides a detailed overview of the EVAL-ADV7280AEBZ evaluation board hardware and the software required to use it.

The ADV7280A data sheet and the ADV7280A/ADV7281A/ADV7282A Device Manual should be consulted in conjunction with this user guide when using the EVAL-ADV7280AEBZ evaluation board.

EngineerZone can be accessed to find additional information about the ADV7280A.
