ADV7282A

10-Bit, 4× Oversampled SDTV Video Decoder with Differential Inputs

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Viewing: Part Details
arrow-icon
Part Details

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.A)
Documentation View All Documentation
Design Tool ADV7182A/ADV728xA Resistor Tool Download 2.99 MB IBIS Model ADV7282A-M Differential Interface IBIS Model Download 851.34 KB IBIS Model ADV7282A IBIS Model Download 798.97 KB IBIS Model ADV7282A-M IBIS Model Download 799.1 KB Design Tool ADV7282A Evaluation Board Script Files Download 16.15 KB Design Tool ADV7282A-M Evaluation Board Script Files Download 19.29 KB
Part Models 4
1ku List Price Starting From $7.06
Features
  • Worldwide NTSC/PAL/SECAM color demodulation support
  • One 10-bit ADC, 4× oversampling per channel for CVBS, Y/C, and YPrPb modes
  • Analog video input channels with on-chip antialiasing filter
    • ADV7282A: up to 4 input channels
    • ADV7282A-M: up to 6 input channels
  • Video input support for CVBS (composite), S-Video (Y/C), and YPrPb (component)
  • Fully differential, pseudo differential, and single-ended CVBS video input support
  • NTSC/PAL/SECAM autodetection
  • STB diagnostics on 2 video inputs
  • Up to 4 V common-mode input range solution
  • Excellent common-mode noise rejection capabilities
  • 5-line adaptive 2D comb filter and CTI video enhancement
  • Integrated AGC with adaptive peak white mode
  • Fast switching capability
  • Integrated I2P video output converter (deinterlacer)
  • ACE
  • Downdither (8-bit to 6-bit)
  • Rovi copy protection detection
  • 8-bit ITU-R BT.656 YCrCb 4:2:2 output and HS, VS, or field synchronization (ADV7282A)
  • MIPI CSI-2 output interface (ADV7282A-M only)
  • Full featured VBI data slicer with WST support
  • Power-down mode available
  • 2-wire, I2C-compatible serial interface
  • Qualified for automotive applications
  • −40°C to +105°C temperature grade
  • 32-lead, 5 mm × 5 mm, RoHS compliant LFCSP
Additional Details
show more Icon

The ADV7282A has the same pinout as and is software compatible with the ADV7282. The mobile industry processor interface (MIPI®) model of the ADV7282A (ADV7282A-M) has the same pinout as and is software compatible with the ADV7282-M.

All features, functionality, and specifications are shared by the ADV7282A and the ADV7282A-M, unless otherwise noted.

The ADV7282A is a versatile one-chip, multiformat video decoder that automatically detects standard analog baseband video signals and converts them into YCrCb 4:2:2 component video data streams.

The analog input of the ADV7282A features an input mux (4-channel on ADV7282A, 6-channel on ADV7282A-M), a single 10-bit analog-to-digital converter (ADC) and an on-chip differential to single-ended converter to accommodate the direct connection of differential, pseudo differential, or single-ended CVBS without the need for external amplifier circuitry.

The standard definition processor (SDP) in the ADV7282A automatically detects PAL, NTSC and SECAM standards in the form of composite, S-Video (Y/C) and component. The analog video is converted into a 4:2:2 component video data stream that is output either via an 8-bit ITU-R BT.656 standard-compatible interface (ADV7282A) or via a MIPI CSI-2 Tx (hereafter referred to as MIPI Tx) interface (ADV7282A-M). The ADV7282A also feature a deinterlacer for interlaced to progressive (I2P) conversion.

The ADV7282A offers short to battery (STB) diagnostic sense inputs and general-purpose outputs.

The ADV7282A is provided in a space-saving LFCSP surface-mount, RoHS compliant package. The ADV7282A is rated over the −40°C to +105°C temperature range, making it ideal for automotive applications.

The ADV7282A must be configured in accordance with the I2C writes provided in the evaluation board script files.

Applications

  • Advanced driver assistance
  • Automotive infotainment
  • DVRs for video security
  • Media players
Show More Arrow image
file View Data Sheet (Rev.A)
Documentation View All Documentation
Design Tool ADV7182A/ADV728xA Resistor Tool (Rev.A) Download 2.99 MB IBIS Model ADV7282A-M Differential Interface IBIS Model Download 851.34 KB IBIS Model ADV7282A IBIS Model Download 798.97 KB IBIS Model ADV7282A-M IBIS Model Download 799.1 KB Design Tool ADV7282A Evaluation Board Script Files Download 16.15 KB Design Tool ADV7282A-M Evaluation Board Script Files Download 19.29 KB
Part Models 4
1ku List Price Starting From $7.06
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

ADV7282A

Documentation

4
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • User Guide
  • Data Sheet
  • All
    TickIcon
  • English
resetfilter

Reset Filters

Data Sheet

1

PDF Vector

PDF

UPDATED 09/20/2017
English

ADV7282A: 10-Bit, 4× Oversampled SDTV Video Decoder with Differential Inputs Data Sheet (Rev.A)

Open PDF File

redirect
564.65 K
download

Download PDF

User Guide

3

PDF Vector

PDF

UPDATED 09/20/2017
English
UG-1174: Evaluation Board for the ADV7282A 10-Bit, 4× Oversampled SDTV Video Decoder with Differential Inputs and Deinterlacer (Rev.0) redirect icon

709.13 K

download

Download PDF

PDF Vector

PDF

UPDATED 09/20/2017
English
UG-1175: Evaluation Board for the ADV7282A-M 10-Bit, 4× Oversampled SDTV Video Decoder with Differential Inputs (Rev.0) redirect icon

528.04 K

download

Download PDF

PDF Vector

PDF

UPDATED 09/19/2017
English
UG-1176: ADV7280A/ADV7281A/ADV7282A Functionality and Features (Rev.A) redirect icon

1.43 M

download

Download PDF

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon
Documentation

Documentation

Technical Documents 4
show more Icon

Data Sheet 1

ADV7282A: 10-Bit, 4× Oversampled SDTV Video Decoder with Differential Inputs Data Sheet (Rev.A)

User Guide 3

UG-1174: Evaluation Board for the ADV7282A 10-Bit, 4× Oversampled SDTV Video Decoder with Differential Inputs and Deinterlacer (Rev.0)
UG-1175: Evaluation Board for the ADV7282A-M 10-Bit, 4× Oversampled SDTV Video Decoder with Differential Inputs (Rev.0)
UG-1176: ADV7280A/ADV7281A/ADV7282A Functionality and Features (Rev.A)

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
ADV7282AWBCPZ 32-Lead LFCSP (5mm x 5mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
ADV7282AWBCPZ-M 32-Lead LFCSP (5mm x 5mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
ADV7282AWBCPZ-M-RL 32-Lead LFCSP (5mm x 5mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
ADV7282AWBCPZ-RL 32-Lead LFCSP (5mm x 5mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 2

reference details image

EVAL-ADV7282A-M

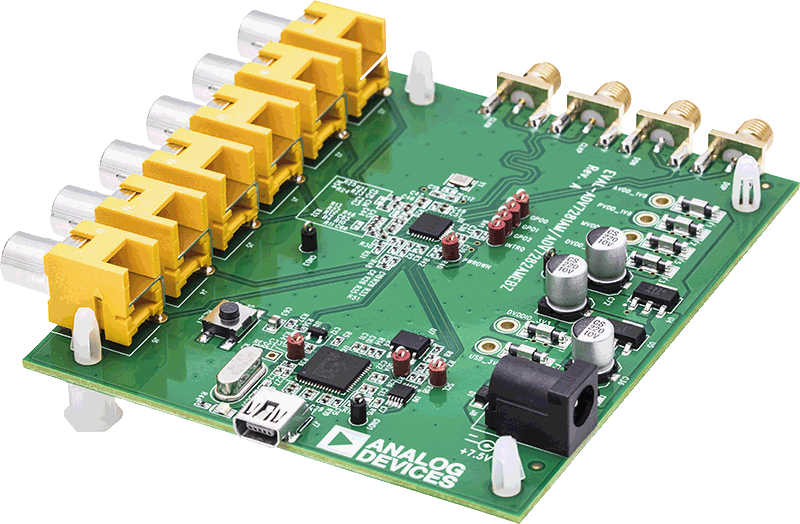

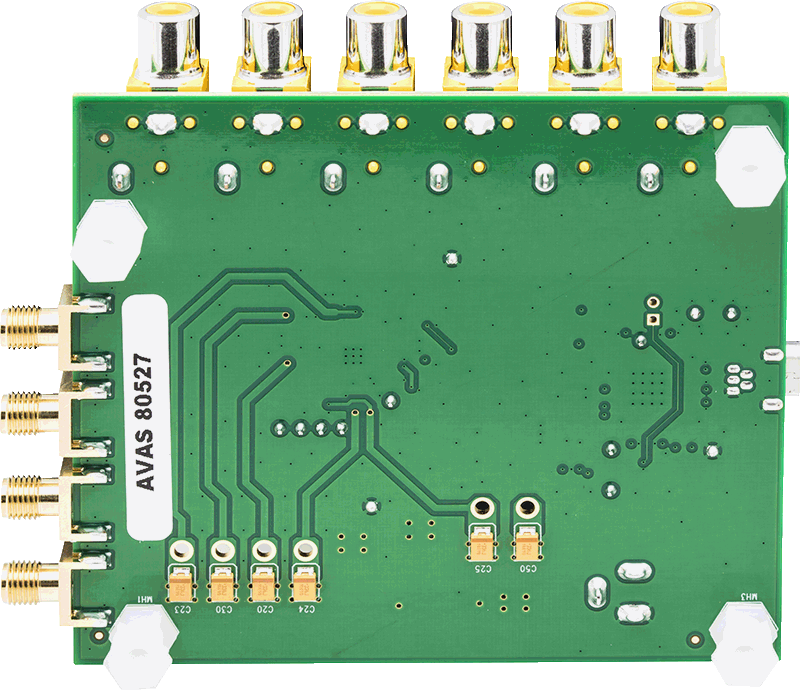

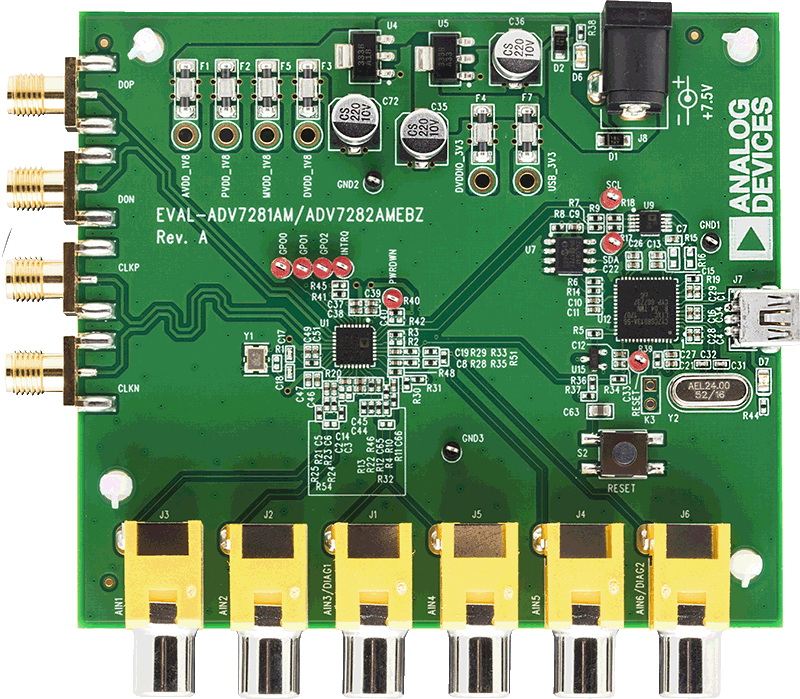

ADV7282A-M Evaluation Board

zoom

EVAL-ADV7282A-M

ADV7282A-M Evaluation Board

download icon

Download

 print icon

Print
EVAL-ADV7282A-M
ADV7282A-M Evaluation Board

Features and Benefits

  • Six video input ports capable of accepting any of the following formats: single-ended CVBS, differential CVBS, S-Video (Y/C), and component (YPbPr)
  • MIPI CSI-2 Tx output
Buy Now View Details

Product Detail

The EVAL-ADV7282AMEBZ evaluation kit is the platform provided by Analog Devices, Inc., to evaluate the ADV7282A-M video decoder. The EVAL-ADV7282AMEBZ evaluation kit contains an EVAL-ADV7282AMEBZ evaluation board and all of its necessary peripherals.

This user guide provides a detailed overview of the EVAL-ADV7282AMEBZ evaluation board hardware and the software required to use it.

The ADV7282A-M data sheet and the ADV7280A/ADV7281A/ ADV7282A Device Manual should be consulted in conjunction with this user guide when using the EVAL-ADV7282AMEBZ evaluation board.

EngineerZone can be accessed to find additional information about the ADV7282A-M.

Resources

pdf icon

PDF

UG-1176: ADV7280A/ADV7281A/ADV7282A Functionality and Features (Rev.A) Download

1.43 M

pdf icon

PDF

UG-1175: Evaluation Board for the ADV7282A-M 10-Bit, 4× Oversampled SDTV Video Decoder with Differential Inputs (Rev.0) Download

528.04 K

Show More Arrow image
reference details image

EVAL-ADV7282A

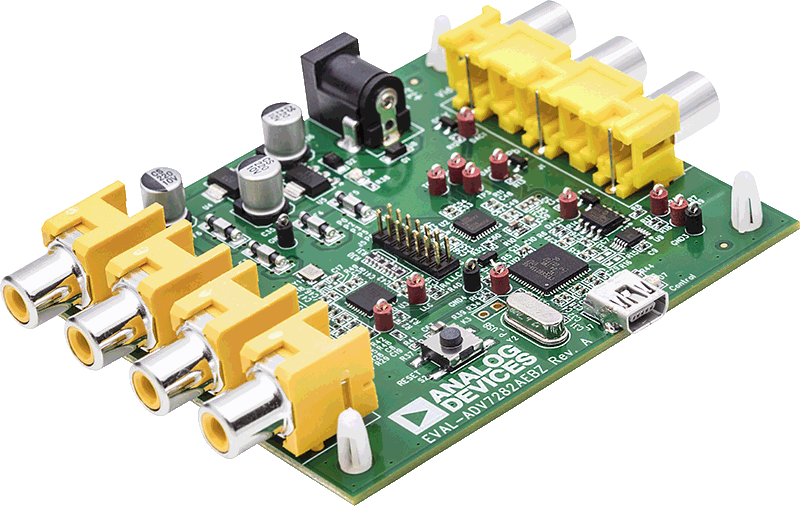

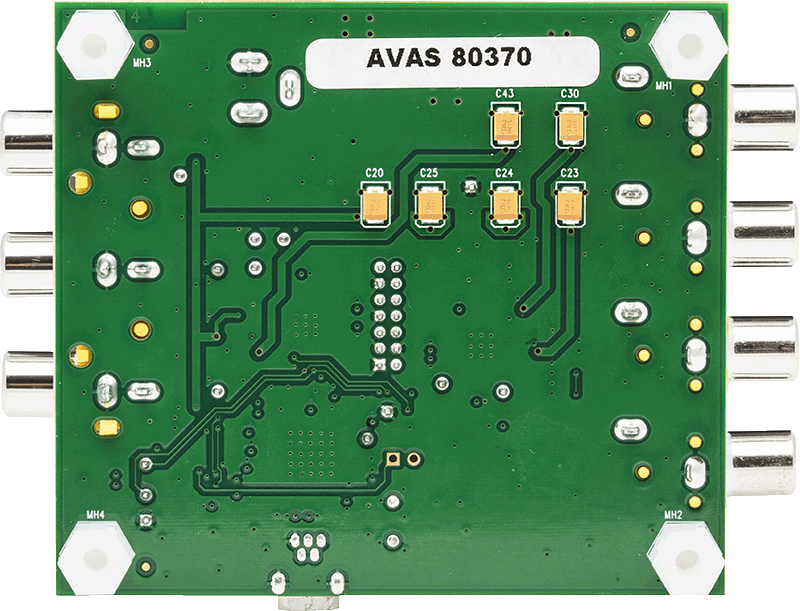

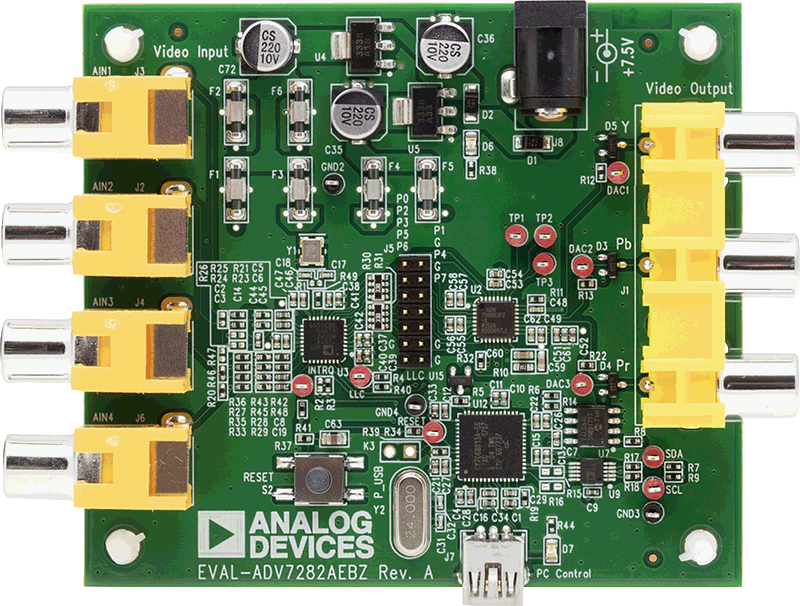

ADV7282A Evaluation Board

zoom

EVAL-ADV7282A

ADV7282A Evaluation Board

download icon

Download

 print icon

Print
EVAL-ADV7282A
ADV7282A Evaluation Board

Features and Benefits

  • Four video input ports capable of accepting any of the following formats: single-ended CVBS, S-video (Y/C), and component (YPbPr)
  • Digital (ITU-R BT.656) and YPbPr outputs
Buy Now View Details

Product Detail

The EVAL-ADV7282AEBZ evaluation kit is the platform provided by Analog Devices, Inc., to evaluate the ADV7282A video decoder. The EVAL-ADV7282AEBZ evaluation kit contains an EVAL-ADV7282AEBZ evaluation board and all of its necessary peripherals.

This user guide provides a detailed overview of the EVAL-ADV7282AEBZ evaluation board hardware and the software required to use it.

The ADV7282A data sheet and the ADV7280A/ADV7281A/ ADV7282A Device Manual should be consulted in conjunction with this user guide when using the EVAL-ADV7282AEBZ evaluation board.

EngineerZone can be accessed to find additional information about the ADV7282A.

Resources

pdf icon

PDF

UG-1176: ADV7280A/ADV7281A/ADV7282A Functionality and Features (Rev.A) Download

1.43 M

pdf icon

PDF

UG-1174: Evaluation Board for the ADV7282A 10-Bit, 4× Oversampled SDTV Video Decoder with Differential Inputs and Deinterlacer (Rev.0) Download

709.13 K

Show More Arrow image

Evaluation Kits2

evaluation kit item images

EVAL-ADV7282A-M

ADV7282A-M Evaluation Board
evaluation kit item images

EVAL-ADV7282A

ADV7282A Evaluation Board
