The ADRF5051 is a nonreflective SP4T switch manufactured in a
silicon on insulator (SOI) process.
The ADRF5051 operates from 9kHz to 20GHz with an insertion
loss of lower than 1.20dB and an isolation higher than 47dB. The
device has RF input power handling capability of 33dBm through
path, 18dBm terminated path, and 30dBm hot switching at the RF
common (RFC) port.
The ADRF5051 operates with a dual-supply voltage +3.3V and
−3.3V. The device can also operate with a single positive supply
voltage (VDD) applied while the negative supply pin (VSS) is tied to
ground. In this operating condition, the small signal performance is
maintained while the switching characteristics, linearity, and power
handling performance are derated, see Table 2 in data sheet.
The ADRF5051 employs complimentary metal-oxide semiconductor
(CMOS)- and low voltage transistor to transistor logic (LVTTL)-compatible
controls.

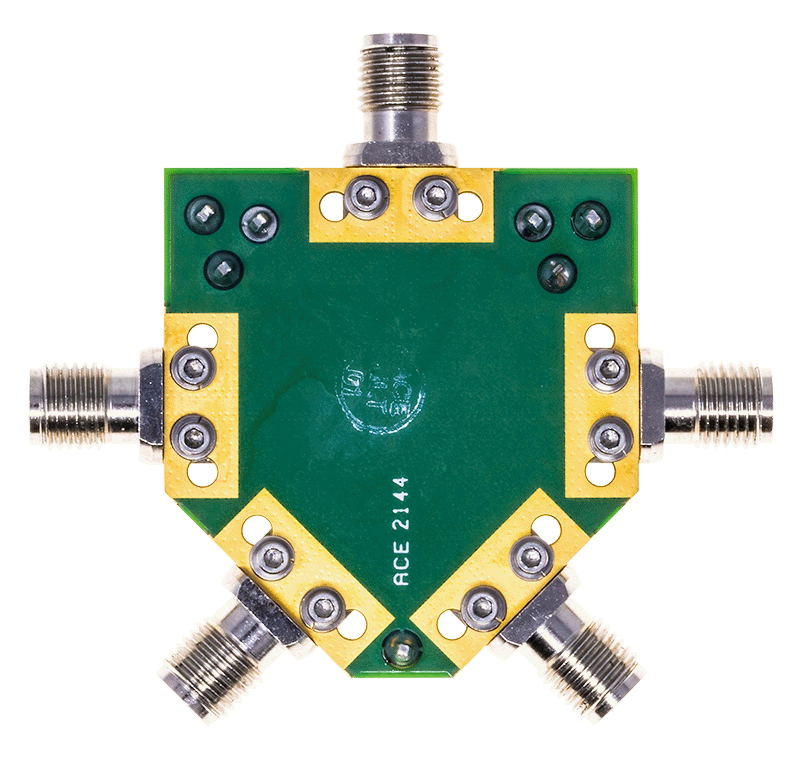

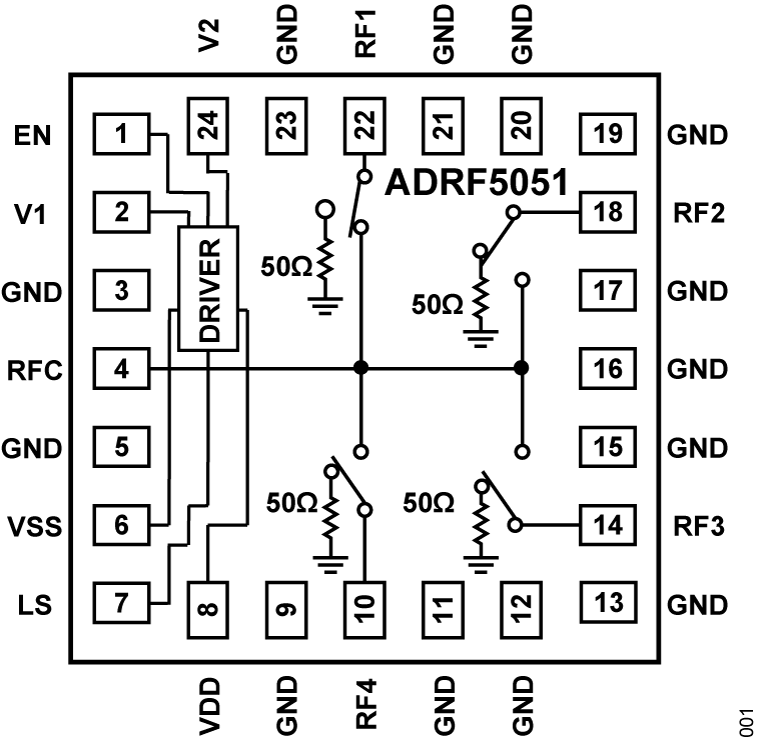

The device has enable (EN) and logic select (LS) controls. Pulling
the EN pin to high activates an all-off state while pulling the LS pin
high inverts the throw port selection logic, allowing ease of use for
a back-to-back application. See the Theory of Operation section,
Table 7 in data sheet, and the Back-to-Back Application section for additional
information.
The ADRF5051 is pin compatible with the ADRF5042 and
ADRF5043, ADRF5048, ADRF5049, and ADRF5050.

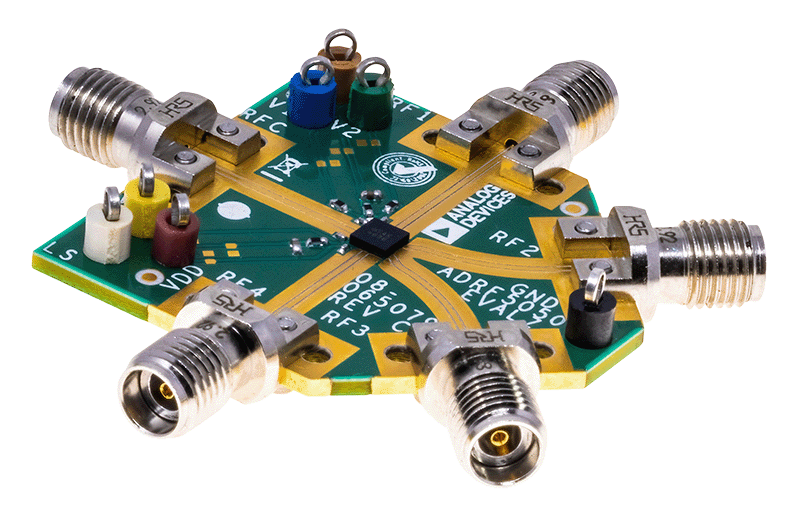

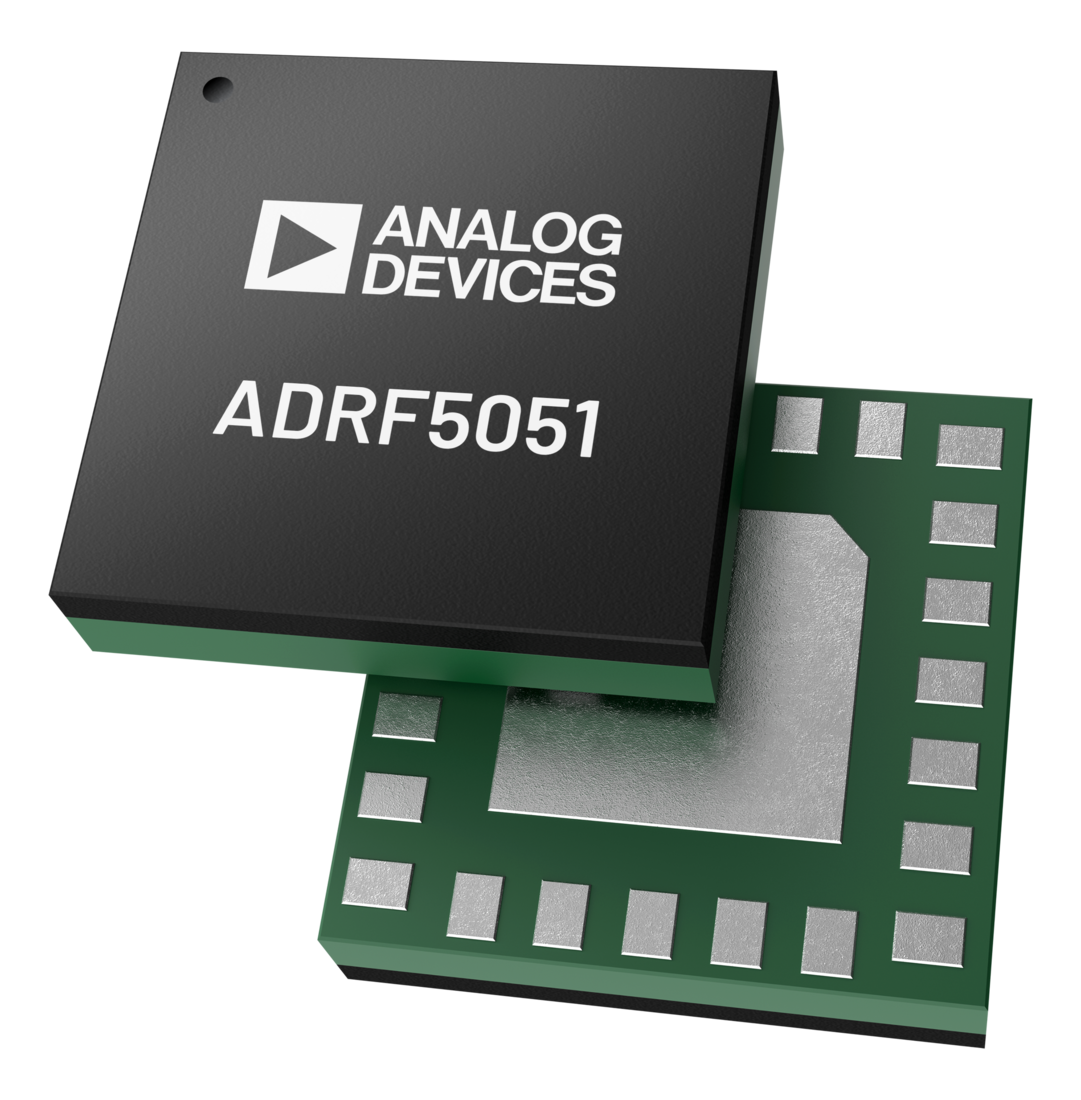

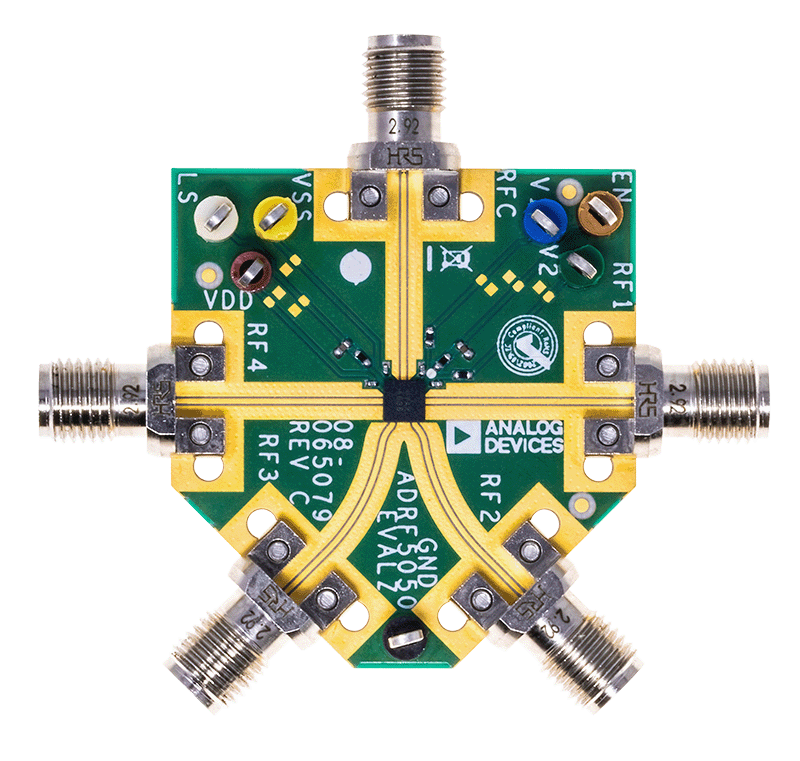

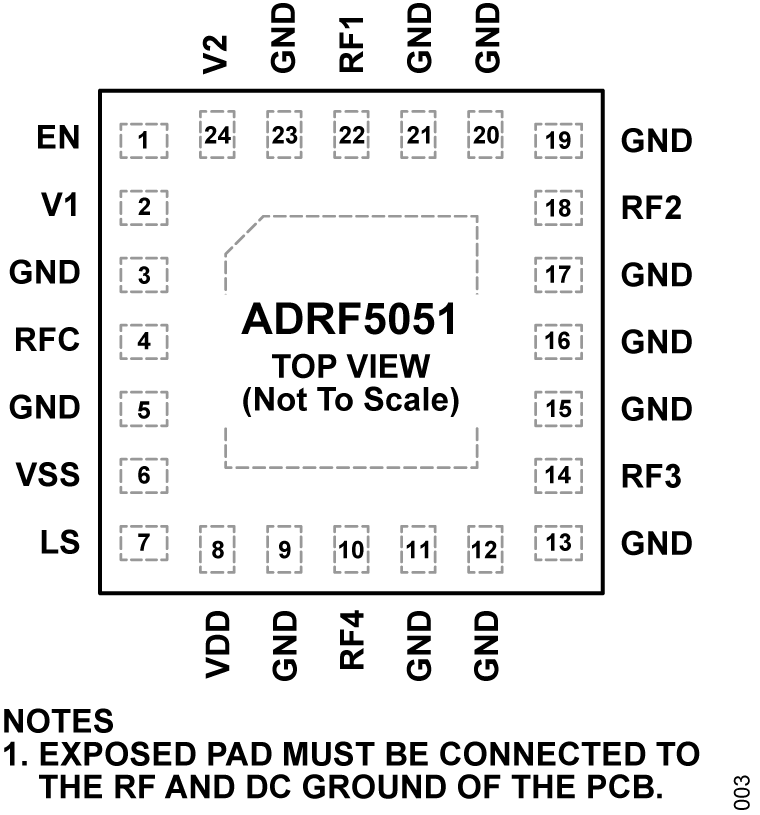

The ADRF5051 comes in a 24-terminal, 3 mm × 3 mm, RoHS
compliant, land grid array (LGA) package and can operate from
−40°C to +105°C.
APPLICATIONS
- Test instrumentation
- Military radios, radars, and electronic counter measures (ECMs)
- Microwave radios and very small aperture terminals (VSATs)
