ADRF5043: Silicon SP4T Switch Non-Reflective, 9 kHz to 44 GHz Datasheet (Rev. A)2/16/2022PDF445 K
Overview
Features and Benefits
- Ultrawideband frequency range: 9 kHz to 44 GHz
- Nonreflective 50 Ω design
- Low insertion loss:
- 1.5 dB at 18 GHz
- 2.4 dB at 40 GHz
- 2.5 dB at 44 GHz
- High isolation:
- 44 dB at 18 GHz
- 39 dB at 40 GHz
- 36 dB at 44 GHz
- High input linearity:
- P0.1dB: 26 dBm typical
- IP3: 48 dBm typical
- High power handling
- 24 dBm through path
- 24 dBm terminated path
- All off state control
- Logic select control
- No low frequency spurs
- Settling time (0.1 dB final RF output): 6 μs
- 24-terminal, 3 mm × 3 mm LGA package
- Pin compatible with ADRF5042, fast switching version
Product Details
The ADRF5043 is a nonreflective, SP4T switch manufactured in the silicon on insulator (SOI) process.
The ADRF5043 operates from 9 kHz to 44 GHz with an insertion loss of lower than 2.5 dB and an isolation of higher than 36 dB. The device has a RF input power handling capability of 24 dBm for both through and terminated paths.
The ADRF5043 requires a dual-supply voltage of +3.3 V and −3.3 V. The device employs CMOS- and low voltage transistor to transistor logic (LVTTL)-compatible controls.
The ADRF5043 has enable and logic select controls to feature all off state and port mirroring, respectively.
The ADRF5043 is pin compatible with the ADRF5042 fast switching version, which operates from 100 MHz to 44 GHz.
The ADRF5043 comes in a 24-terminal, 3 mm × 3 mm, RoHS compliant, land grid array (LGA) package and can operate from −40°C to +105°C.
Applications
- Industrial Scanners
- Test instrumentation
- Cellular infrastructure—millimeterwave (mmWave) 5G
- Military radios, radars, electronic counter measures (ECMs)
- Microwave radios and very small aperture terminals (VSATs)
Product Categories
Product Lifecycle
Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

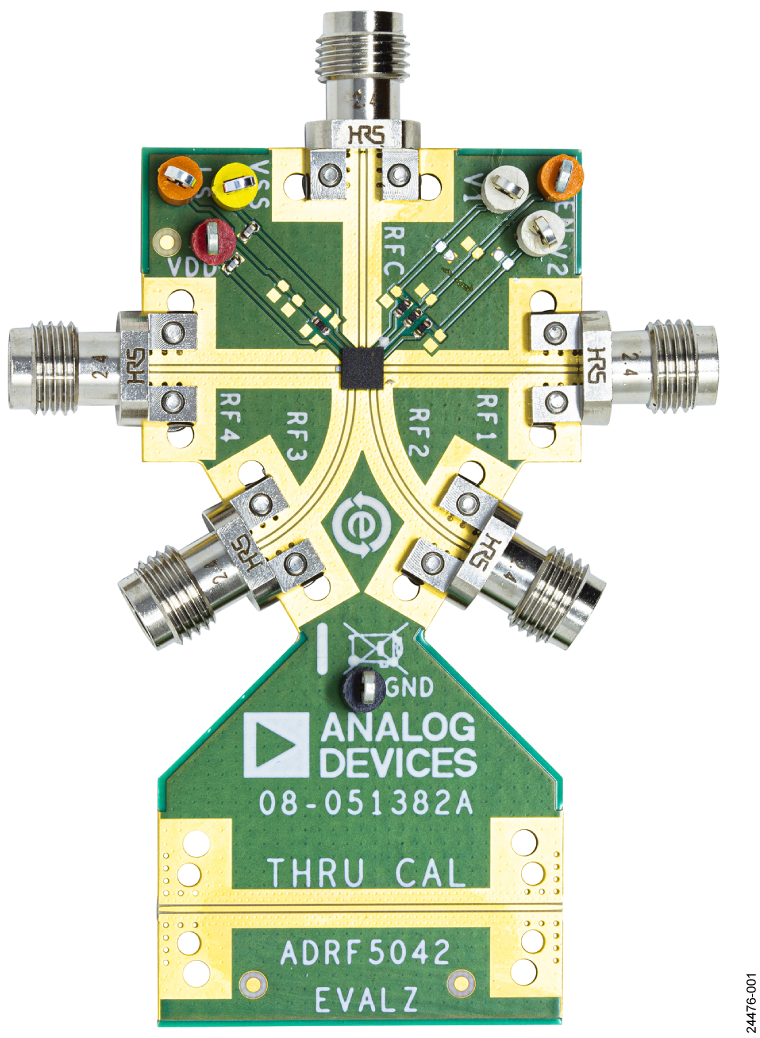

Evaluation Kits (1)
