ADRF5048

RECOMMENDED FOR NEW DESIGNS

Silicon SP4T Switch, Nonreflective, 100 MHz to 45 GHz

Data Sheet (Rev. B) Product Selection Table
Viewing:

Overview

  • Ultrawideband frequency range: 100 MHz to 45 GHz
  • Nonreflective 50 Ω design
  • Low insertion loss
    • 1.4 dB at 18 GHz typical
    • 2.4 dB at 40 GHz typical
    • 4.0 dB to 45 GHz typical
  • High isolation
    • 41 dB at 18 GHz typical
    • 35 dB at 40 GHz typical
    • 35 dB at 45 GHz typical
  • High input linearity
    • P0.1dB: >30 dBm typical
    • IP3: 52 dBm typical
  • High power handling
    • 30 dBm through path
    • 18 dbm terminated path
  • No low frequency spurious
  • ESD ratings
    • HBM
      • ±1000 V for RFx pins
      • ±2000 V for supply and digital control pins
    • CDM: ±500 V for all pins
  • On and off time (50% VCTRL to 90% of final RFout): 20 ns
  • RF settling time (50% VCTRL to 0.1 dB of final RFout): 60 ns
  • 3 mm x 3 mm, 24-terminal LGA package
  • Pin compatible with the ADRF5049, ADRF5042 and ADRF5043

The ADRF5048 is a nonreflective SP4T switch manufactured in the silicon on insulator (SOI) process.

This device operates from 100 MHz to 45 GHz with an insertion loss lower than 4.0 dB and isolation higher than 35 dB. The ADRF5048 has an RF input power handling capability of 30 dBm through path, 18 dBm terminated path, and 30 dBm hot switching at the RF common port.

The ADRF5048 requires a dual-supply voltage of +3.3 V and −3.3 V. The device employs complimentary metal-oxide semiconductor (CMOS)-/low-voltage transistor to transistor logic (LVTTL) logic-compatible controls.

The ADRF5048 has enable and logic select controls to feature all off state and mirror port selection, respectively.

The ADRF5048 is pin compatible with the ADRF5049, ADRF5042 and ADRF5043.

The ADRF5048 comes in a 24-terminal, 3 mm × 3 mm, RoHS compliant, land grid array (LGA) package and can operate from −40°C to +105°C.

APPLICATIONS

  • Industrial scanners
  • Test instrumentation
  • Cellular infrastructure—mmWave 5G
  • Military radios, radars, and electronic counter measures (ECMs)
  • Microwave radios and very small aperture terminals (VSATs)

    •
    ADRF5048
    Silicon SP4T Switch, Nonreflective, 100 MHz to 45 GHz

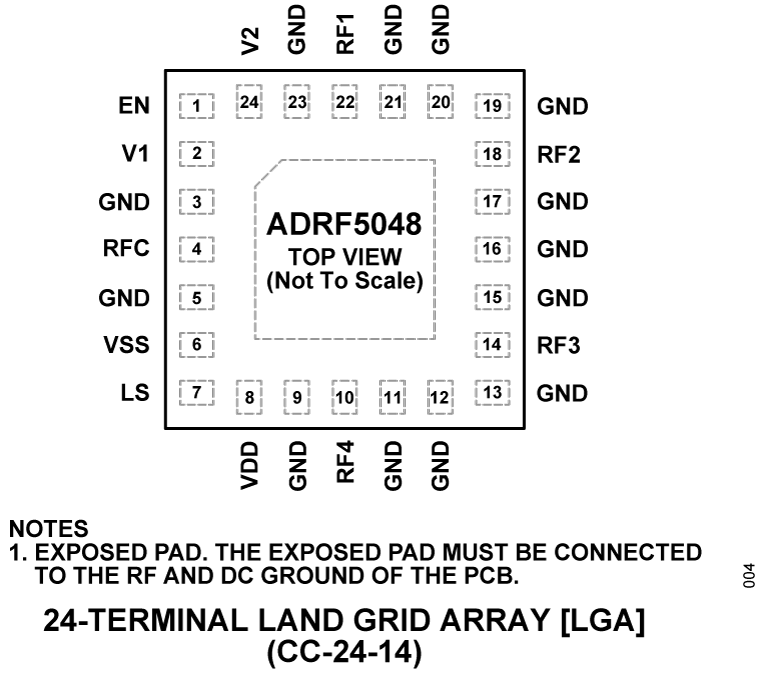

    ADRF5048 - Functional Block Diagram ADRF5048 - Pin Configuration
    Add to myAnalog

    Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

    Create New Project
    Ask a Question

    Documentation

    Data Sheet 1

    User Guide 1

    Application Note 1

    Learn More
    Add to myAnalog

    Add media to the Resources section of myAnalog, to an existing project or to a new project.

    Create New Project

    Software Resources

    Can't find the software or driver you need?

    Request a Driver/Software

    Tools & Simulations

    S-Parameter 1

    Evaluation Kits

    eval board
    schematic 1
    schematic 2
    schematic 3
    EVAL-ADRF5048

    Evaluating the ADRF5048, Silicon SP4T Switch, Nonreflective, 100 MHz to 45 GHz

    Buy Now View Details

    Features and Benefits

  • Full featured evaluation board for the ADRF5048
  • Simple connection to test equipment
  • Thru line for calibration

    • Product Details

    The ADRF5048 is a SP4T, nonreflective switch manufactured in the silicon process.

    The user guide describes the ADRF5048-EVALZ evaluation board, which was designed to simply evaluate the features and performance of the ADRF5048. A photograph of the evaluation board is shown in Figure 1 in the user guide.

    Note that the ADRF5048 IC is populated on the ADRF5042 bare evaluation board. However, the whole assembly is the ADRF5048- EVALZ.

    The ADRF5048 data sheet provides full specifications for the ADRF5048. Consult the ADRF5048 data sheet in conjunction with the user guide when using the ADRF5048-EVALZ.
    EVAL-ADRF5048
    Evaluating the ADRF5048, Silicon SP4T Switch, Nonreflective, 100 MHz to 45 GHz
    EVAL-ADRF5049 - Angle EVAL-ADRF5049 - Top EVAL-ADRF5049 - Bottom
